Thermal Block™ - Heat Shield

Availability:
This product ships in 1 business day
$32.99

DESCRIPTION

Second Skin’s Acoustic Pro Wall and Ceiling Panels are designed to solve your acoustical needs while enhancing the aesthetic look of your space. With a variety of options to choose from including sizes, shapes and colors it is easy to create the perfect solution for your reverberation sound problems. Acoustic Pro Wall & Ceiling Panels provide the ultimate in acoustical performance with excellent NRC ratings as high as 1.15. They are available in two standard thicknesses: 1” and 2”. The panels are constructed with a 6-7# PCF rigid fiberglass absorber core. The panel edges are chemically hardened and are available in a square edge profile.

DOWNLOAD SPEC SHEET

FEATURES

  • • High-quality, economical, multi-purpose panels
  • • Excellent acoustical performance
  • • Class A fire rated
  • • Custom sizes and shapes

FEATURES

  • • Schools / Universities
  • • Auditoriums
  • • Houses of Worship
  • • Office Spaces
  • • Theaters / Studios
  • • Multi-Purpose Rooms
  • • Conference Rooms

FINISHES & COLORS

Second Skin Acoustic Pro Wall & Ceiling Panels are available in Guilford Anchorage 2335 in a variety of colors: colors for acoustic panels including birch, fossil, asteroid, onyx, red delicious, sunshine, green apple, lapis colors for acoustic panels including birch, fossil, asteroid, onyx, red delicious, sunshine, green apple, lapis DOWNLOAD COLOR CHART

SHAPES & SIZES

shapes including square, rectangle, plank, circle, hexagon and triangle shapes including square, rectangle, plank, circle, hexagon and triangle DOWNLOAD SHAPE DRAWINGS

MOUNTING HARDWARE

rotofast anchors
ROTOFAST ANCHORS Included with Your Order
impaling clip
IMPALING CLIP
DOWNLOAD MOUNTING DETAIL

EDGE DETAIL

edge detail
SQUARE

ACOUSTICAL DATA

FREQ. (HZ) 1" PANELS 2" PANELS
125 0.14 0.22
250 0.27 0.81
500 0.80 1.24
1000 1.11 1.30
2000 1.14 1.21
4000 1.14 1.16
NRC 0.85 1.15

SUMMARY

Download our full spec sheet below: DOWNLOAD SPEC SHEET

Thermal Block: 12" x 24" Heat Shield

Thermal Block is currently out of stock. We do have sheets of B Stock available for purchase in BULK. Please check them out here: Heat Shield B-Stock

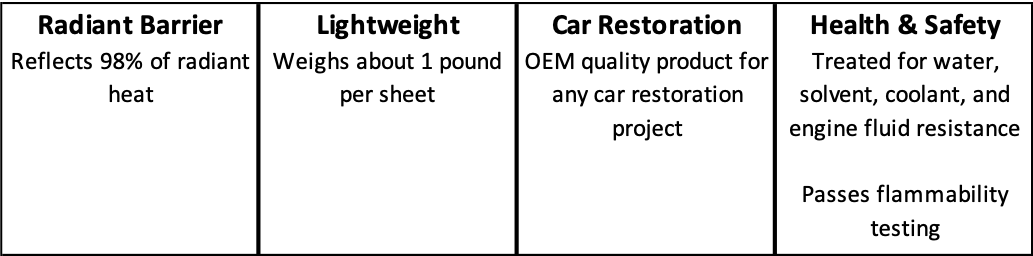

Does your newly restored vehicle send heat through the firewall and floorboards once the engine gets going? Keep engine and exhaust heat away from the vehicle’s cabin with an OEM approved heat shield. Thermal Block strips are very flexible and can withstand up to 800 F. Composed of highly reflective foil and insulating hydrophobic melamine foam, just face the foil side towards any heat source to redirect radiant heat and substantially reduce heat transfer.



  • Highly reflective aluminum surface designed to face a heat source
  • Each heat shield is 1/8” thick and 12” x 24” (2 Sq Ft)
  • Weight: 0.175 pounds per square foot
  • Reflects 98% of radiant heat
  • Withstands up to 800 F
  • Treated for water, solvent, mildew, gas/oil, coolant, engine fluid, and flame resistance
  • Made in the USA

The "No Fold", 4 sheet, and 10 sheet options ship flat in a 12" x 24" box. The "Folded" option is delivered folded over inside of a mailer.



Product Usage

  • Quick fix for automotive thermal hot spots such as the fuel tank, fuel line, brake line, spare tire, and underbody heat shields. It's also commonly used as a firewall heat shield.
  • Always face Thermal Block’s aluminum side towards the heat source. This product will not be effective inside your car’s cabin.
  • Allow space for air flow. At least 2 inches is required, but more airflow will improve your heat control.
  • Thermal Block can be installed on top of Damplifier Pro vibration mats.
  • Make sure you prepare the surface to remove oils, dirt, dust, and grease. Just peel and stick. We recommend an outside temperature of at least at 65 F to ensure adhesive works properly.

Recommended Install Locations

  • Firewall - engine side
  • Hood - entire lid
  • Back seat wall - for cars with engines in the back
  • Air intake box
  • Should be applied anywhere there is a heat source, facing the heat, with a 2" air gap.
