cargo van insulation kit

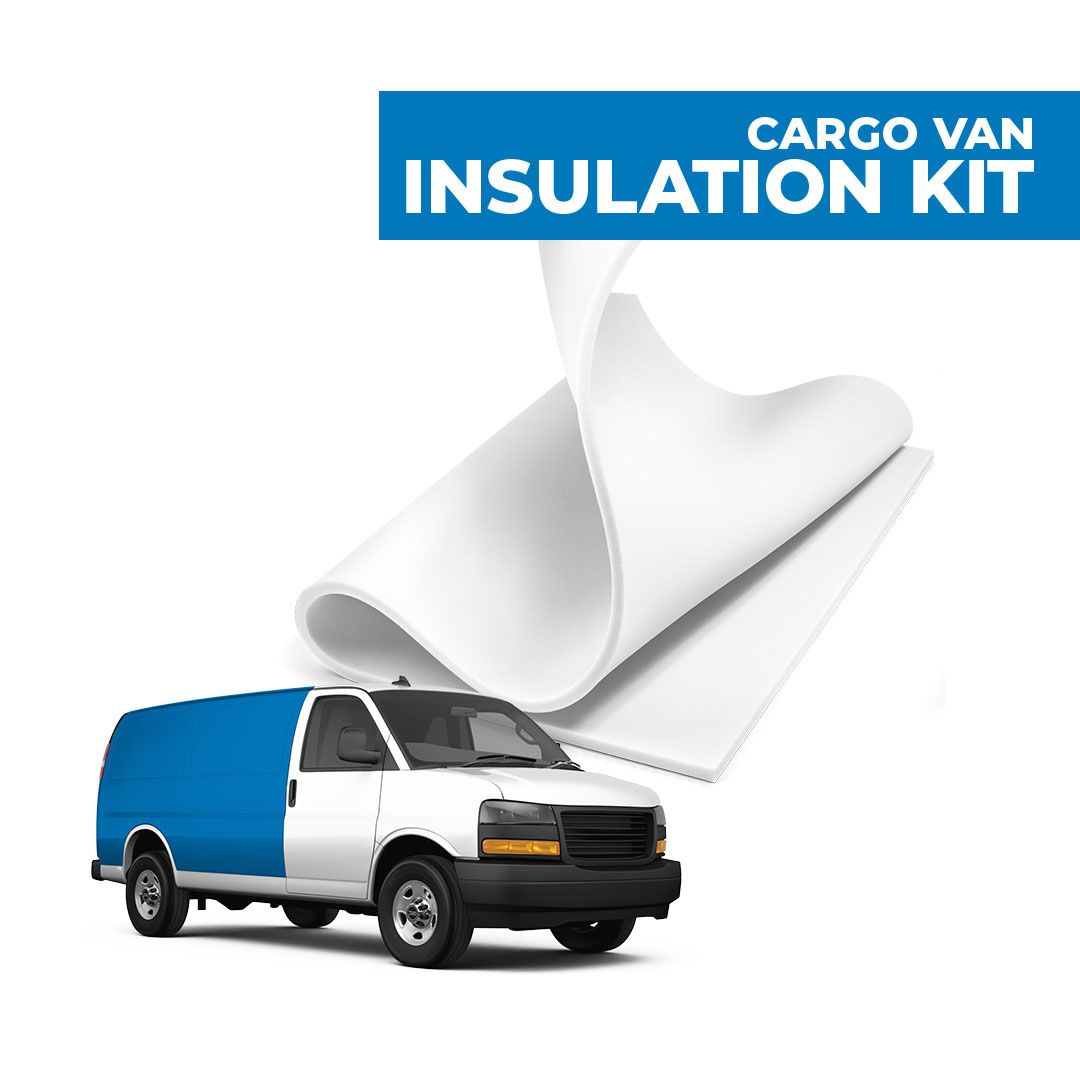

Cargo Van Insulation Packages

Regular price $1,044.99
Sale price Regular price

Product FAQs

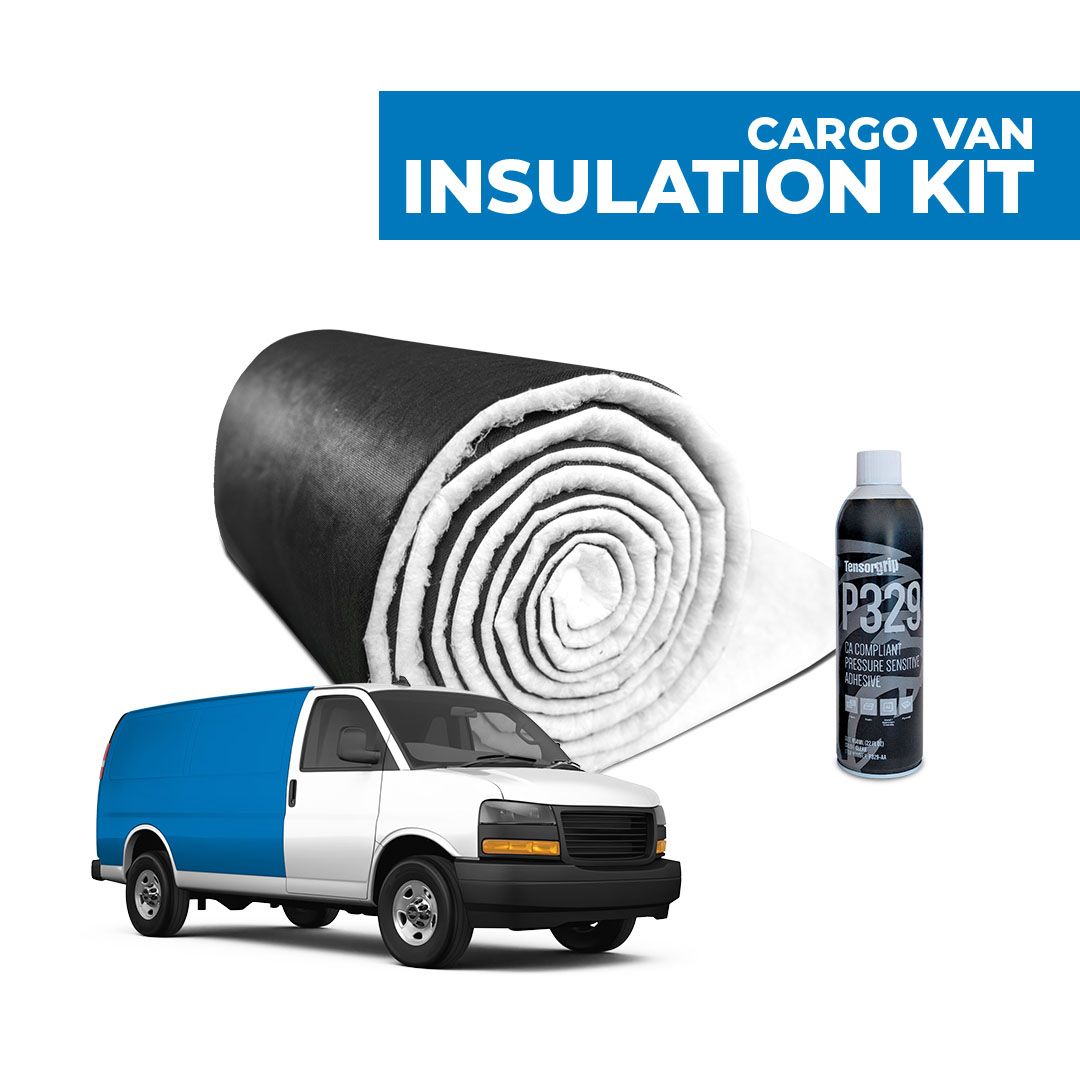

The Cargo Van Insulation Package includes enough material to cover the walls, ceiling and rear doors of the cargo area. Side doors in the cargo area are covered too if they take the place of a wall. The table lists what ships with each option for each wheelbase. Mega Zorbe is peel-and-stick, while the other three options include the P329 spray adhesive cans shown.

WheelbaseMega Zorbe (sheets)Heat Wave Pro (sheets)3M Thinsulate SM600L (linear ft)EcoVerb Roll (linear ft)P329 Spray Adhesive (cans)
115" Wheelbase (Small)36630356
135" Wheelbase (Medium)40735407
155" Wheelbase (Large)48840458

Pick the insulation that fits your needs and wants for the project. We have options that are budget-friendly, easiest to install, highest performing, and lowest profile. 3M Thinsulate SM600L is the most recognized van insulation on the market and our most budget-friendly option. The table compares all four options from least to most expensive and shows what each does best. Call us at 1-800-679-8511 and we will help you choose.

InsulationThicknessR-value (per inch)NRCWhy this insulation?
3M Thinsulate SM600L1-1/2"3.50.85Budget-friendly, with up to 2x the warmth of traditional insulation.
Heat Wave Pro3/8"3.910.45Low profile and compressible. Works best with an air gap.
EcoVerb Roll2"4.01.15Our recycled cotton option, with the most sound absorption.
Mega Zorbe1/2"4.160.40Easiest install: peel-and-stick, no spray adhesive needed.

The Cargo Van Insulation Package is for cargo vans other than the Mercedes Sprinter, Ram ProMaster and Ford Transit, which each have their own package. Each package comes with enough material to cover the cargo walls, roof and rear doors of the wheelbase you choose:

  • 115" wheelbase (small)
  • 135" wheelbase (medium)
  • 155" wheelbase (large)

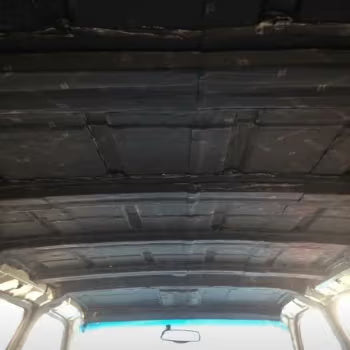

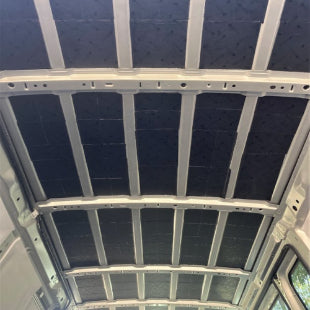

Our standard recommendation for road noise is 60% coverage of Damplifier Pro. Choose 30% if you want some sound deadening while the metal is exposed. Choose 100% for the most structural noise reduction. If you only care about insulating your cargo van, choose None. The table shows the expected reduction for insulation only and at each level of Damplifier Pro coverage.

SetupExpected Reduction
Insulation only3 to 5 dB
Insulation + Damplifier Pro, 30% coverage5 to 7 dB
Insulation + Damplifier Pro, 60% coverage7 to 10 dB
Insulation + Damplifier Pro, 100% coverage10+ dB

Yes, the four insulation options in the Cargo Van Insulation Package are all fire rated. EcoVerb Roll and Mega Zorbe are both Class A. The table lists each rating and the test behind it.

InsulationFire ratingTest
3M Thinsulate SM600LPass (Self-extinguishing)FMVSS 302, ISO 3795, DIN 75200
Heat Wave ProExceeds Standard (Less than 1/5 in./min)FMVSS 302
EcoVerb RollClass AASTM E84
Mega ZorbeClass A; V-0ASTM E84; UL 94
