Mercedes Sprinter Van Insulation Packages
In stock. This product ships in 1 business day
Mercedes Sprinter Van Insulation Packages
Insulate your Mercedes Sprinter with a package designed for superior comfort and performance on the road. Enough material to easily cover Sprinter walls, ceiling, and rear doors, this package offers a choice of top-tier insulation: Mega Zorbe™, Heat Wave Pro™, 3M™ Thinsulate™, or EcoVerb™ Roll. Whether you're converting a van for travel, work, or adventure, you'll get dependable thermal and acoustic protection. Add Damplifier Pro™ sound deadening mats to deaden structural vibrations and combine with the insulation for a quiet, comfortable interior.
Features
- Choose one of our premium insulation options for your Sprinter van
- Superior sound absorption for all Sprinter models
- Proven thermal control for all-season comfort
- Hydrophobic and reliable materials for van life
- Bundle with Damplifier Pro™ to upgrade noise reduction
Couldn't load pickup availability
Sprinter Van Insulation Package Options
Sprinter Van Insulation Package Options
Which Package is Best for Me?
| Insulation | R-Value per Inch | NRC | Why this Insulation? |
| Mega Zorbe™ | 4.16 | 0.40 | Super lightweight with peel & stick backing for easy install |
| Heat Wave Pro™ | 3.91 | 0.45 | Recycled acoustic insulation with a reflective heat barrier |
| 3M™ Thinsulate™ SM600L | 3.50 | 0.85 | Cost-effective and lightweight sound and thermal insulation |
| EcoVerb™ Roll | 4.00 | 1.15 | Extremely absorptive and easy to work with |
What's in the Package?
| Insulation Included | 144" - SR | 144" - HR | 170" - HR | 170"E - HR |
| Mega Zorbe™ (sheets) | 52 | 58 | 70 | 75 |
| Heat Wave Pro™ (sheets) | 9 | 10 | 12 | 13 |
| 3M™ Thinsulate™ SM600L (linear feet) | 45 | 50 | 55 | 60 |
| EcoVerb™ Roll (linear feet) | 55 | 60 | 70 | 75 |
| 22oz Cans of P329 Spray Adhesive | 9 | 10 | 12 | 12 |
*Mega Zorbe has a peel & stick backing for install. All other packages come with P329 Spray Adhesive.
Damplifier Pro Matters - Here's Why!

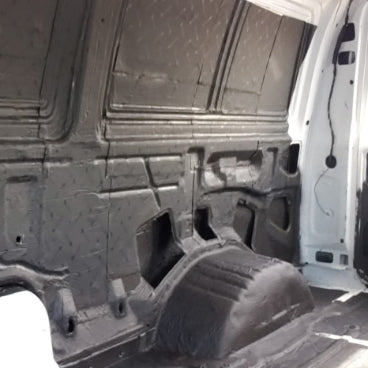

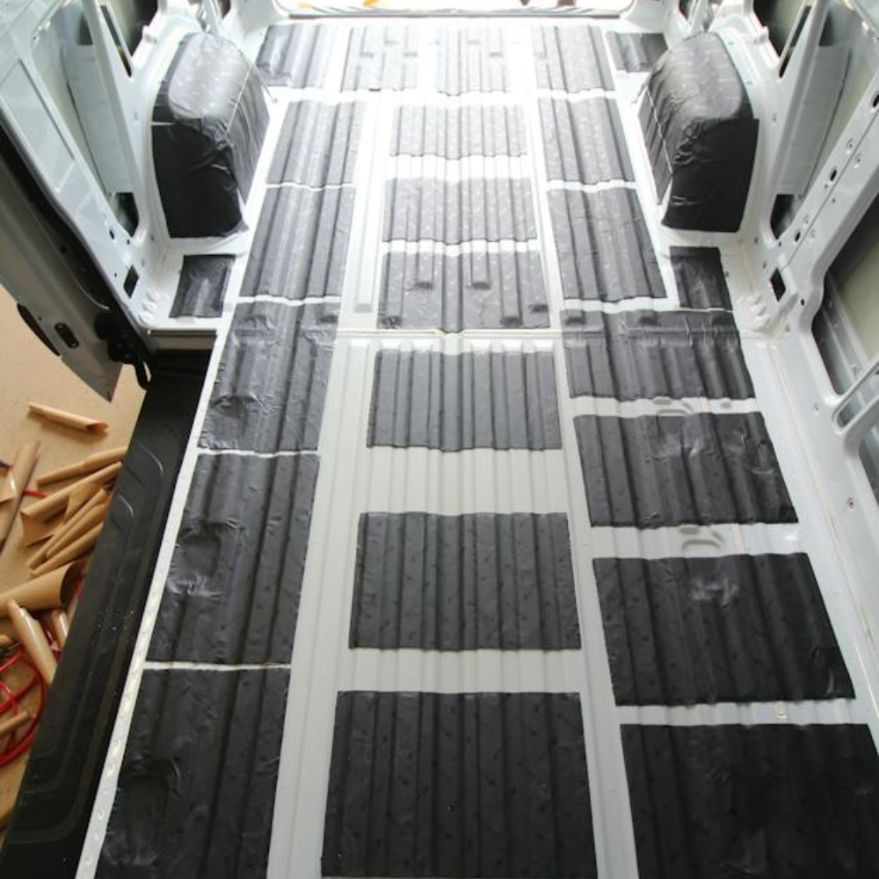

Damplifier Pro™ is a premium sound deadening mat with an effective constrained layer for maximum damping. Just 30% coverage with Damplifier Pro is better than 100% coverage with a low-quality mass-loading mat!
| Damplifier Pro™ (12" x 20") | Noise Reduction |
| 30% Coverage | 3-5 dB |
| 60% Coverage | 5-7 dB |
| 100% Coverage | 7-10 dB |
| Damplifier Pro™ Sheets | 144" - SR | 144" - HR | 170" - HR | 170"E - HR |
| 30% Coverage | 38 | 42 | 50 | 54 |
| 60% Coverage | 76 | 84 | 100 | 108 |
| 100% Coverage | 124 | 140 | 166 | 180 |
Material Testing
Material Testing
Noise Reduction Coefficient
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| Mega Zorbe | 0.11 | 0.12 | 0.25 | 0.42 | 0.77 | 0.94 | 0.40 |
| Heat Wave Pro | 0.12 | 0.10 | 0.23 | 0.56 | 0.81 | 0.89 | 0.45 |
| 3M Thinsulate SM600L | 0.18 | 0.44 | 0.96 | 1.10 | 0.98 | 0.90 | 0.85 |
| EcoVerb Roll 2" | 0.35 | 0.94 | 1.32 | 1.22 | 1.06 | 1.03 | 1.15 |
| Tested Properties | Testing Method | Performance |
| R-Value per Inch | ASTM C518 | Mega Zorbe: 4.16; Heat Wave Pro: 3.91; 3M Thinsulate SM600L: 3.50; EcoVerb Roll: 4.00 |
| Fire Rating | ASTM E84 | Mega Zorbe: Class A; Heat Wave Pro: Class A; EcoVerb Roll: Class A |
