Van Floor Insulation Packages
In stock. This product ships in 1 business day
Van Floor Insulation Packages - Sound & Heat
Upgrade your cargo area with van floor insulation that offers serious sound and heat protection using the Van Cargo Floor Sound & Heat Insulation Package. Each package includes our premium Luxury Liner Proâ„¢ mass loaded vinyl barrier to block noise and thermal transfer through the floor. Add on Damplifier Proâ„¢ sound deadening mats underneath for added vibration damping and structural noise reduction. Ideal for camper builds, commercial vans, and anyone who wants a quieter, more comfortable interior from the ground up.
Features
- Luxury Liner Proâ„¢ automotive floor barrier for superior heat and sound insulation
- 60–100% Damplifier Pro™ coverage for structural noise control and up to 10 dB of noise reduction
- Reduces structure-borne noise and blocks airborne noise from underneath the van
- Durable and flexible materials designed for cargo and van conversion floors
- Compatible with most full-size vans and easy to trim to fit
Couldn't load pickup availability
Van Cargo Floor Insulation Package Options
Van Cargo Floor Insulation Package Options
Damplifier Pro Matters — Here's Why!
Covering 60% of the floor with Damplifier Proâ„¢ will reduce road by 5-7 dB. With 100% coverage, you can expect to reduce road noise by 7-10 dB.
How Many Sheets?
| Make and Model (Wheelbase) |
Luxury Liner Pro (24" x 54" sheets, 3/8" thick) |
Damplifier Pro (12" x 20" sheets, 2mm thick) |
|
| 60% Coverage | 100% Coverage | ||
| Sprinter 144 | 7 | 22 | 38 |
| Sprinter 170 | 9 | 30 | 48 |
| Sprinter 170E | 10 | 34 | 54 |
| Transit 130 | 6 | 18 | 30 |
| Transit 148 | 7 | 22 | 38 |
| Transit 148E | 8 | 26 | 44 |
| ProMaster 118 | 5 | 18 | 28 |
| ProMaster 136 | 7 | 22 | 36 |
| ProMaster 159 | 8 | 26 | 44 |
| ProMaster 159E | 9 | 28 | 46 |
| Cargo - Small (115") | 5 | 16 | 28 |
| Cargo - Medium (135") | 6 | 20 | 36 |
| Cargo - Large (155") | 7 | 24 | 40 |
Material Testing
Material Testing
| Tested Properties | Testing Method | Performance |
|---|---|---|
| R-Value per Inch | ASTM C518 | Luxury Liner Pro: 4.45 |
Installation Instructions
Installation Instructions
- Remove any upholstery or plastic paneling to reveal the bare metal of your van. Remove debris. Clean the surface with denatured alcohol.

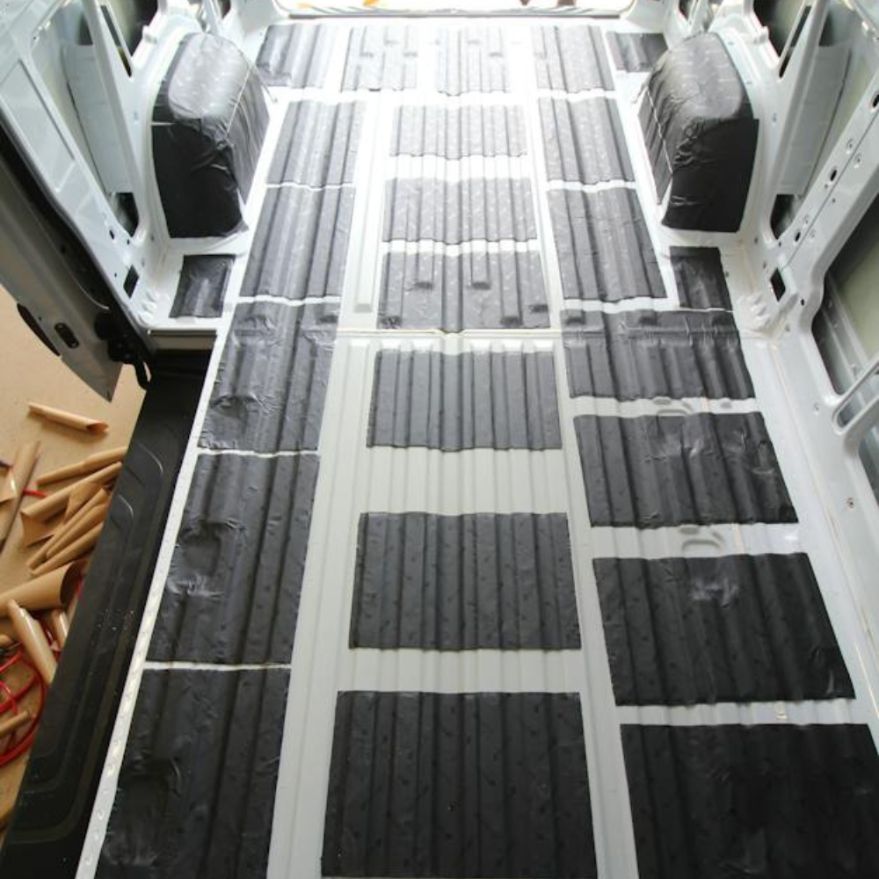

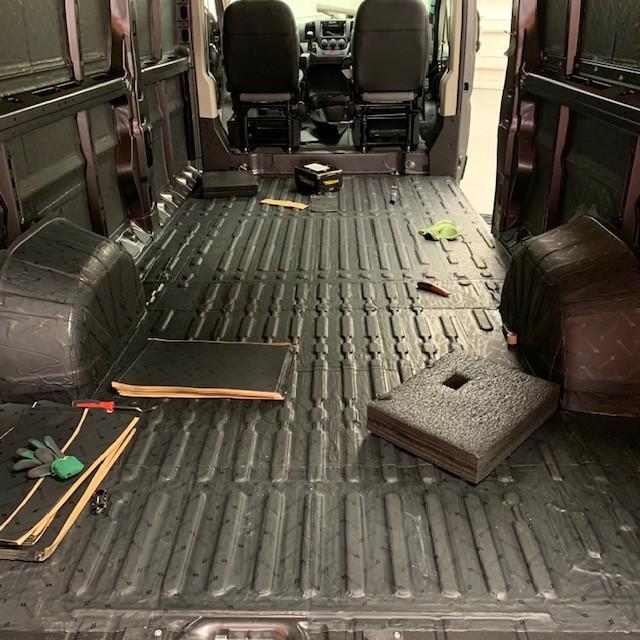

- Peel and stick Damplifier Proâ„¢ sheets by removing the paper backing. Roll on with a hand roller.

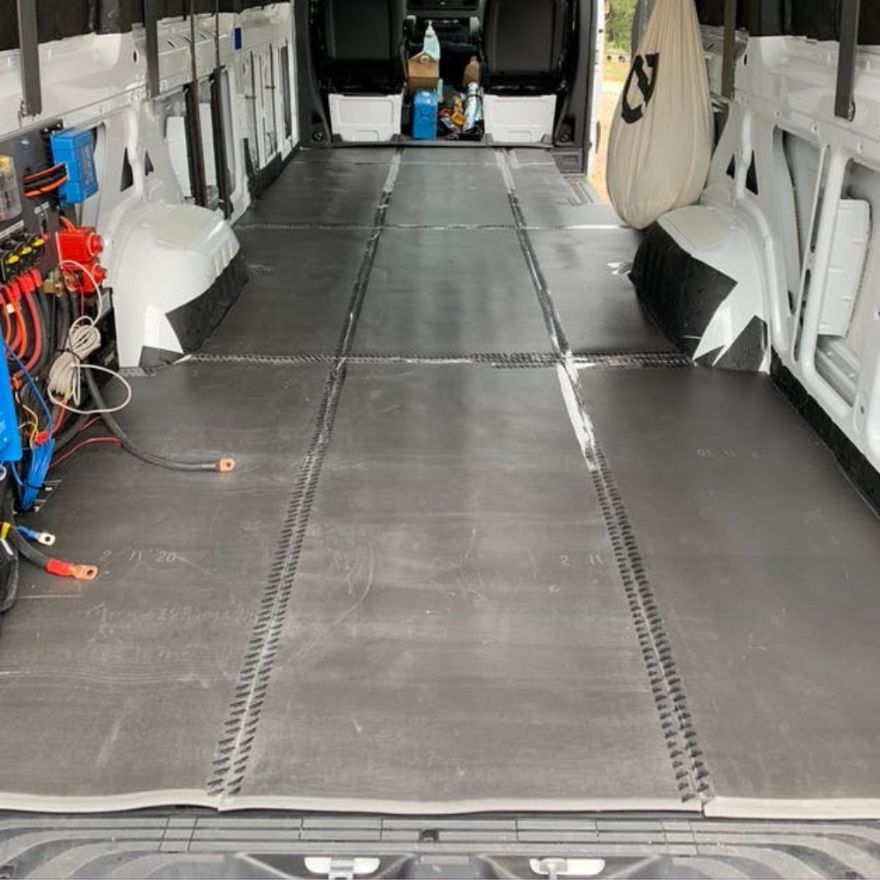

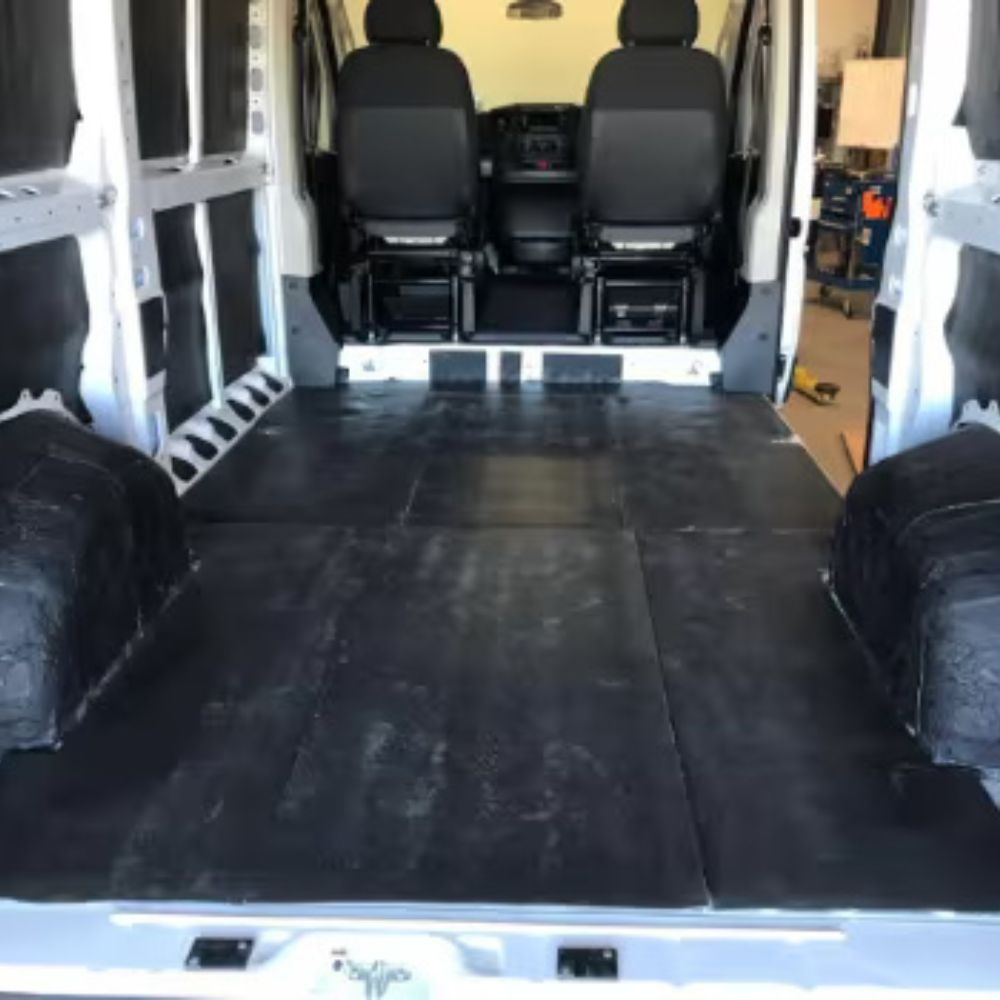

- Install Luxury Liner Proâ„¢ with as close to 100% coverage as possible with the grey foam side facing down (black MLV facing up). Tape seams with foil tape.
