Ford Transit Van Insulation Packages
In stock. This product ships in 1 business day
Ford Transit Van Insulation Packages
Engineered specifically for the Ford Transit, this insulation package gives you everything you need to soundproof and thermally insulate your van’s walls, ceiling, and rear doors. Choose from top-tier materials — Mega Zorbe™, Heat Wave Pro™, 3M™ Thinsulate™, or EcoVerb™ Roll — to match your performance needs and install preferences. Designed to improve comfort whether you’re converting for travel or commercial use, the package can be further upgraded with Damplifier Pro™ sound deadening mats for a quieter ride.
Features
- Choose the best insulation for your Ford Transit cargo area
- Premium thermal and acoustic options for year-round comfort
- Hydrophobic and durable materials to handle real-world conditions
- Supports cargo, crew, and passenger Transit configurations
- Upgrade with Damplifier Proâ„¢ for superior noise reduction
- Proudly made in the USA
Couldn't load pickup availability
Transit Van Insulation Package Options
Transit Van Insulation Package Options
Which Package is Best for Me?
| Insulation | R-Value per Inch | NRC | Why this Insulation? |
| Mega Zorbeâ„¢ | 4.16 | 0.40 | Super lightweight with peel & stick backing for easy install |

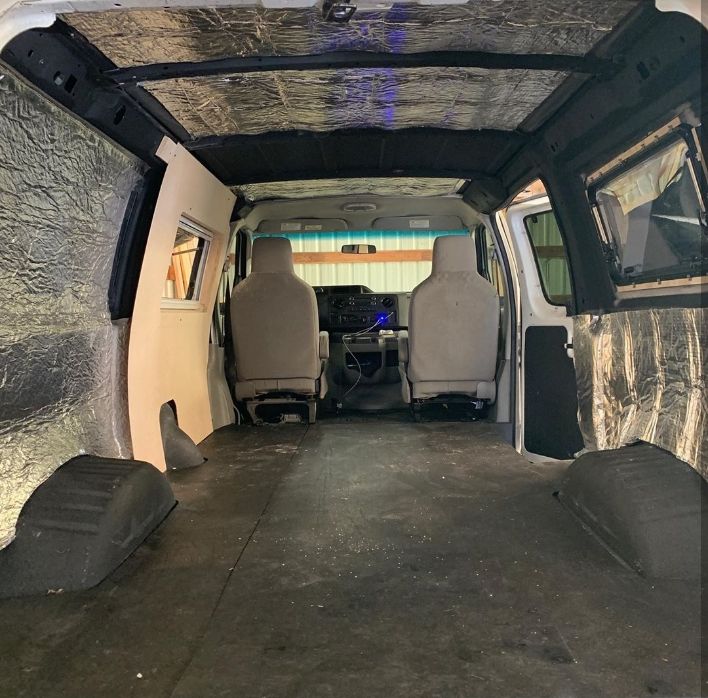

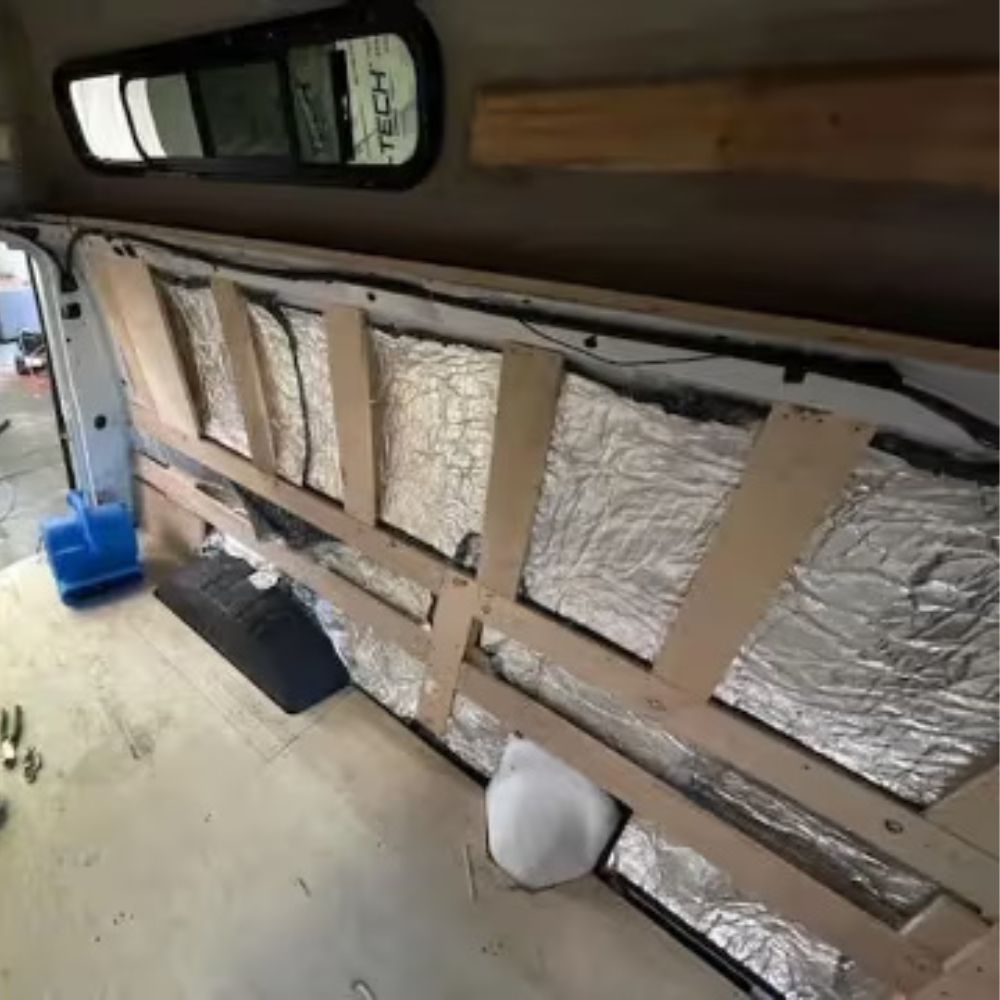

| Heat Wave Proâ„¢ | 3.91 | 0.45 | Recycled acoustic insulation with a reflective heat barrier |

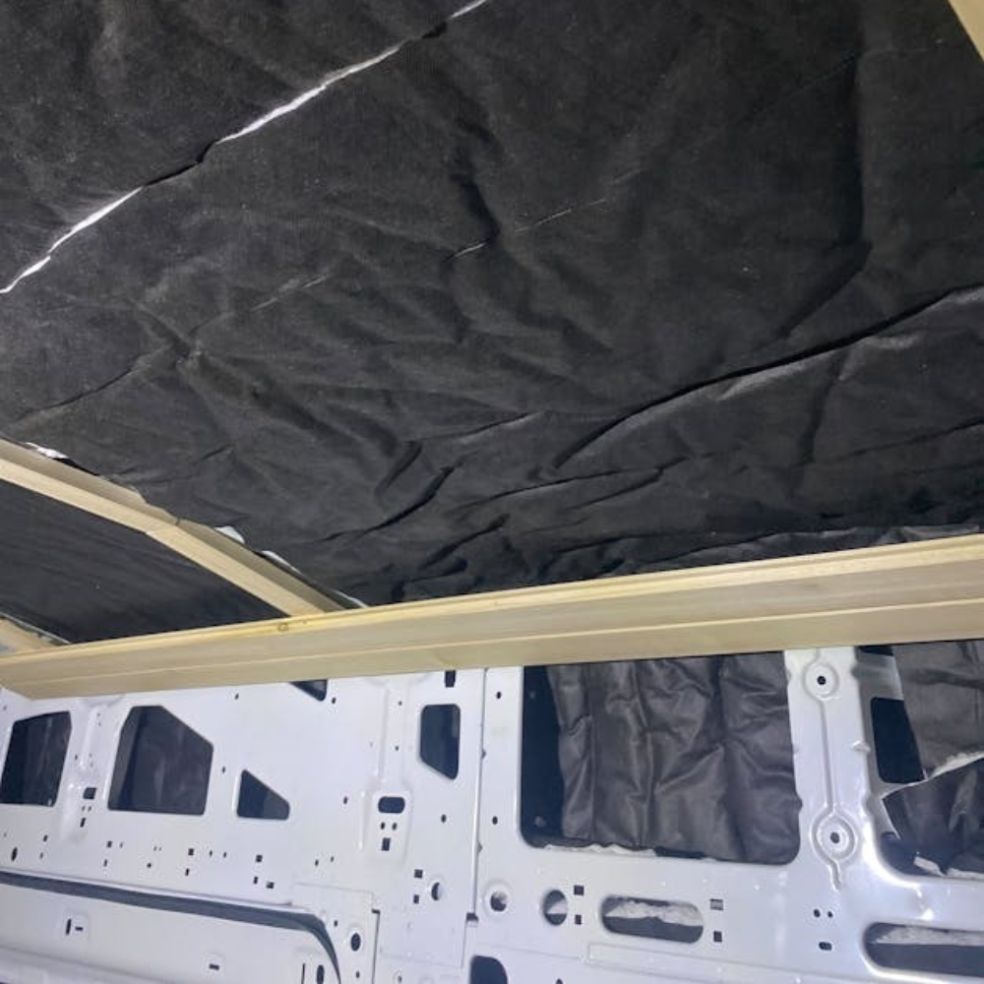

| 3Mâ„¢ Thinsulateâ„¢ SM600L | 3.50 | 0.85 | Cost-effective and lightweight sound and thermal insulation |
| EcoVerbâ„¢ Acoustic Roll | 4.00 | 1.15 | Extremely absorptive and easy to work with |
What's in the Package?
| Insulation Included | 130" - LR | 130" - HR | 148" - LR | 148" - MR | 148" - HR | 148"E - HR |
| Mega Zorbeâ„¢ (sheets) | 36 | 45 | 45 | 55 | 60 | 68 |
| Heat Wave Proâ„¢ (sheets) | 7 | 8 | 8 | 9 | 10 | 12 |
| 3Mâ„¢ Thinsulateâ„¢ SM600L (linear feet) | 30 | 35 | 35 | 45 | 50 | 55 |
| EcoVerbâ„¢ Roll (linear feet) | 40 | 45 | 45 | 55 | 60 | 70 |
| 22oz Cans of P329 Spray Adhesive | 7 | 8 | 9 | 10 | 10 | 11 |
*Mega Zorbe has a peel & stick backing for install. All other packages come with P329 Spray Adhesive

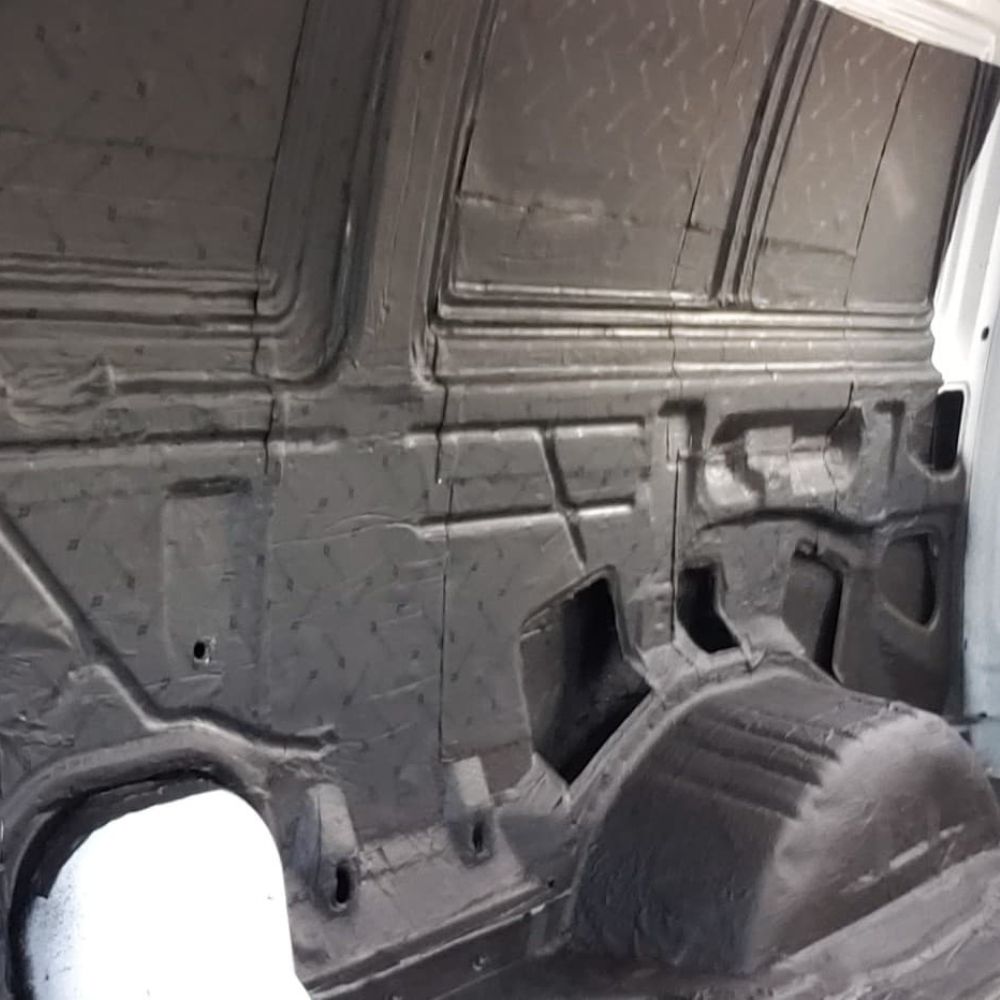

Damplifier Pro Matters - Here's Why!
Damplifier Proâ„¢ is a premium sound deadening mat with an effective constrained layer for maximum damping.
Just 30% coverage with Damplifier Pro is better than 100% coverage with a low-quality mass-loading mat!
| Damplifier Proâ„¢ (12" x 20") | Noise Reduction |
| 30% Coverage | 3-5 dB |
| 60% Coverage | 5-7 dB |
| 100% Coverage | 7-10 dB |
| Damplifier Proâ„¢ Sheets | 130" - LR | 130" - HR | 148" - LR | 148" - MR | 148" - HR | 148"E - HR |
| 30% Coverage | 28 | 34 | 40 | 40 | 42 | 48 |
| 60% Coverage | 55 | 66 | 78 | 78 | 84 | 96 |
| 100% Coverage | 90 | 108 | 130 | 130 | 140 | 160 |
Material Testing
Material Testing
Noise Reduction Coefficient
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| Mega Zorbe | 0.11 | 0.12 | 0.25 | 0.42 | 0.77 | 0.94 | 0.40 |
| Heat Wave Pro | 0.12 | 0.10 | 0.23 | 0.56 | 0.81 | 0.89 | 0.45 |
| 3M Thinsulate SM600L | 0.18 | 0.44 | 0.96 | 1.10 | 0.98 | 0.90 | 0.85 |
| EcoVerb Roll 2" | 0.35 | 0.94 | 1.32 | 1.22 | 1.06 | 1.03 | 1.15 |
| Tested Properties | Testing Method | Performance |
|---|---|---|
| R-Value per Inch | ASTM C518 | Mega Zorbe: 4.16 |
| Fire Rating | ASTM E84 | Mega Zorbe: Class A |
Resources
Installation Guides
Product FAQs
| Wheelbase and Roof Height | Mega Zorbe (sheets) | Heat Wave Pro (sheets) | 3M Thinsulate SM600L (linear ft) | EcoVerb Roll (linear ft) | P329 Spray Adhesive (cans) |
| 130" Wheelbase | Low Roof | 36 | 7 | 30 | 40 | 7 |
| 130" Wheelbase | High Roof | 45 | 8 | 35 | 45 | 8 |
| 148" Wheelbase | Low Roof | 45 | 8 | 35 | 45 | 9 |
| 148" Wheelbase | Medium Roof | 55 | 9 | 45 | 55 | 10 |
| 148" Wheelbase | High Roof | 60 | 10 | 50 | 60 | 10 |
| 148" Extended Wheelbase | High Roof | 68 | 12 | 55 | 70 | 11 |
| Insulation | Thickness | R-value (per inch) | NRC | Why this insulation? |
| 3M Thinsulate SM600L | 1-1/2" | 3.5 | 0.85 | Budget-friendly, with up to 2x the warmth of traditional insulation. |
| Heat Wave Pro | 3/8" | 3.91 | 0.45 | Low profile and compressible. Works best with an air gap. |
| EcoVerb Roll | 2" | 4.0 | 1.15 | Our recycled cotton option, with the most sound absorption. |
| Mega Zorbe | 1/2" | 4.16 | 0.40 | Easiest install: peel-and-stick, no spray adhesive needed. |
| Setup | Expected Reduction |
| Insulation only | 3 to 5 dB |
| Insulation + Damplifier Pro, 30% coverage | 5 to 7 dB |
| Insulation + Damplifier Pro, 60% coverage | 7 to 10 dB |
| Insulation + Damplifier Pro, 100% coverage | 10+ dB |
| Insulation | Fire rating | Test |
| 3M Thinsulate SM600L | Pass (Self-extinguishing) | FMVSS 302, ISO 3795, DIN 75200 |
| Heat Wave Pro | Exceeds Standard (Less than 1/5 in./min) | FMVSS 302 |
| EcoVerb Roll | Class A | ASTM E84 |
| Mega Zorbe | Class A; V-0 | ASTM E84; UL 94 |
| Material | How it attaches | Install guide |
| 3M Thinsulate SM600L | P329 spray adhesive, included | 3M Thinsulate install guide |
| Heat Wave Pro | P329 spray adhesive, included | Heat Wave Pro install guide |
| EcoVerb Roll | P329 spray adhesive, included | EcoVerb Roll install guide |
| Mega Zorbe | Peel-and-stick backing | Mega Zorbe install guide |
| Damplifier Pro (optional add-on) | Peel-and-stick butyl backing | Damplifier Pro install guide |
