Ram ProMaster Van Insulation Packages
In stock. This product ships in 1 business day
Dodge Ram ProMaster Van Insulation Packages
Get the most out of your ProMaster van build with an insulation package designed to keep your interior quieter, cooler, and more comfortable. Choose from trusted materials like Mega Zorbeâ„¢, Heat Wave Proâ„¢, 3Mâ„¢ Thinsulateâ„¢, or EcoVerbâ„¢ Roll, each perfect for insulating your ProMaster's walls, ceiling, and rear doors. Whether you're building a camper, mobile office, or work van, this package delivers professional-grade results. Add Damplifier Proâ„¢ sound deadening mats for even more noise control.
Features
- Choose the best insulation for your Dodge Ram ProMaster
- High-performance materials for the best thermal and acoustic control
- Moisture-resistant and durable for long-lasting protection
- Compatible with all ProMaster lengths and roof heights
- Add Damplifier Proâ„¢ for serious noise reduction
- Proudly made in the USA
Couldn't load pickup availability
Package Options
Package Options
Which Package is Best for Me?
| Insulation | R-Value per Inch | NRC | Why this Insulation? |
| Mega Zorbeâ„¢ | 4.16 | 0.40 | Super lightweight with peel & stick backing for easy install |
| Heat Wave Proâ„¢ | 3.91 | 0.45 | Recycled acoustic insulation with a reflective heat barrier |
| 3Mâ„¢ Thinsulateâ„¢ SM600L | 3.50 | 0.85 | Cost-effective and lightweight sound and thermal insulation |
| EcoVerbâ„¢ Acoustic Roll | 4.00 | 1.15 | Extremely absorptive and easy to work with |
What's in the Package?
| Insulation Included | 118" - MR | 136" - MR | 136" - HR | 159" - HR | 159" - SHR | 159"E - HR | 159"E - SHR |
| Mega Zorbeâ„¢ (sheets) | 44 | 52 | 58 | 66 | 70 | 70 | 76 |
| Heat Wave Proâ„¢ (sheets) | 8 | 9 | 10 | 11 | 12 | 12 | 13 |
| 3Mâ„¢ Thinsulateâ„¢ SM600L (linear feet) | 35 | 40 | 45 | 55 | 55 | 55 | 60 |
| EcoVerbâ„¢ Roll (linear feet) | 45 | 55 | 60 | 65 | 75 | 75 | 80 |
| 22oz Cans of P329 Spray Adhesive | 7 | 9 | 9 | 11 | 12 | 12 | 13 |
*Mega Zorbe has a peel & stick backing for install. All other packages come with P329 Spray Adhesive

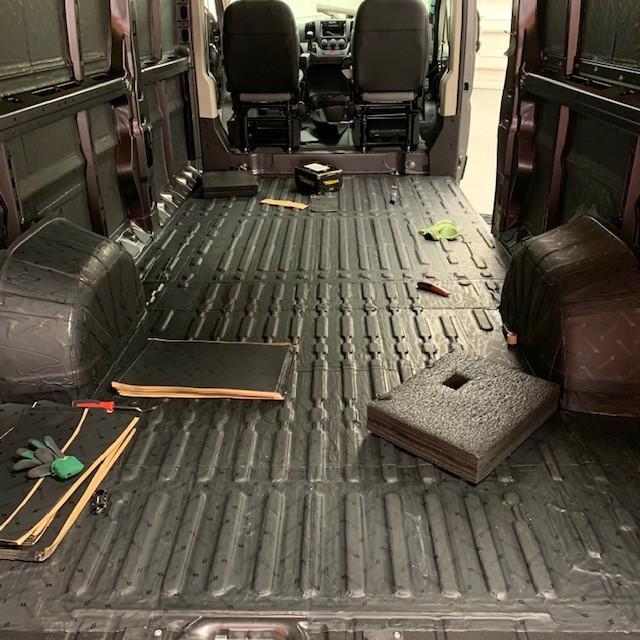

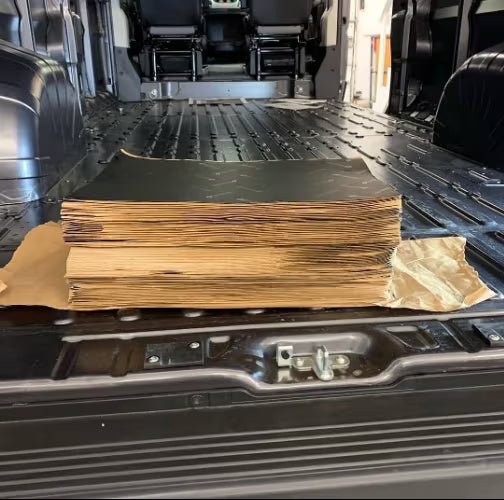

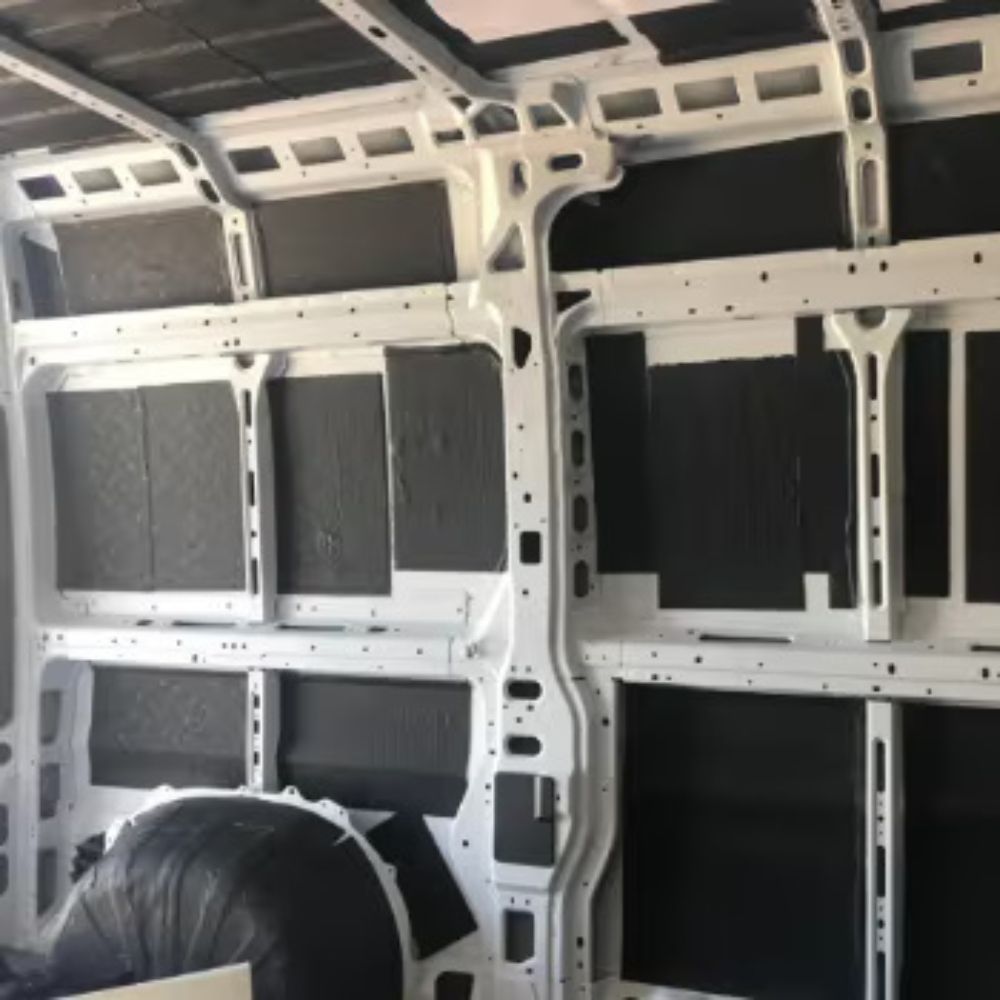

Damplifier Pro Matters - Here's Why!
Damplifier Proâ„¢ is a premium sound deadening mat with an effective constrained layer for maximum damping.
Just 30% coverage with Damplifier Pro is better than 100% coverage with a low-quality mass-loading mat!
| Damplifier Proâ„¢ (12" x 20") | Noise Reduction |
| 30% Coverage | 3-5 dB |
| 60% Coverage | 5-7 dB |
| 100% Coverage | 7-10 dB |
| Damplifier Proâ„¢ Sheets | 118" - MR | 136" - MR | 136" - HR | 159" - HR | 159" - SHR | 159"E - HR | 159"E - SHR |
| 30% Coverage | 30 | 38 | 42 | 48 | 52 | 52 | 54 |
| 60% Coverage | 60 | 76 | 80 | 96 | 100 | 100 | 108 |
| 100% Coverage | 100 | 124 | 135 | 160 | 170 | 170 | 180 |
Material Testing
Material Testing
Noise Reduction Coefficient
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| Mega Zorbe | 0.11 | 0.12 | 0.25 | 0.42 | 0.77 | 0.94 | 0.40 |
| Heat Wave Pro | 0.12 | 0.10 | 0.23 | 0.56 | 0.81 | 0.89 | 0.45 |
| 3M Thinsulate SM600L | 0.18 | 0.44 | 0.96 | 1.10 | 0.98 | 0.90 | 0.85 |
| EcoVerb Roll 2" | 0.35 | 0.94 | 1.32 | 1.22 | 1.06 | 1.03 | 1.15 |
| Tested Properties | Testing Method | Performance |
|---|---|---|
| R-Value per Inch | ASTM C518 | Mega Zorbe: 4.16 |
| Fire Rating | ASTM E84 | Mega Zorbe: Class A |
Resources
Installation Guides
