EcoVerbâ„¢ Roll - Acoustic Insulation Roll

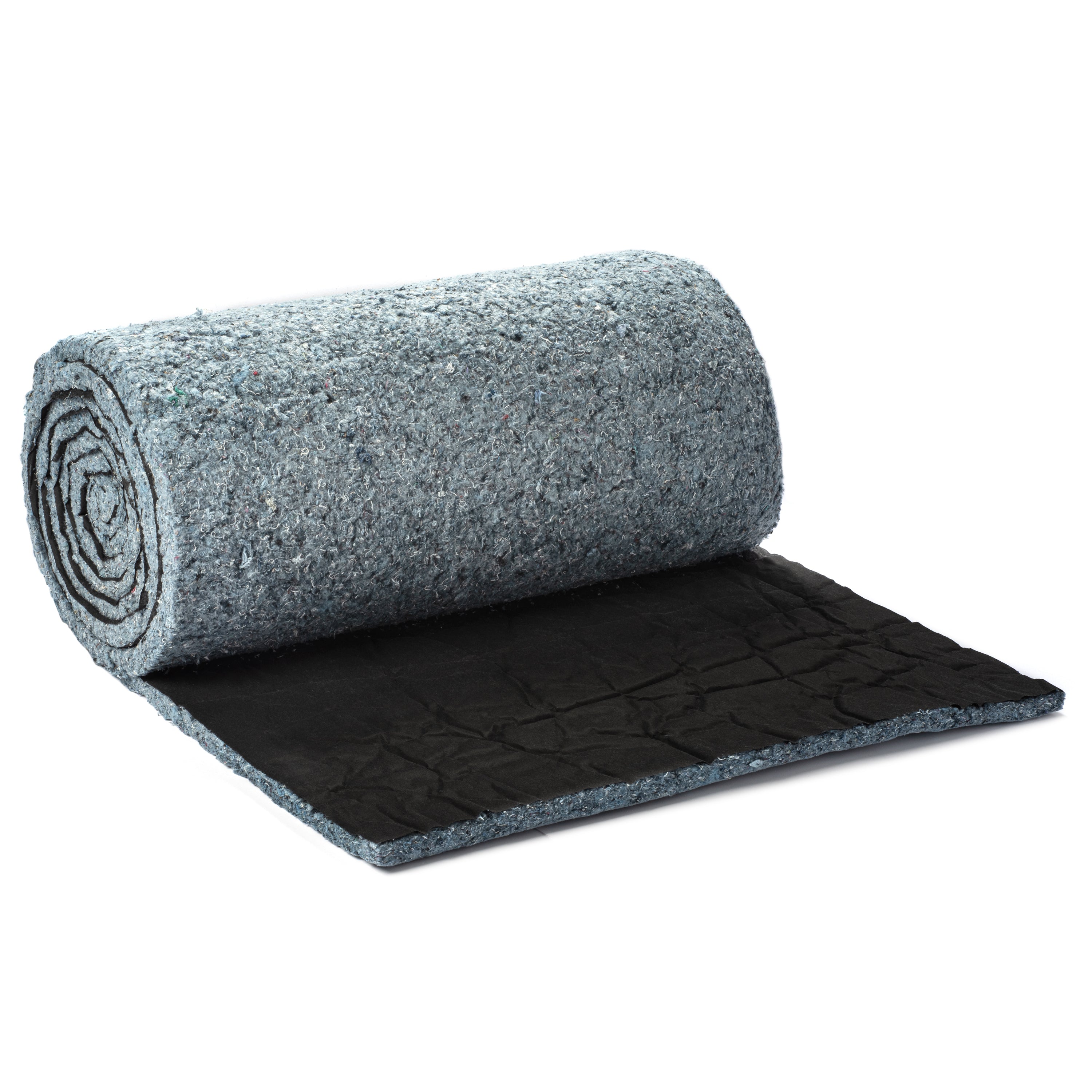

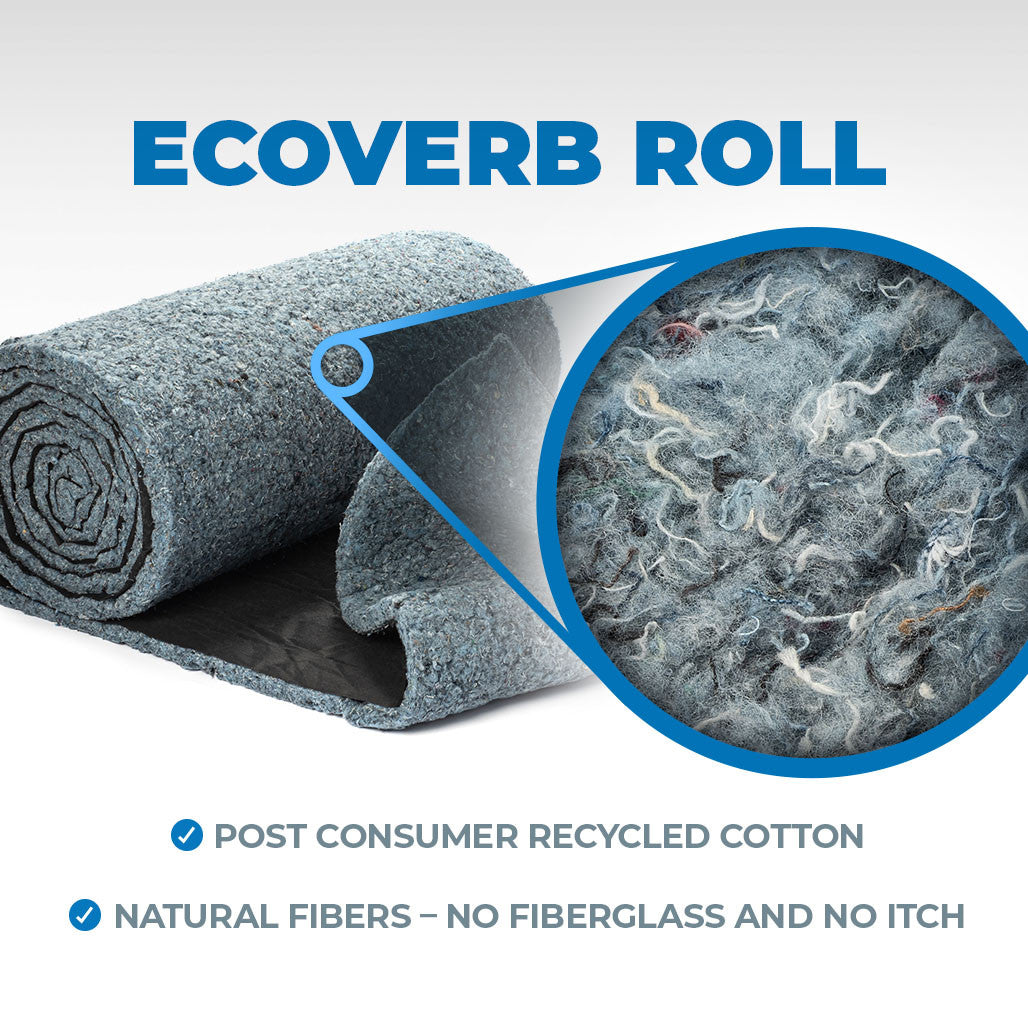

EcoVerbâ„¢ Roll is the most cost-effective acoustic ceiling treatment to reduce echo and reverb in large spaces. Roll it out on the ceiling of gyms, nightclubs, restaurants, churches, and anywhere you want serious sound absorption without the cost of acoustic panels. These rolls are made from post-consumer recycled cotton fibers, so they're safe to handle, easy to install, and offer a sleek blackout look.
Features
- Ultimate noise control in large spaces – Superior sound absorption ideal for high-coverage acoustic ceiling treatment
- Cost-effective alternative to panels – Great for blackout ceilings and backing perforated systems

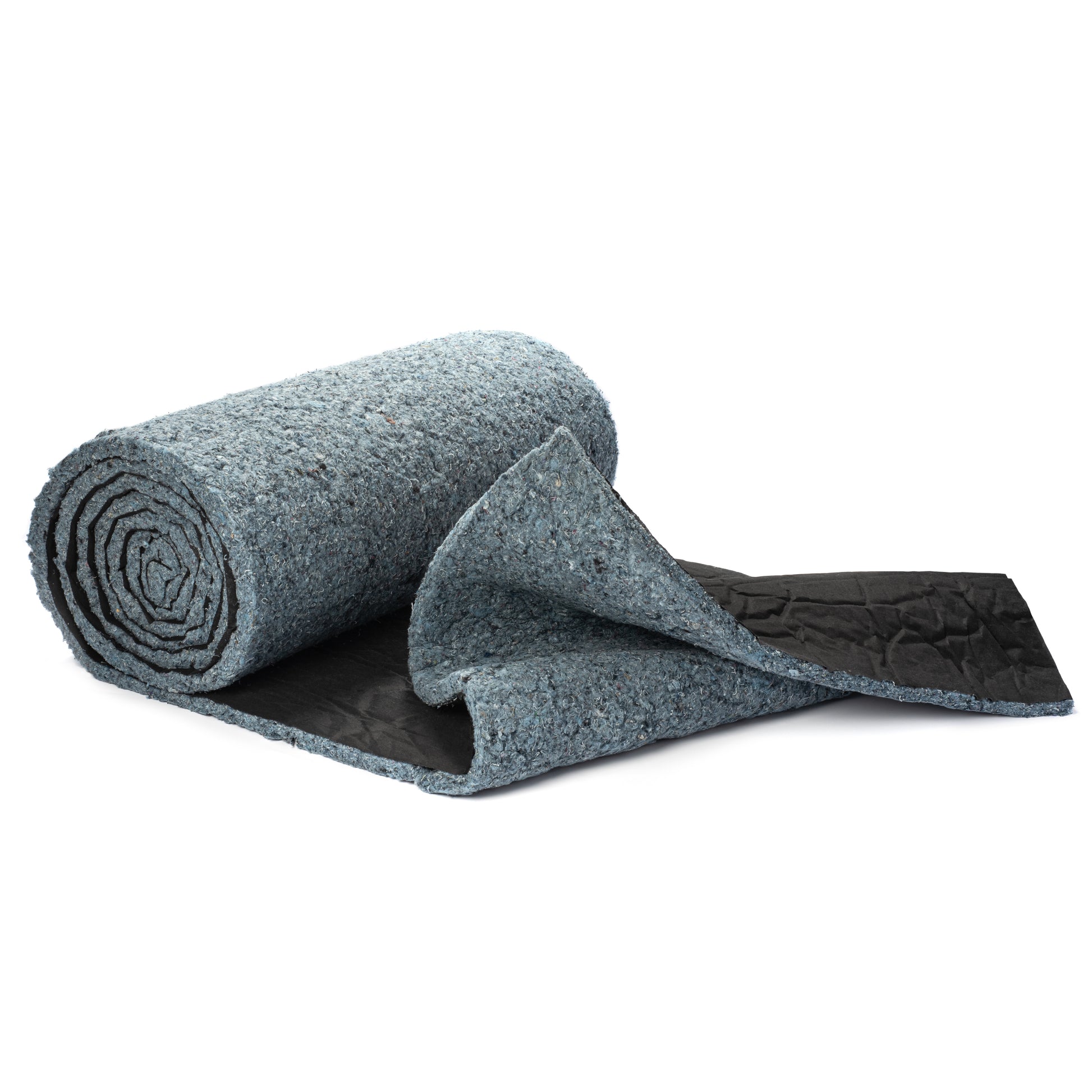

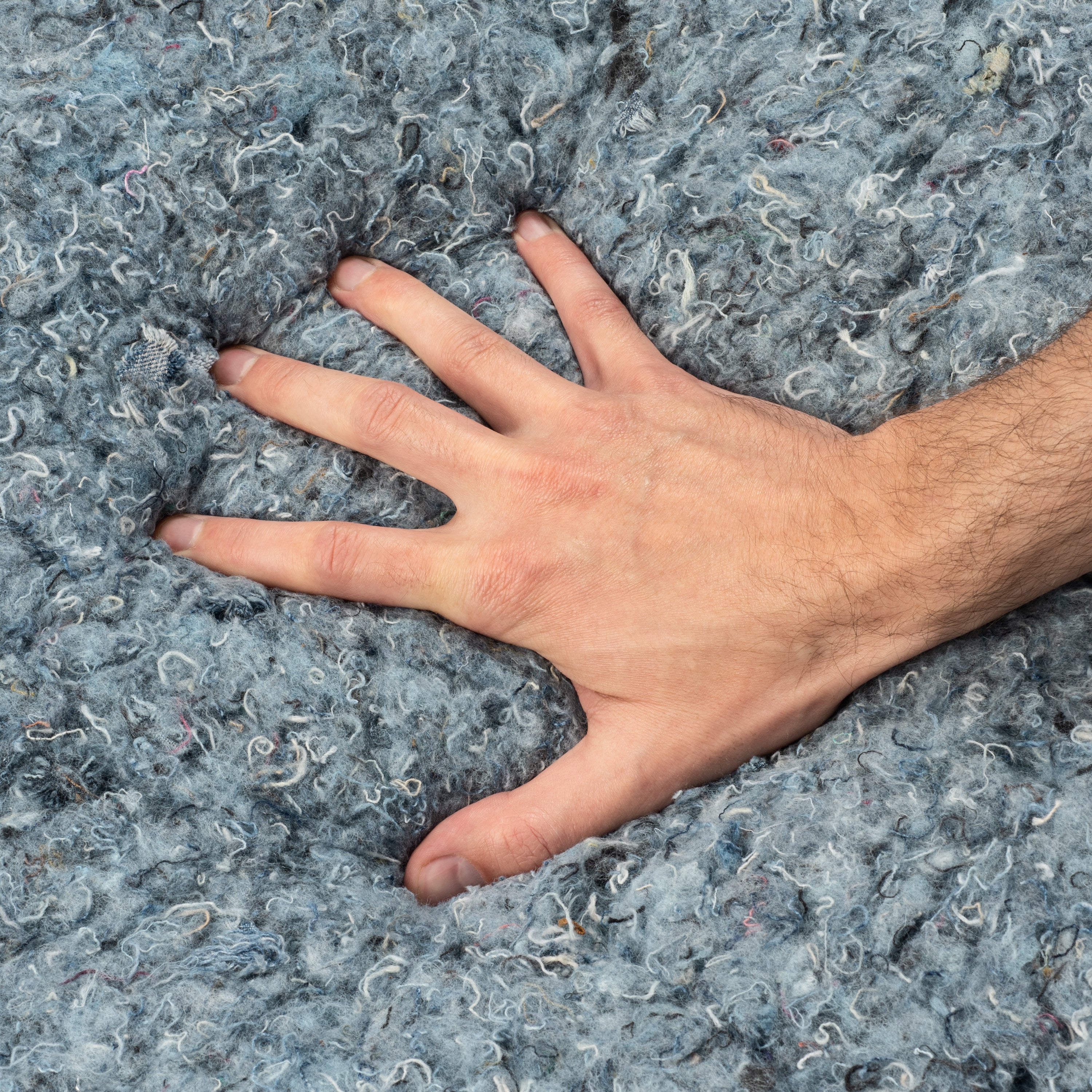

- Post-consumer recycled cotton fiber – No-itch, flexible, and safe to handle
- Class A fire rated and code compliant – Meets major fire and building standards
- Made in the USA – Sustainable, high-performance acoustic solution
Couldn't load pickup availability
Specs
Specs
| Full Roll Dimensions | 4' x 100' (1/2") 4' x 50' (1") 4' x 25' (2") |
| Thickness | 1/2", 1", or 2" (Nominal) |
| Density | 1/2": 3.0lbs/cu ft 1" & 2": 1.5lbs/cu ft |
| Weight/Sq Ft | 1/2": ~0.15lbs/sq ft |
| Color | Marble blue with black protective facing |
| Thermal Resistance (R-value) | 4.0 per inch |
Material Testing
Material Testing
Noise Reduction Coefficient
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| 1/2" EcoVerbâ„¢ Acoustic Roll | 0.04 | 0.11 | 0.26 | 0.54 | 0.70 | 0.83 | 0.40 |
| 1" EcoVerbâ„¢ Acoustic Roll | 0.07 | 0.33 | 0.72 | 0.99 | 0.93 | 0.96 | 0.75 |
| 2" EcoVerbâ„¢ Acoustic Roll | 0.35 | 0.94 | 1.32 | 1.22 | 1.06 | 1.03 | 1.15 |
| Tested Properties | Testing Method | Performance |
|---|---|---|
| Operating Limits (Temperature & Velocity) | ASTM C411 | Max 250°F & 5000 fpm |
| Temperature Resistance | ASTM C518 | R-Value: 4.0 per inch |
| Fire Rating | ASTM E84 | Class A |
| VOCs | CDPH Section 01350 | Pass |
| Water Vapor Absorption | ASTM C1104 | Less than 1% |
| Corrosion Resistance | ASTM C739 | Pass |
| Fungal Growth | ASTM C1338, ASTM G21, ASTM C739 | Pass (No growth) |
| Bacterial Growth | ASTM G22 | Pass (No growth) |
Installation Instructions
Installation Instructions
Large Room Ceiling or Hidden Absorption
- Recommended Install Method: Insulation Pins (ceiling), P329 Spray Adhesive (hidden absorption)
- Go with the 2" thick version of EcoVerb rolls. The 2" EcoVerbâ„¢ is the most absorptive and is the best bang for your buck when rolling out a large amount of material on a ceiling or hiding material behind an architectural feature (wood slats, perforated acoustic panels).
- Apply the EcoVerbâ„¢ Roll liner with the black finish facing outwards to give a blackout look.
- For insulation stick pin applications, we have stick pin washers to secure the material and stick pin caps to cover the pin's point.
Common Product Uses
Common Product Uses

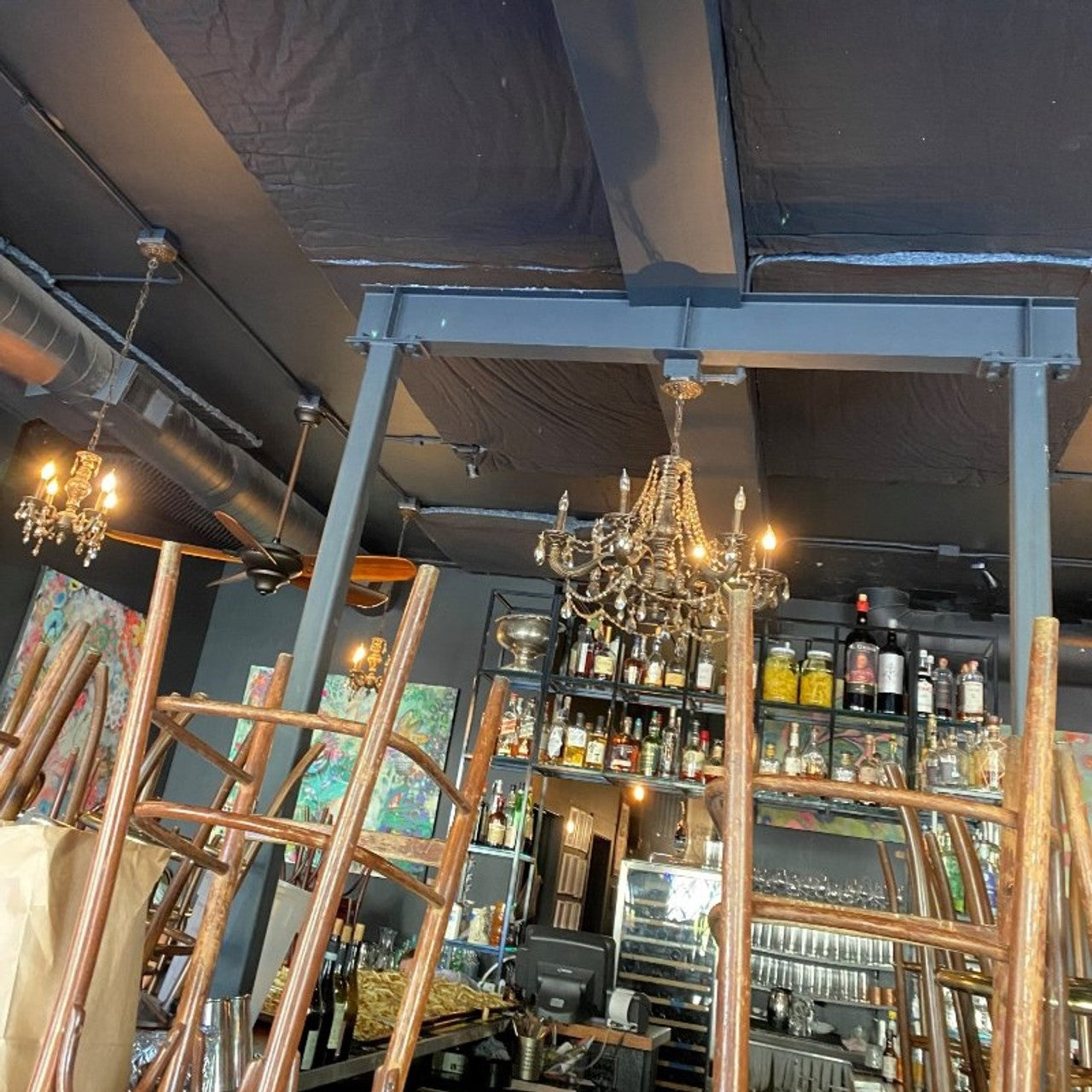

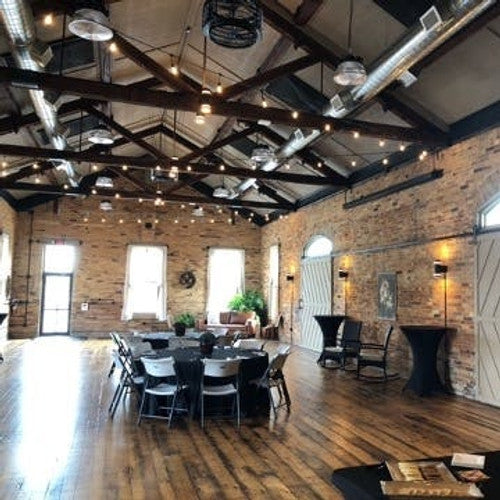

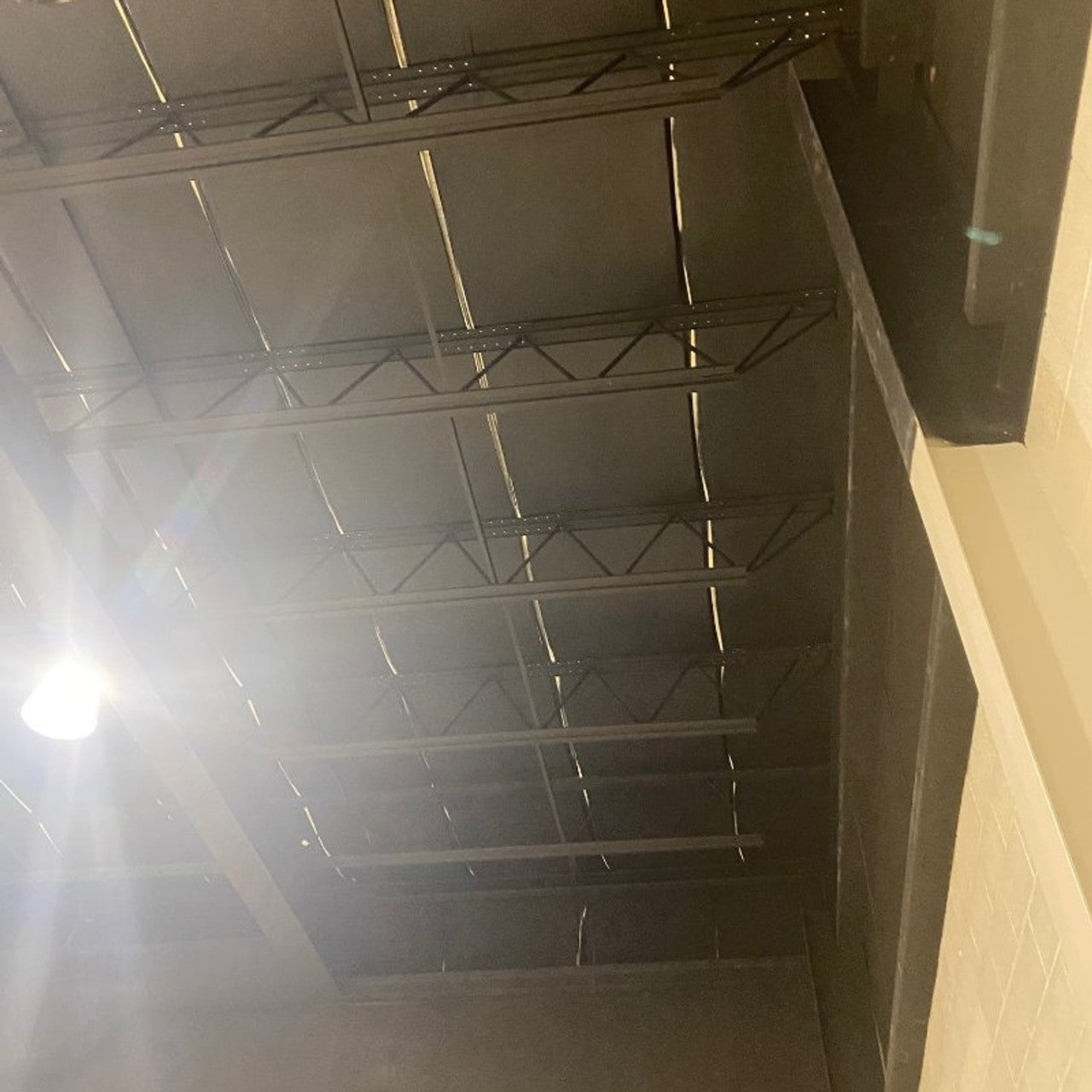

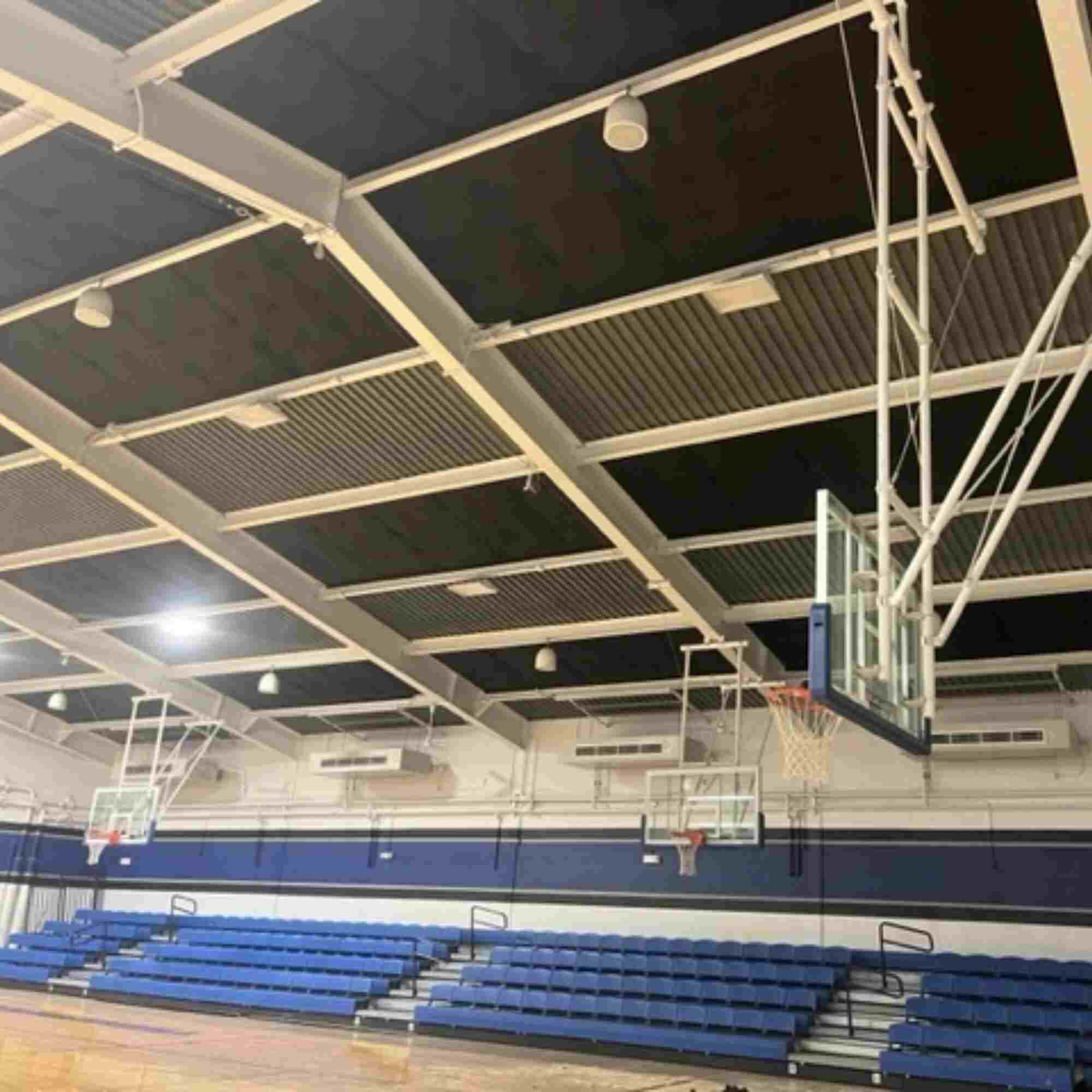

- Roll EcoVerbâ„¢ Roll Liner out onto a wall or ceiling in a large room for a "blackout" look that blends well and adds excellent sound absorption (gyms, churches, bars, nightclubs, gun range soundproofing)

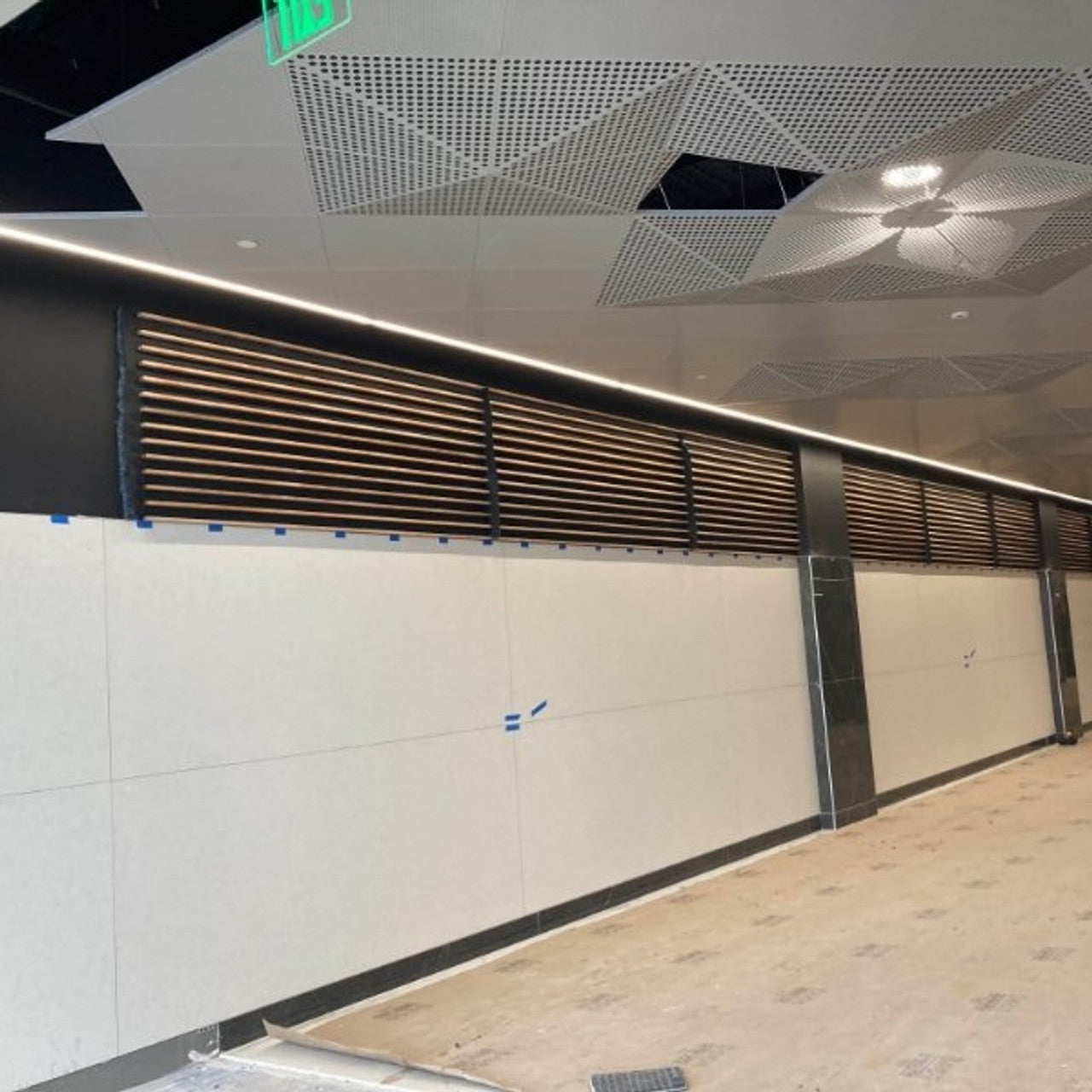

- Commonly used behind perforated metal panels and perforated wood panels as "hidden absorption"
- Lay on top of ceiling tiles
- Line cargo area of Sprinter Van conversions with 2" EcoVerbâ„¢ Roll Liner for excellent sound and heat insulation
- Vocal booths and voice over rooms
- Garages
- Mechanical rooms
- Basements
- For a standard acoustic panel with color options, check out our EcoVerbâ„¢ Cotton Fiber Acoustic Panels.
Free Shipping Details
Free Shipping Details
| Thickness | Free Shipping - Ground | Free Shipping - LTL Freight |
| 1/2" | 0 - 1199 Sq Ft | 1200+ Sq Ft |
| 1" | 0 - 599 Sq Ft | 600+ Sq Ft |
| 2" | 0 - 399 Sq Ft | 400+ Sq Ft |
