How well does Luxury Liner Sheet block sound?

Luxury Liner Sheet rates STC 26 at 1 lb and STC 32 at 2 lb: Frequency1 lb2 lb125 Hz1419250 Hz1920500 Hz22271000 Hz27342000 Hz32384000 Hz3743STC2632

How is Luxury Liner Sheet different from Luxury Liner Pro?

Luxury Liner Sheet is plain mass loaded vinyl. You add your own foam decoupler underneath. Luxury Liner Pro has the foam fused to the MLV in one 3/8" sheet, with built-in decoupling and heat insulation. Choose the Sheet when you want to pick the density (1 lb or 2 lb) and the foam separately.

How is Luxury Liner Sheet different from the Luxury Liner rolls?

Luxury Liner Sheets are pre-cut from the Luxury Liner Rolls to handle smaller jobs. The rolls are made for larger jobs like soundproofing walls, fences, and ducts.

How do I install Luxury Liner Sheet?

To install Luxury Liner Sheets, cut the sheet to size, install a closed cell foam decoupler, and then lay your MLV sheet on top. You can use HH-66 to adhere the Luxury Liner Sheet to the decoupler. Seal the seams with foil insulation tape. For best results, install Damplifier Pro or Spectrum to the bare metal to reduce the structural noise and then lay down your decoupler and MLV.

How do I cut Luxury Liner Sheet?

Cut Luxury Liner Sheet with a sharp utility knife, upholstery scissors, or an electric carving knife. Leave enough clearance to reinstall carpet and trim. Don't cover wires, drain holes, or mechanical devices.

Is Luxury Liner Sheet fire resistant?

Yes, Luxury Liner Sheet is fire resistant and passes FMVSS 302. It is rated for temperatures up to 175°F.

What is Luxury Liner Sheet made of?

Luxury Liner Sheet is mass loaded vinyl (MLV) made from PVC plastic, at 1 lb (1/8") or 2 lb (1/4") per sq ft.

Luxury Liner 1/8" thick of mass loaded vinyl

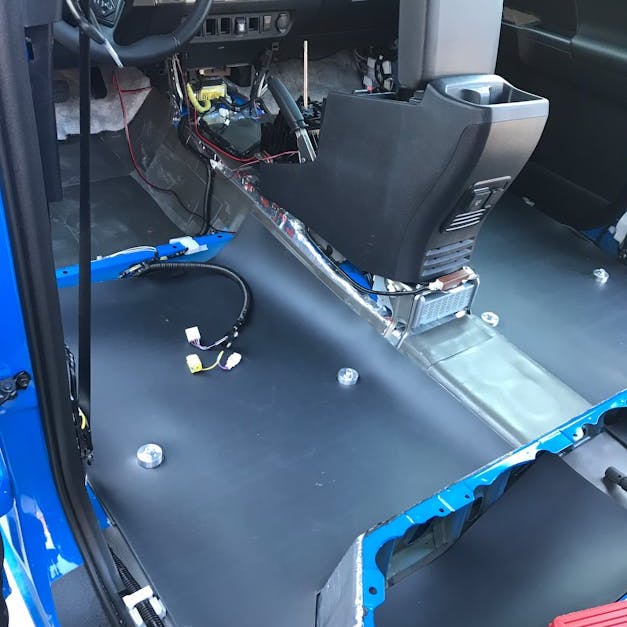

Luxury Liner blocks airborne noise installed with 100% coverage

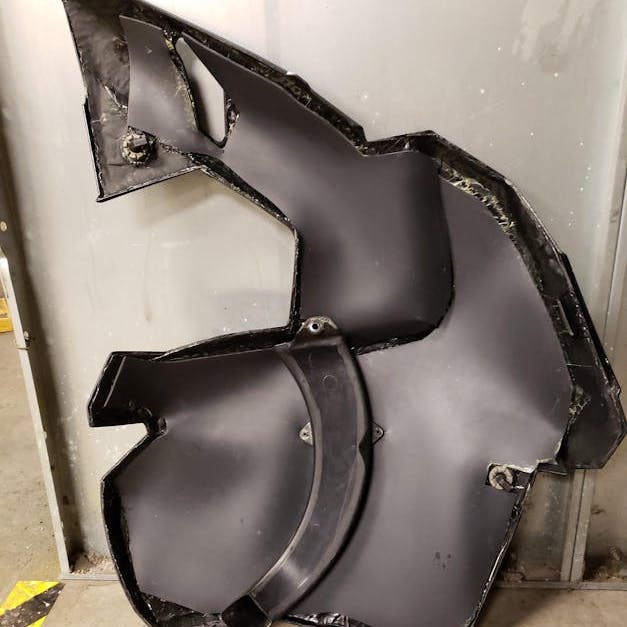

Luxury Liner MLV behind a plastic door card

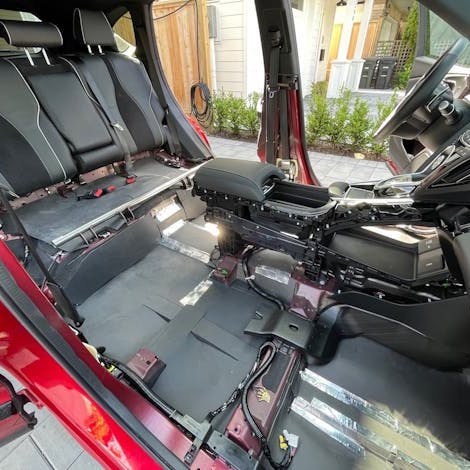

Luxury Liner sheets used on floor of SUV

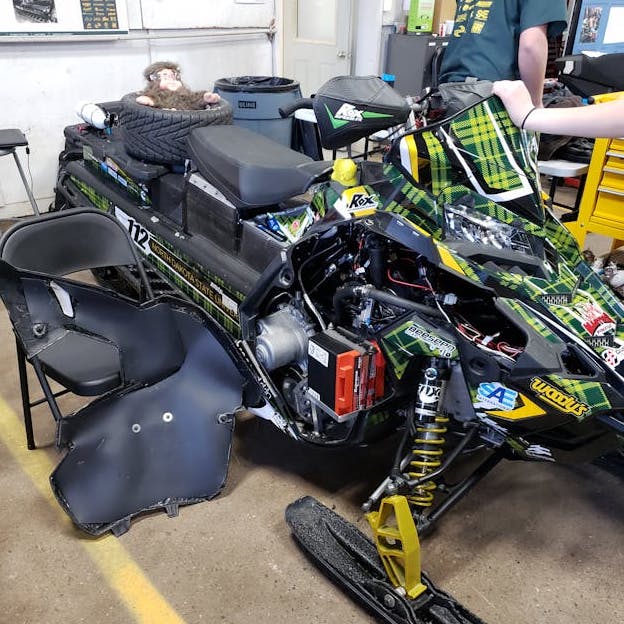

Luxury Liner MLV sheets used behind plastic snowmobile panels

Luxury Liner™ Sheet - Mass Loaded Vinyl (1 lb / 2 lb)

Name: Luxury Liner™ Sheet - Mass Loaded Vinyl (1 lb / 2 lb)
Brand: Second Skin Audio
SKU: LLSH-9-1/8-2454-MLV-1LB
Availability: InStock

In stock. This product ships in 1 business day

$60.00

MLV Density: 1 lb per Sq Ft

1 lb per Sq Ft 2 lb per Sq Ft

Square Footage Calculator

Luxury Liner™ MLV Sheet (1 lb / 2 lb)

Second Skin Luxury Liner™ automotive mass loaded vinyl is designed to block even the most stubborn airborne sound waves and road noises. The PVC vinyl is compounded with inert materials to build mass, and create an easy-to-install wall between you and whatever's creating the noise. Once you see what it can do, Luxury Liner™ will be your new favorite noise reduction tool. It's tough, so you can use it outside. It's super flexible, so you can bend it around curves. And it's dense, so it BLOCKS NOISE!

Features

Dominates unwanted noise — heavy, low-profile sheet for blocking unwanted sound
Flexes and molds with ease — 1 lb sheets are pliable enough to wrap curves, pipes, and tight spaces without cracking
Built to outlast cheap alternatives — over 3x the tensile strength (600+ psi) of lower-quality, recycled MLV
Safe for any install — odorless and fire resistant, passing vehicle fire safety testing standards (FMVSS)
Made in the USA

Free domestic shipping on all US orders

Specs

Dimensions	24" x 54" (9 sq ft)
Thickness	1 lb: 1/8" \| 2 lb: 1/4"
Weight	1 lb: 9 lbs per sheet \| 2 lb: 18 lbs per sheet
Color	Black
STC Rating	1 lb: 26 \| 2 lb: 32

When do you use the 2 lb sheet?

It's twice as thick, and much heavier, so you this is the preferred density for soundproof boxes, car floors, and anywhere you need a serious noise barrier. It is a lot less flexible than the 1 lb sheet, so flatter applications are best.

Material Testing

Sound Transmission Loss

Frequency (Hz)	125	250	500	1000	2000	4000	STC
1 lb Luxury Liner™ Sheet	14	19	22	27	32	37	26
2 lb Luxury Liner™ Sheet	19	20	27	34	38	43	32

Tested Properties	Testing Method	Performance
Tensile Strength	ASTM D412	Minimum 600 psi (4.1 MPa)
Elongation	ASTM D412	125%
Tear Resistance "Die C"	ASTM D412	100 lbf/in (17.5 kN/m)
Federal Motor Vehicle Safety Standard	FMVSS 302	Pass
Temperature Rating		150°F (175°F intermittent)

Installation Instructions

Automotive

Recommended Install Adhesive: HH-66 Vinyl Contact Cement or Dual Lock™ Reclosable Fasteners (spray adhesive will not work on vinyl)

Install Locations: Cabin side firewall, car floor, trunk, on top of wheel wells, and back wall

For best results, apply on top of a sound deadener (Damplifier Pro™ or Spectrum™) first to deaden the metal and stop structural noise.
Install a soft decoupling material between Luxury Liner™ and the floor — OverKill Pro™ or Heat Wave Pro™. Or use Luxury Liner Pro™, which has the decoupler pre-attached.
Remove upholstery or carpet. Ensure no loose debris, rust, dirt, or waxy oils.
Cut to size with a sharp utility knife or scissors. Do not cover wires, drain holes, or mechanical devices.
Use HH-66 Vinyl Contact Cement to adhere Luxury Liner™ to the decoupler. Apply one coat to each surface.
Apply adhesive to the decoupler and the foil side of your Damplifier Pro™. Apply constant pressure over the entire surface for several minutes.
Seal any exposed edges or seams with Foil Insulation Tape to create an unbroken noise barrier.
Factory carpet can be replaced immediately. Aftermarket carpet kits can be attached directly to Luxury Liner™.

Home & Commercial

Recommended Install Method: staples, screws, nails, or hung with reinforced grommets

Install Locations: Soundproof boxes, generator enclosures, PVC pipe wrap, HVAC ducts, soundproof doors, mechanical rooms, machinery enclosures

Cut with a sharp utility knife or upholstery scissors. Use a T-square for straight cuts.
The key to an effective installation is to make your noise barrier airtight. Use foil tape across seams and seal edges with foil tape or acoustical sealant caulk.
If installing using adhesive, you must use one designed for vinyl, like HH-66 Vinyl Contact Cement.
We recommend full MLV rolls for larger wall soundproofing projects.

Resources

Installation Guides

Luxury Liner™ Install Guide

Spec Sheets

Luxury Liner™ Product Sheet

Architect CSI Specs

Luxury Liner™ CSI Spec

Luxury Liner™ Sheet - Mass Loaded Vinyl (1 lb / 2 lb)

$60.00

Health and Safety Tested

Reduce Road Noise

Sound Blocking

Thermal Insulation

Vehicle Square Footage Calculator

How Much Luxury Liner™ Sheet - Mass Loaded Vinyl (1 lb / 2 lb) Do I Need?

Step 1: Select your vehicle type

Step 2: Select the areas you want to cover

.section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__panel { visibility: visible; grid-template-rows: 1fr; } .section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__trigger .icon-plus-toggle { display: none; } .section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__item[hidden] { display: block; } .section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__more { display: none; }

Luxury Liner Sheet rates STC 26 at 1 lb and STC 32 at 2 lb:

Frequency	1 lb	2 lb
125 Hz	14	19
250 Hz	19	20
500 Hz	22	27
1000 Hz	27	34
2000 Hz	32	38
4000 Hz	37	43
STC	26	32

Choose 2 lb Luxury Liner Sheet for the most sound blocking. It has an STC 32 versus STC 26 for the 1 lb sheet, with the biggest gains at the mid and high frequencies. The 1 lb sheet is thinner (1/8") and more flexible for tighter turns.

Luxury Liner Sheet goes on the vehicle floor, including under the rear seats. It also goes in the trunk (floor, quarter panels, and wheel wells) and on the cabin side of the firewall. Use it anywhere road, engine, exhaust, or tire noise needs to be blocked from entering the cabin. We recommend pairing it with a closed cell foam decoupler like OverKill or OverKill Pro.

For the best results, install Luxury Liner Sheet on top of a constraint layer damper like Damplifier or Damplifier Pro. Pair it with OverKill or OverKill Pro closed cell foam underneath. The foam decouples the MLV barrier from bare metal or hard plastic.

Each Luxury Liner Sheet is 24" x 54" (9 sq ft), and you're aiming for as close to 100% coverage as you can. You can measure your approximate square footage or use our vehicle square footage calculator just above. Call us at 1-800-679-8511 to speak with one of our soundproofing experts about how many sheets to order.
