Damplifierâ„¢ Deadening Mats
In stock. This product ships in 1 business day
Square Footage Calculator
Damplifierâ„¢ Sound Deadening Mat
Damplifier sound deadening mats were designed to be the highest performing sound dampening material relative to weight added to a vehicle. With premium butyl rubber, a thicker foil constraint layer, and comparable overall thickness to other top brands' flagship product, Damplifier premium butyl mats are the best value on the market.
Features
- High temperature butyl rubber adhesive – insist on more rubber and less filler!
- Ultra-thick, annealed black foil with a ghosted logo
- 1mm total thickness (40 mils)
- Each sheet is 12" x 24" (2 sq ft) and weighs about 0.35 lbs / sq ft
- Thermal range: -75 F to 450 F – will not melt, out gas, or fall off
- NEVER USES cheap filler materials, asphalt, flimsy foil, and other shortcuts that hurt product performance
- Guaranteed adhesion to metal for the LIFE of your vehicle
- Proudly made in the USA
Couldn't load pickup availability
Specs
Specs
| Dimensions | 12" x 24" (2 sq ft) |
| Thickness | 1mm (40 mils) |
| Weight | 0.35 lbs per sq ft |
| Foil Constraint Layer | Black, annealed foil w/ ghosted logo |
| Max Temperature Rating | 450°F |
| Adhesion | Guaranteed |
| Apply To | Metal or fiberglass |
Material Testing
Material Testing
| Tested Properties | Testing Method | Performance |
| Fire Rating | Self Extinguishing | |
| Salt Spray Aging | ASTM B117 (250 hours) | Pass |
| Heat Aging | 190°F (250 hours) | Pass |
| Humidity Aging | 100°F/100RH (250 hours) | Pass |
| Environmental Cycle Aging | 250 hours | Pass |
| Sag Test | 400°F (4 hours) | No Movement |
| Cold Slam Test (Ford Motors) | -40°F (4 hours) | Pass (6 slams) |
Installation Instructions
Installation Instructions

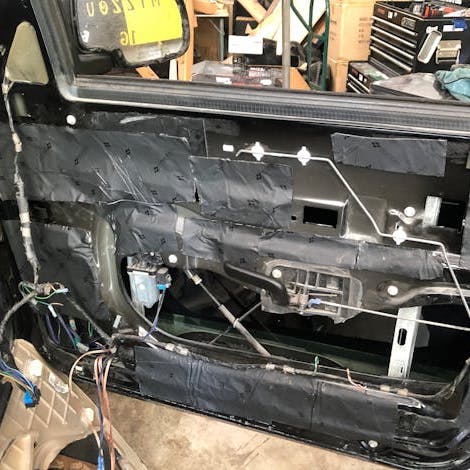

- Remove plastic panels, upholstery, and insulation to expose bare sheet metal.
- Remove debris, rust, and waxy oils. Clean surface with denatured alcohol (NOT a degreaser).
- Cut sound deadening material using a utility knife - either freehand or using a template. We recommend wearing gloves.

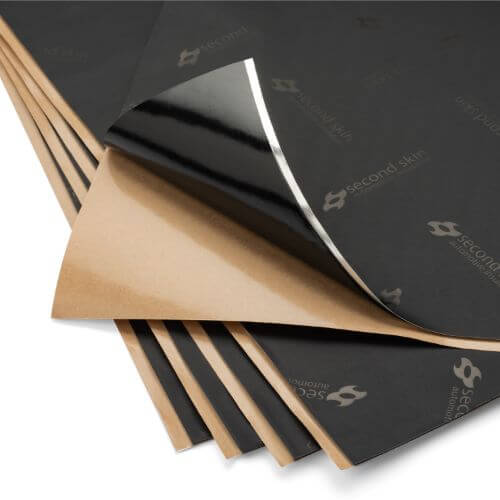

- Remove wax paper backing. Stick tacky butyl adhesive to metal surface.
- Use a Wooden Hand Roller to roll out any air pockets and create a permanent bond. A better bond further increases performance.
- Combine with a second layer like Luxury Liner Pro for the ultimate way to soundproof a car.
For more pro tips, check out our article on how to install sound deadening or our Video Library.
Common Product Uses
Common Product Uses
- Damplifier is our preferred automotive sound deadener when weight or cost are a concern. It provides unmatched vibration damping per pound of weight added.

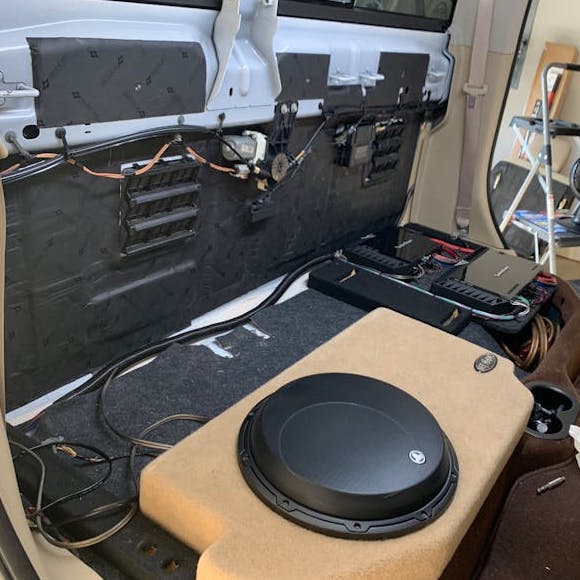

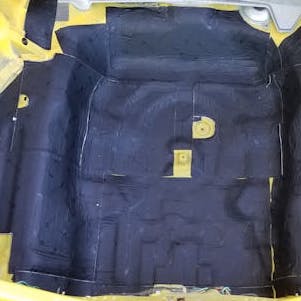

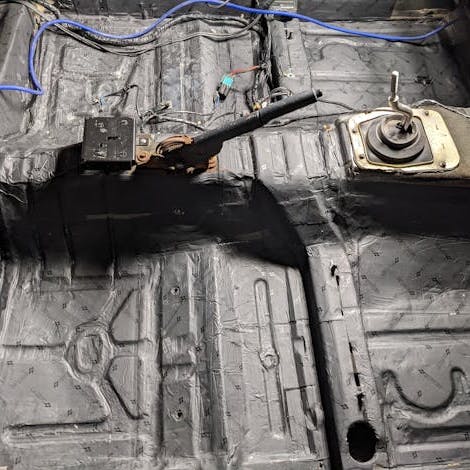

- Automotive: commercial automotive, van conversions, high performance vehicles, electric vehicles
- Residential: generator boxes, computer tower walls, screen doors, dishwasher enclosures, or a quiet stainless steel kitchen sink
- Commercial/Industrial: robotics equipment and other machinery, metal furniture, coin counting machines, HVAC ducts and units, metal carts in warehouses and hospitals, military applications
