Luxury Liner Proâ„¢ MLV + Foam Auto Sound Barrier Sheets
In stock. This product ships in 1 business day
Square Footage Calculator
Luxury Liner Proâ„¢ MLV + Foam Auto Sound Barrier Sheets
Luxury Liner Pro is our best automotive sound and heat barrier. By fusing mass loaded vinyl to closed cell foam, we've developed an airborne noise barrier that's equivalent to building an extra wall on the floor of your vehicle. With 100% coverage, Luxury Liner Pro will reject all forms of airborne noise (road, engine, tire, and exhaust noise) as well as add significant heat insulation. Combine with Damplifier Pro for the best possible results, and 10+ decibel reduction in any vehicle.
Features
- 2-in-1 noise and heat barrier
- Blocks airborne noise from the engine, exhaust, tires, and road

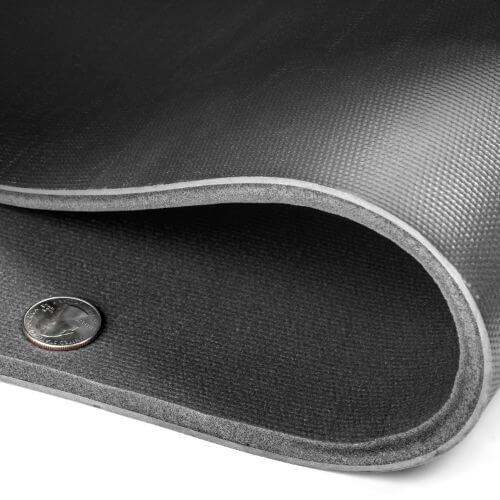

- Mass loaded vinyl barrier permanently fused to insulating closed cell foam
- Raw virgin automotive mass loaded vinyl (MLV) is flexible and won't smell, perfect for vehicles
- Closed cell foam (CCF) acts as a decoupler to increase performance, while adding automotive heat insulation
- Apply with a spray adhesive or strong double-sided tape
- Proudly made in the USA
Couldn't load pickup availability
Specs
Specs
| Dimensions | 24" x 54" (9 sq ft) |
| Thickness | 3/8" |
| Weight | 1.25 lbs per sq ft |
| Color | Black (MLV), Grey (foam) |
| Max Temperature Rating | 180°F |
| STC Rating | 28 |
| R-value per Inch | 4.45 |
Material Testing
Material Testing
Sound Transmission Loss
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC |
| Luxury Liner Proâ„¢ | 20 | 21 | 25 | 28 | 32 | 42 | 28 |
Installation Instructions
Installation Instructions

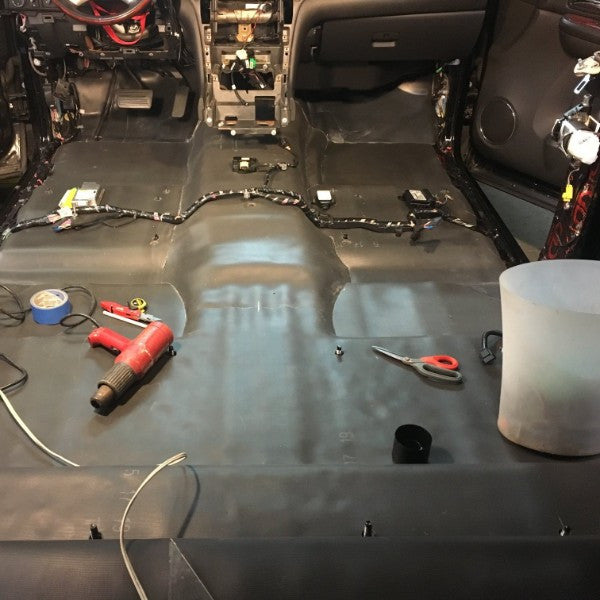

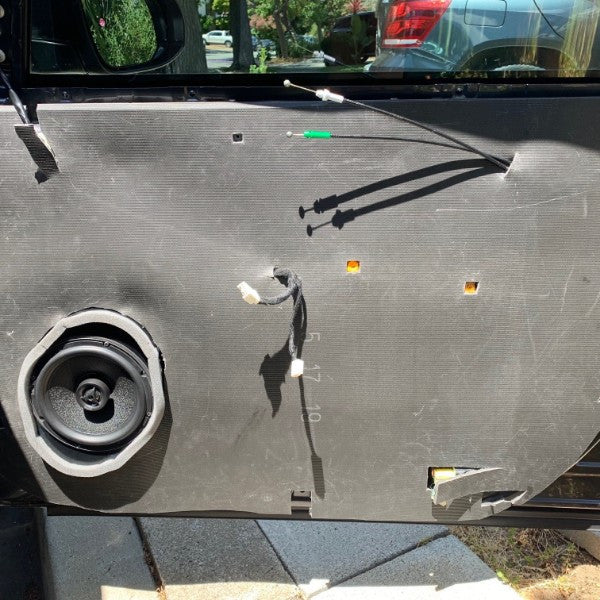

Install Locations: Cabin side firewall, vehicle floor, seal door cavity, trunk, over tops of wheel wells, truck back wall

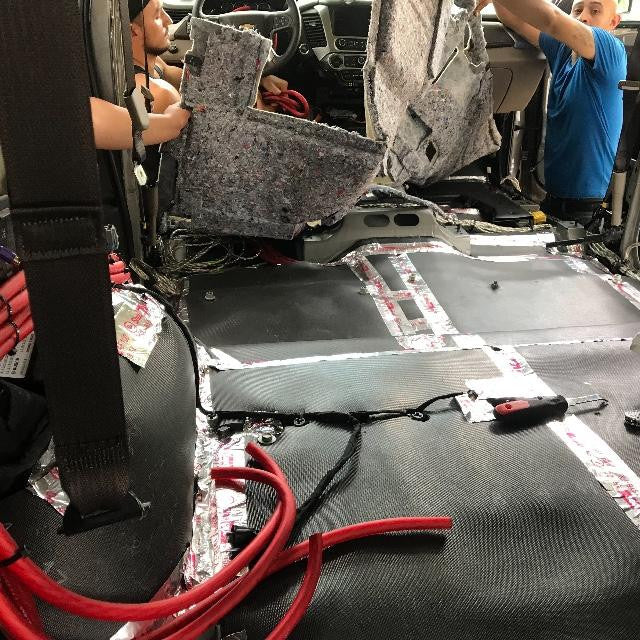

- For best results, Luxury Liner Proâ„¢ should be added as a second layer on top of a vibration damper stopping structural vibrations (Damplifier Proâ„¢, Spectrumâ„¢).

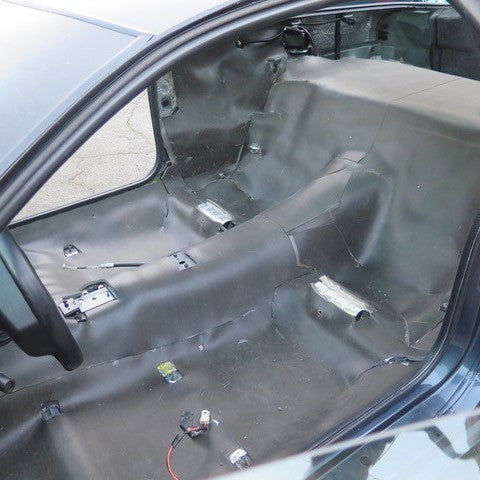

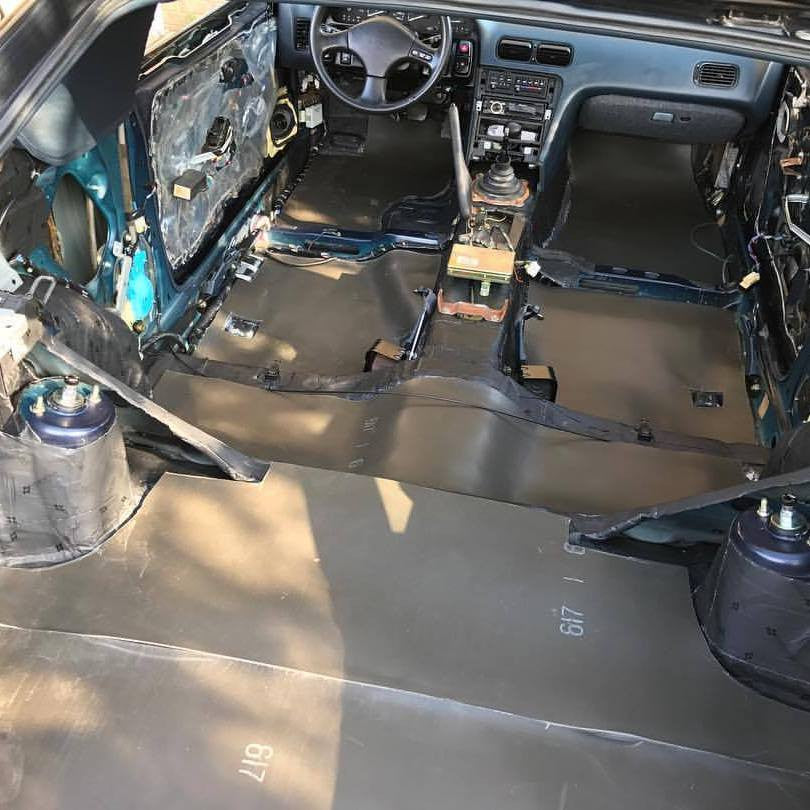

- Luxury Liner Proâ„¢ is your airborne noise barrier. It should be applied with 100% coverage on the cabin side firewall, floor, and trunk/cargo area. Cover the tops of the wheel wells.
- Remove all debris, dirt, rust or waxy oils from the application surface.
- Measure the application surface and plan out the positioning of your sheets, using cardboard templates if necessary.
- Cut with a sharp utility knife or scissors.
- Vertical surfaces will require an adhesive. The adhesive is optional for horizontal surfaces. We recommend our Permanent Spray Adhesive or Super Strong Double Sided Tape.
- Apply adhesive to the grey FOAM side of Luxury Liner Proâ„¢. The FOAM side will face downwards towards the application surface.
- We recommend taping the seams for the best possible sound blocking.
Check out our Video Library or download the Luxury Liner Proâ„¢ Install Guide for additional installation details.
Common Product Uses
Common Product Uses
- Use in combination with a sound deadening material like Damplifier Pro for unmatched car soundproofing. Typical results when combined with Damplifier Proâ„¢ is a 10+ dB reduction (50% of perceived noise).
- Luxury Liner Pro is heavy and should not be installed on the underside of horizontal surfaces, such as the car roof.
- Do not apply Luxury Liner Pro next to a heat source. It should never be installed in the engine compartment.
- Generator quiet box
- 2-in-1 sound barrier and heat insulation makes it a perfect material for insulating a van floor.
- For regular mass loaded vinyl sheets and roll without closed cell foam, see Luxury Linerâ„¢ Rolls, commonly used in room soundproofing.
