Stick Pin Insulation Hangers (Perforated Base)
In stock. This product ships in 1 business day.
Regular price
$19.99
Sale price
Regular price
Stick Pin Insulation Hangers
Secure insulation the easy way with perforated base insulation hangers. Designed for strength and simple installation, these insulation pins hold insulation firmly in place on walls and ceilings.
Features

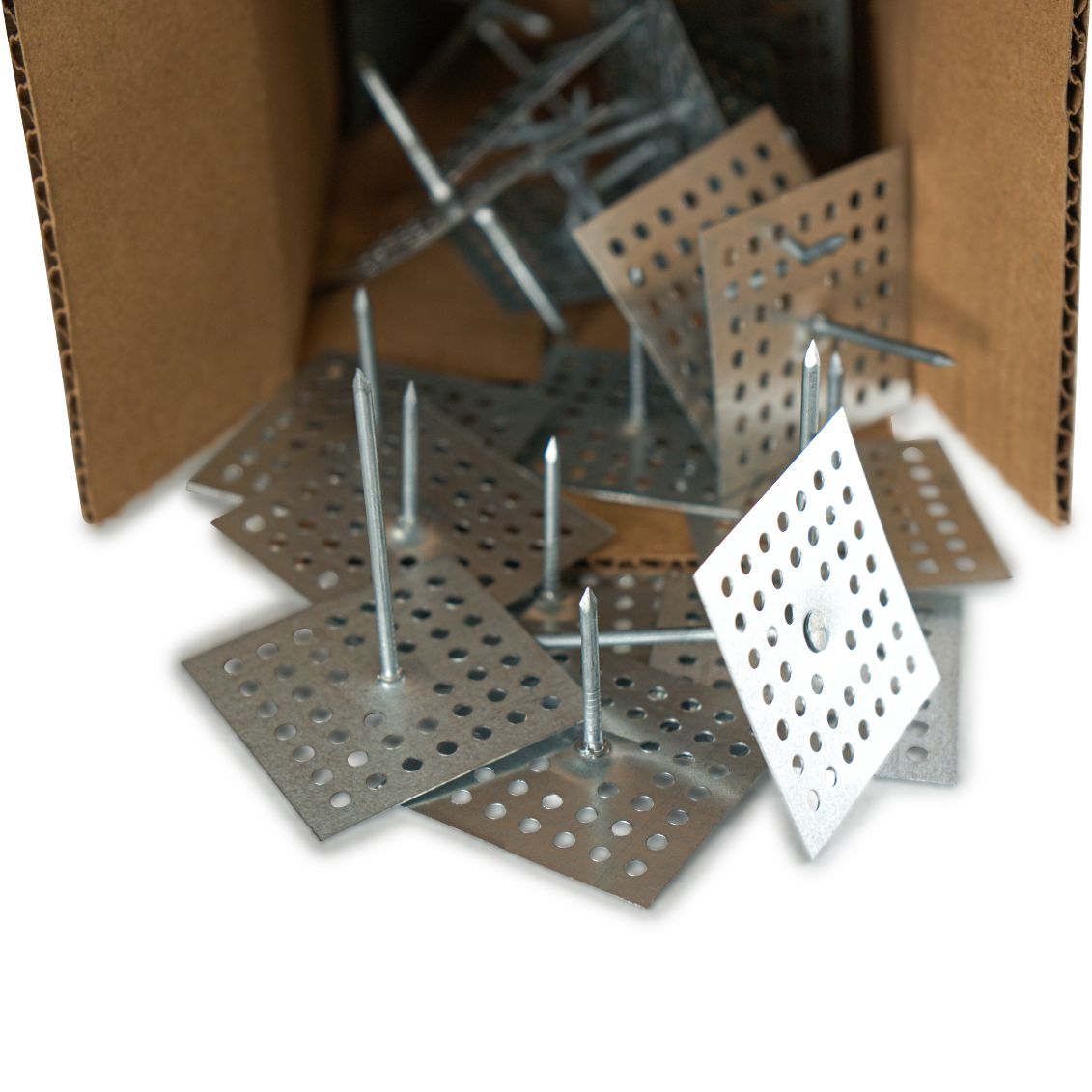

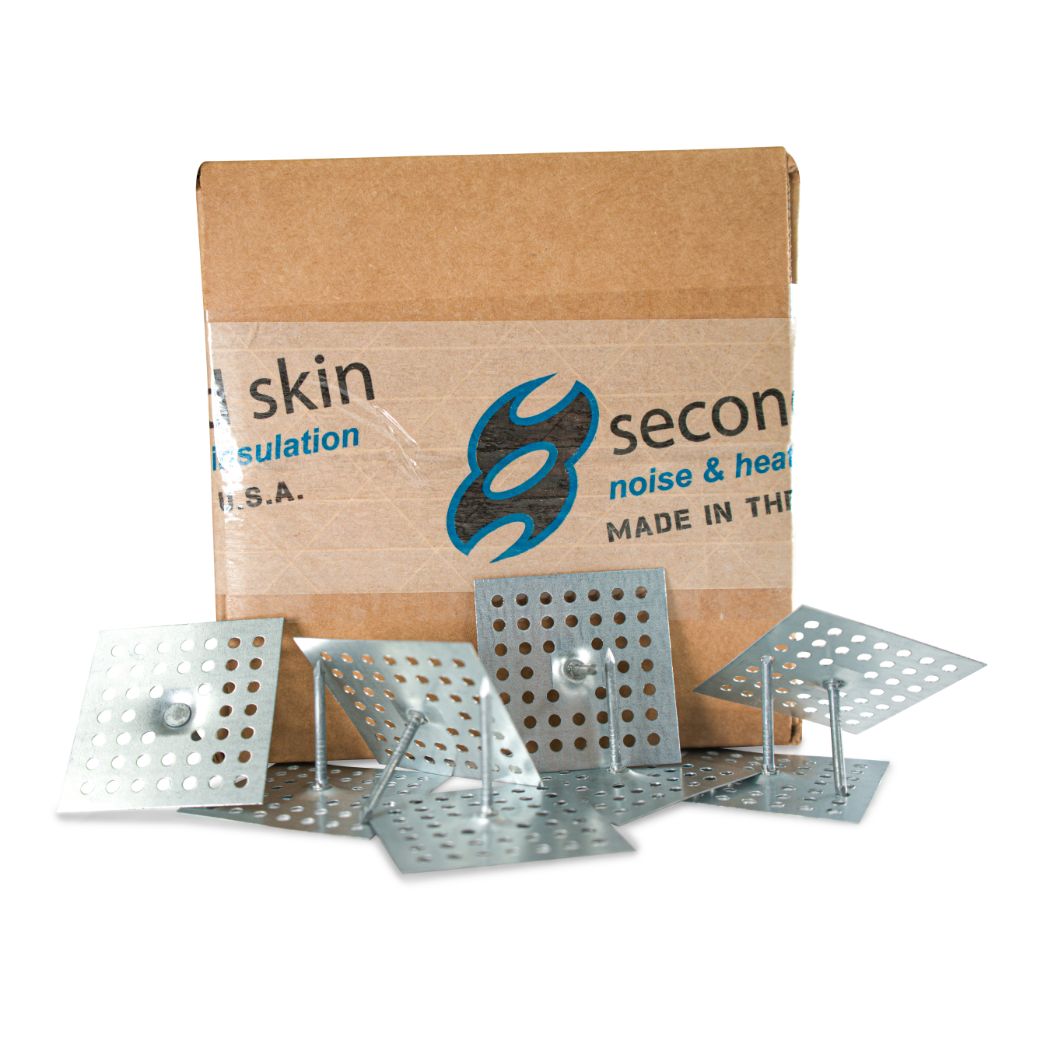

- Complete Kit – Choose quantity 50 or 1000 pins. Secure end with washer or dome cap.
- Durable Construction – Galvanized low carbon steel, 12-gauge pins built to last.
- Strong Hold – 2" perforated steel base plate can be attached to the substrate with adhesive or mechanical fasteners creates a solid bond with adhesive or fasteners.
- Easy Adhesive Installation – Apply construction adhesive, press to surface, and wait 24 hours for adhesive to cure.
- Versatile Applications – Works with cotton fiber liners, panels, duct wrap, foam board, and more.
- Made in the USA
Couldn't load pickup availability
Specs
Specs
|  Base & Nail Material | Galvanized low carbon steel |

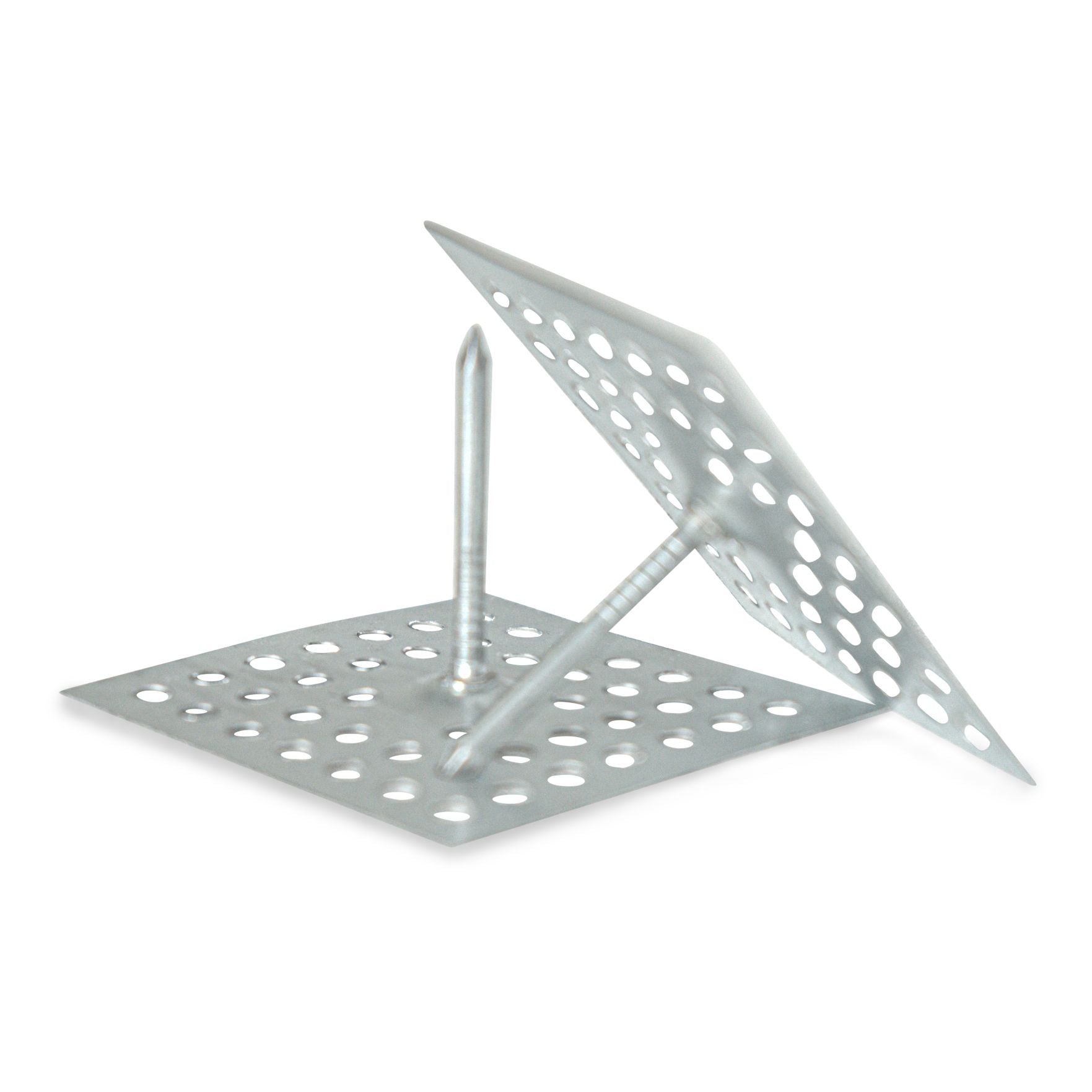

|  Base Size | 2" x 2" (Perforated) |

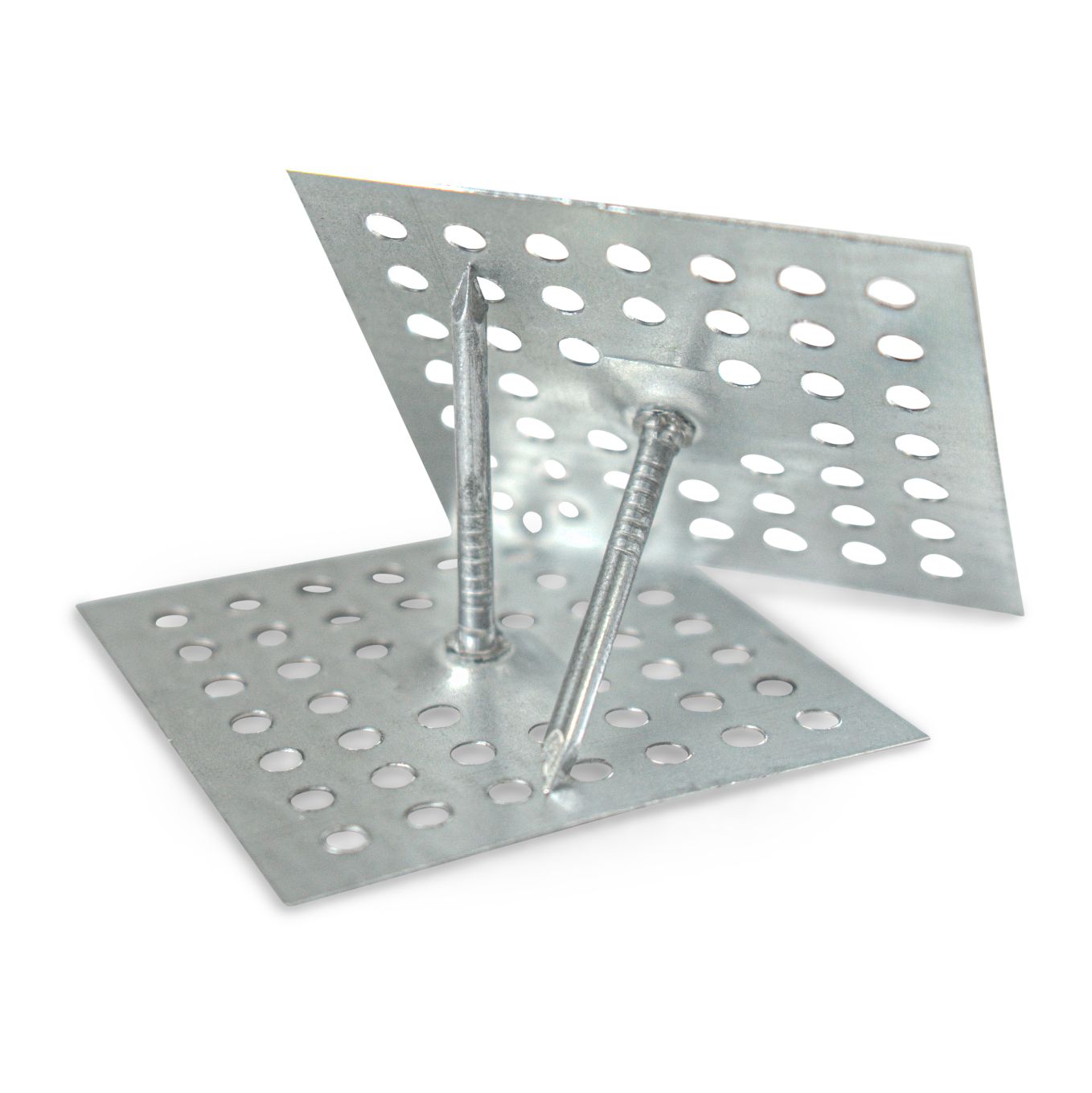

|  Pin Length Options | 1-1/4"  2-1/2" |
|  Pin Gauge | 12 ga |

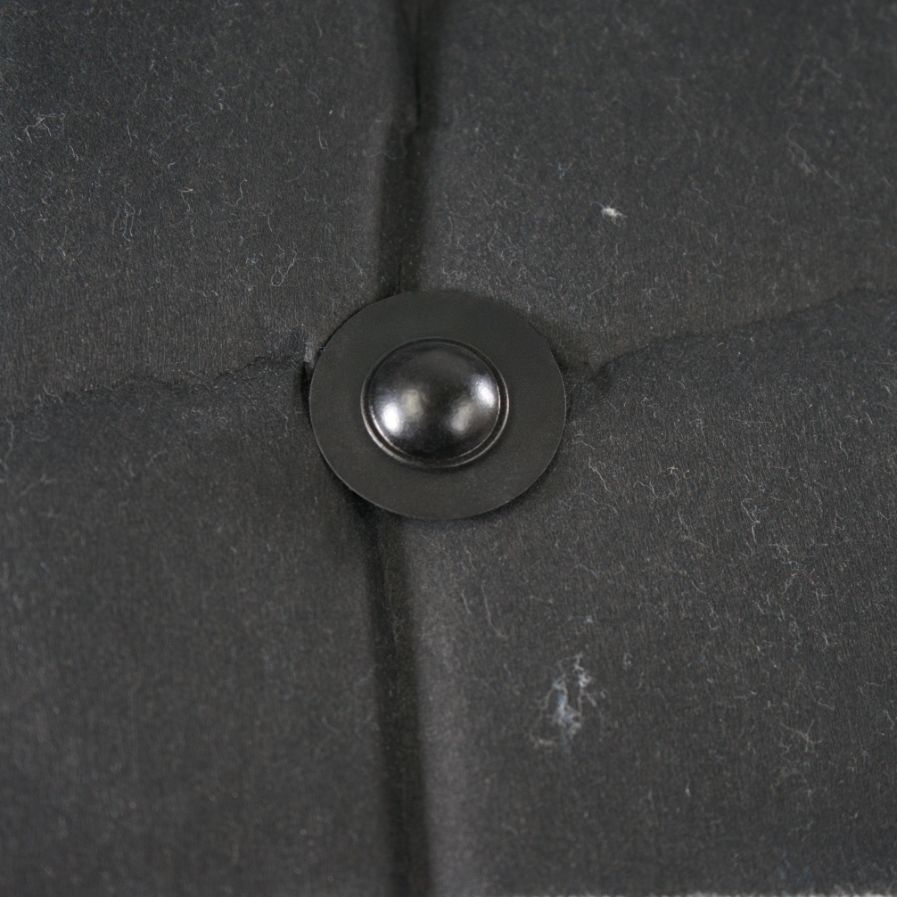

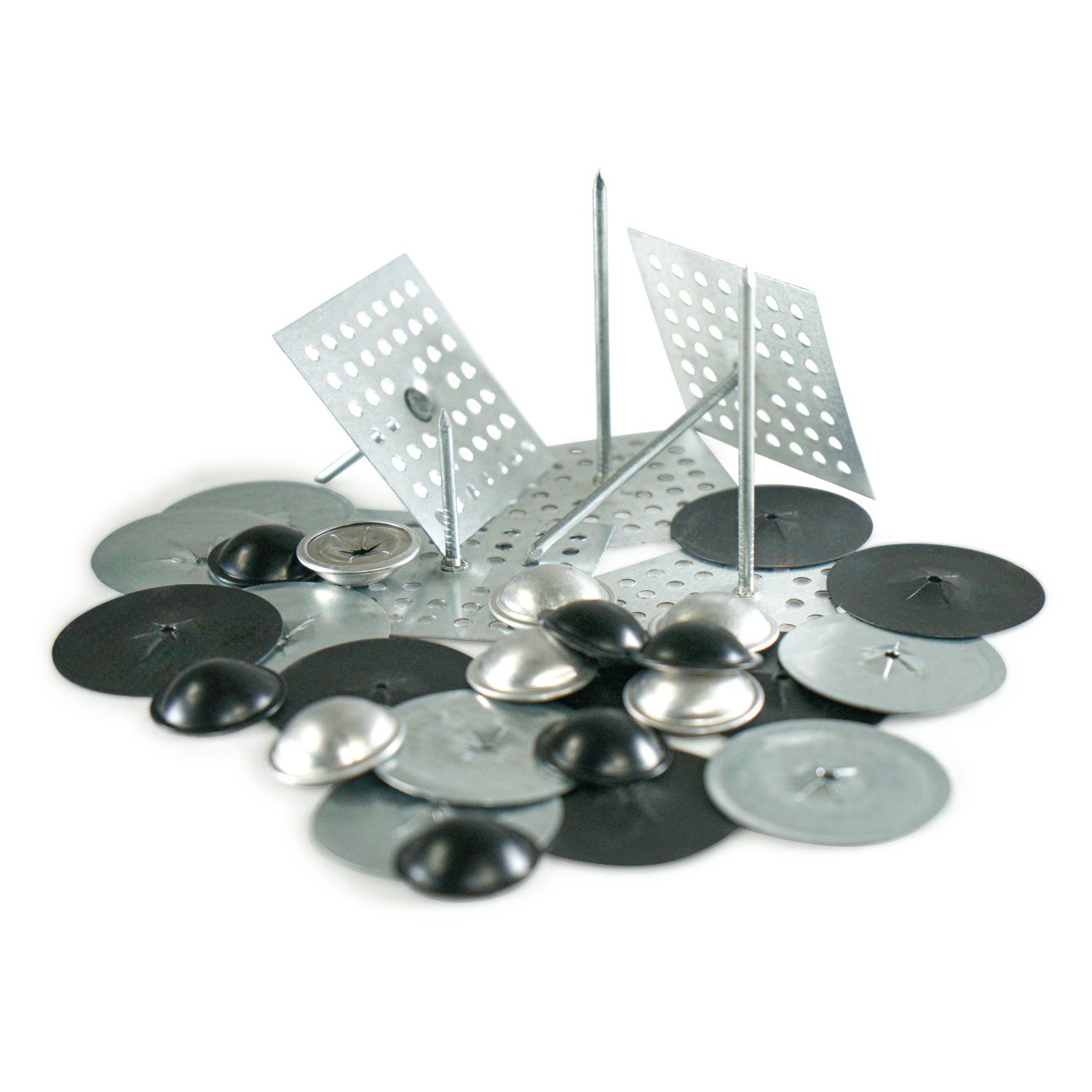

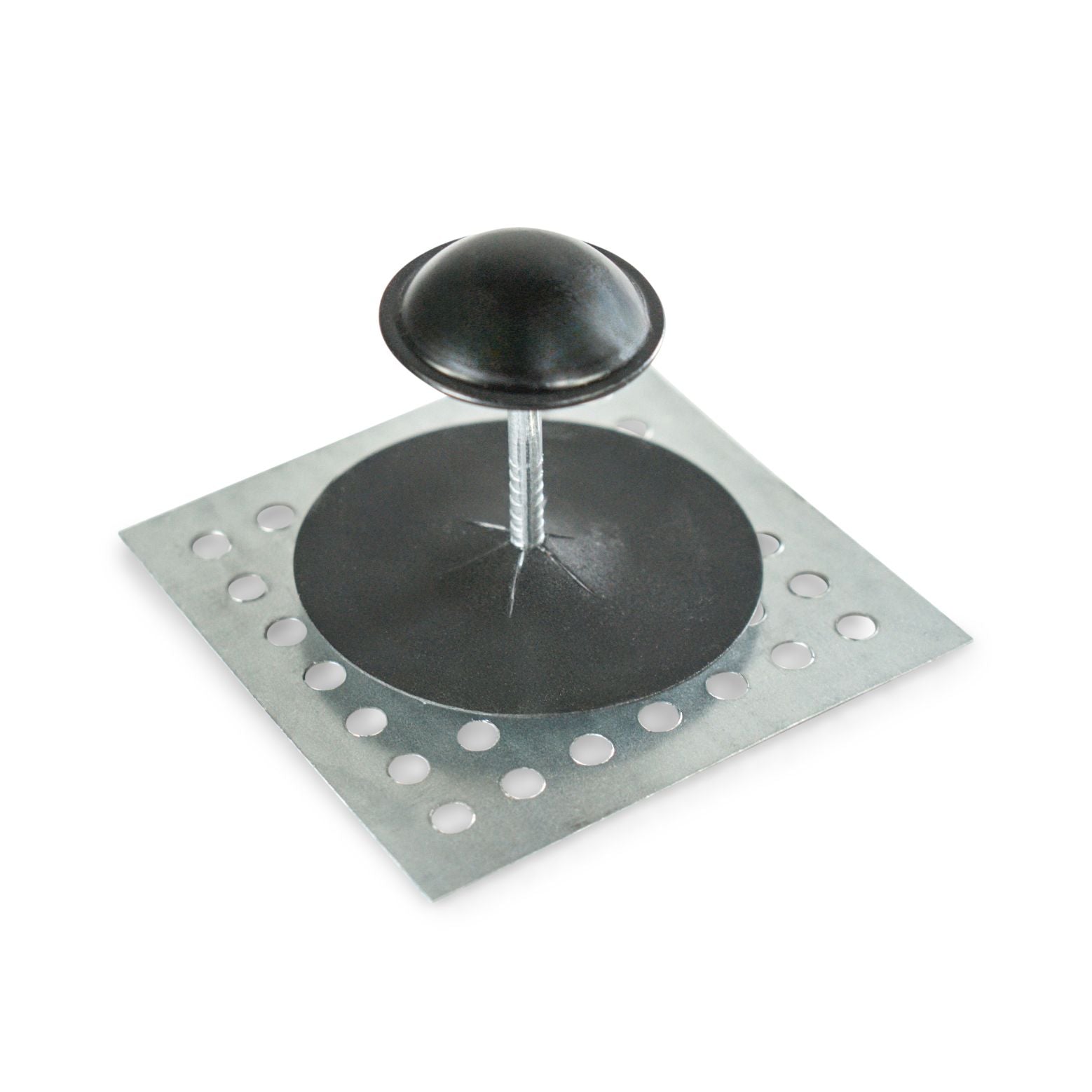

|  Secure End of Pin Options | 1-1/2" Self-Locking Washers (only)   1-1/2" Self-Locking Washers + 7/8" Dome Cap |
|  Secure End of Pin Colors | Silver, Black, or White |
Installation Instructions
Installation Instructions
- Apply Adhesive – Spread a thin layer of construction adhesive on the back of the perforated base.
- Press in Place – Firmly press the base against the wall or ceiling until adhesive comes through the perforations.
- Mount Insulation – Pierce insulation onto the pin so it sits flush against the surface.

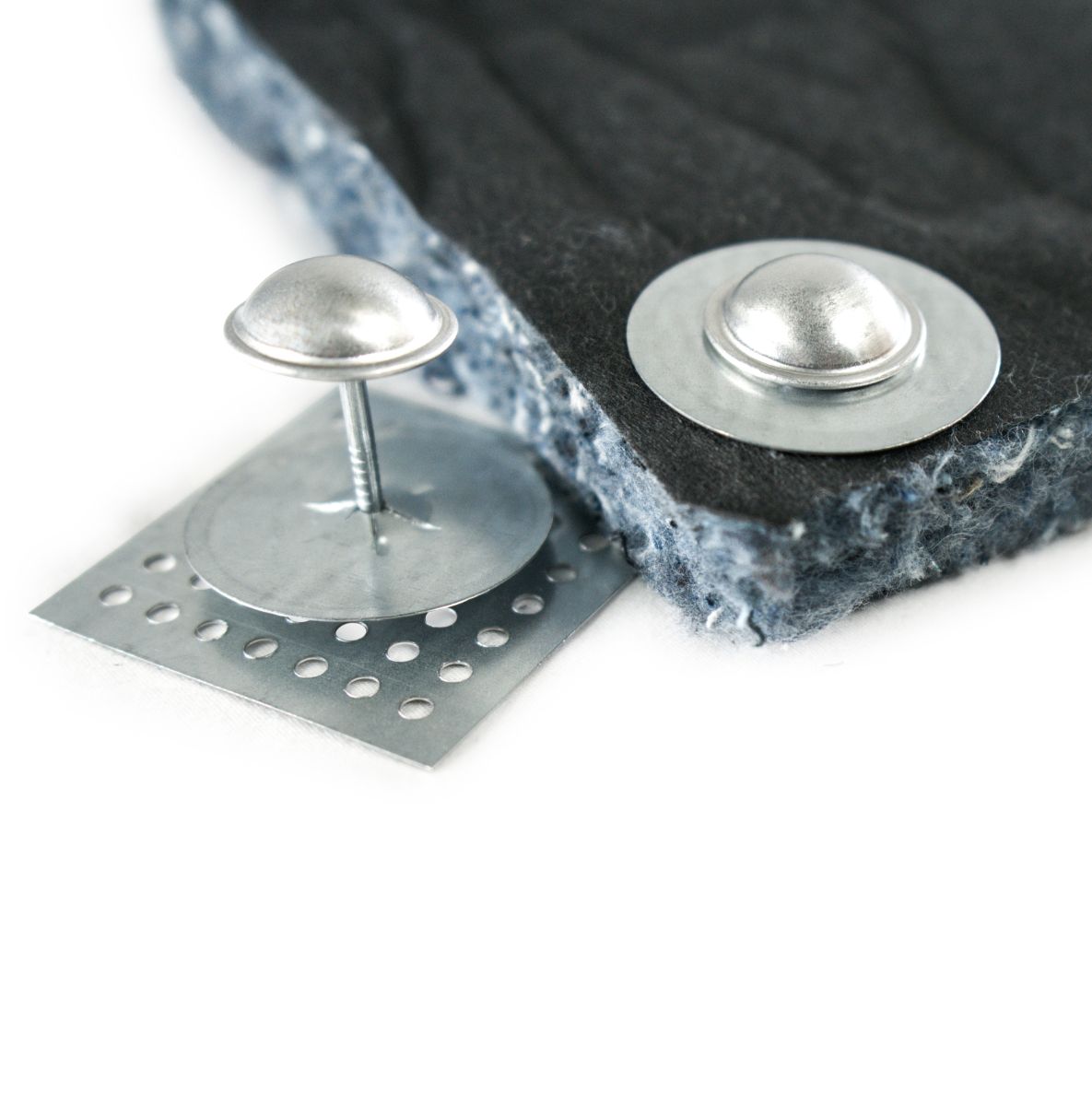

- Lock & Trim – Slide a self-locking washer and then trim the excess length. If using dome caps, installing the cap after trimming the excess length.
Common Product Uses
Common Product Uses
|  Application | Details |
|---|---|
| Ceilings & Walls | Fasten acoustic material or insulation securely to walls and ceilings |
| HVAC Systems | Attach duct wrap or duct liner to HVAC ducts |
| Metal Buildings | Install insulation in a metal building |
