Spectrum Van Cargo Spray Soundproofing Packages
In stock. This product ships in 1 business day
Regular price
$699.99
Sale price
Regular price
Spectrumâ„¢ Van Cargo Spray Soundproofing Packages
Spectrumâ„¢ is a durable and long-lasting liquid deadener perfect for any van that needs soundproofing. By reducing sheet metal resonance and structure borne noise, any van can be made quieter and more comfortable to drive. Originally formulated as undercoating sound deadening, Spectrumâ„¢ liquid deadener is an awesome substitute anywhere you'd use a sound deadening mat.
Features
- Water based viscoelastic polymer for damping loud metal vibrations
- Lighter than mats at equivalent thickness (recommended: 2-3mm total thickness)
- Enhanced durability for use in extreme environments or outside the vehicle as an undercoating
- Waterproof and rustproof
- Chemical resistant, non-toxic, and odorless once cured
- Self-extinguishing
- Temperature rated up to 400°F
- Apply with a spray gun, brush, or roller
- Proudly made in the USA
Couldn't load pickup availability
Specs
Specs
| Square Foot Coverage | 20 sq ft per gallon at 2mm thickness |
| Total Thickness | Recommended 2-3mm, max 5mm |
| Layer Thickness | Apply in 1mm layers |
| Weight | 11 lbs (cured), 14 lbs (wet) |
| Water Resistance | Waterproof and rustproof |
| Temperature Resistance | 400°F |
| Application Temperature | Above 50°F for first 24 hour dry period |
| Primer Required? | Shiny/waxy surfaces will require a primer |
Material Testing
Material Testing
Acoustic Loss Factor @ 200Hz
| Temperature | 23°F | 50°F | 77°F | 104°F | 131°F |
| Spectrum (2mm) | 0.037 | 0.083 | 0.215 | 0.105 | 0.034 |
| Spectrum (3mm) | 0.066 | 0.119 | 0.363 | 0.258 | 0.068 |
| Spectrum (5mm) | 0.081 | 0.165 | 0.534 | 0.379 | 0.093 |
| Tested Properties | Performance |
| Flammability | Self-Extinguishing, FMVSS 302 (Pass) |
| Viscosity | 4000 centipose |
| Specific Gravity | 1.45 |
| Max Temperature | 400°F |
| Solubility | Soluble |
| Odor | None (when cured), Mild (as solvent) |
| Water Resistance | Waterproof |
| Shelf Life | 1 year (unopened), 30 days (opened) |
Package Options
Package Options

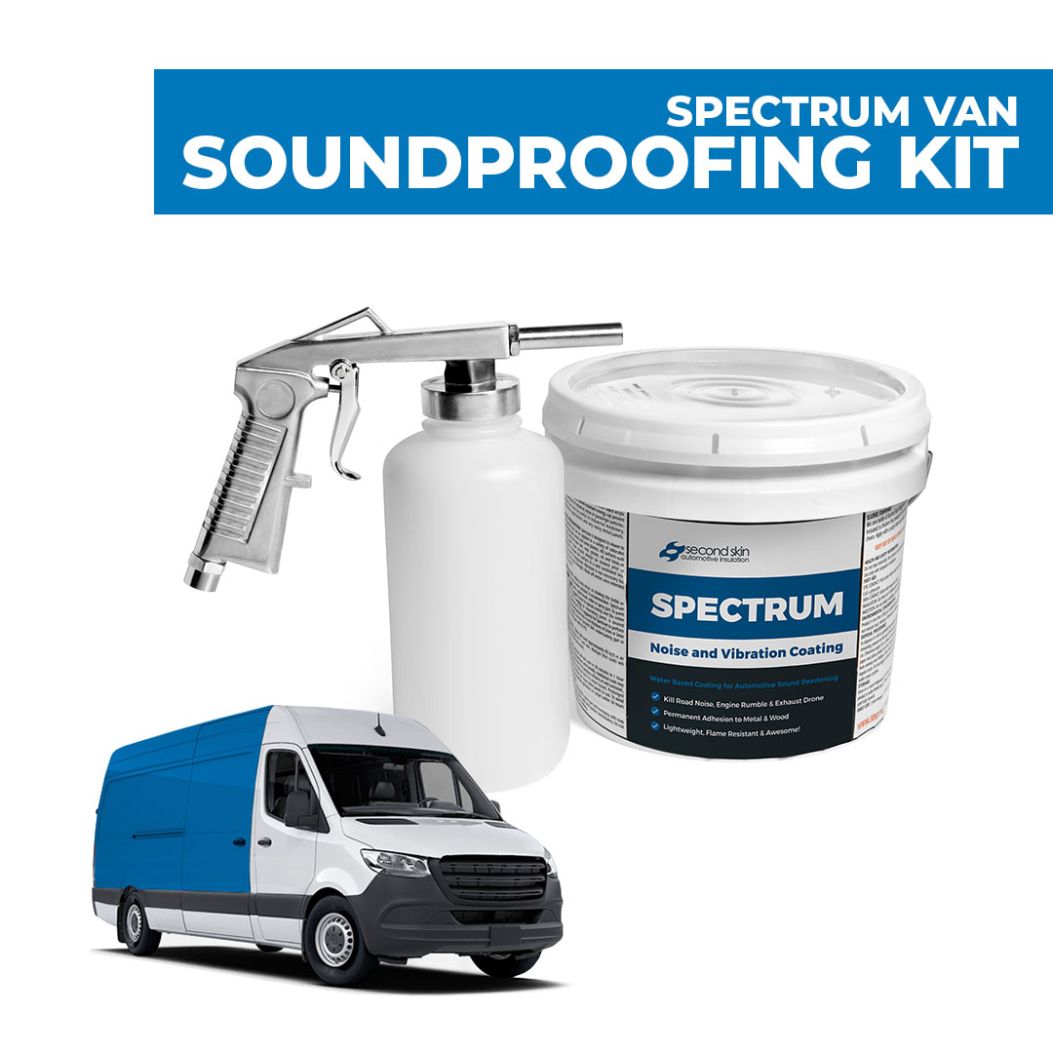

All packages come with 1 Spray Gun and 3 Spectrum Bottles
| Model and Roof Height | Gallons of Spectrum Included |
| Sprinter 144 - Medium Roof | 14 |
| Sprinter 144 - High Roof | 15 |
| Sprinter 170 - High Roof | 18 |
| Sprinter 170E - High Roof | 21 |
| Transit 130 - Low Roof | 10 |
| Transit 130 - High Roof | 12 |
| Transit 148 - Low Roof | 12 |
| Transit 148 - Medium Roof | 13 |
| Transit 148 - High Roof | 16 |
| Transit 148E - High Roof | 17 |
| ProMaster 118 - Medium Roof | 11 |
| ProMaster 136 - Medium Roof | 13 |
| ProMaster 136 - High Roof | 16 |
| ProMaster 159 - High Roof | 17 |
| ProMaster 159 - Super High Roof | 18 |
| ProMaster 159E - High Roof | 18 |
| ProMaster 159E - Super High Roof | 19 |
| Cargo - Small | 10 |
| Cargo - Medium | 11 |
| Cargo - Large | 13 |
Product Usage Tips
Product Usage Tips
- Clean up with water within 30 minutes of application. Do not wait longer or Spectrumâ„¢ will dry. Always clean the spray gun between coats by running water through it.
- If applying multiple layers of Spectrumâ„¢, wait 30-60 minutes for the product to cure and change color from blue to black.
- The temperature must be above 50°F for the entire 24 hours cure period after applying Spectrum™. Dry times increase with low temperatures and high humidity. If you expect longer than usual dry times, we recommend thinner layers (0.5mm instead of 1mm) to the same total thickness.
- Spectrumâ„¢ is designed to adhere to metal. Do not apply to plastic or fiberglass without the proper primer. If applying to a high gloss wax coat, you must sand down and apply a primer.
- Do not freeze Spectrum! If it does freeze, do not mix, shake, or move until it has completely thawed.
- Wait 24-36 hours (depending on humidity) before putting upholstery back in the van. Wait 7 to 10 days before painting or applying a bed liner.
- As Spectrumâ„¢ cures, its deadening properties will continue to increase. Vibration damping doubles from 4 hours --> 48 hours, and continues improving for 7 days.
- Spectrumâ„¢ contains rust inhibitors and dries with a seamless finish.
- Spectrumâ„¢ is not a bed liner. Even after it has cured, it can be damaged by heavy impact.
- Shelf life of 1 year when stored at room temperature.
- Wheel well sound deadening applications require about 2 gallons for all 4 wheel wells (all vehicles) and helps a good bit with soundproofing van road noise.

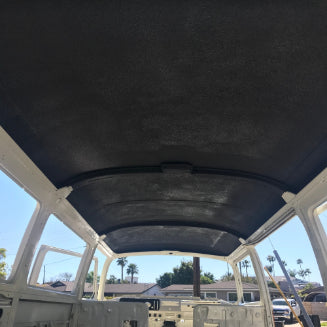

- Use Spectrumâ„¢ to cover entire cargo area to soundproof the structure.
Installation Instructions
Installation Instructions
- After upholstery or carpet is out, remove loose debris, rust, dirt, and waxy oils to insure a solid contact surface. Clean with denatured alcohol.

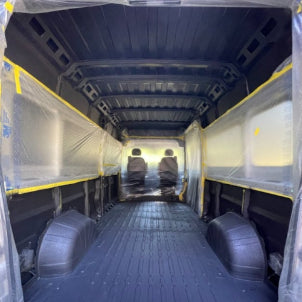

- If spraying, mask off all interior and exterior areas of the van for overspray. Cover mechanical parts, wires, and wire harnesses. If you don’t want Spectrum™ on it, mask it off.
- Spectrumâ„¢ can be applied with a brush or with the Second Skin spray gun.
- The recommended total thickness is 2 to 3 mm for a vehicle. Some commercial applications can do 1mm total thickness. Contact us if you have questions!
- Apply in layers 1mm layers. If Spectrum runs, you are applying it too thick. Always clean the spray gun between layers by running water through it until there's no dark pigment.
- After 60 to 90 minutes (depending on temperature and humidity), Spectrum™ will skin over and change colors from blue to black. Once Spectrum™ is black, it’s safe to add another layer.
- Most regular paint guns will not be able to spray Spectrumâ„¢ due to the extremely viscous consistency. We suggest using a HVLP undercoating gun or the provided Second Skin spray gun. The nozzle and stem must be 2mm.
- Spectrumâ„¢ is easy to clean up with water if done within 30 minutes of applying the product.
- Allow 24-36 hours before another product or upholstery is installed. Spectrumâ„¢ may be painted or covered with a bed liner after 10 days.
Download the for comprehensive spray on instructions.
