Quiet Quilt™ Floor Mounted Soundproof Enclosure
In stock. This product ships in 4 weeks.

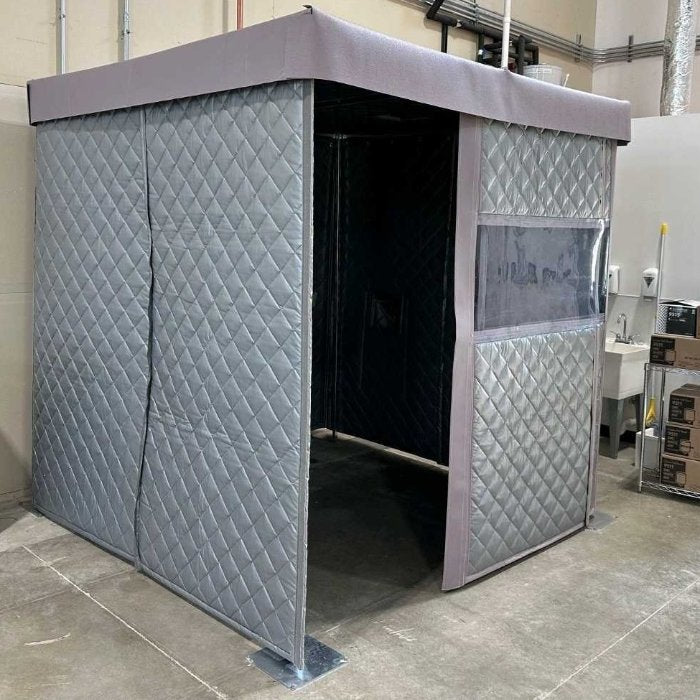

Quiet Quilt™ Floor Mounted Soundproof Enclosure
The Quiet Quilt™ Fixed Mount Soundproof Enclosure will enclose stationary equipment and machinery, increasing productivity and giving you peace of mind. Avoid the headaches and costs associated with other permanent structures – that you keep putting off because the project is too big. Our fixed mount enclosures allow for easy access to the machinery and a fast, simple install that will put that noise issue behind you.
Features
- Reduce warehouse noise from loud equipment by up to 15 db
- Affordable alternative to other permanent/fixed options

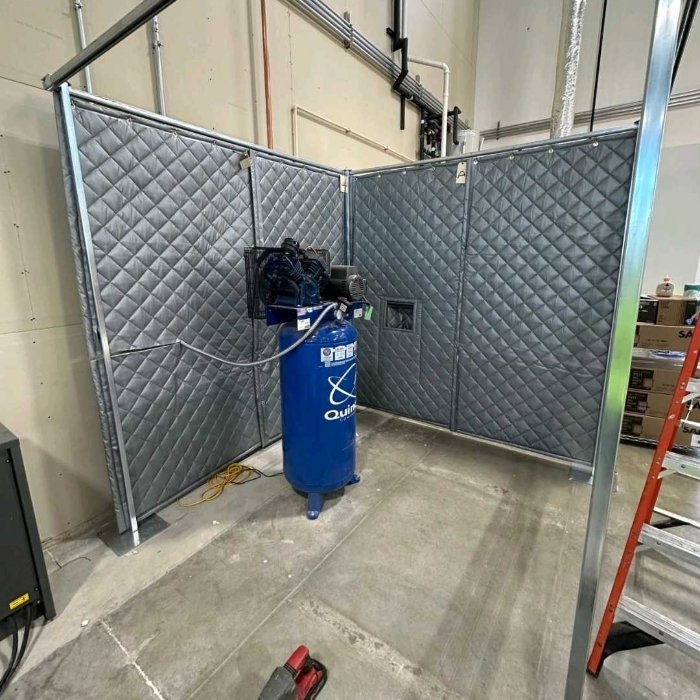

- Excellent for soundproofing generators, compressors, blowers, granulators and other stationary equipment
- Rated for STC and NRC
- Proudly made in the USA
Couldn't load pickup availability
Specs
Specs
| Dimensions | 4' x 4' x 8', 4' x 8' x 8' |
| Weight | 350 lbs (385 lbs w/ roof) |
| Color | Grey |

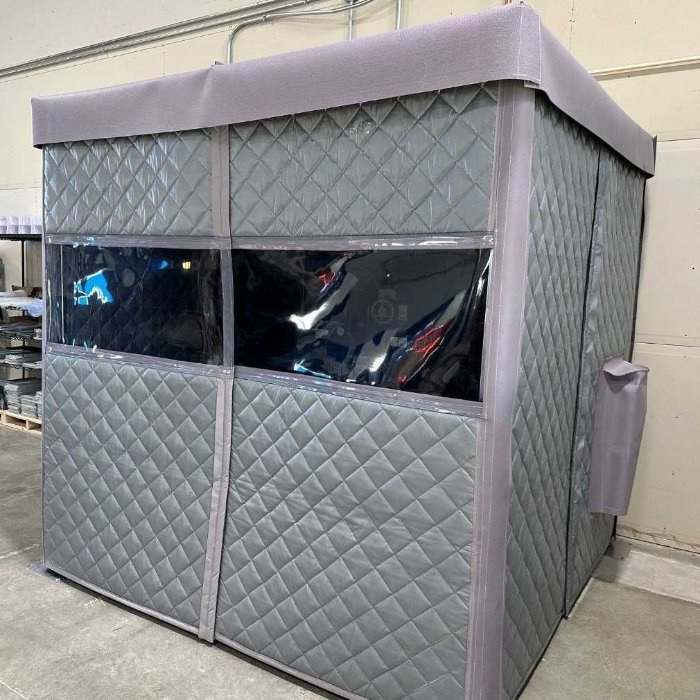

| Optional Add-Ons | Windows, Vent Baffles, Roof |

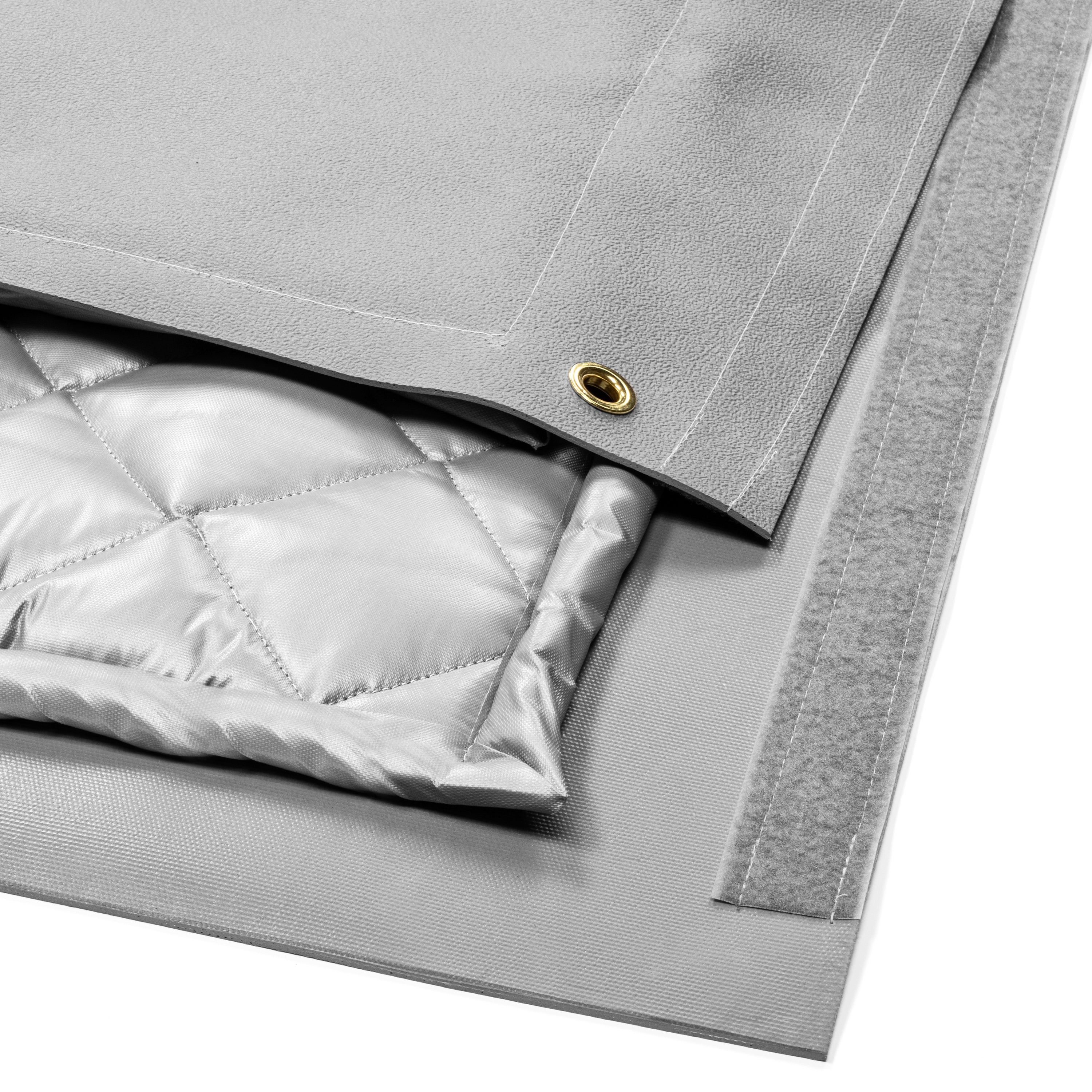

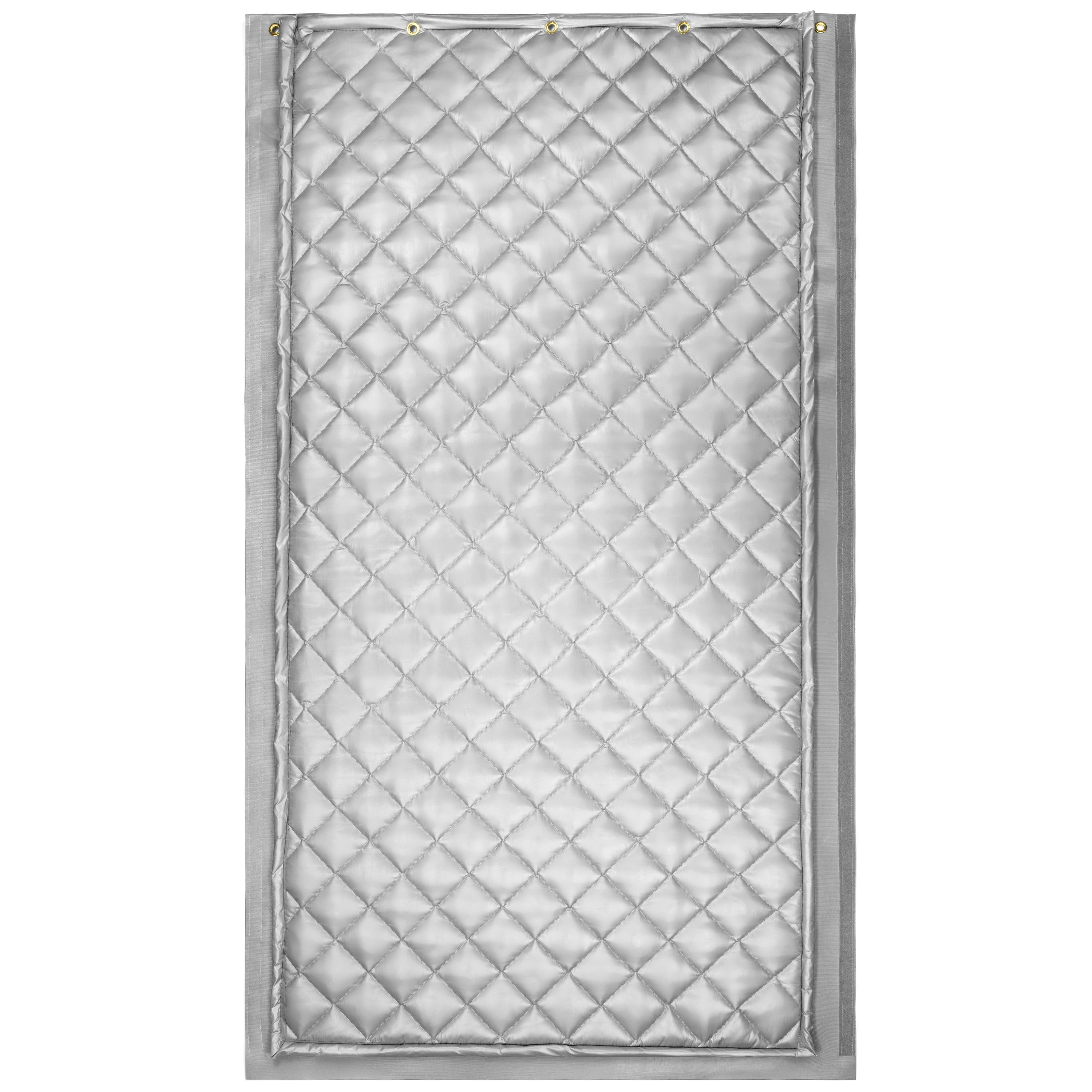

Quiet Quilt™ Soundproof Enclosures are made using our Quiet Quilt™ Indoor Soundproof Blankets by default. However, they can also be made with out Quiet Quilt™ 2-Sided Barrier Blanket.
Material Testing
Material Testing
Sound Transmission Class
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC |
| Quiet Quilt™ Indoor Soundproof Blanket - 1 lb MLV (2" thick) | 13 | 20 | 29 | 40 | 50 | 55 | 32 |
Noise Reduction Coefficient
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| Quiet Quilt™ Indoor Soundproof Blanket - 1 lb MLV (2" thick) | 0.07 | 0.27 | 0.96 | 1.13 | 1.08 | 0.99 | 0.85 |

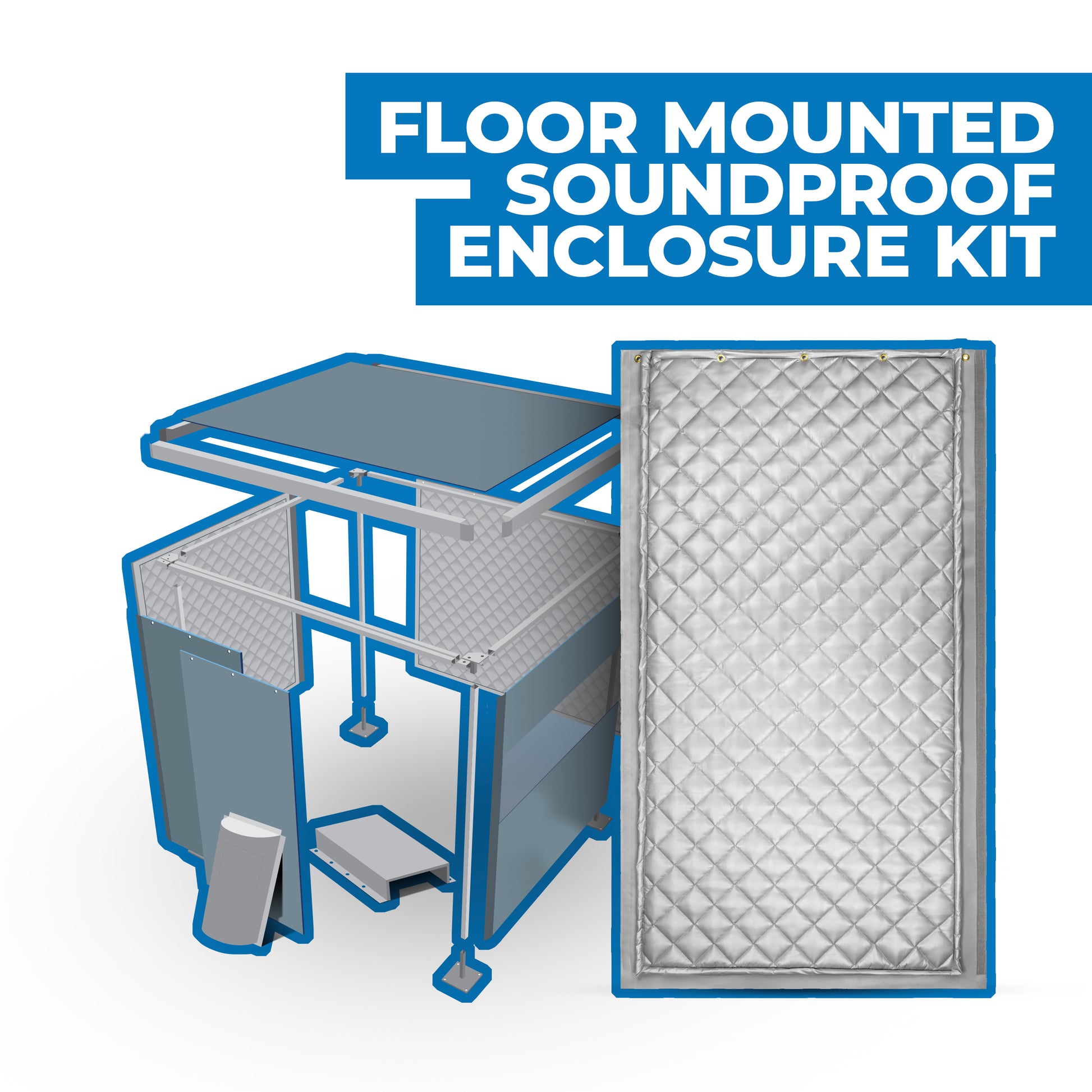

Installation Instructions
Installation Instructions
- Decide where you want your enclosure to be installed. Mark the area to be enclosed
- Set all of your floor bases in place
- Place all columns onto floor bases
- Slide roller track through the connectors to their designated locations
- Raise the assembly and slip track connectors onto top of floor columns
- Insert the provided roller hooks through grommets in each Quiet Quilt™ sound blanket
- Lift Quiet Quilt™ sound blanket up to the open end of the track and feed wheels of roller hooks into track
- Adjust hardware as necessary to accommodate Quiet Quilt™ Sound Blankets
- Install set screws through top of track connectors into track
- Install the end stops in all open ends of track to prevent rollers from running out of the track
- Anchor base plates to floor
Common Product Uses
Common Product Uses
- Block airborne noise from heavy machinery
- Soundproof loud, unwanted noise in a warehouse, manufacturing plant, or any other facility
