Quiet Quilt™ Portable Soundproof Enclosure
In stock. This product ships in 4 weeks.

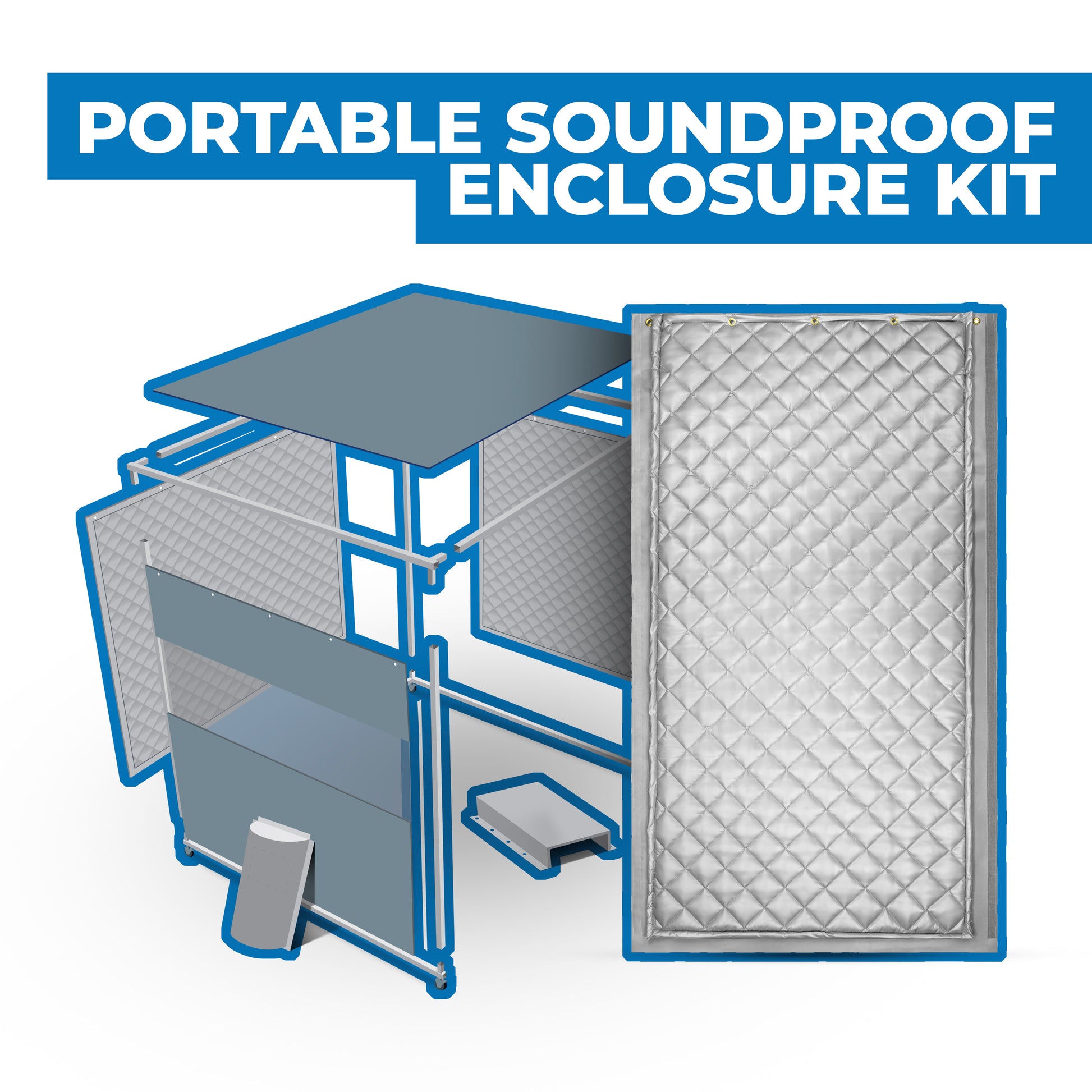

Quiet Quilt™ Portable Soundproof Enclosure (3-sided)
The Quiet Quilt™ Portable Soundproof Enclosure is the easiest and fastest way to reduce noise around loud equipment. We've designed a slip-fit system that is easy to set up and to move. If you struggle with too much noise from loud machinery or equipment, improving your team's productivity and quality of life has never been easier! For custom enclosures, reach out to a Second Skin soundproofing expert.
Features
- Reduce noise from loud equipment by up to 15 db
- Combine two 3-sided enclosures for a larger, portable 4-sided enclosure
- Simple, no tool setup
- Easy for 1 person to move
- Rated for STC and NRC
- Proudly made in the USA
Couldn't load pickup availability
Specs
Specs
| Dimensions | 4' x 4' x 8', 4' x 8' x 8' |
| Weight | 350 lbs (385 lbs w/ roof) 575 lbs (700 lbs w/ roof) |
| Color | Grey |
| Optional Add-Ons | Windows, Vent Baffles, Roof |

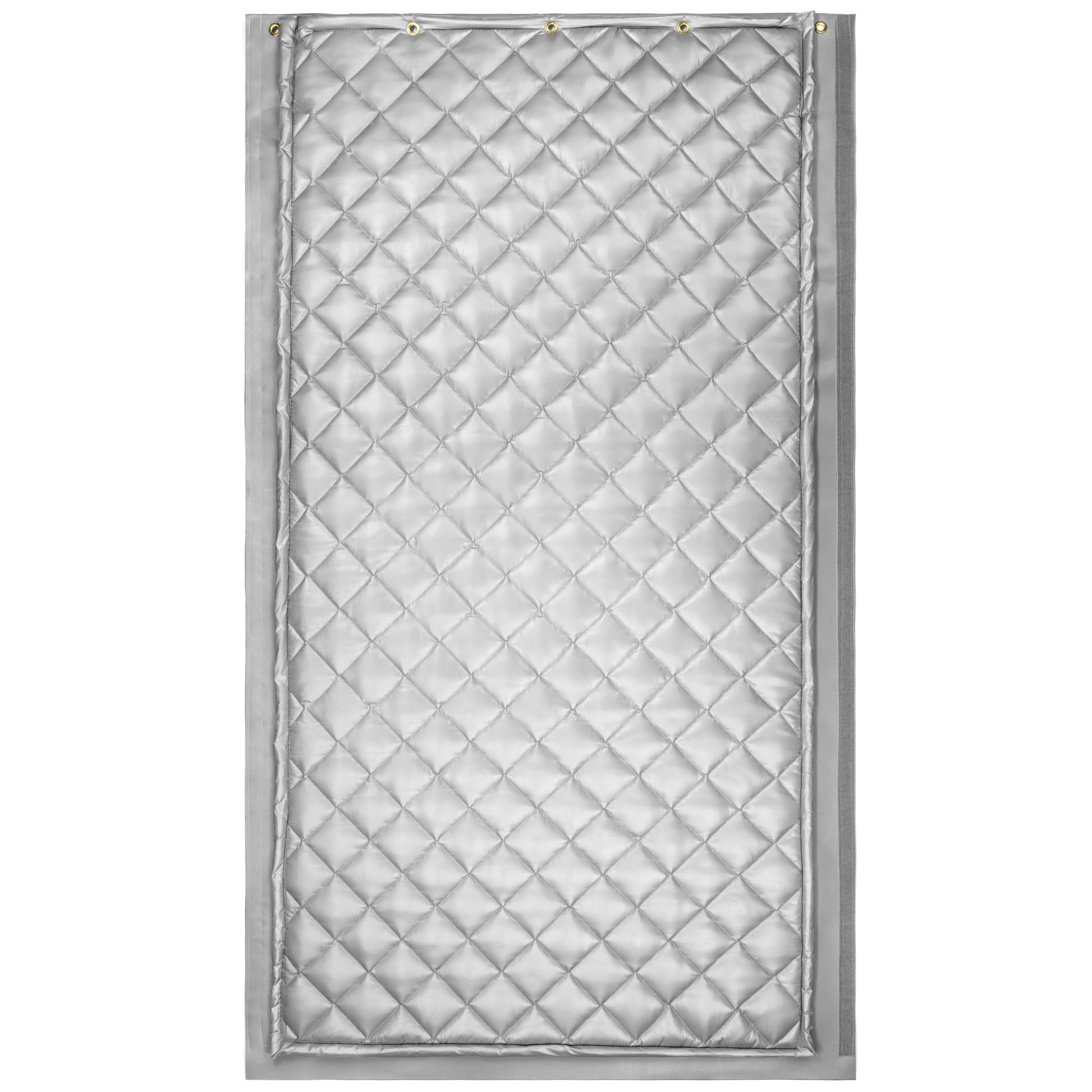

Quiet Quilt™ Soundproof Enclosures are made using our Quiet Quilt™ Indoor Soundproof Blankets.
Material Testing
Material Testing
Sound Transmission Class
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC |
| Quiet Quilt™ Indoor Soundproof Blanket - 1 lb MLV (2" thick) | 13 | 20 | 29 | 40 | 50 | 55 | 32 |
Noise Reduction Coefficient
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| Quiet Quilt™ Indoor Soundproof Blanket - 1 lb MLV (2" thick) | 0.07 | 0.27 | 0.96 | 1.13 | 1.08 | 0.99 | 0.85 |
Installation Instructions
Installation Instructions

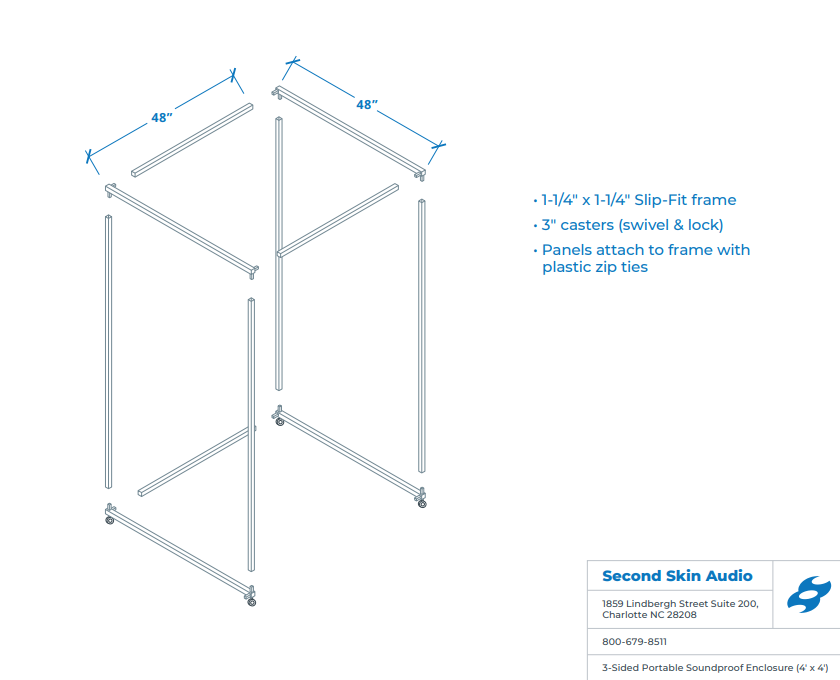

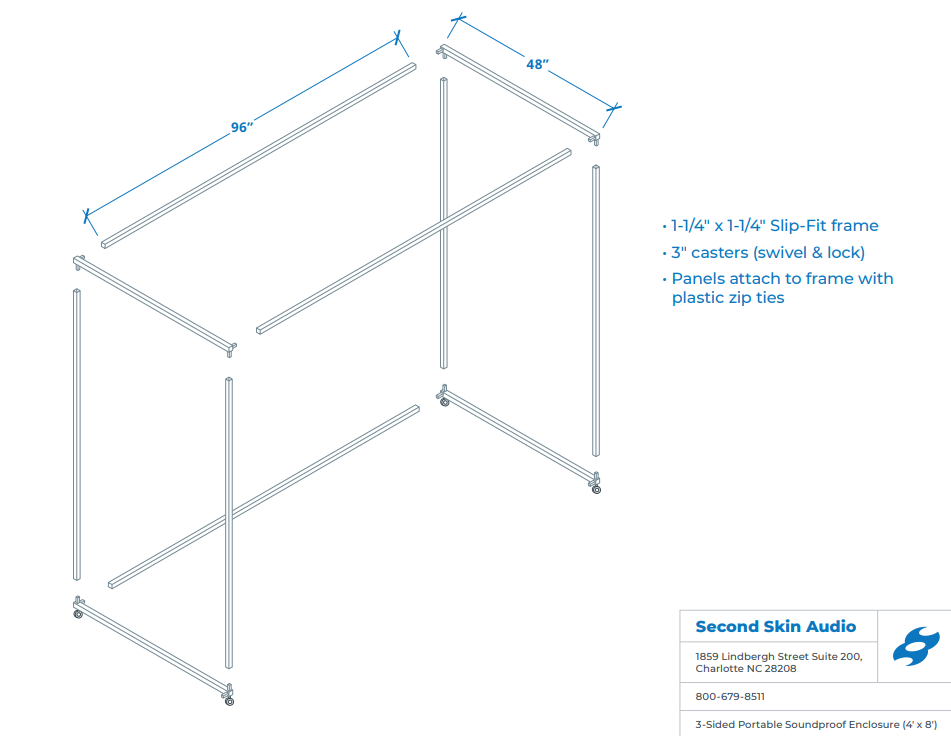

- Slip fit the steel frame to form the 3-sided base
- Slide (4) steel frame pieces into the base, so that they point towards the ceiling
- Slide the 3-sided top into the top of the (4) steel frame pieces
- Hang Quiet Quilt Soundproof Blankets from the frame with zip ties
- Seal overlap of the sound blankets at Velcro edges with 2” of overlap
- Cut zip ties
- Seriously, that’s it! Get a second 3-sided enclosure to combine and create a 4-sided enclosure.
Common Product Uses
Common Product Uses
- Portable soundproof solution for loud machinery
- 3-sided soundproof enclosure for improved machine ventilation
