Firewall Thermal Insulation Package
In stock. This product ships in 1 business day
Square Footage Calculator
Firewall Thermal Insulation Package
Second Skin's Firewall Packages transform your vehicle's firewall into a thermal and acoustic barrier with two layers of professional-grade insulation. Damplifier Proâ„¢ mats combine American-made butyl rubber with a thick annealed foil to kill vibrations and block heat transfer at the metal surface. A second layer of Mega Blockâ„¢ adds top-of-the-line radiant heat protection to keep engine heat out of your cabin. Both materials feature peel-and-stick adhesive for straightforward installation, and cut easily to fit even the most irregular firewall shapes.
Features
- Dual-layer system — sound deadening + radiant heat barrier in one package
- American-made butyl rubber — no asphalt, no odor, no compromise
- Kills firewall vibrations — dramatically quiets engine noise in the cabin
- Blocks radiant engine heat — Mega Block™ reflects heat before it reaches you
- Easy peel-and-stick install — both layers install effortlessly
We have a thermal ceramic coating that can be brushed, rolled, or sprayed on! Read our tips on how to soundproof a firewall to reduce engine noise in your cabin!
Couldn't load pickup availability
Firewall Insulation Package Options
Firewall Insulation Package Options

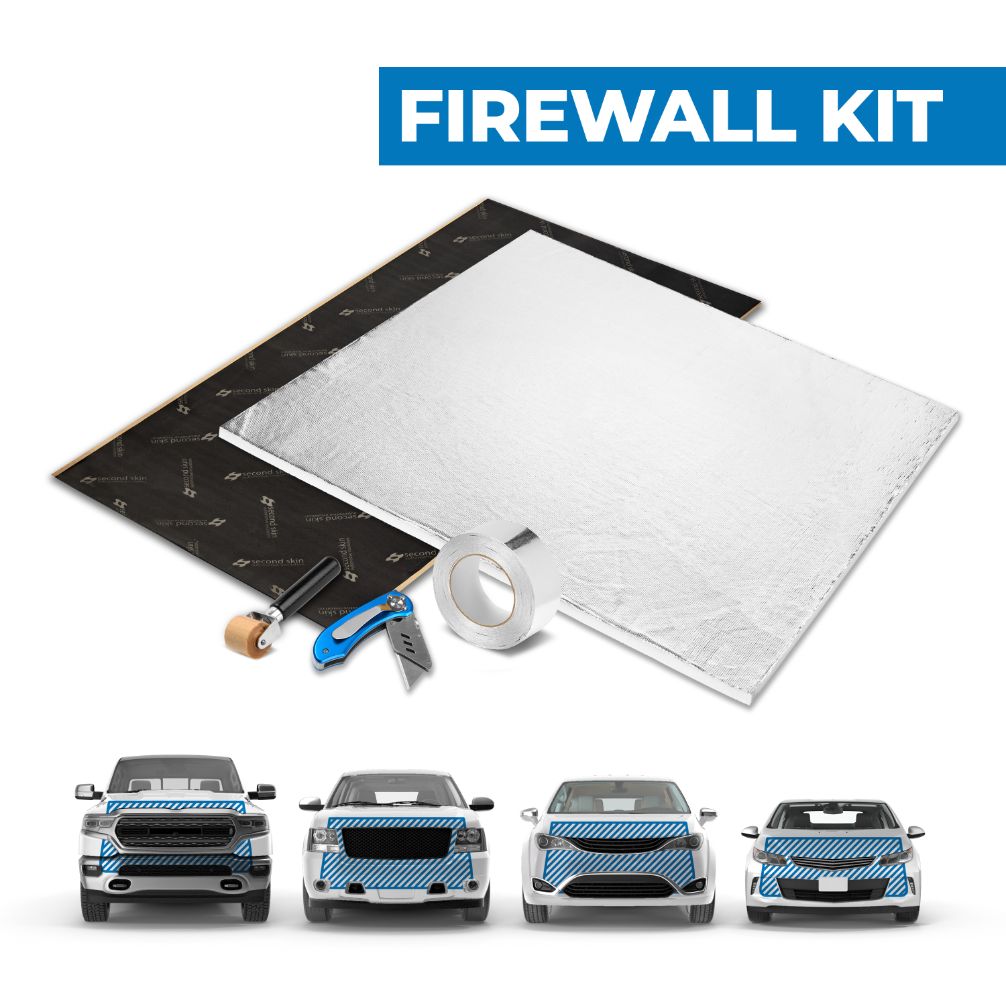

Standard Firewall Package
- Damplifier Proâ„¢ - 13.5 Sq Ft (8 sheets, 12" x 20" each, 2mm thick)
- Mega Blockâ„¢ - 12 Sq Ft (3 sheets, 24" x 24", 1/2" thick)
- Foil Insulation Tape - 1 roll (2" x 150')
- Wooden Hand Roller
- Fury Folding Utility Knife
Large Firewall Package
- Damplifier Proâ„¢ - 20 Sq Ft (12 sheets)
- Mega Blockâ„¢ - 16 Sq Ft (4 sheets)
- Foil Insulation Tape - 1 roll (2" x 150')
- Wooden Hand Roller
- Fury Folding Utility Knife
Specs
Specs
| Size Options | Standard or Large |
| Square Foot Coverage | 13 sq ft or 20 sq ft |
| Damplifier Proâ„¢ Dimensions | 12" x 20" |
| Damplifier Proâ„¢ Thickness | 2mm |
| Damplifier Pro™ Temperature Rating | -75°F to 450°F |
| Mega Blockâ„¢ Dimensions | 24" x 24" |
| Mega Blockâ„¢ Thickness | 1/2" thick |
| Mega Block™ Temperature Rating | -40 F to 1000°F |
Material Testing
Material Testing
Mega Blockâ„¢
| Flammability Ratings: | Description: | Rating: |
| FAR 25.856, BSS7365, AITM 2.0053 | Radiant Panel | After Flame: 0 Seconds; Flame Propagation: < 1" |
| ASTM 662-83, BSS7238 | Smoke Generation | Flaming: Ds (1.5 min) = 57; Ds (4.0 min) = 77 |
| BSS7239 | Toxicity | Pass |
| DIN 5510 | Flammability: S4; Smoke: SR2; Drips: ST2 |
Foil Heat Shield Specifications
| Base Fabric Type: | Plain Weave Fiberglass |
| Aluminum Foil thickness: | 0.001 inches |
| Flame Out | 1 sec max |
| Temperature Range (Composite): | -40°F to 1,000°F (*requires 2" between heat shield and heat source) |
| PSA Temperature Range: | -40°F to 450°F |
Acoustical Properties
ASTM E1050 testing method used to record acoustical absorption coefficients at various thicknesses and frequencies.
| Foam Thickness: | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| 0.50 in. | 11 | 12 | 25 | 42 | 77 | 94 | 45 |
| 1.0 in. | 18 | 23 | 50 | 82 | 99 | 99 | 60 |
For full material testing data, see the Mega Blockâ„¢ product listing.
Damplifier Proâ„¢ Adhesion
| Tested Properties | Performance |
| Salt Spray Aging | Pass |
| Heat Aging | Pass |
| Humidity Aging | Pass |
| Environmental Cycle Aging | Pass |
| 400°F Sag (4 hours) | Pass |
| -40°F Cold Slam (4 hours, 6 slams) | Pass |
Installation Instructions
Installation Instructions

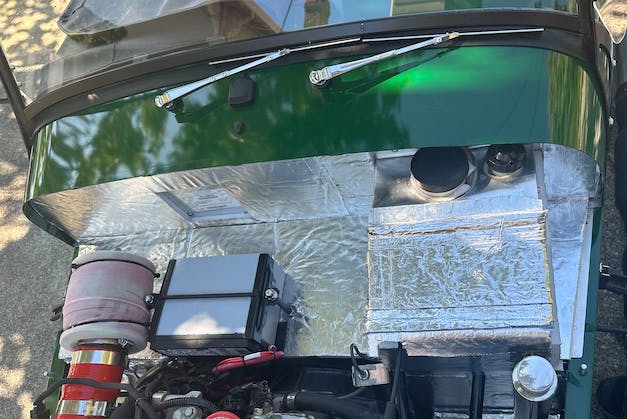

- Install locations: Hood (cover entire lid with foil facing the engine), Firewall (engine side), or for rear-engine design layouts, apply to the vehicle's back wall.
- First, make sure the surface is cleaned of dirt and oil.
- While wearing gloves, cut the Damplifier Proâ„¢ sound deadening mats to size with a utility knife.
- Use your hands to flatten the sound deadening mats on your firewall, with 100% coverage. Use a hand roller to roll out any air pockets.
- Mega Blockâ„¢ has a peel and stick backing. Simply peel and stick on top of the Damplifier Proâ„¢ sound deadening mats as your second layer. Cut Mega Blockâ„¢ with a utility knife as needed.
