Sound Lock™ Door Jamb Seals
In stock. This product ships in 1-3 business days.

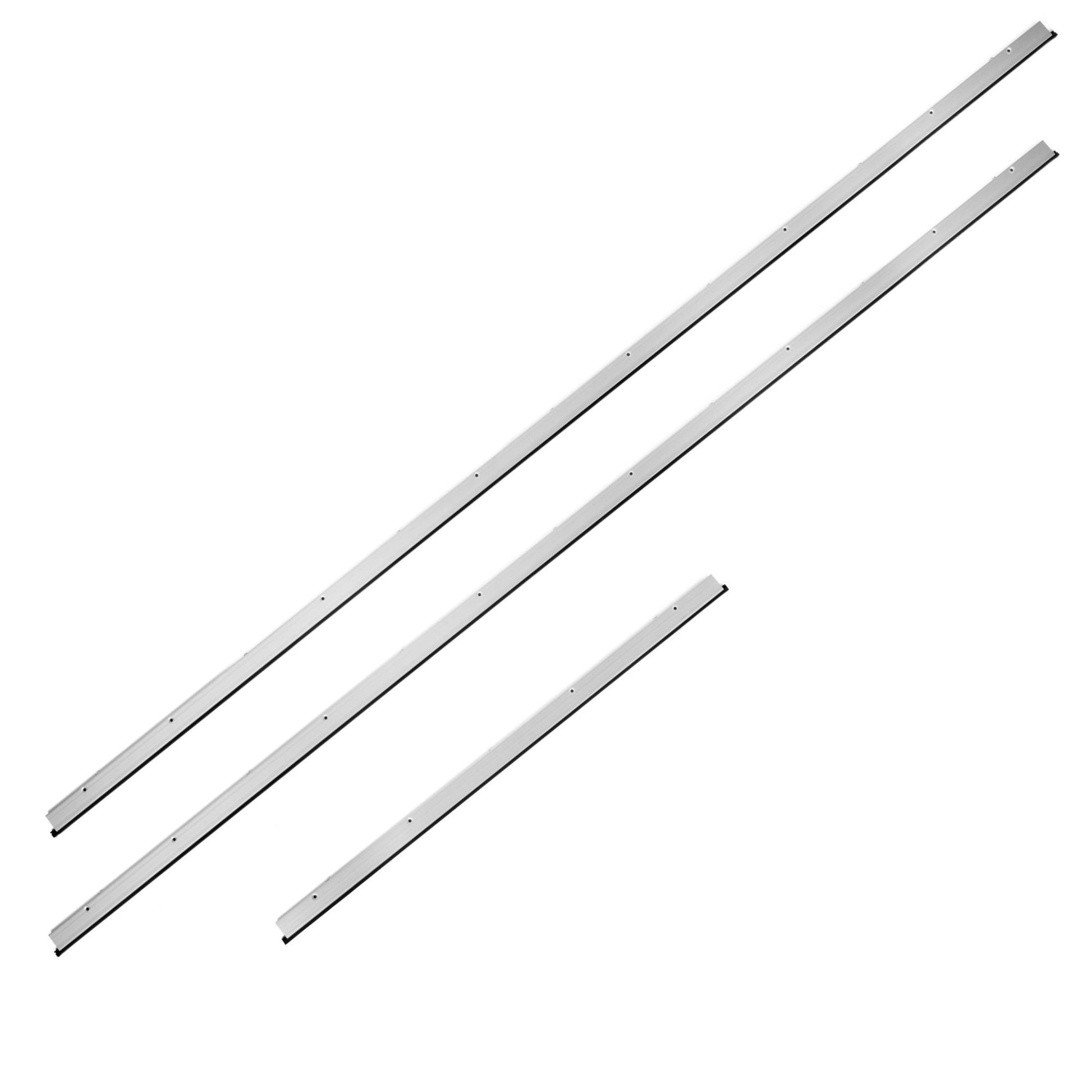

Sound Lock™ Door Jamb Seals

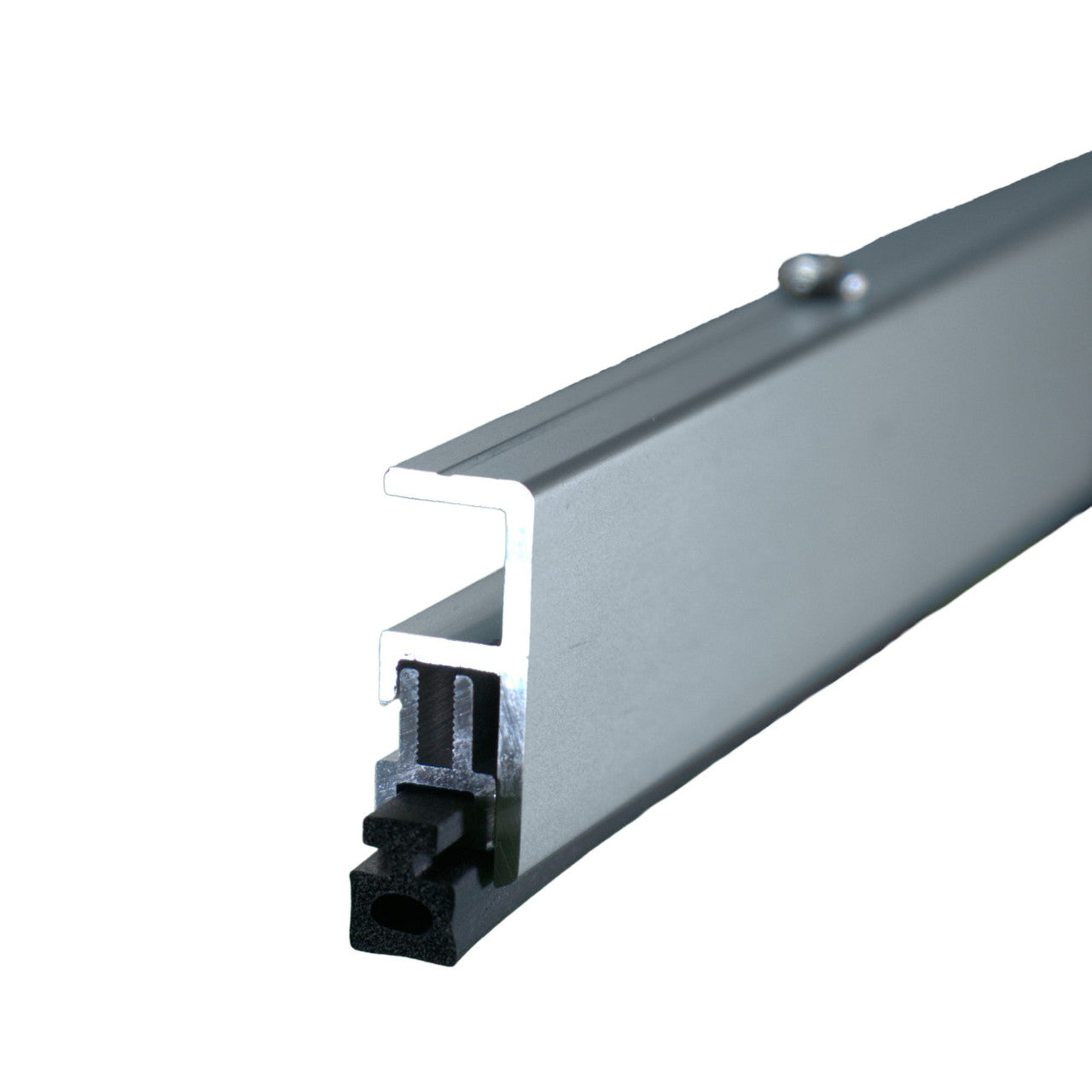

Sound Lock™ Door Jamb Seals close the gaps around the top and sides of a door with a threshold or bottom door seal. These jamb seals create an adjustable, airtight fit that stops sound and plugs drafts. With durable aluminum and long-lasting neoprene, they turn a solid-core door into a much more effective sound barrier.
Features
- Seals Around the Door – Closes off the gaps around the top and sides of a door so noise and air can’t sneak through.
- Boosts Door Performance – Achieves up to STC 46 when paired with a solid-core door with a threshold or sealed bottom.
- Customizable Seal – Fully adjustable design ensures a precise, airtight fit.
- Built Tough – Rugged aluminum housing with durable neoprene that stands up to years of use.
- Finishes to Match – Standard silver, with brown and gold also available. Call 1-800-679-8511 for quotes on custom colors.
- Simple to Install – Comes with all the hardware you need for a fast, no-fuss installation.
Couldn't load pickup availability
Specs
Specs
| Door Compatibility | Solid Core and Solid Wood Doors |
| Jamb Seal Length | 36", 48", 84", 96", Custom via Phone |

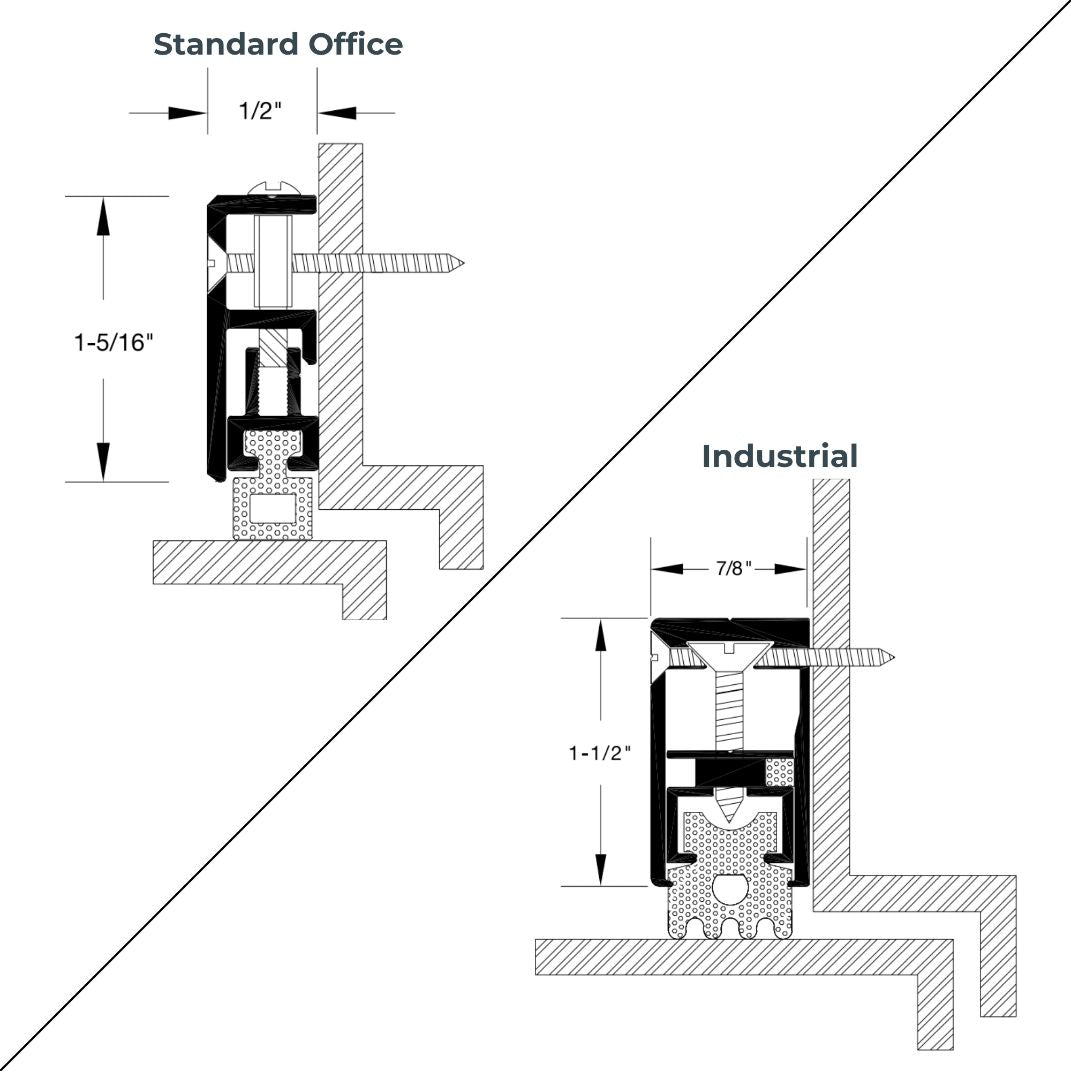

| Jamb Seal Dimensions | 1-5/16" x 1/2" (Standard) 1-1/2" x 7/8" (Industrial) |
| Colors | Clear (Silver) Brown (Bronze) or Gold |
| Durability Options | Standard Office or Industrial |
| STC Rating | Up to 20 STC points, Max STC: 46* |
The jamb seals are most effective with a threshold or a door bottom seal, like the one included in the full Sound Lock Door Seal Kit
Material Testing
Material Testing
STC Rating w/ Sound Lock Door Seal
| Door Type | Thickness | Door Weight | STC |
| Solid Core Door | 1-3/4" | 7 lbs / sq ft | 46 |
| Tested Properties | Testing Method | Performance |
|---|---|---|
| Fire Rating | UL 10B, NFPA 252, ASTM E152 | Pass |
| Positive Pressure | UL 10C Category J | Pass |
| Air Leakage | UL 1784 | Pass |
| Air Infiltration Test | E283-73 and SDI 116 | Pass (Industrial Only) |
Installation Instructions
Installation Instructions
How to Confirm Fit and Measure the Door
- Confirm that you have 1-1/2" of flat space on the jamb to mount the jamb seals.
- Open the door and measure from the floor to the top of the door frame.
- Measure the width of the door frame across the top.
- Double check your measurements to ensure accuracy before ordering or cutting.
How to Install Your Door Jamb Seals
- Measure & Cut – Cut jamb seals to size.
- Install Side Seals – Mount hinge and latch jamb seals with included screws.
- Install Top Seal – Mount top jamb seal between side seals to complete the perimeter.
- Adjust Seals – Use adjustment screws to tighten gasket evenly (test positive pressure with sheet of paper).
Detailed step-by-step instructions are in our Sound Lock™ Door Seal Install Guide.
Common Product Uses
Common Product Uses
| Type of Space | Use Case |
|---|---|
| Office / Conference Room | Maintain privacy and block hallway distractions |
| School / Classroom | Minimize outside noise for better focus and learning |
| Industrial Facility | Isolate spaces with loud machinery from offices or break rooms |
| Medical / Therapy Room | Protect patient confidentiality and create a quiet environment |
| Community Center | Control noise between multipurpose rooms and event spaces |
| Home Theater | Keep movie sound in and household noise out |
| Apartment / Condo | Reduce noise transfer between shared walls and entry doors |
What's Included?
What's Included?
Shipping Details
Shipping Details
| 1-3 Day Lead Time | Color: Silver |
| 1 Week Lead Time (Custom) |
Color: Brown or Gold |
