Sound Lock™ Soundproof Double Door
In stock. This product ships in 4 weeks.

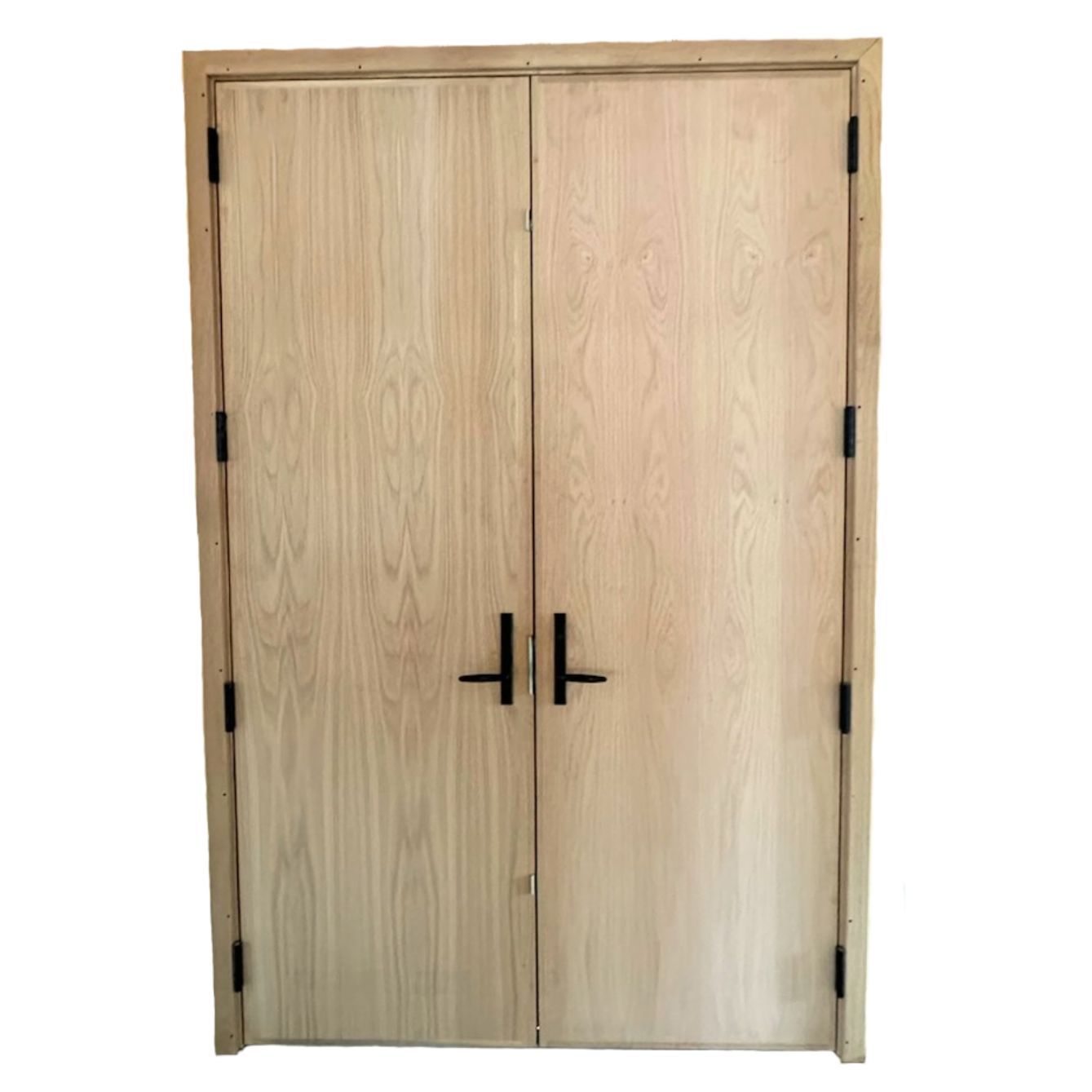

Sound Lock™ Soundproof Double Door
The Sound Lock™ Soundproof Double Door is the high-end soundproofing solution for double doors. Engineered as a top-performance acoustic barrier, this dual-door system delivers STC ratings up to 56 in a refined, customizable design. From recording studios and control rooms to conference spaces and luxury interiors, every detail is crafted for durability, precision, and seamless integration with your architectural vision with a wide range of wood species, finishes, and view window styles.
Features
- Serious Sound Control – Achieves up to STC 56 for professional-grade noise isolation.
- Custom Fit & Finish – Choose exact sizes, wood species, finishes, and window styles.
- Pre-Hung for Easy Install – Ships ready to install and paint or stain for a perfect fit.
- Tough and Timeless – Solid wood construction built to perform and look great.
- Fire-Rated Option – 60-minute fire rating available for added safety assurance.
- Hardware Friendly – Compatible with standard, custom, or electronic locking systems.
- Made in the USA – Expertly crafted domestically for quality and quick turnaround.
Couldn't load pickup availability
Specs
Specs
| Max Individual Door Panel Size | Up to 5' x 10' |
| Rough Opening Size | Add 2" to width | Add 1.5" to height |
| Door Thickness | 2-7-8" |
| Wall Thickness Fit | 4-7/8" to 12" or more |
| Weight | 700+ lbs |
| Astragal | Always built into the passive door |
| Wood Type | Oak (standard), Maple, Birch, Cherry, Walnut, Other on Request |
| Window Options | 10" x 10", 6" x 28", 22" x 28", 22" x 56" |
| STC Rating | Up to STC 56 |
| Fire Rating | 60 minute w/ Medite Core |
| Customizations | View Windows, Electronic Strike, Door Closers, Kick Plate |
| Other Certifications | ADA Compliant |
| Lead Time | 4 weeks |
Material Testing
Material Testing
Sound Transmission Class
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC |
| Transmission Loss (TL) | 38 | 42 | 54 | 61 | 64 | 72 | 56 |
| Type of Sound Lock Soundproof Door | STC Rating |
| Door with No View Window | 56 |
| Door with Small Window (6" x 28", 10" x 10") | 53-55 |
| Door with Large Window (22" x 28", 22" x 56") | 51-53 |
All view windows use the same construction as our Tru Acoustics soundproof windows (STC 49) to maintain soundproofing integrity.
Installation Instructions
Installation Instructions
Always read the full install guide prior to beginning installation! Each Sound Lock Soundproof Door weighs 350 lbs and is designed for top-end soundproofing. Installation should be done with tight tolerances and attention to detail.
- Prep Rough Opening – Confirm the rough opening dimensions and ensure it’s double studded. Back steel studs with wood for added strength. The bottom seal must close against a solid surface—no carpet or soft flooring underneath.
- Unpack & Position – Remove the bottom plate, verify door swing directions, and carefully place the double-door frame into the opening.
- Shim & Secure Hinges – Shim behind each hinge on both doors, replace temporary screws with heavy-duty ones, and confirm both hinge jambs are plumb and aligned.
- Align Meeting Stiles – Adjust each door leaf for a consistent 1/8" reveal where the doors meet. Fine-tune shims and strike alignment to ensure smooth operation and tight closure.
- Jamb Extension (if needed) – Cut extension to fit jamb, then glue and nail securely in place.
- Seal Door Frame – Insert backer rod, apply acoustical sealant along the perimeter, and reinstall trim for a clean, airtight finish.
- Hardware & Seals – Install handle sets, flush bolts, and secondary seals. Adjust perimeter and bottom seals for even contact. Finish by adding the wood cap kit to conceal jamb seals and complete the look.
Detailed step-by-step instructions are in our Sound Lock Soundproof Door Install Guide.
Common Product Uses
Common Product Uses
| Type of Space | Use Case |
|---|---|
| Recording Studio | Isolate a control room and live room with large rough openings. |
| Office / Conference Room | Make soundproof meeting spaces to improve focus and reduce distractions. |
| Government / Military | Provide secure and private environments. |
| Auditorium | Control noise in large venues for concerts and performances. |
| Manufacturing Facilities | Isolate loud equipment areas to protect offices and break rooms nearby. |
| Home Theater / Media Room | Replicate a high-end movie theater minus the uninvited guests. |
| Home Study | Combine performance and luxury by sectioning off your work area from the rest of the house. |
To learn more about your options, check out our article on how to soundproof a double door.
Resources
Architect CSI Specs
