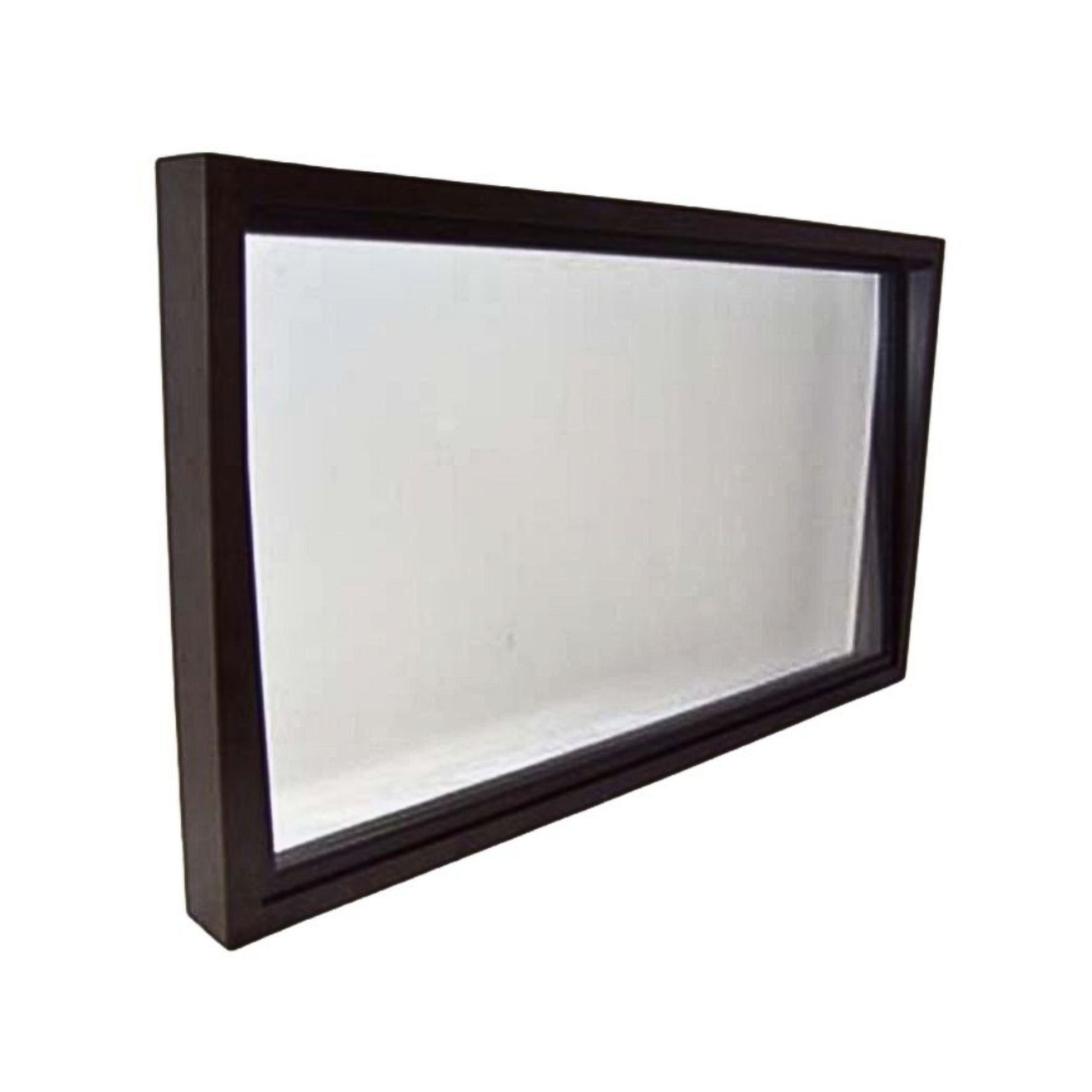

Tru Acoustics™ Soundproof Window
In stock. This product ships in 4 weeks.
Tru Acoustics™ Soundproof Window
The Tru Acoustics™ Soundproof Window delivers reliable STC ratings up to 56, ensuring projects meet even the toughest acoustic requirements. Custom sizing and versatile frame options make it easy to integrate into any design without compromising aesthetics. With a straightforward installation and no specialty trades needed, you’ll save time on-site while delivering proven noise control.
Features
- Superior Noise Control – STC ratings of 45, 49, and 56 to meet required performance
- Design Flexibility – Multiple frame finish and glass options.
- Custom Sizing – Built to fit any size rough opening for the perfect install.
- Durable Construction – Anodized aluminum frames with acoustic seals.
- Easy Snap-In Installation – No glazing contractors or specialty tools needed.
- Made in the USA – Reliable quality and the fastest lead times.
Couldn't load pickup availability
Specs
Specs
| Window Size | STC 45 and 56: Up to 4' x 8' |
| Rough Opening Size | Add 0.5" to width | Add 0.5" to height |
| Thickness | STC 45 and 49: 4-1/2" STC 56: 6-3/8" |
| STC Rating | 45, 49, or 56 |
| Frame Color | Bronze (black), Clear (silver) |
| Glass Options | Clear, Safety glass, Mirror pane, Tinted |
| Glass Orientations | STC 45 and 56: Flat or Angled (4° angle) STC 49: Flat Only |
Installation Instructions
Installation Instructions

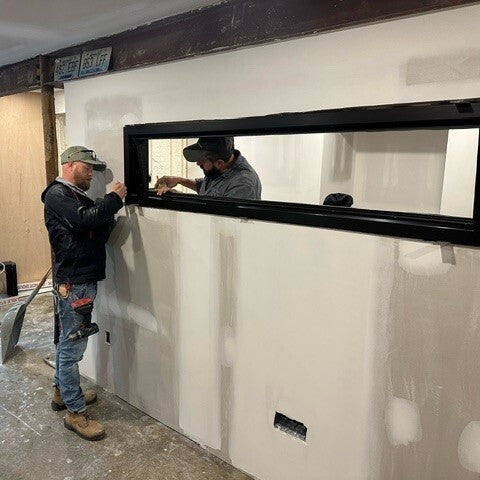

- Prep the Opening – Shim and level the frame in a double studded rough opening.
- Secure the Frame – Pre-drill and screw through glass channel; seal all sides with acoustical sealant.
- Place Setting Blocks – About 4" in from corners at the bottom of the glass channel.
- Set the Glass – With two people, lift into place on setting blocks and center in opening.
- Snap in Retainers – Press or tap aluminum retainers into place.
- Repeat for Second Pane (if required) – For STC 49/56 models, repeat for second window pane.
Detailed step-by-step instructions are in our Tru Acoustics Window Install Guide.
Common Product Uses
Common Product Uses
| Type of Space | Use Case |
|---|---|
| Recording Studios | Prevent sound leaks between rooms |
| Home / Podcast Studios | Block outside noise for clean audio |
| Universities / Schools | Research lab and band practice windows |
| Law Enforcement | Interrogation and observation rooms |
| Courtrooms | Ensure confidentially and prevent distractions |
| Gun Ranges | View window to adjacent spaces or offices |
| Manufacturing / Industrial | Separate loud equipment from quiet areas |
| Government / Military | Create secure, sound controlled spaces |
For lower STC requirements or exterior windows, we have other window soundproofing options.
