Factory Five Sound & Heat Packages

Factory Five Roadster (Convertible)

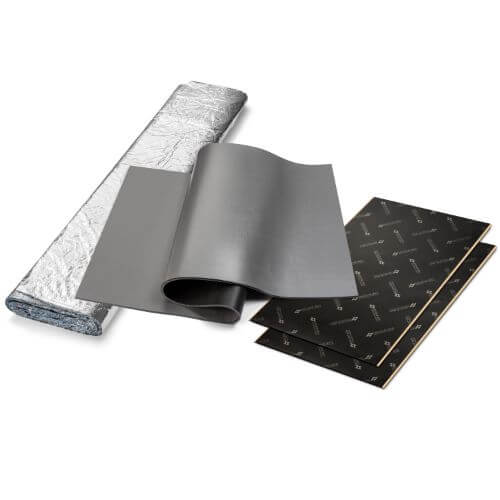

• Damplifier Pro - 55 Sq Ft (33 sheets, 12" x 20" each) - Apply to floor, doors, engine side firewall, and trunk. Use a Wooden Hand Roller to roll out any air bubbles and ensure solid contact to the metal.
• 2 Sheets of Heat Wave Pro - 48 Sq Ft (2 sheets, 4' x 6' each) - Apply to the footwells, floor, and firewall to keep you cool and comfortable!
• You can decide to add Luxury Liner Pro in a convertible, but blocking airborne noise is most effective in cars with an enclosed cabin.

Factory Five Hot Rod & Truck (Hard Top)

• 1 Shop Pack of Damplifier Pro - 80 Sq Ft (48 sheets, 12" x 20" each) - Apply to floor, doors, engine side firewall, and trunk (hot rods). If you have any left over, use it under the hood. Use that Wooden Hand Roller to bond Damplifier Pro permanently to the metal - no air bubbles!
• 4 Sheets of Luxury Liner Pro - 36 Sq Ft (4 sheets, 24" x 54" each) - Apply car MLV to the floor, trunk, and back seat wall.
• 1 Sheet of Heat Wave Pro - 24 Sq Ft (1 sheet, 4' x 6') - Apply heat insulation material to the foot box to protect your feet from engine and exhaust heat. You'll probably need about half the sheet. Cut with scissors or a sharp utility knife.

This package is not cut to any specific pattern or trim style. It is simply the raw material needed.

Factory Five Roadster (Convertible) — Installation Instructions

Recommended adhesives: P329 Spray Adhesive, Super Strong Double Sided Tape, Dual Lock Reclosable Fastener

1. Clean all surfaces. Wipe down the floor, doors, engine side firewall, and trunk with isopropyl alcohol to remove any dirt, oil, or wax. Allow to fully dry before applying any materials.
2. Apply Damplifier Pro. Measure each surface and cut your Damplifier Pro sheets (12" x 20") to fit using scissors or a sharp utility knife. Peel and stick Damplifier Pro to the floor, doors, engine side firewall, and trunk. Use a Wooden Hand Roller to firmly press out any air bubbles and ensure full contact with the metal.
3. Apply Heat Wave Pro. Measure the footwells, floor, and firewall and cut your Heat Wave Pro sheets (4' x 6') to fit each area. Install Heat Wave Pro over the footwells, floor, and firewall on top of the Damplifier Pro layer to block heat from the engine and exhaust.
4. Seal the seams. Use your preferred adhesive — P329 Spray Adhesive, Super Strong Double Sided Tape, or Dual Lock Reclosable Fastener — to secure any edges and seal all seams so no material lifts over time.

Factory Five Hot Rod & Truck (Hard Top) — Installation Instructions

Recommended adhesives: P329 Spray Adhesive, Super Strong Double Sided Tape, Dual Lock Reclosable Fastener

1. Clean all surfaces. Wipe down the floor, doors, engine side firewall, trunk, back seat wall, and foot box with isopropyl alcohol to remove any dirt, oil, or wax. If any surfaces are powder coated, apply a primer before proceeding. Allow everything to fully dry.
2. Apply Damplifier Pro. Measure each surface and cut your Damplifier Pro sheets (12" x 20") to fit the floor, doors, engine side firewall, and trunk. Cut additional pieces for under the hood if material remains. Peel and stick Damplifier Pro to the metal using a Wooden Hand Roller to firmly press out all air bubbles and permanently bond the material to the metal. Apply any remaining material under the hood.
3. Apply Luxury Liner Pro. Measure the floor, trunk, and back seat wall and cut your Luxury Liner Pro sheets (24" x 54") to fit each area, and install it over the Damplifier Pro layer in those areas to block airborne noise inside the cabin.
4. Apply Heat Wave Pro. Measure the foot box and cut your Heat Wave Pro sheet (4' x 6') to fit. You will likely only need about half the sheet. Install Heat Wave Pro in the foot box to protect your feet from engine and exhaust heat.
5. Seal the seams. Use your preferred adhesive — P329 Spray Adhesive, Super Strong Double Sided Tape, or Dual Lock Reclosable Fastener — to secure all edges and seal every seam to prevent any material from lifting.
