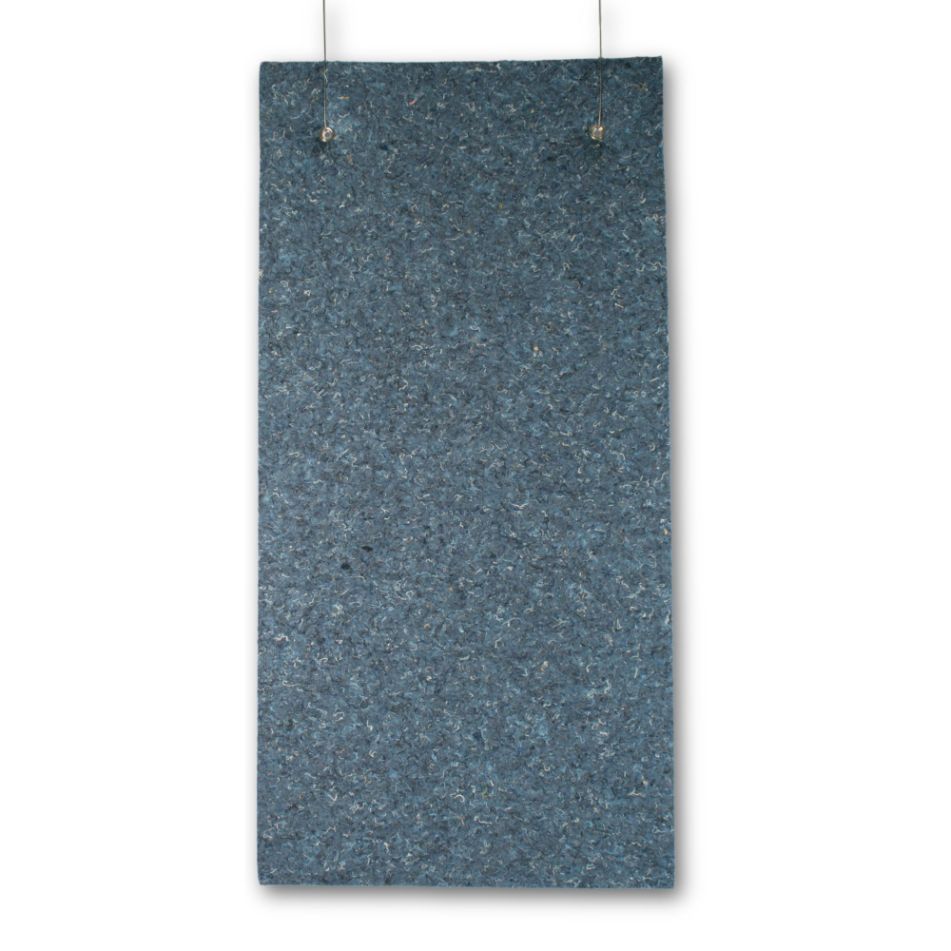

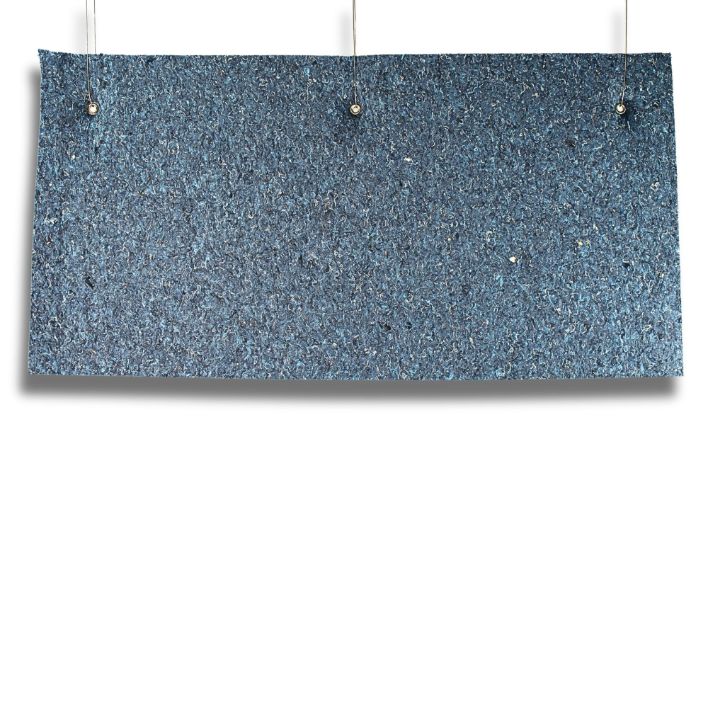

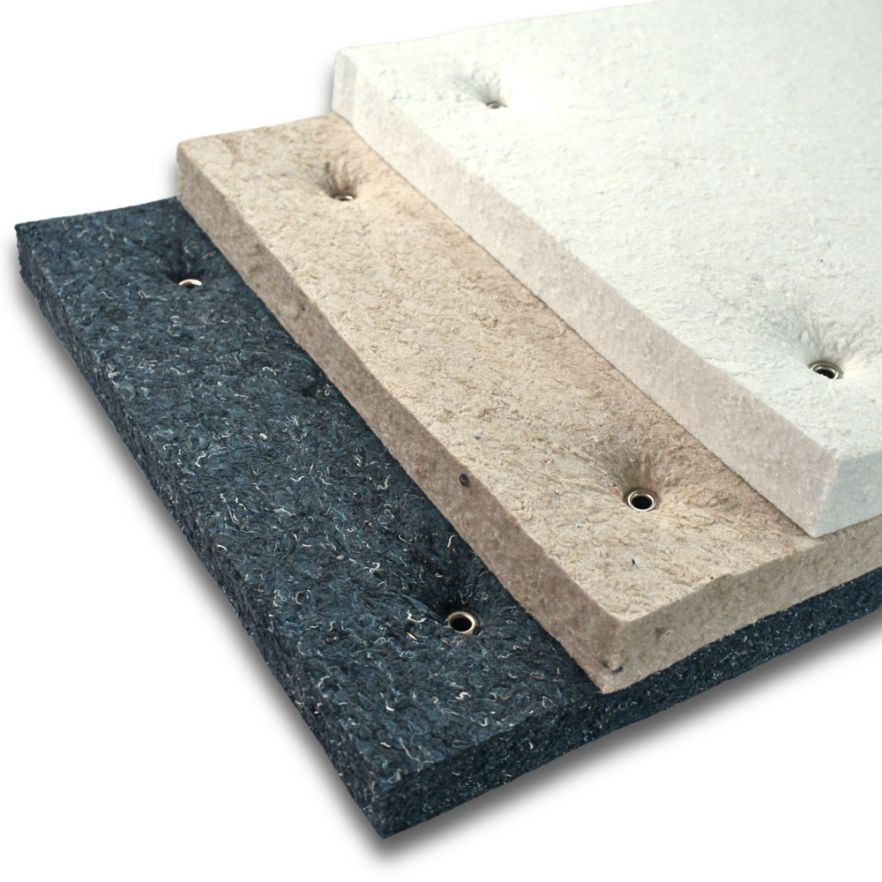

EcoVerb™ Cotton Fiber Acoustic Baffles
In stock. This product ships in 1-3 business days for up to 20 acoustic baffles. Large orders ship in 2-3 weeks.
Regular price
$64.99
Sale price
Regular price
Square Footage Calculator
Couldn't load pickup availability
Specs
Specs
Material Testing
Material Testing
Sabins per Baffle
| Panel Type | Thickness | Mount Type | 125 | 250 | 500 | 1000 | 2000 | 4000 | Sabins/Baffle |
| EcoVerb™ Acoustic Baffle | 1" | 16" spacing | 2.43 | 4.93 | 8.34 | 10.65 | 15.57 | 16.73 | 10.30 |
| EcoVerb™ Acoustic Baffle | 2" | 16" spacing | 2.40 | 6.55 | 12.86 | 17.46 | 18.49 | 16.77 | 13.85 |
| Tested Properties | Testing Method | Performance |
|---|---|---|
| Acoustical Performance | ASM C423-17 (16" Spacing) | 1": 10.30 Sabins/Baffle |
| Fire Rating | ASTM E84 | Class A |
| Light Reflectance | ASTM E1477 | White: 89 |
| Fungal Growth | ASTM C1338 | Pass |
| VOC | CDPH Standard Method v1.2 | Pass |
Installation Instructions
Installation Instructions

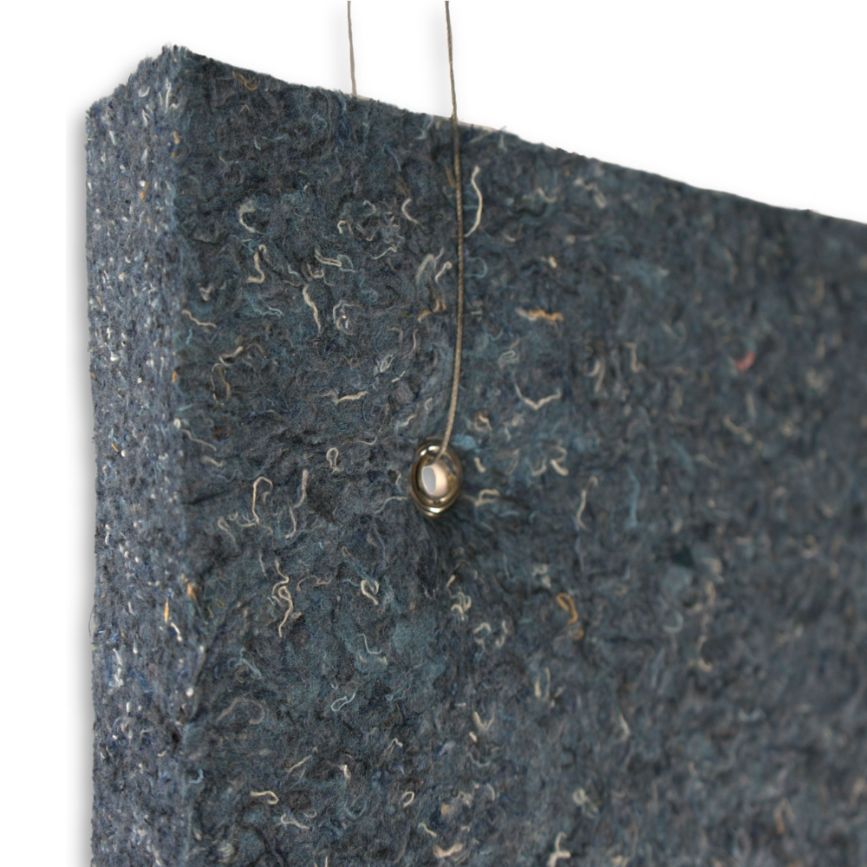

Recommended Attachment: Grommets (included), light duty chain (by other)
- Loop suspension cable (provided by other) into the eyelet on each grommet and close the loop with a cable clamp or similar hardware.
- Suspension cable should be anchored to the roof deck or ceiling structure.
Check out our full install guide !
Common Product Uses
Common Product Uses
- Houses of worship
- Community centers
- Hospitals
- Auditoriums
- Hotels
- Music practice rooms
- Malls
- Theaters
- Schools
- Warehouses
