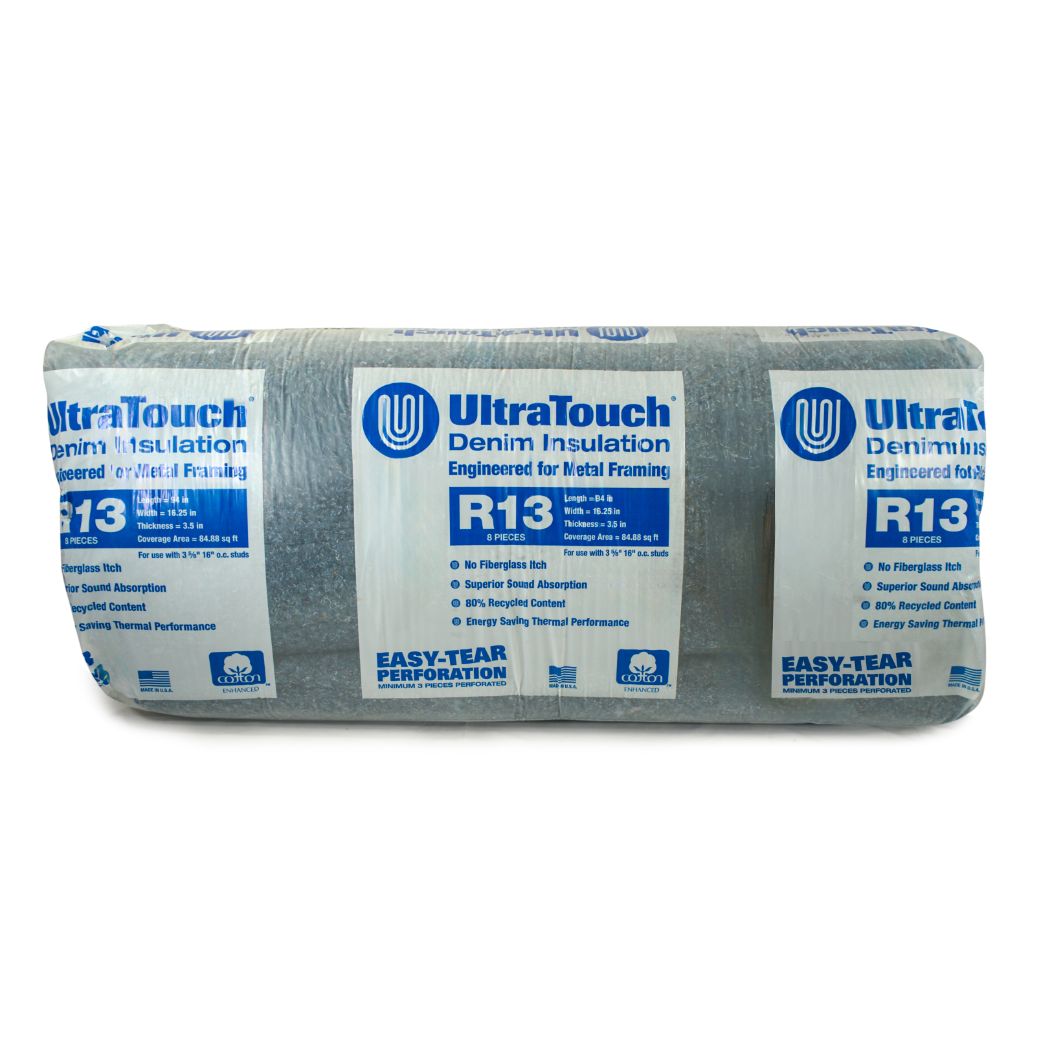

UltraTouch R13 denim insulation for metal framing

UltraTouch™ Denim Insulation (R13 - 16")

Regular price $249.99
Sale price Regular price

Product FAQs

Yes, UltraTouch R13, 16" is sized for metal-framed walls with studs 16" on center. Each batt is 16.25" wide, 94" long, and 3.5" thick. For wood framing, see UltraTouch R13, 15".

UltraTouch R13, 16" has an R-value of R13, tested per ASTM C-518 at 75°F. The 16" in the product title is the stud spacing it fits, and the batt itself is 16.25" wide. It is sized for 16" on-center metal framing.

As a general rule, insulation covers about 85% of your wall's total square footage, because the studs take up the rest. Multiply your wall area by 0.85, then divide by the coverage of one bag. For example, 350 sq ft of wall needs about 298 sq ft of insulation, which is 4 bags.

SizeBattsCovers
1 batt110.61 sq ft
1 bag884.88 sq ft
1 pallet8 bags (64 batts)679 sq ft

UltraTouch R13, 16" has an NRC of 1.15. It was tested per ASTM C423 with Type A mounting. The table shows absorption at each frequency.

Frequency (Hz)125250500100020004000NRC
UltraTouch R13, 16"0.951.301.191.081.021.001.15

Yes, UltraTouch (and any batt insulation) is a key part of any high-performing wall or ceiling assembly. It fills the cavity between the sheets of drywall and absorbs the sound inside it, which reduces the total amount of sound that passes through. In general, UltraTouch denim insulation performs the same as or 1 to 2 STC points better than fiberglass in the same wall design. If noise is traveling between rooms, sealing the wall or adding isolation materials will likely work better. Reach out to one of our sales professionals for advice.
