Timberwool™ Wood Fiber Engraved Acoustic Panels
In stock. Engraved Timberwool panels ship in 2-3 weeks.
Square Footage Calculator
Timberwool™ Wood Fiber Engraved Acoustic Panels

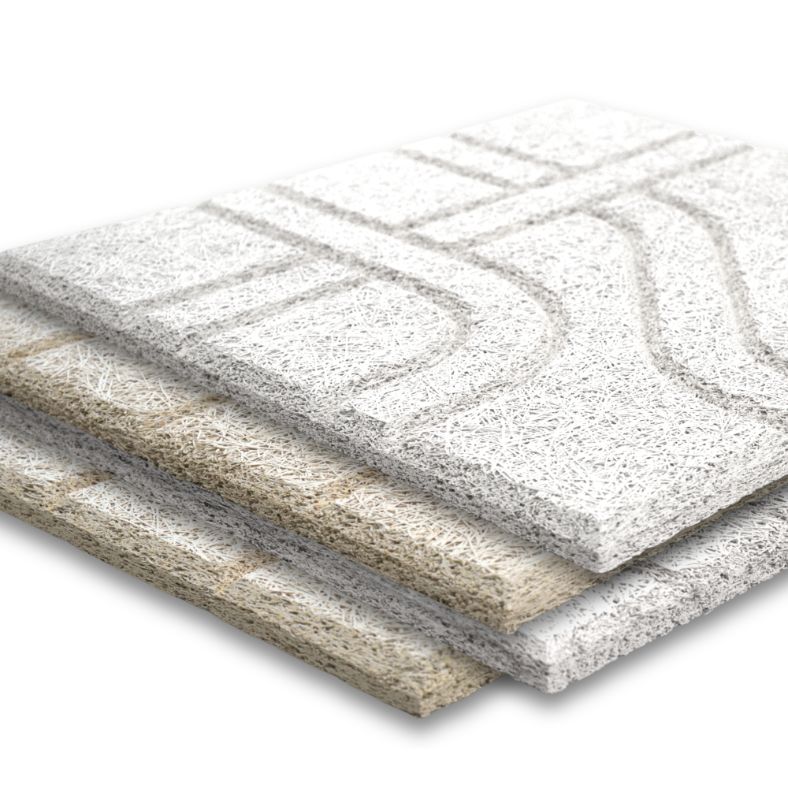

Timberwool™ Wood Fiber Engraved Acoustic Panels combine the natural warmth of wood with unlimited custom design flexibility. Each panel starts with our high-performance Timberwool—known for excellent sound absorption—and adds a precision-engraved pattern of your choice. Whether you want a subtle texture or a bold statement wall, engraving adds depth and character without sacrificing acoustic performance. Ideal for offices, restaurants, studios, or any space where you want beautiful design that actually quiets the room.
**Shipping info** There is a minimum order quantity of 15 panels to be shipped on a pallet with a lead time of 2-3 weeks.
Features

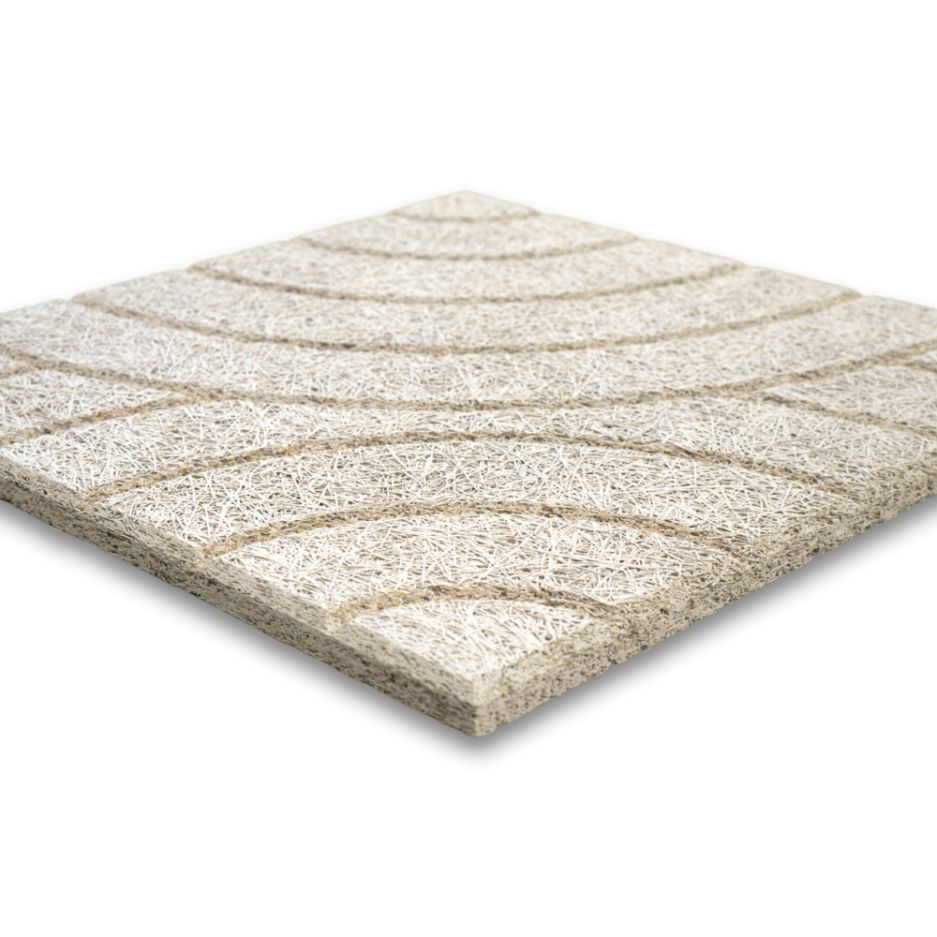

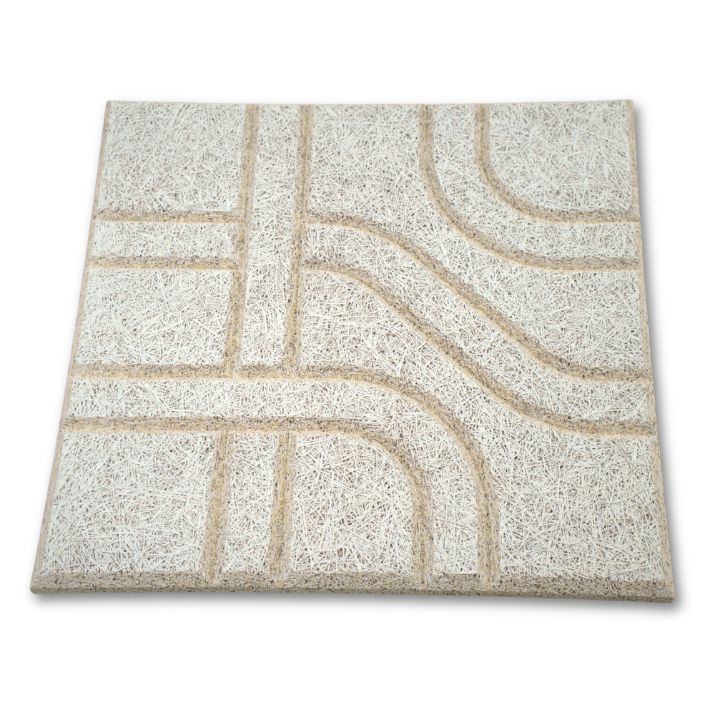

- Custom Engraved Design – Choose from 14 preset engraving styles or provide your own for a personalized acoustic feature.
- Natural & Eco-Friendly – Crafted from sustainable, cement-bonded wood wool fibers for a warm, organic appearance.
- Paint-Ready Surface – Paint panels to seamlessly match your project’s color and style.
- Easy Installation – Cuts, drills, and fastens like wood for a quick, easy installation process.
- Quality Acoustic Performance – Outstanding sound absorption to combine sound control and style.
- Fire-Safe Construction – Class A Fire Rated to meet safety codes and ensure lasting protection.
- Art Meets Acoustics – Combine sound control and style with panels that look as good as they perform.
- Made in the USA – Proudly manufactured domestically for dependable quality and quick turnaround times.
Couldn't load pickup availability
Specs
Specs
| Dimensions | 24" x 24" (4 sq ft per) 24" x 48" (8 sq ft per) 24" x 96" (16 sq ft per) Custom shapes and sizes available up to 24" x 96" |
| Thickness | 1" or 2", Custom available |
| Weight | 24" x 24" x 1": 8 lbs, 24" x 24" x 2": 16 lbs 24" x 48" x 1": 16 lbs, 24" x 48" x 2": 32 lbs 24" x 96" x 1": 32 lbs, 24" x 96" x 2": 64 lbs |
| Edge Type | Bevel (standard), Square (quote only), Tegular (quote only) |

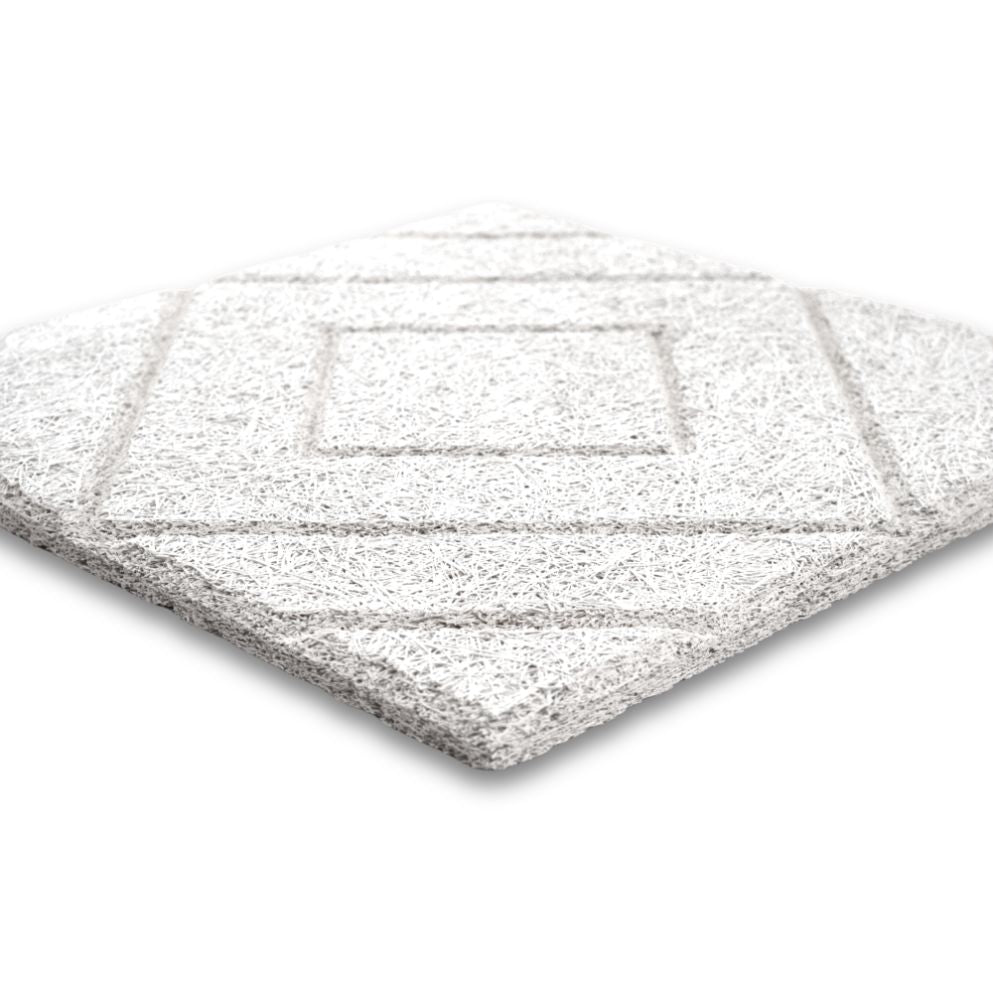

| Engraving Options | Branches, Checkerboard, Criss Cross, Diagonal Left, Diagonal Left, Double Diamond, |
| Primer Color | Primed Clear, Primed White |
| Paintable | Yes, primed and ready to paint |
Call us for free samples or any custom requests!
Material Testing
Material Testing
Noise Reduction Coefficient
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| 1" Timberwool™ Wood Fiber Panel | 0.08 | 0.12 | 0.26 | 0.52 | 0.89 | 0.60 | 0.45 |
| 1-3/8" Timberwool™ Wood Fiber Panel | 0.08 | 0.23 | 0.41 | 0.80 | 0.79 | 0.81 | 0.55 |
| 2" Timberwool™ Wood Fiber Panel | 0.11 | 0.29 | 0.74 | 1.08 | 0.85 | 1.02 | 0.75 |
| Tested Properties | Testing Method | Performance |
|---|---|---|
| Fire Rating | ASTM E84 | Class A |
| R-value | ASTM C518 | 2.35 per inch |
| VOC | CDPH Standard Method v.12 | Pass |
| Mold Resistance | Greenguard Microbial Growth Test | Pass |
| Fungal Resistance | ASTM D3273 | Pass |
Installation Instructions
Installation Instructions
- Recommended Installation: The easiest way to install Timberwool acoustic timber panels is to screw them into the wall or furring strips. Mechanical fasteners required!
- All screws should be at least 3/4" from the edge of the panel.
- Download the Timberwool Install Guide (Direct Attach)
Painting Instructions
- Timberwool can be painted in the field. Do not brush or roll paint. Use a spray gun. Apply numerous thin coats for a uniform finish.
- Can be factory painted to any specific paint code
- Download the Timberwool Field Painting Guide
| Panel Thickness | Substrate | Rec. Screw Type | Rec. Screw Length |
|---|---|---|---|
| 1" | Hat Channel or Thin Metal | Self-Tapping | 2" |
| 2" | Hat Channel or Thin Metal | Self-Tapping | 3" |
| 1" | Drywall or Wood Furring | Drywall Screw | 1-5/8" |
| 2" | Drywall or Wood Furring | Drywall Screw | 3" |
| 1" | Concrete | Tapcon | 2-1/4" |
| 2" | Concrete | Tapcon | 3-1/4" |
Common Product Uses
Common Product Uses
- Acoustic Design Meets Art – Timberwool panels elevate both sound and style, bringing custom wood design and performance to any wall or ceiling.
- Flexible Installation – Mount directly to walls or ceilings, drop into a grid, or suspend as baffles or clouds for creative design layouts.
- Sustainable & Stylish – An eco-friendly, visually warm alternative to fiberglass, foam, or polystyrene acoustic materials.
- Durable Indoors & Out – Panels are factory-sealed with a clear UV- and water-resistant primer. If cut, reapply primer to exposed areas for long-term protection.
- Common Installations:
- Offices – Improve clarity and add custom wood textures that make workspaces sound and look professional.
- Schools – Durable, safe, and design-forward panels perfect for classrooms, gyms, and noisy common areas.
- Music Practice Rooms – Tune your tone and your walls with panels that look as warm as they sound.
- Gymnasiums – Custom-painted panels match school colors without sacrificing acoustic performance or design appeal.

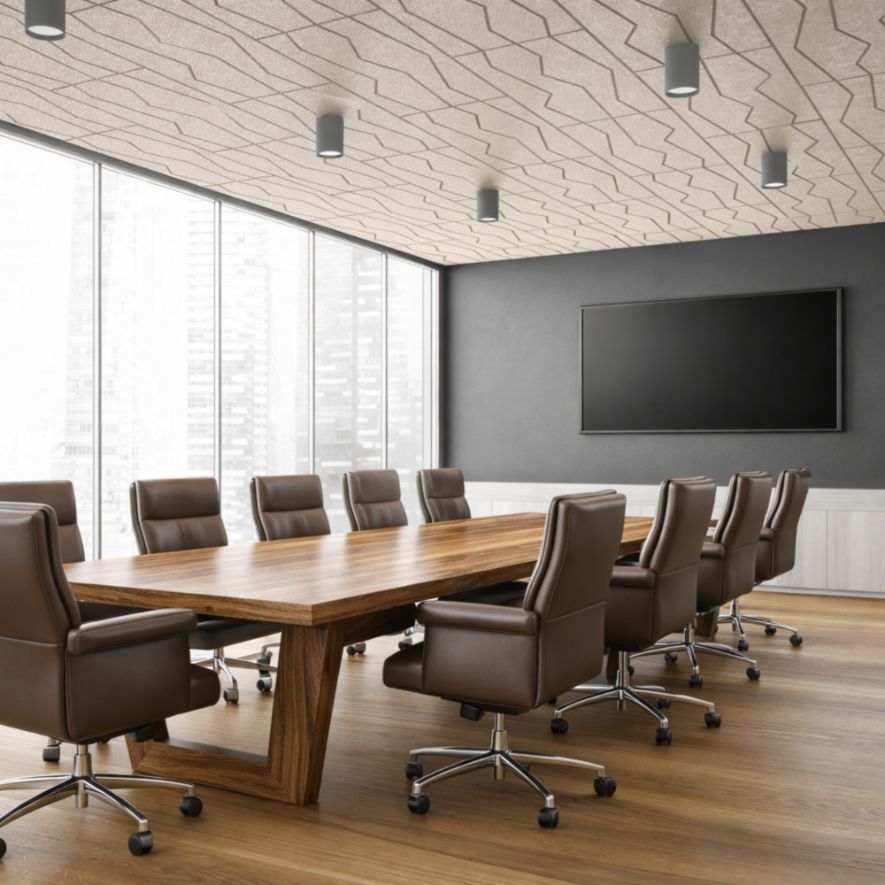

- Convention Centers – Add striking visual design and comfort to large spaces with wall- or ceiling-mounted panels.

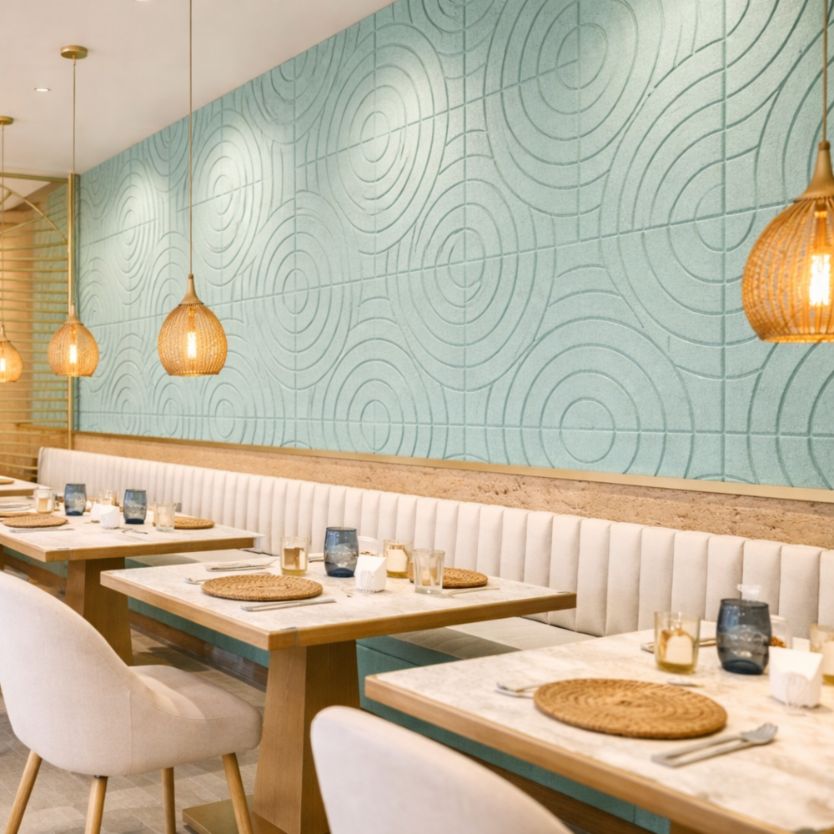

- Bars & Restaurants – Create a space that sounds as inviting as it looks—style, warmth, and great acoustics.
- Entertainment Venues – Combine scalable sound control with the visual warmth of natural wood.
- Indoor Pools – Reduce harsh echoes with moisture-resistant panels that blend form and function beautifully.
- Airports – Give travelers a quieter, more refined experience with artful acoustic design.
- Houses of Worship – Preserve craftsmanship and enhance clarity with natural, reverent wood aesthetics.
- Manufacturing Facilities – Bring warmth and design flair to your workspace—because good sound and good looks can coexist.
