Thermal Blockā¢ - Heat Shield
Does your newly restored vehicle send heat through the firewall and floorboards once the engine gets going? Keep engine and exhaust heat away from the vehicle's cabin with an OEM approved heat shield. Thermal Blockā¢ strips are very flexible and can withstand up to 800Ā°F. Composed of highly reflective foil and insulating PET fibers, just face the foil side towards any heat source to redirect radiant heat and substantially reduce heat transfer.
*The "No Fold", 4 sheet, and 10 sheet options ship flat in a 12" x 24" box. The "Folded" option is delivered folded over inside of a mailer.
Features
- Highly reflective aluminum surface designed to face a heat source (choose between smooth or knurled finish)

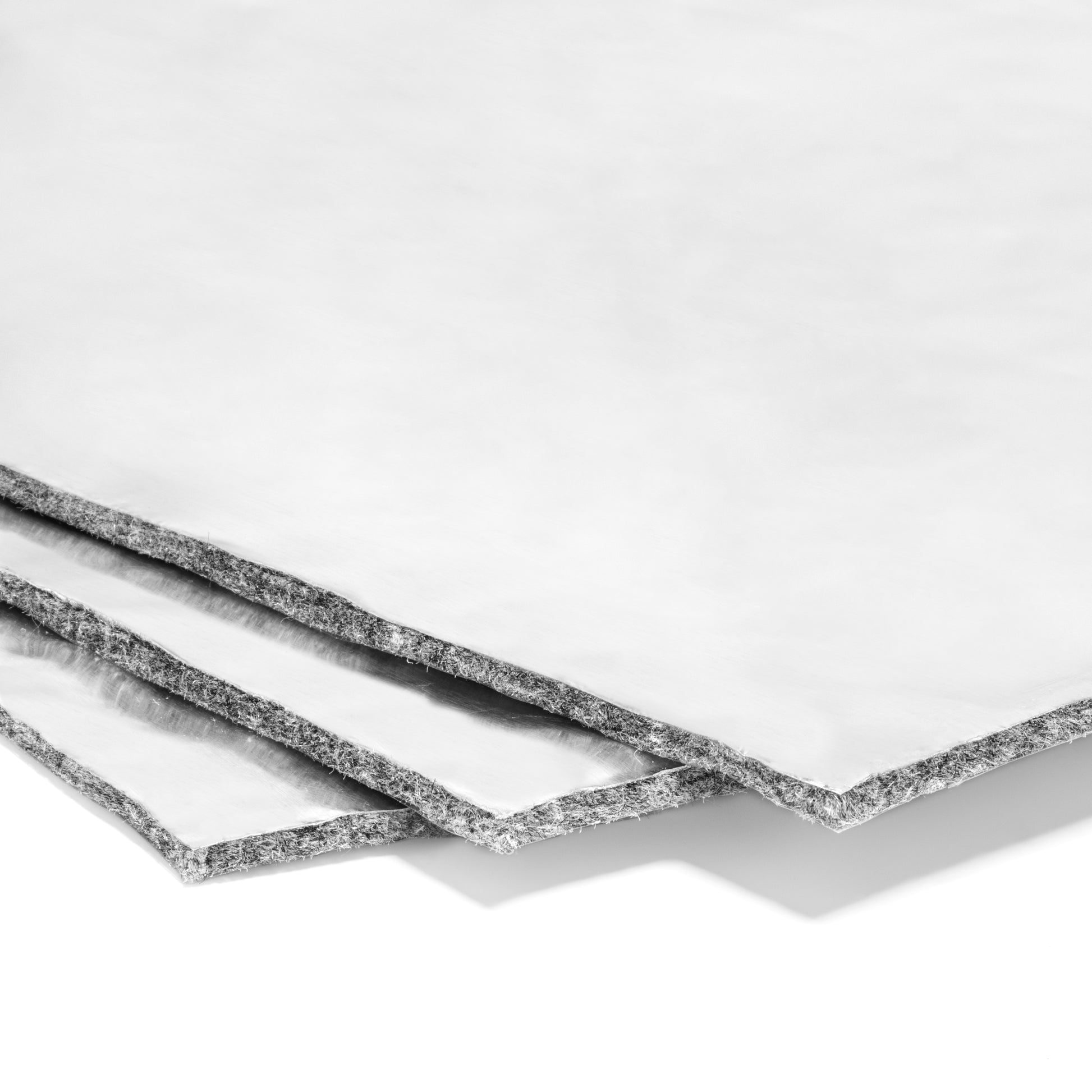

- Each heat shield is 1/8" thick and 12" x 24" (2 Sq Ft)
- Reflects 98% of radiant heat

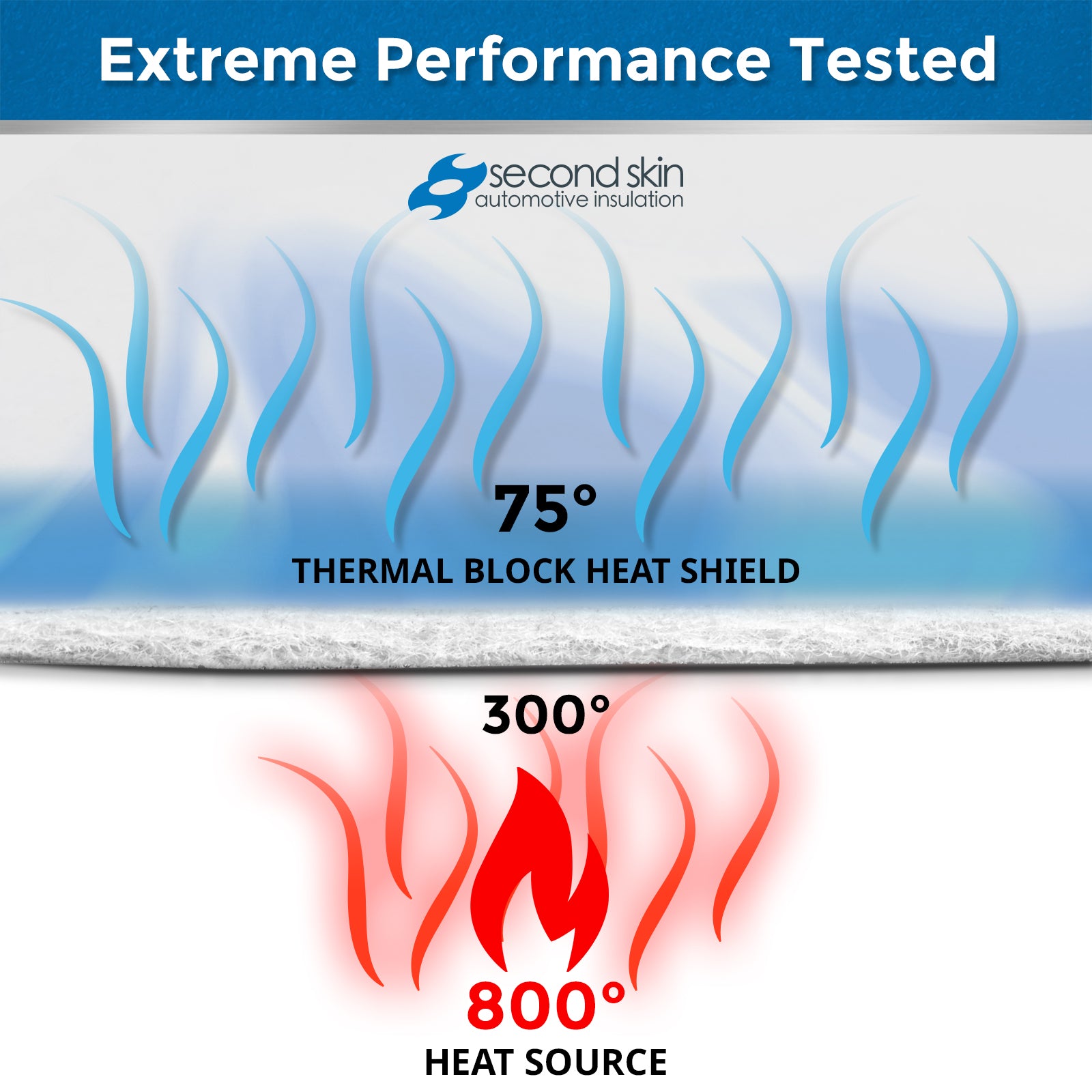

- Withstands up to 800Ā°F
- Treated for water, solvent, mildew, gas/oil, coolant, engine fluid, and flame resistance
- Made in the USA
Couldn't load pickup availability
Specs
Specs
| Dimensions | 12" x 24" (up to 40" x 96" via phone) |
| Thickness | 1/8" |
| Weight | 0.35 lbs per sheet |
| Temperature Rating | 800Ā°F |
| Custom Cuts | Yes, call 1-800-679-8511 for details |
Material Testing
Material Testing
| Tested Properties | Testing Method | Performance |
| Impact Resistance (Chipping) | SAE J400 (Gravelometer) | Pass |
| Flammability | FMVSS302 | Pass |
Installation Instructions
Installation Instructions
- Thermal Blockā¢ comes with a peel and stick backing. To install Thermal Blockā¢, simply peel and stick!
- Install locations:

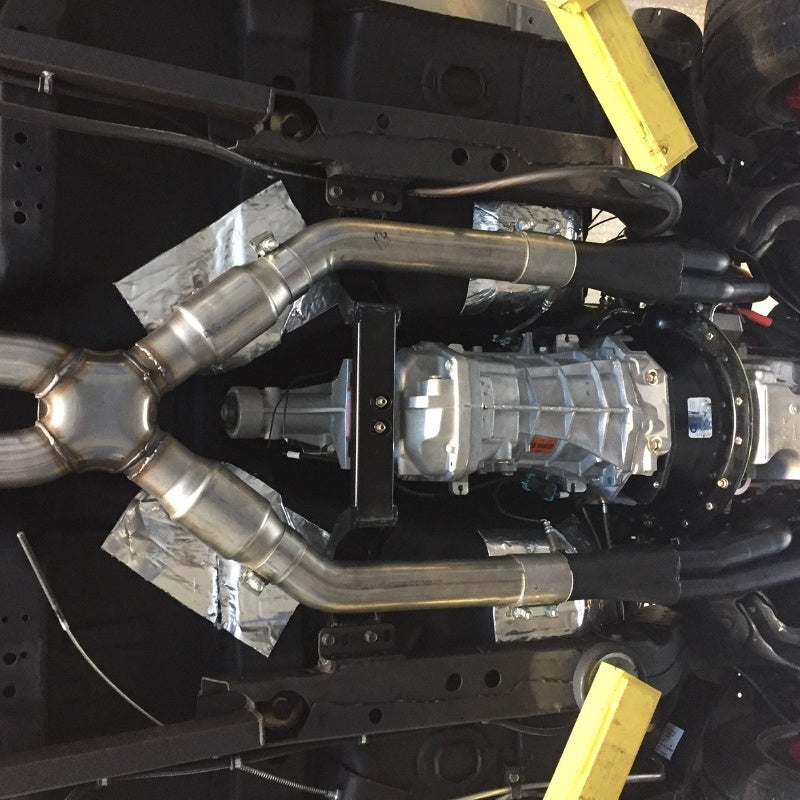

- Transmission tunnels

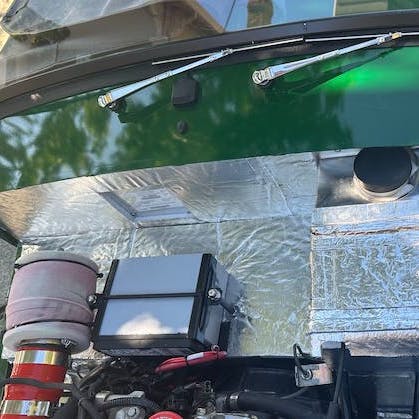

- Firewall - engine side
- Hood - entire lid
- Back seat wall - for cars with engines in the back
- Air intake box
- Should be applied anywhere there is a heat source, facing the heat, with a 2" air gap.
Common Product Uses
Common Product Uses

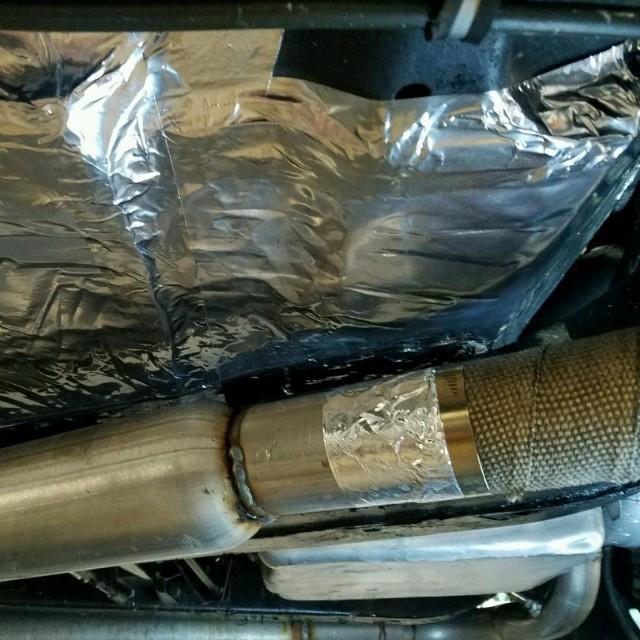

- Quick fix for automotive thermal hot spots such as the fuel tank, fuel line, brake line, spare tire, and underbody heat shields. Also commonly used as a firewall heat shield.
- Always face Thermal Blockā¢'s aluminum side towards the heat source. This product will not be effective inside your car's cabin.
- Allow space for air flow. At least 2 inches is required, but more airflow will improve your heat control.
- Thermal Block can be installed on top of Damplifier Proā¢ vibration dampening mats.
- Make sure you prepare the surface to remove oils, dirt, dust, and grease. Just peel and stick. We recommend an outside temperature of at least 65Ā°F to ensure adhesive works properly.
- For thermal insulation with more sound absorbing properties, consider our Heat Wave Proā¢ or Mega Blockā¢.
Resources
Installation Guides
Spec Sheets
Lightweight
OEM Approved
Radiant Barrier
Vehicle Square Footage Calculator
How Much Thermal Blockā¢ - Heat Shield Do I Need?
Step 1: Select your vehicle type
Step 2: Select the areas you want to cover
