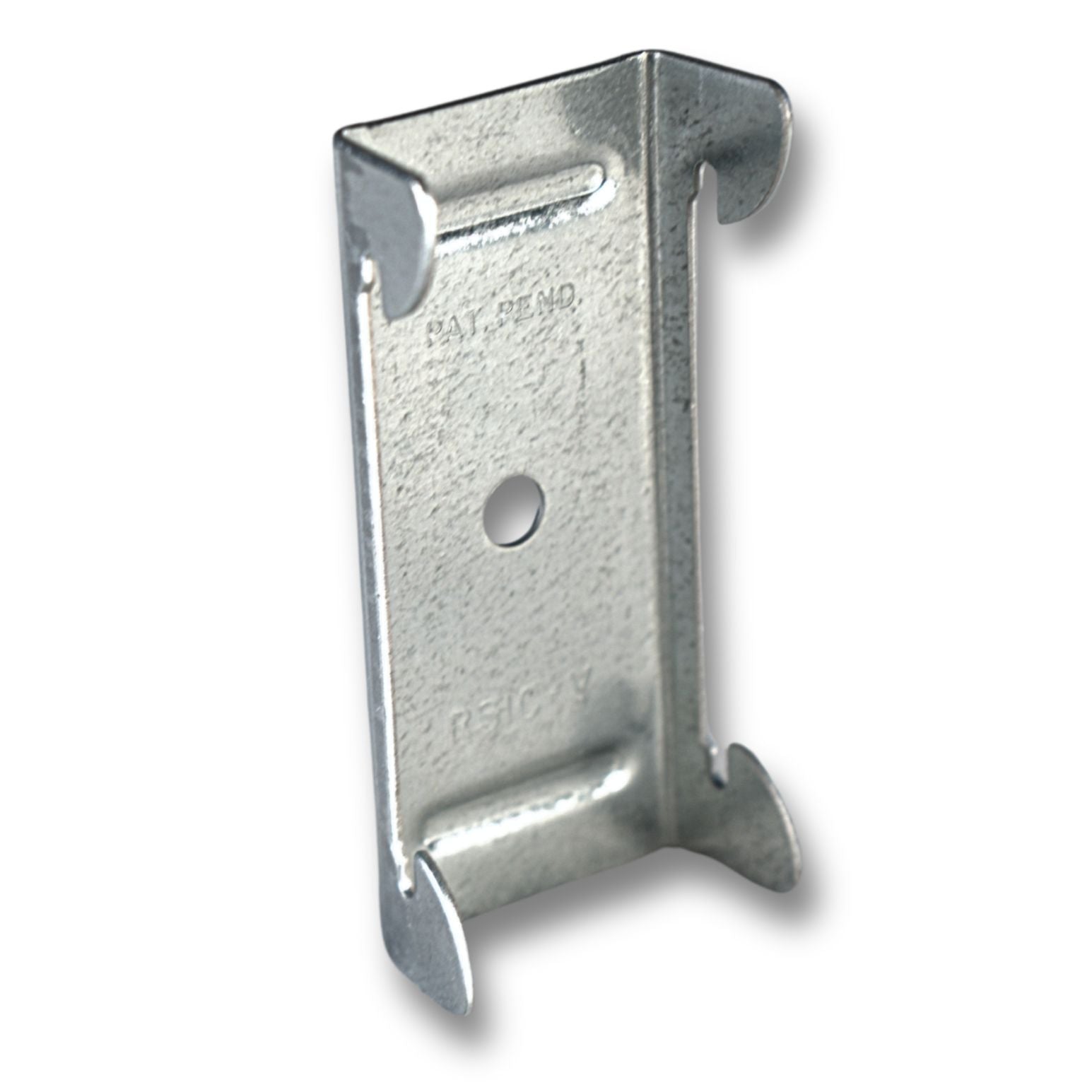

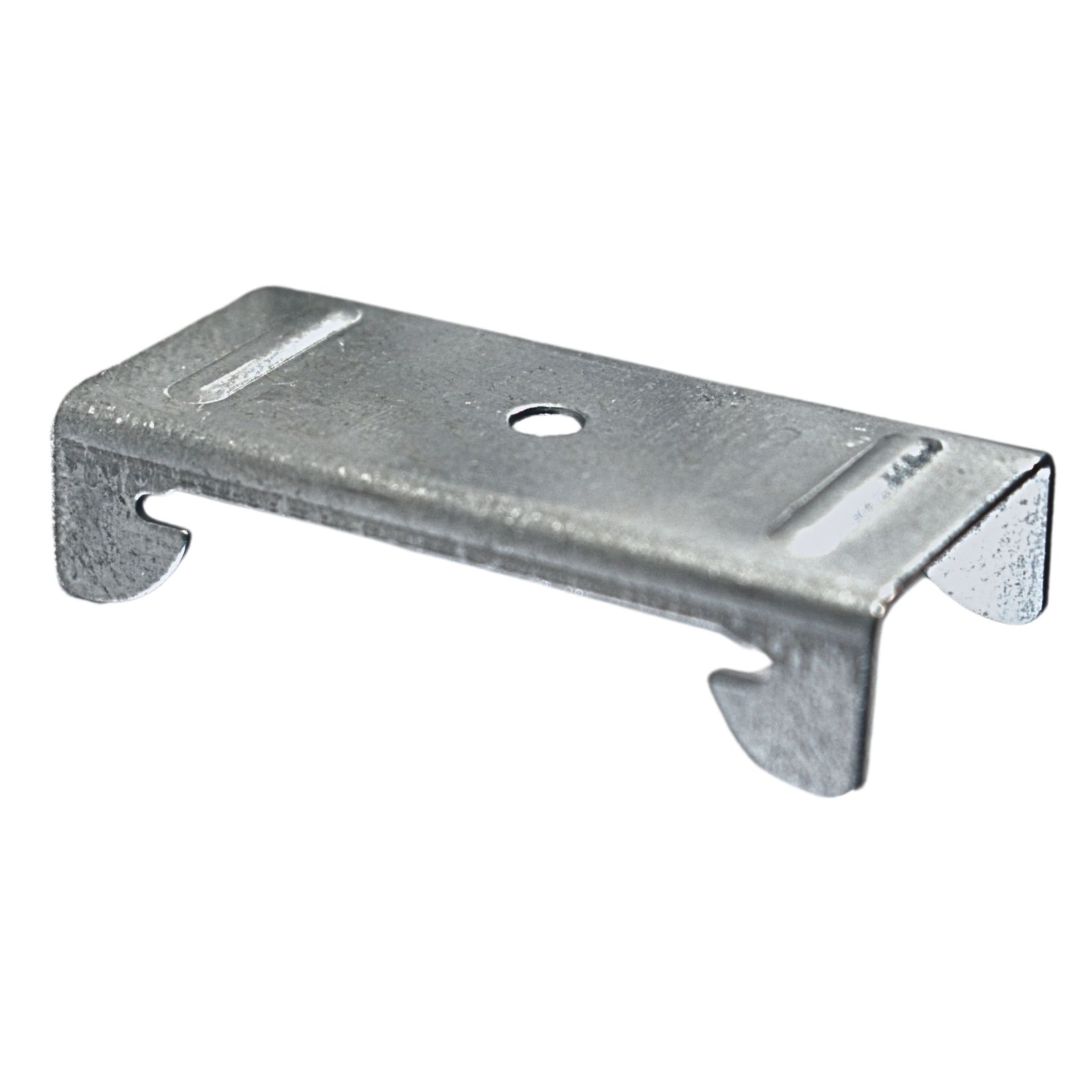

RSIC-V Resilient Sound Isolation Clips
RSIC-V clips are higher performing and easier to install than resilient channel, great for soundproofing any wall or ceiling to reduce airborne and impact noise! These clips are only a small step down in performance from the RSIC-1® clips with a budget-conscious focus in mind.
Features
- RSIC-V clips reduces impact and airborne sound transmission through wall and ceiling assemblies
- Increase STC Rating of a wall by up to 15 points
- Use with any wood, steel, or concrete application needing additional noise control
- Supports multiple layers of 5/8" gypsum board
- Large variety of UL rated design assemblies
- Proudly made in the USA
Couldn't load pickup availability
Specs
Specs
| Dimensions | 3″ x 0.75″ x 1″ nominal |
| Maximum Load | 36 lbs per isolator |
| Maximum Spacing | 24" x 48" oc will support 2 layers of 5/8" drywall Use RSIC-V backer for additional weight |
| Furring (Hat) Channel | 0.0018" thick 25 gauge, hemmed edge detail Depth: 7/8" Width (bottom): 2-1/2" minimum Width (top): 1-1/4" Meets or exceeds SFIA and SSMA requirements |
| RSIC-V® to Wood | #8 x 1-5/8" minimum size coarse thread screw |
| RSIC-V® to Metal | #8 x 9/16" minimum size fine thread screw |
| Estimated Labor Rates | 72 clips per hour | 550 LF of hat channel per hour |
Installation Instructions
Installation Instructions
- Screw each clip directly to your wood or metal frame with a maximum spacing of 48" on center
- Snap furring (hat) channels into each row of clips. Furring channel should be 0.0018" (18 mil) thick 25 gauge, hemmed edge detail.
- Screw 1 or 2 layers of 5/8" gypsum board into the clips.

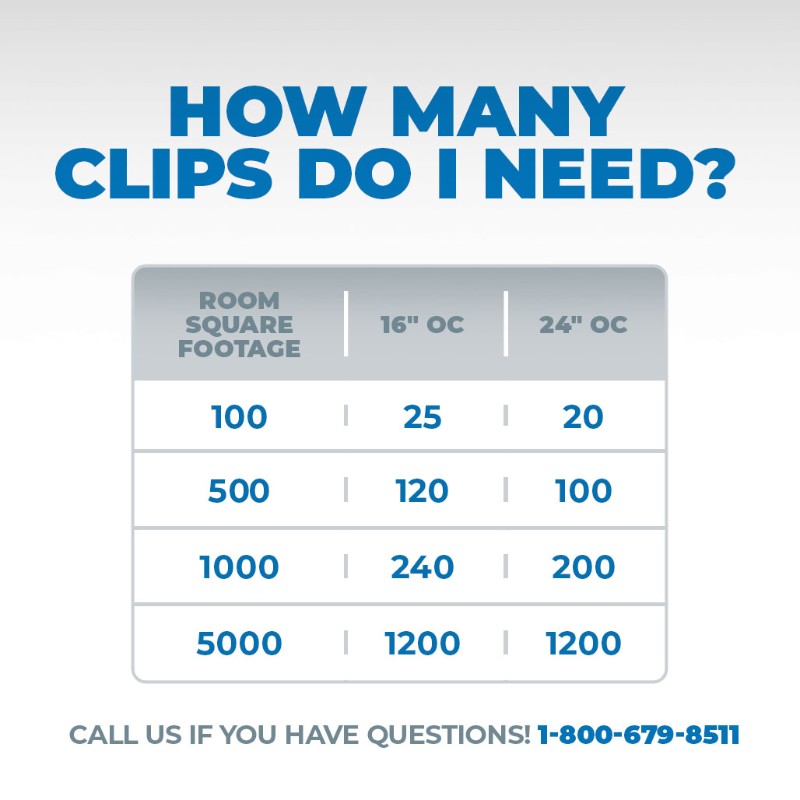

Estimated Clips Needed for Walls and Ceilings
Estimated Clips Needed for Walls and Ceilings
24" x 48" OC (Wood or Steel)
| Room Dimensions | 10' | 20' | 30' | 40' |
| 10' | 19 clips | 37 clips | 55 clips | 73 clips |
| 20' | 37 clips | 73 clips | 110 clips | 146 clips |
| 30' | 55 clips | 110 clips | 164 clips | 219 clips |
| 40' | 73 clips | 146 clips | 219 clips | 291 clips |
16" x 48" OC (Wood or Steel)
| Room Dimensions | 10' | 20' | 30' | 40' |
| 10' | 23 clips | 45 clips | 67 clips | 89 clips |
| 20' | 45 clips | 89 clips | 134 clips | 178 clips |
| 30' | 67 clips | 134 clips | 200 clips | 267 clips |
| 40' | 89 clips | 178 clips | 267 clips | 356 clips |
