RC-1 Boost® - RC-1 Channel Enhancer
In stock. This product ships in 1 business day.
Regular price
$99.99
Sale price
Regular price
RC-1 Boost - Rubber Isolator for RC-1 Channel
The RC-1 Boost is a cost-effective way to increase soundproofing performance, and also prevent common install issues with resilient channel. Not all resilient channel is created equal - either due to the quality of the channel or the quality of the install. The RC-1 Boost solves assemblies failing to hit their rated acoustical performance, and even increases performance by several points.
Features
- RC-1 Boost can be used with any wood or steel wall or ceiling assembly
- Increase STC and IIC ratings vs Generic RC-1 channel (STC 60+, IIC 54+)
- Supports up to 2 layers of 5/8" gypsum board
- RC-1 Boost Screw included (do not substitute)
- Large variety of UL rated design assemblies (1+ hour rated)
- Proudly made in the USA
Couldn't load pickup availability
Specs
Specs
| Dimensions | 1/2"L x 5/8"w x 3/4"h |
| Quantity | 500, 2500 |
| Weight | 0.04 lbs |
| Capacity | Up to 18 lbs per isolator |
| Max Spacing | 16" x 24" oc will support 2 layers of 5/8" drywall Use the provided RC-1 Boost screws |
Installation Instructions
Installation Instructions
- Locate the first row of RC-1 channel with RC-1 Boost within 3 inches from the floor and within 6 inches from the ceiling.

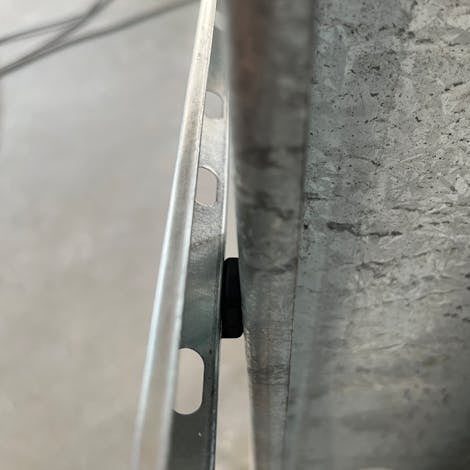

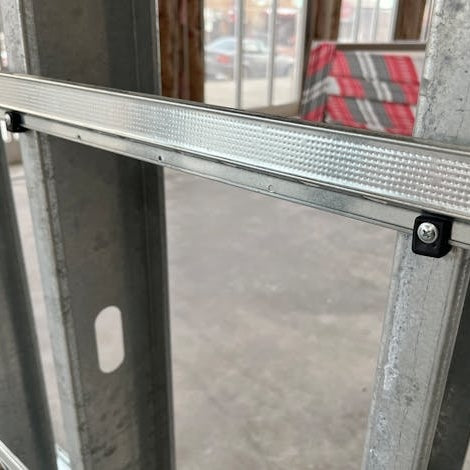

- Place the RC-1 Boost over the RC-1 channel at the pre punched hole.
- Insert the screw through the RC-1 Boost and the pre punched hole in RC-1 channel.
- Fasten the RC-1 Boost to the framing with the fastener provided.
- Install the gypsum board from the bottom up leaving a 1/4” min. gap around the perimeter of the wall.
- Seal any gaps or edges with acoustical sealant. Use fire and smoke rated acoustical sealant where required.
Common Product Uses
Common Product Uses
- Increase STC and IIC ratings by isolating gypsum walls or ceiling to improve soundproofing performance
- Wire hung drywall drop ceilings
- Soundproof floor/ceiling assemblies
- Condos
- Home/Commercial Theatre
- Conference rooms
