PolyZorbe™ Vivid Polyester Acoustic Baffles
In stock. This product ships in 2-3 weeks.
Square Footage Calculator
PolyZorbe™ Vivid Polyester Acoustic Baffles - 1/2"

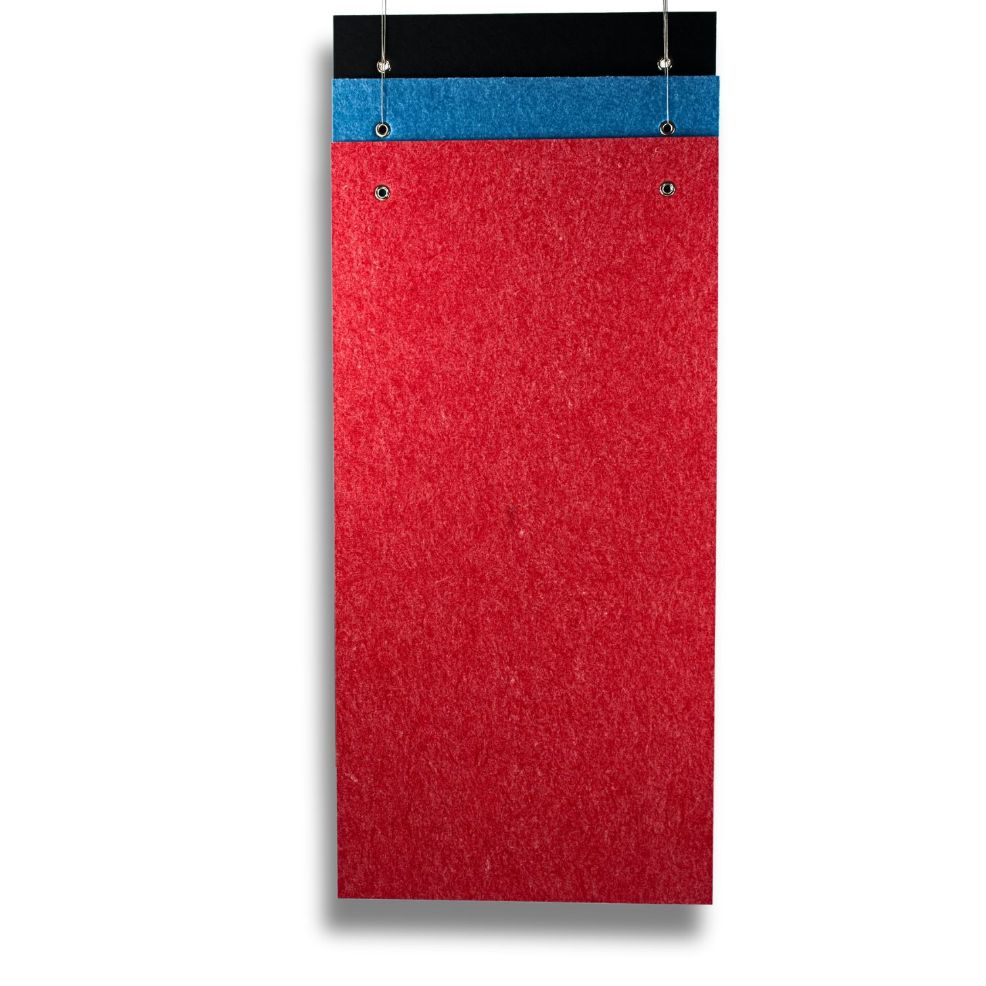

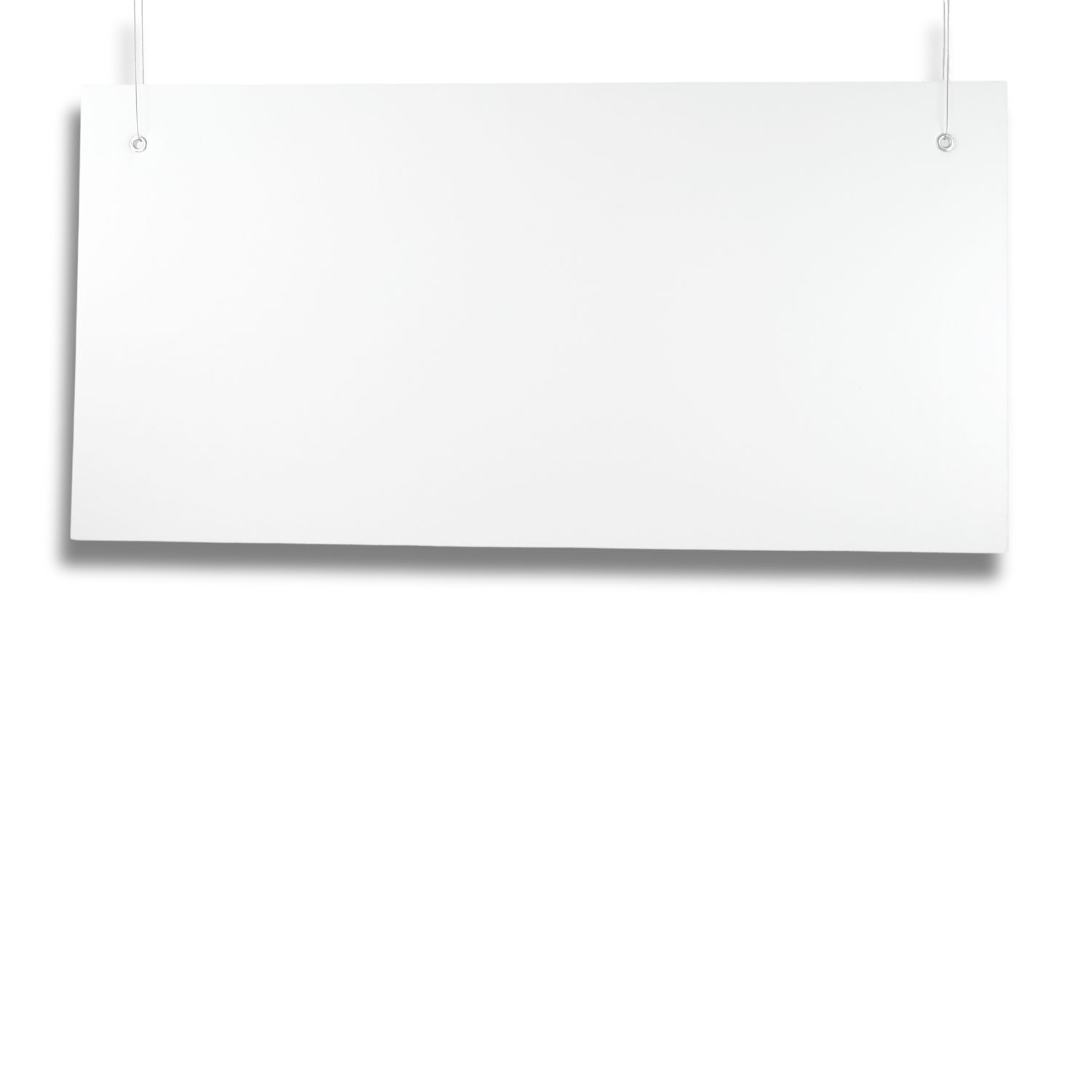

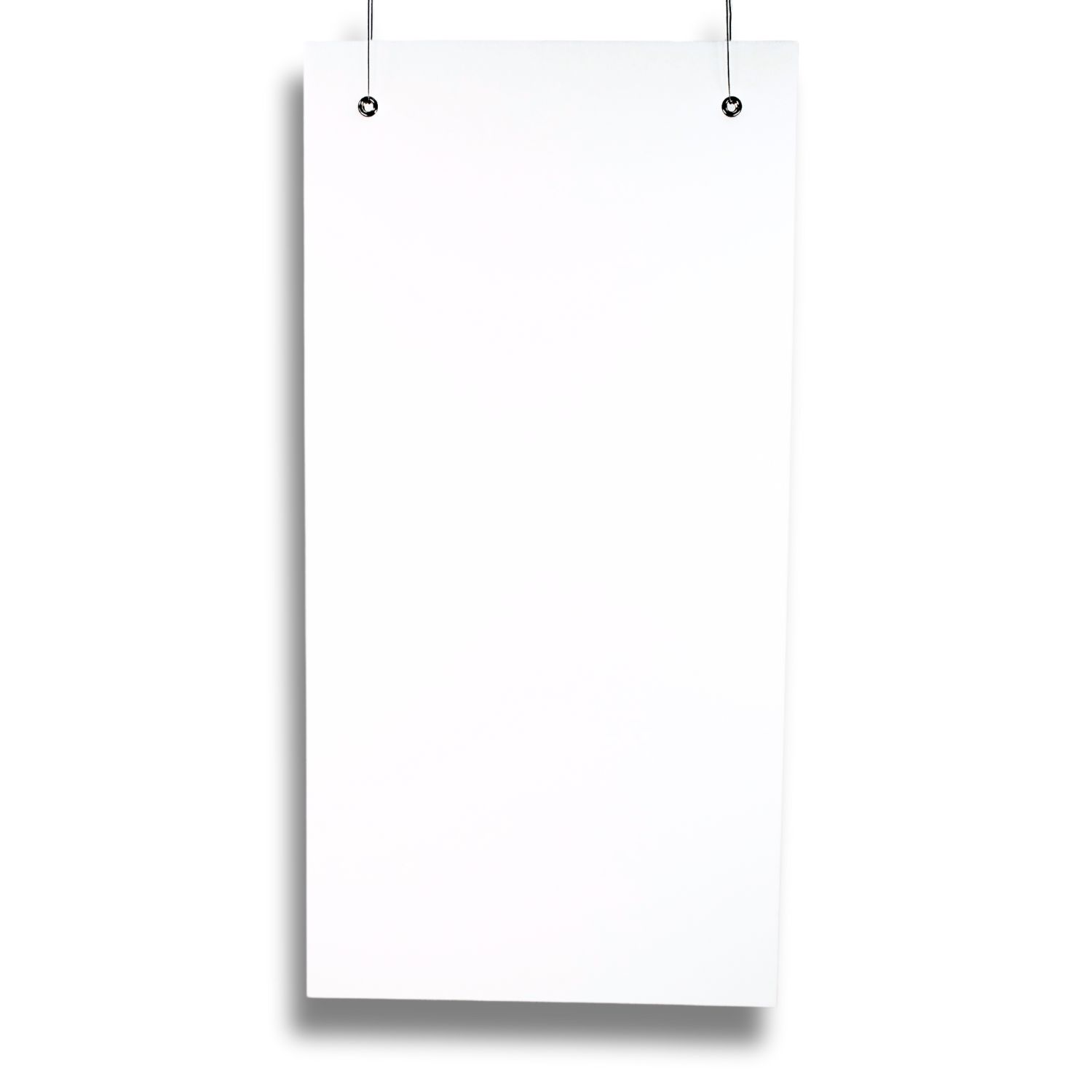

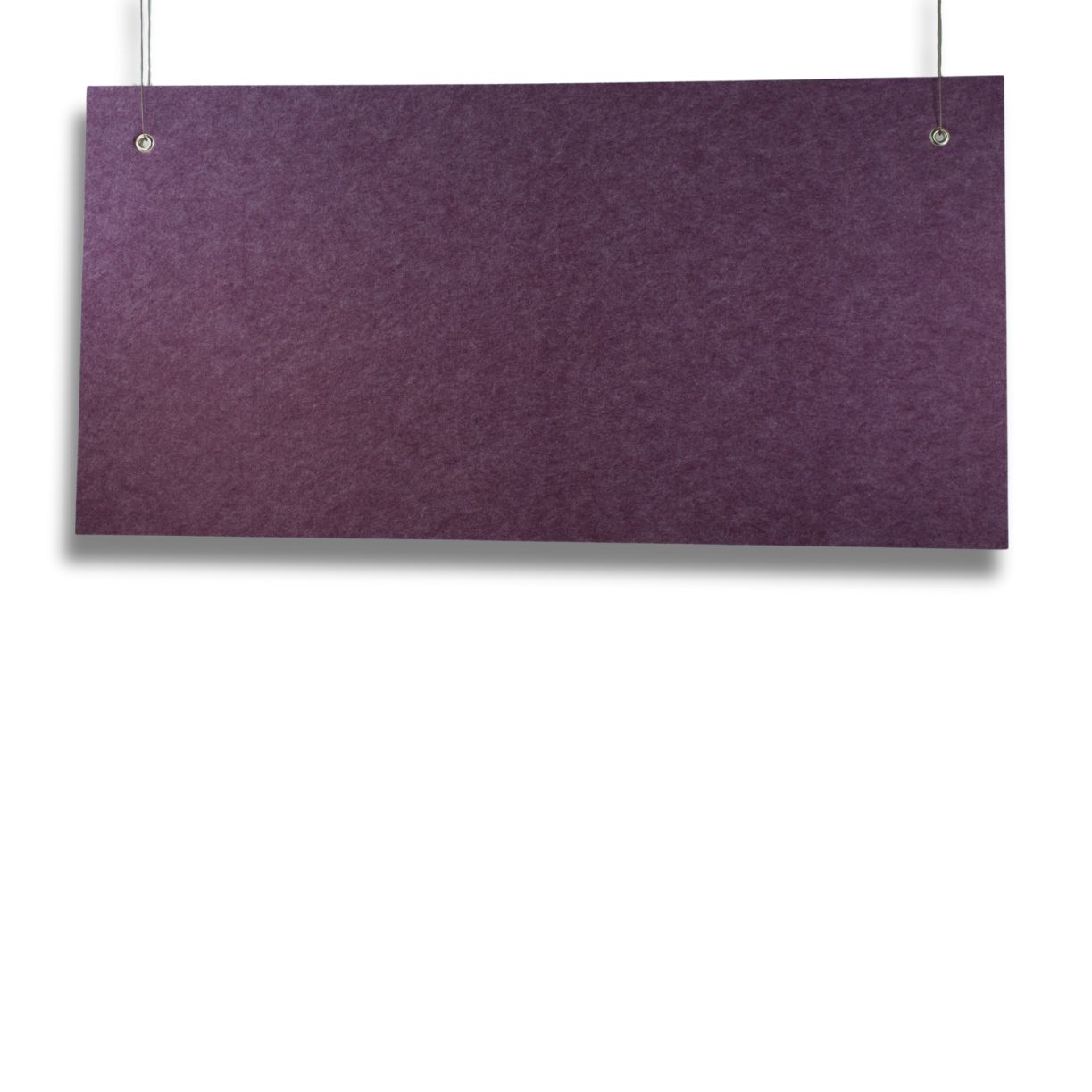

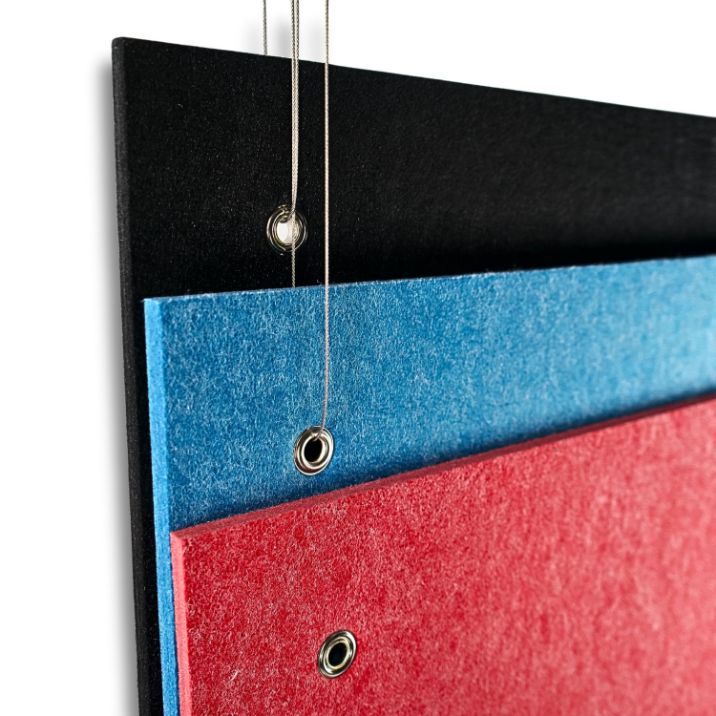

PolyZorbe™ Vivid Polyester Acoustic Baffles are a decorative and extremely customizable option to reduce the echo and reverb, improving the vocal audibility and intelligibility of any interior space. Design any style you choose with our selection of 12 vibrant colors. We use 60% recycled polyester (LEED credits) and a proprietary composition to get to a fire marshal approved, Class A fire rated baffle. For thicker polyester absorption, consider our standard PolyZorbe™ Polyester Acoustic Baffles.
Features
- Polyester baffles (60% recycled) add sound absorption for reduced echo and reverb
- The finished aesthetic is only limited by your imagination for these hanging acoustic panels
- Non-allergenic, non-toxic, fungal resistant, and no chemical irritants or formaldehyde
- Decorative and Class A Fire Rated
- Easy to install and easy to clean
Couldn't load pickup availability
Specs
Specs
| Dimensions | 24" x 48" (8 sq ft) (Up to 48" x 96" available) |
| Thickness | 1/2" (1" or 2" by via phone) |
| Weight | 4.17lbs |
| Edge Type | Square Edge |
| Flammability | Class A Fire Rated |
| Colors | Beige, Black, Blue, Brown, Grey, Green, Orange, Purple, Red, Silver, Tan, White |
Material Testing
Material Testing
Sabins per Baffle
| Panel Type | Thickness | Mount Type | 125 | 250 | 500 | 1000 | 2000 | 4000 | Sabins/Baffle |
| PolyZorbe™ Acoustic Baffle | 1/2" | J-Mount (12" depth, 12" spacing) | 1.29 | 1.47 | 2.12 | 3.24 | 4.65 | 5.62 | 2.85 |
| PolyZorbe™ Acoustic Baffle | 1" | J-Mount (12" depth, 12" spacing) | 1.39 | 1.74 | 2.96 | 4.46 | 6.04 | 5.82 | 3.80 |
| PolyZorbe™ Acoustic Baffle | 2" | J-Mount (12" depth, 12" spacing) | 1.94 | 2.45 | 4.23 | 6.00 | 6.77 | 6.67 | 4.85 |
| PolyZorbe™ Acoustic Baffle | 1/2" | J-Mount (24" depth, 24" spacing) | 3.34 | 3.46 | 5.11 | 6.47 | 9.30 | 10.87 | 6.10 |
| PolyZorbe™ Acoustic Baffle | 1" | J-Mount (24" depth, 24" spacing) | 3.43 | 3.80 | 6.57 | 9.95 | 12.04 | 12.13 | 8.10 |
| PolyZorbe™ Acoustic Baffle | 2" | J-Mount (24" depth, 24" spacing) | 4.65 | 5.49 | 9.36 | 12.81 | 13.72 | 13.40 | 10.35 |
| Tested Properties | Testing Method | Performance |
|---|---|---|
| Acoustical Performance | ASM C423-17 (Type J Mount) | 2.85 to 10.35 Sabins/Baffle |
| Fire Rating | ASTM E84 | Class A |
| Light Reflectance (White) | ASTM E1477 | 1/2": 87 |
| Fungal Growth | ASTM C1338 | Pass |
| VOC | CDPH Standard Method v1.2 | Pass |
Installation Instructions
Installation Instructions

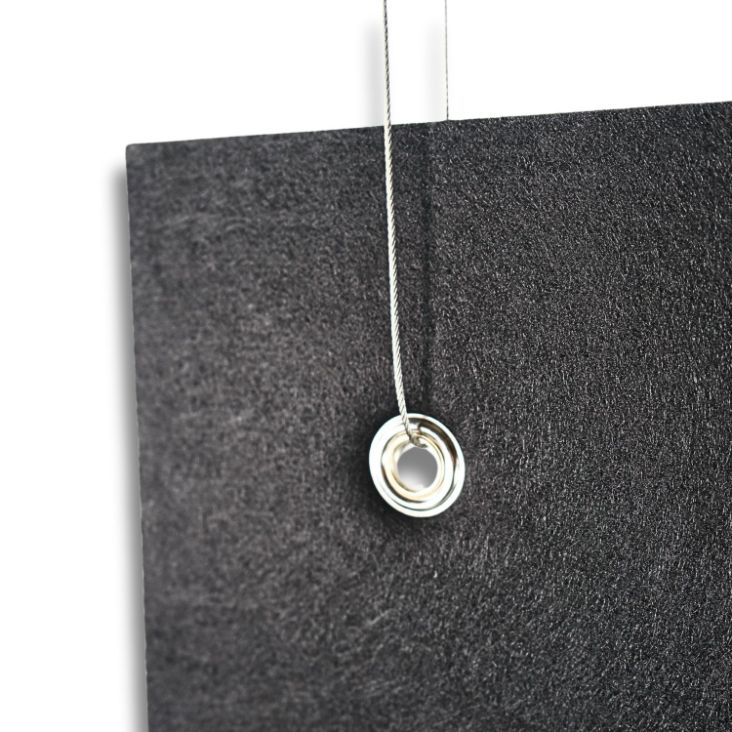

Recommended Attachment: Grommets (included), light duty chain (by other)
- Loop suspension cable (provided by other) into the eyelet on the grommet and close the loop with a cable clamp or similar hardware.
- Suspension cable should be anchored to the roof deck or ceiling structure.
Check out our full install guide !
Common Product Uses
Common Product Uses
- Recording studios, gymnasiums, auditoriums, hotels, conference rooms, offices, music practice rooms, band rooms, houses of worship, community centers, government and municipal buildings, hospitals, medical clinics, malls, retail stores, theaters, schools, classrooms, restaurants, bars, night clubs, multi-purpose rooms, airports, manufacturing plants, and warehouses
