Mini Super W Rubber Sound Isolation Pads - 3/8"
In stock. This product ships in 1-2 business days.
Regular price
$14.99
Sale price
Regular price

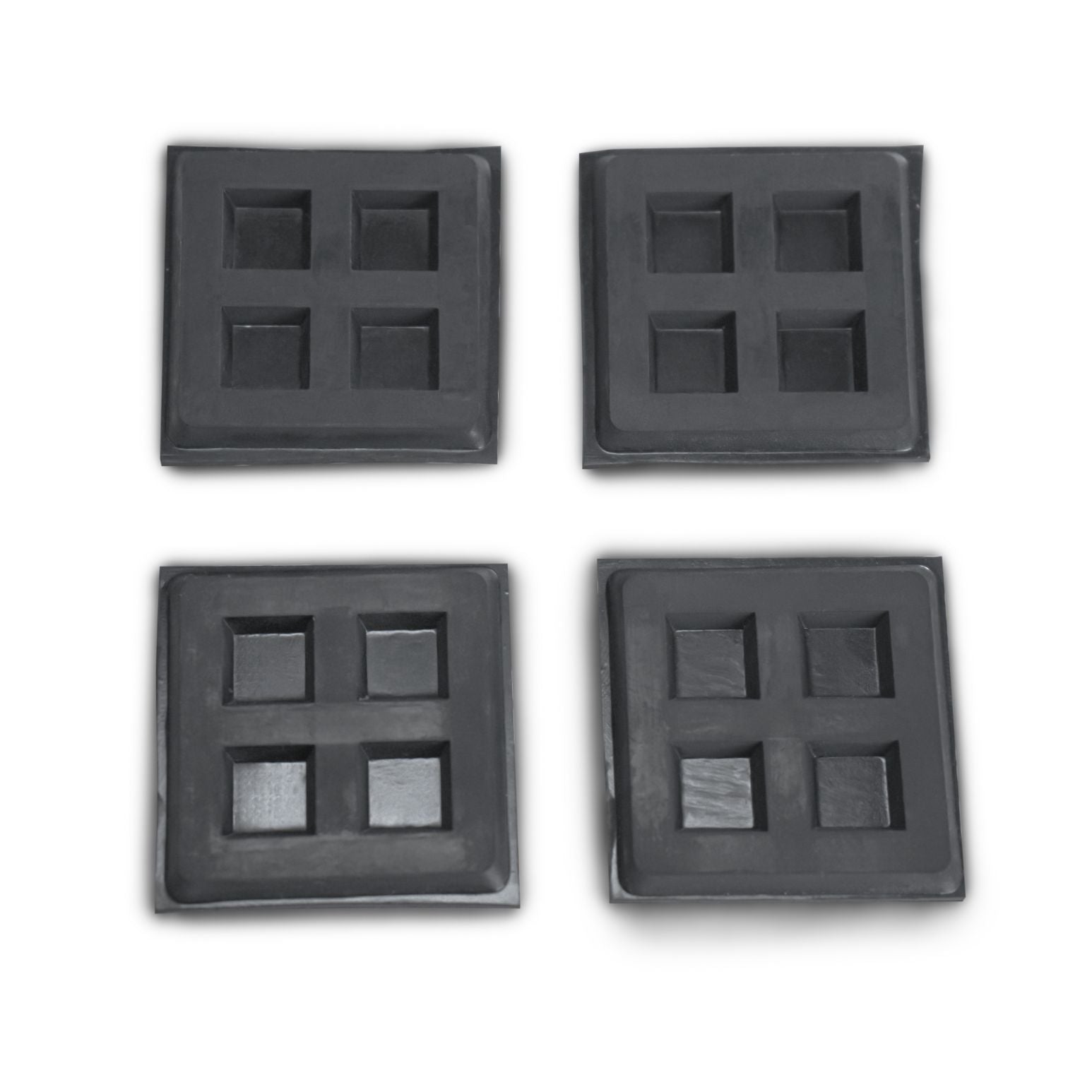

Mini Super W Sound Isolation Pads
Rubber vibration isolation pads (but a little thinner) will efficiently and cost-effectively stop structural noise due to vibrating machinery. By isolating the machine from the hard surface, you will substantially reduce impact noise and overall vibrations. Install these pads under any machinery or between any two hard metal surfaces to stop impact noise!
Features
- Natural rubber isolation pad with waffle pattern

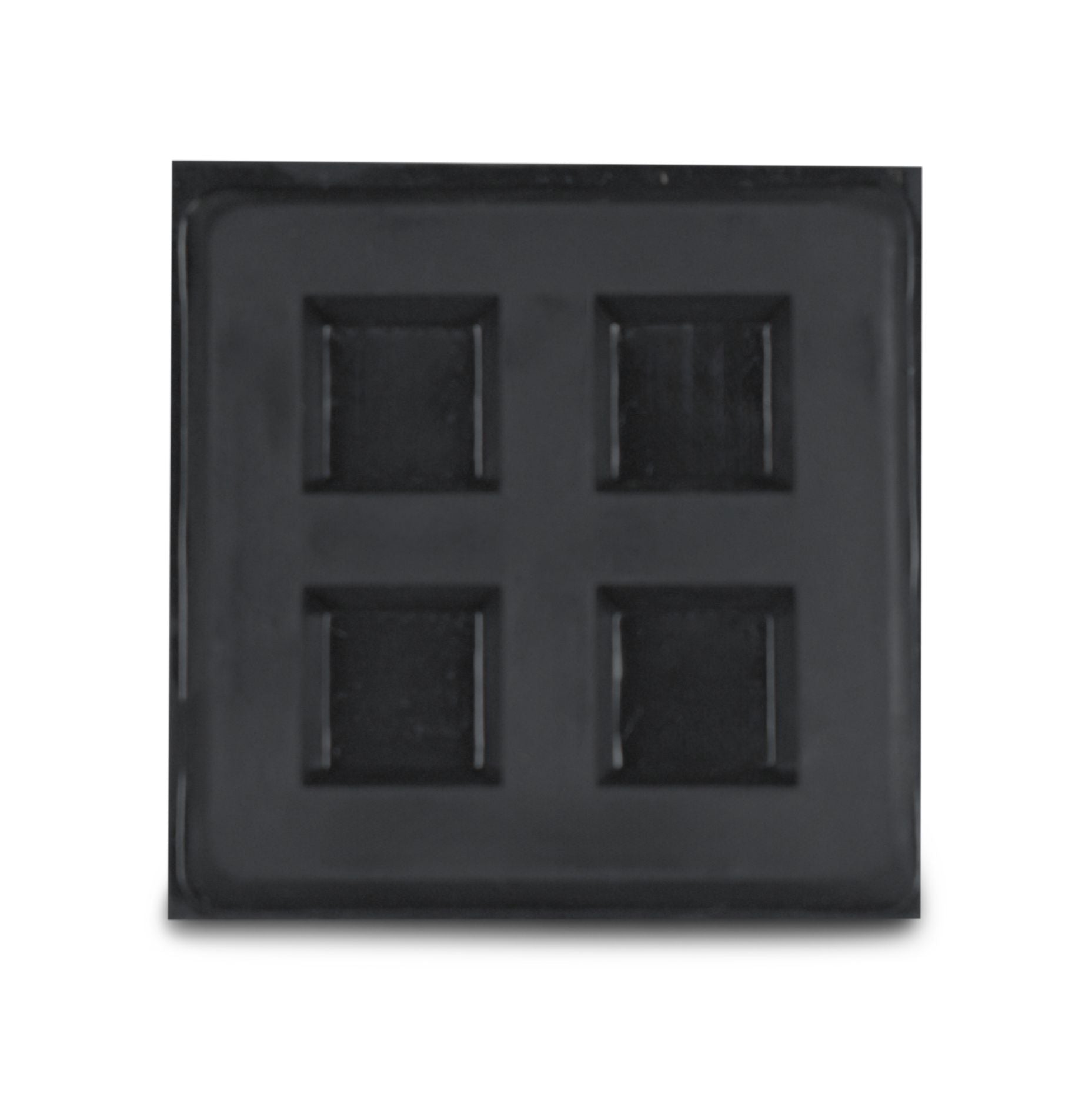

- Each 2” x 2” pad is rated for up to 180 lbs, but the BEST PERFORMANCE results from 60 lbs per 2" x 2" isolation pad.

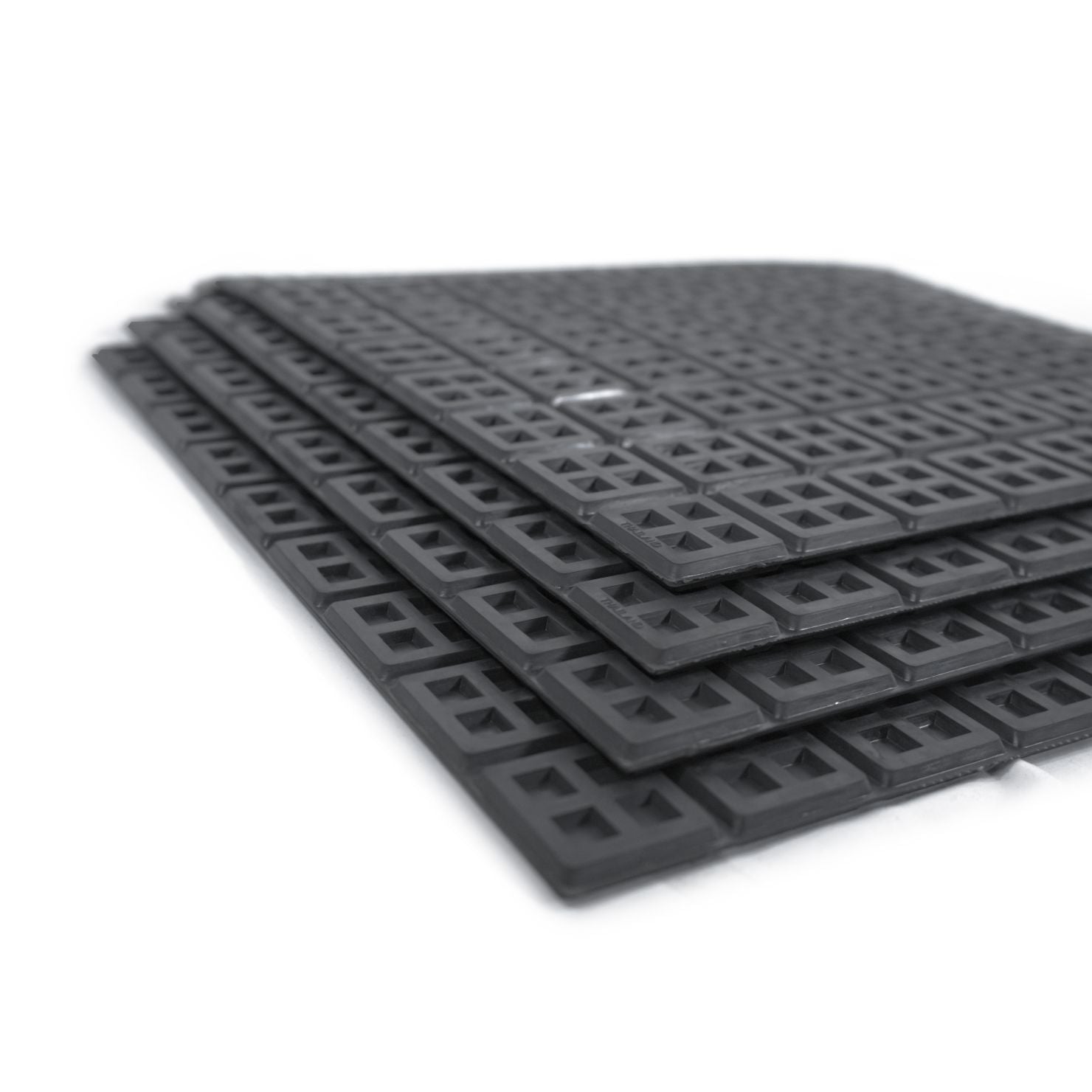

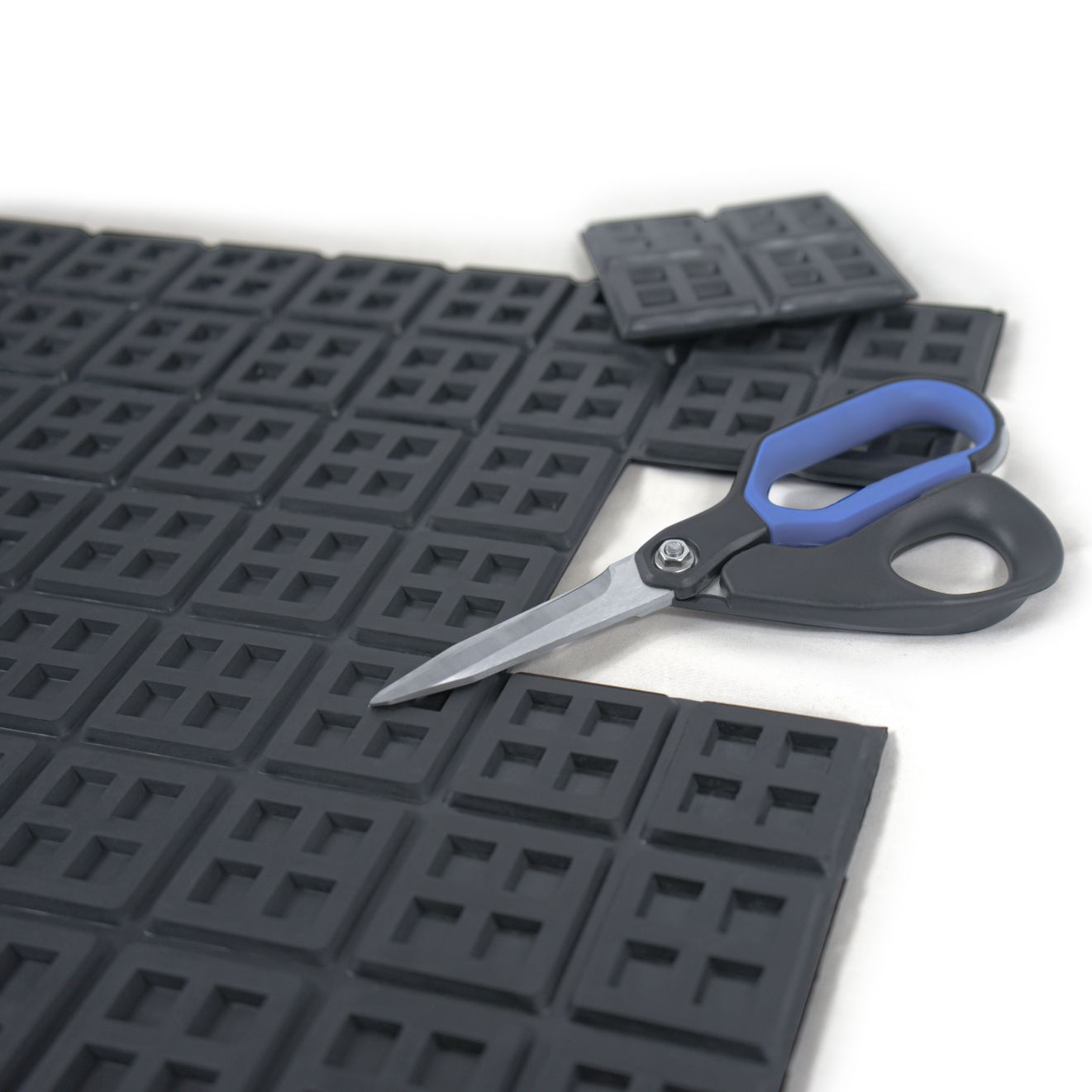

- A full 18” x 18” sheet can be cut into (81) 2" x 2" pads. Cut out 2” x 2” pads with scissors.
- Use on any machinery (air conditioners, noisy refrigerators, pumps, air compressors, and more!)
- Install between equipment and a stiff support surface
- Suction cup design removes need to bolt the pad down
Couldn't load pickup availability
Specs
Specs
| Dimensions | 2" x 2" |

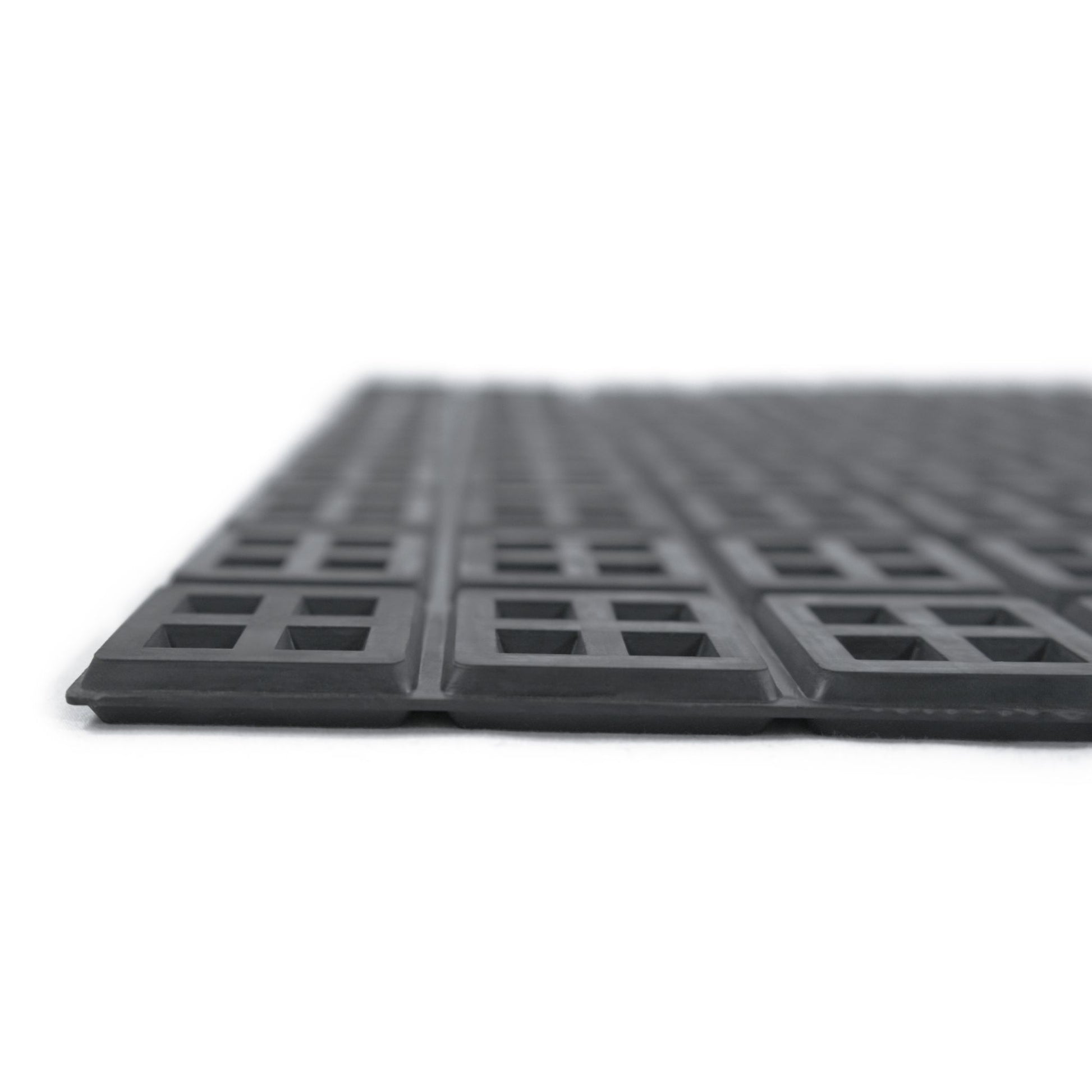

| Thickness | 3/8" |
| Capacity | 60 lbs / pad |
3/4" thick isolation pads available
Installation Instructions
Installation Instructions
- Determine the weight of the machine.
- Calculate the number of pads needed by dividing that weight by 60.
- Configure the 2” x 2” pads to support the machine equally at all 4 corners.
Example Installs:
- Machine #1 weighs 180 lbs. This install requires (4) 2” x 2” pads. Use (1) 2” x 2” pad under each corner.

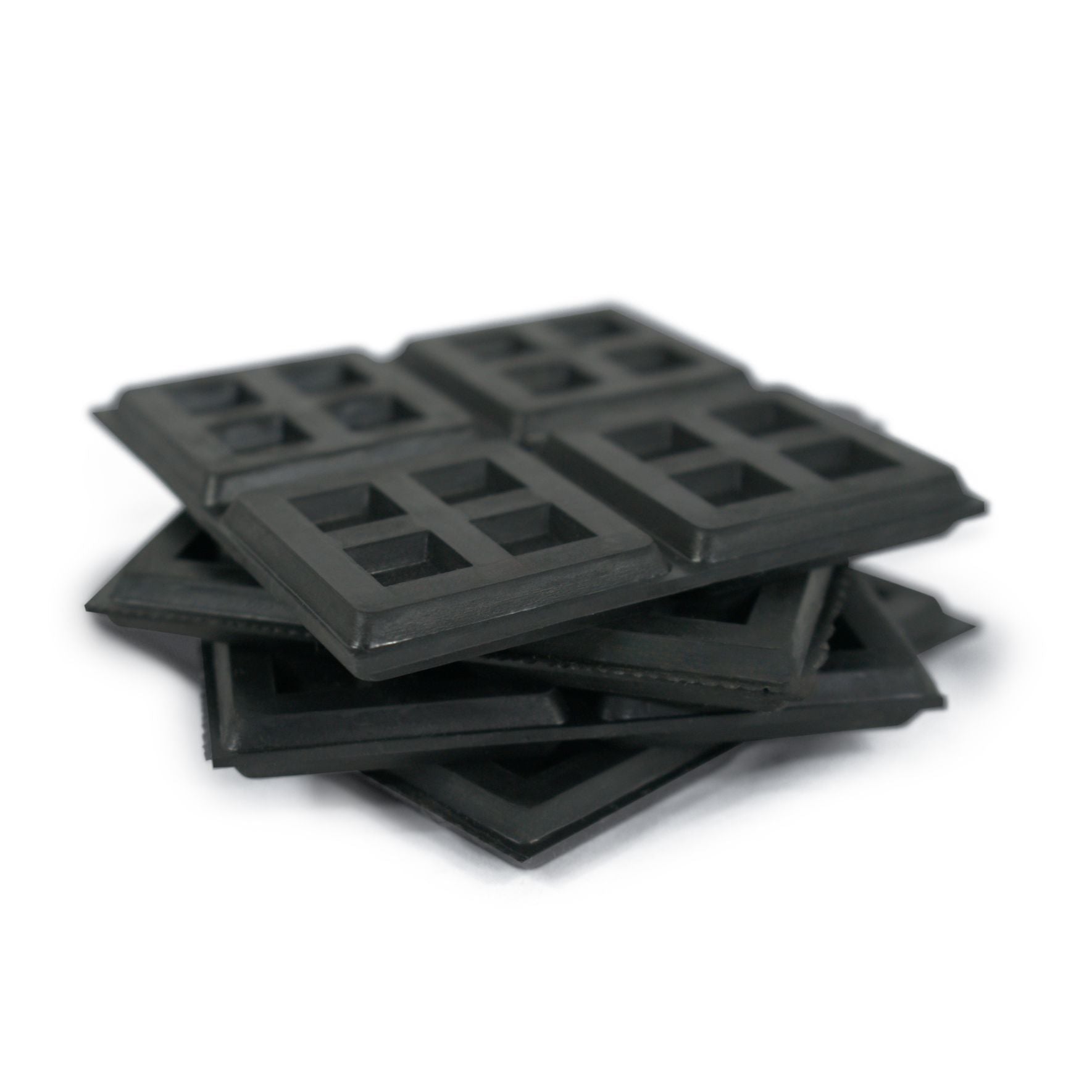

- Machine #2 weighs 720 lbs. This install requires (16) 2” x 2” pads. Use (4) 2” x 2” pads under each corner. The (4) 2” x 2” pad units will each measure 4” x 4”.
Common Product Uses
Common Product Uses
- Isolate your heavy machinery that vibrate against your floors
- Washers
- Dryers
- Refrigerators
- Generators
- Compressors
- Heat/Pool pumps
For extremely large machines or machines causing significant vibrations, vibration isolation mounts may be needed. Contact us for details!
