Mela Muteā¢ Acoustic Foam Super Wedge
In stock. This product ships in 1-4 business days
Regular price
$24.99
Sale price
Regular price
Square Footage Calculator

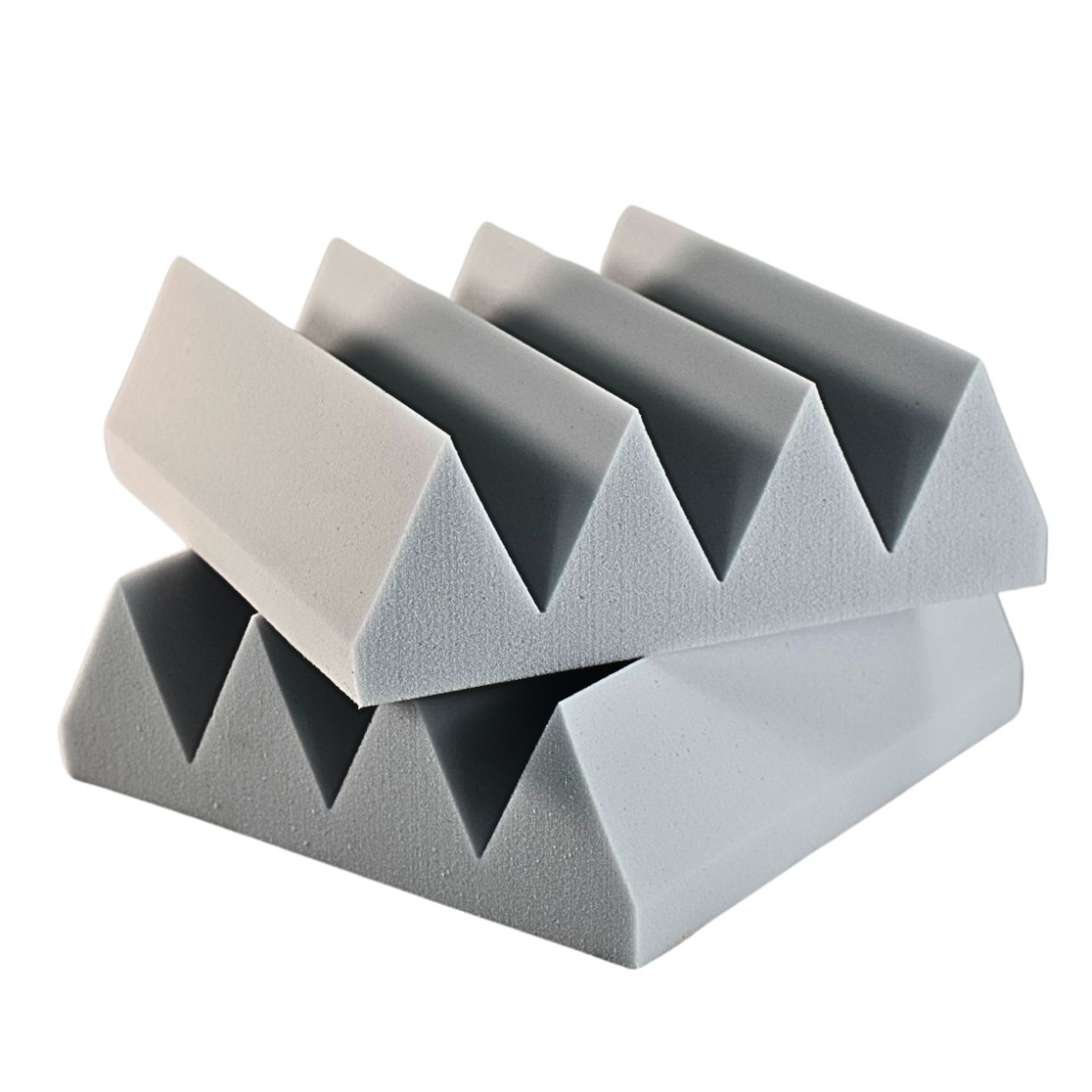

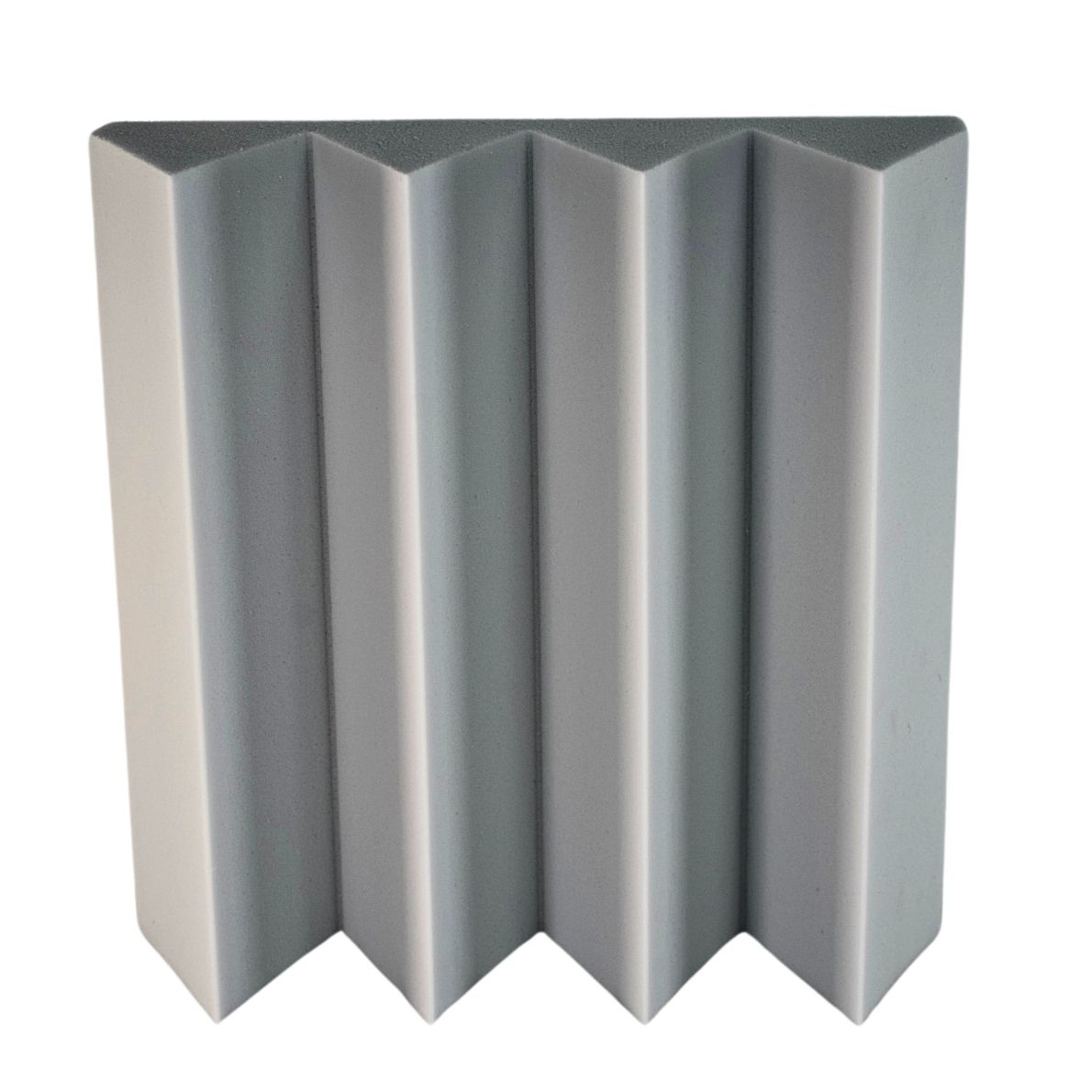

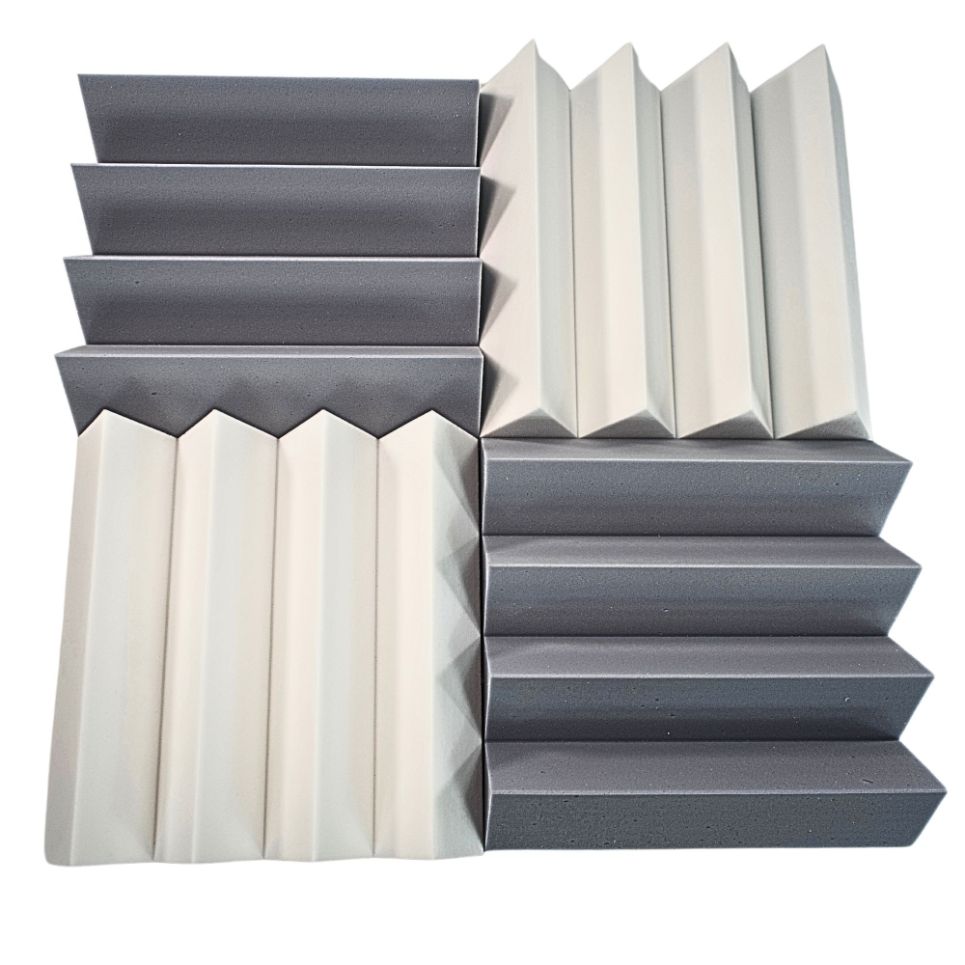

Mela Muteā¢ Acoustic Foam Super Wedge
If you have a testing chamber, Mela Muteā¢ Acoustic Foam Super Wedges are perfect for quelling those lower frequencies. Mela Muteā¢ Super Wedge is a Class A fire rated melamine foam, meaning it won't burn like other cheap foam, making it a great fit for commercial spaces and home spaces alike. With different colors and sizes to choose from, it's an easy (and super light) pick for acoustical treatments.
Features
- Premium foam low frequency absorber (4": 1.05 NRC) | (6": 1.25 NRC) | (8": 1.35 NRC)

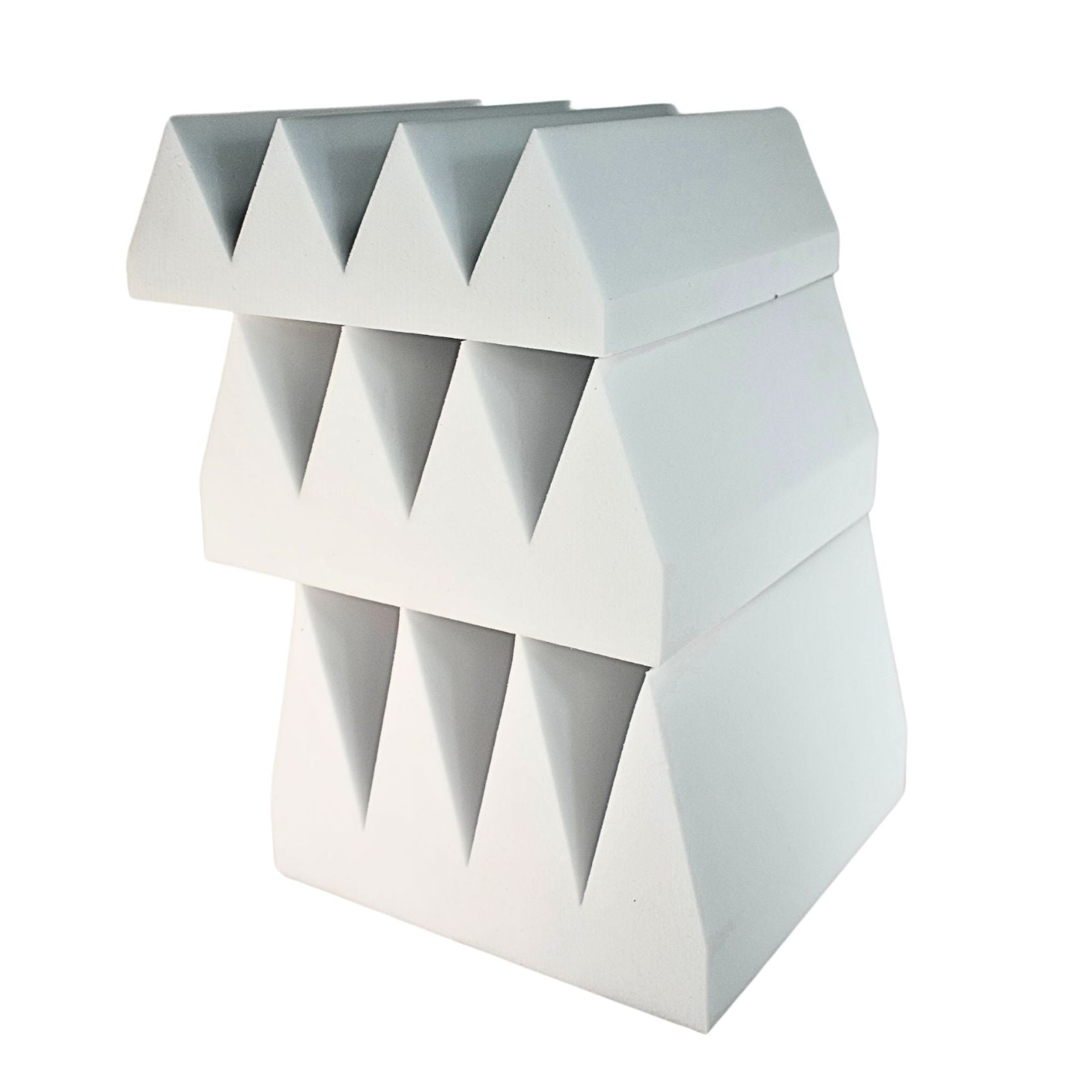

- 4", 6", and 8" thick melamine foam options
- Lightweight and Class A fire rated
- Thermal range: -40Ā°F to 350Ā°F
- Used for test chambers
- Each panel is 12ā x 12ā (1 sq ft)
- Paintable
Couldn't load pickup availability
Specs
Specs
| Dimensions | 12ā x 12ā (1 Sq Ft) |
| Thickness | 4", 6", and 8" thicknesses |
| Weight | 4": 0.70lbs | 6": 1.00lbs | 8": 1.35lbs |
| Flammability | Class A Fire Rated |
| NRC | 4": 1.05 | 6": 1.25 | 8": 1.35 |
| Temperature Resistance | -40Ā°F to 350Ā°F |
| Color | White, Light Grey, and Dark Grey |
| Paintable | Yes |
Material Testing
Material Testing
Noise Reduction Coefficient
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| 4" Mela Muteā¢ Super Wedge | 0.33 | 0.67 | 1.19 | 1.18 | 1.23 | 1.24 | 1.05 |
| 6" Mela Muteā¢ Super Wedge | 0.22 | 1.07 | 1.27 | 1.34 | 1.27 | 1.15 | 1.25 |
| 8" Mela Muteā¢ Super Wedge | 0.39 | 1.05 | 1.44 | 1.38 | 1.33 | 1.19 | 1.35 |
| Tested Properties | Testing Method | Performance |
|---|---|---|
| Acoustical Performance | ASM C423-17 (A-Mount) | 4" - 1.05 NRC |
| Fire Rating | ASTM E84 | Class A |
Installation Instructions
Installation Instructions
- Map out where each panel will go.
- Adhere to wall or ceiling using our P329 permanent spray adhesive or a construction adhesive.
Check out our or our !
Common Product Uses
Common Product Uses
- Test chamber acoustics
- Office acoustics
- Recording studio acoustics
- Church and other houses of worship acoustics
- Home studio acoustics
- Check out our other shapes and options like our Mela Muteā¢ Pyramid Acoustic Foam and Mela Muteā¢ Linear Wedge Acoustic Foam for standard applications, Mela Muteā¢ Anechoic Wedge Acoustic Foam pairs well for testing chambers, and our Mela Muteā¢ Corner Bass Trap Acoustic Foam helps with those hard-to-tame bass frequencies.
