Mela Mute™ Acoustic Foam Pyramids
In stock. This product ships in 1-4 business days
Regular price
$69.99
Sale price
Regular price
Square Footage Calculator

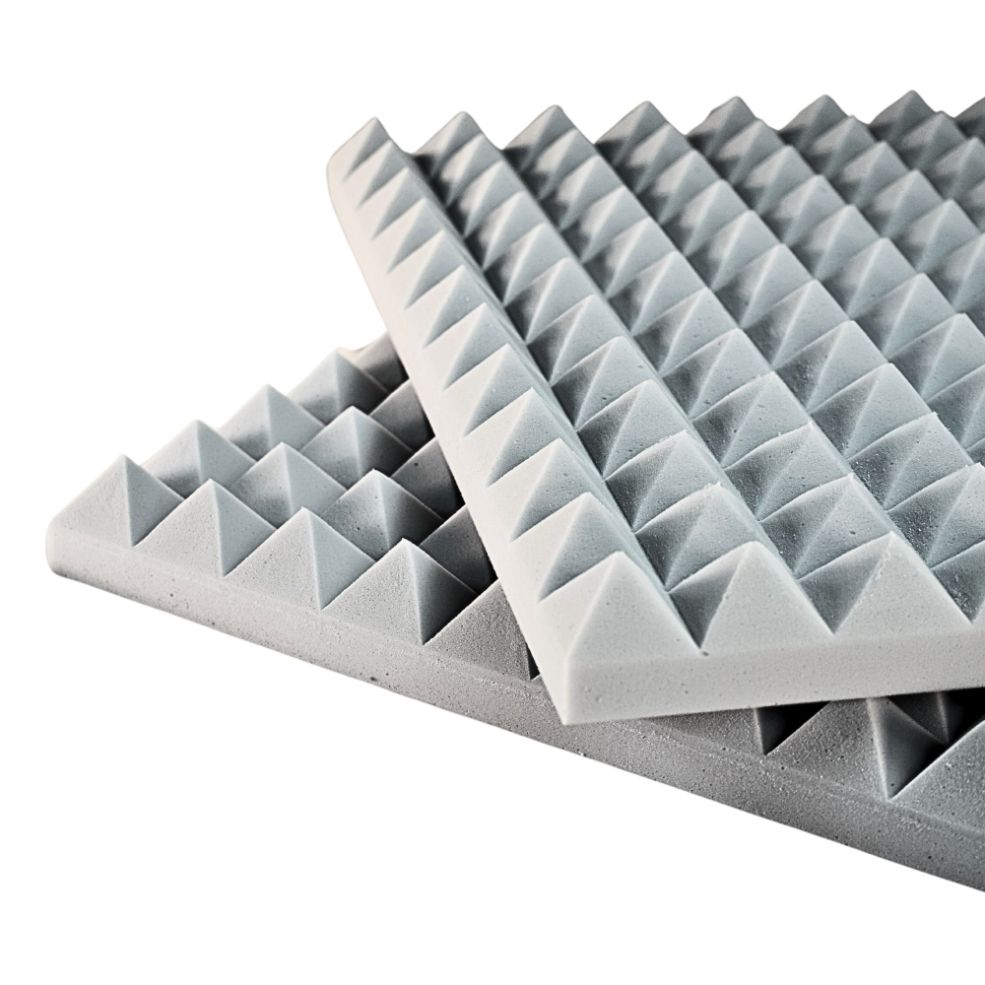

Mela Mute™ Acoustic Foam Pyramids
You don't have to go outside your comfort zone to add absorption into your space, and it doesn't have to be difficult. Mela Mute™ Acoustic Foam is a Class A fire rated melamine foam, meaning it won't burn like other cheap foam, making it a great fit for commercial spaces and home spaces alike. With different colors and sizes to choose from, it's an easy (and super light) pick for acoustical treatments.
Features
- Premium foam sound absorber (2": 0.75 NRC) | (3": 0.90 NRC) | (4": 1.00 NRC)
- 2", 3", and 4" thick melamine foam options
- Lightweight and Class A fire rated
- Thermal range: -40°F to 350°F
- Each panel is 24” x 24” (4 sq ft)
- Paintable
Couldn't load pickup availability
Specs
Specs
| Dimensions | 24” x 24” (4 Sq Ft) |
| Thickness | 2", 3", or 4" thicknesses |
| Weight | 2": 0.50lbs | 3": 0.70lbs | 4": 0.95lbs |
| Flammability | Class A Fire Rated |
| NRC | 2": 0.75 | 3": 0.90 | 4":1.00 |
| Temperature Resistance | -40°F to 350°F |
| Color | White, Light Grey, and Dark Grey |
| Paintable | Yes |
Material Testing
Material Testing
Noise Reduction Coefficient
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| 2" Mela Mute™ Pyramid Sheet | 0.09 | 0.28 | 0.79 | 0.94 | 1.00 | 1.04 | 0.75 |
| 3" Mela Mute™ Pyramid Sheet | 0.10 | 0.48 | 0.91 | 1.11 | 1.11 | 1.14 | 0.90 |
| 4" Mela Mute™ Pyramid Sheet | 0.16 | 0.56 | 1.11 | 1.13 | 1.13 | 1.21 | 1.00 |
| Tested Properties | Testing Method | Performance |
|---|---|---|
| Acoustical Performance | ASM C423-17 (A-Mount) | 2" - 0.75 NRC |
| Fire Rating | ASTM E84 | Class A |
Installation Instructions
Installation Instructions
- Map out where each panel will go.
- Adhere to wall or ceiling using our P329 permanent spray adhesive or a construction adhesive.
Check out our or our !
Common Product Uses
Common Product Uses
- Office acoustics
- Recording studio acoustics
- Church and other houses of worship acoustics
- Home studio acoustics
- Check out our other shapes and options like our Mela Mute™ Linear Wedge Acoustic Foam for standard applications, Mela Mute™ Anechoic Wedge Acoustic Foam for testing chambers, our Mela Mute™ Super Wedge Acoustic Foam for lower frequencies, and our Mela Mute™ Corner Bass Trap Acoustic Foam for those hard-to-tame bass frequencies.
