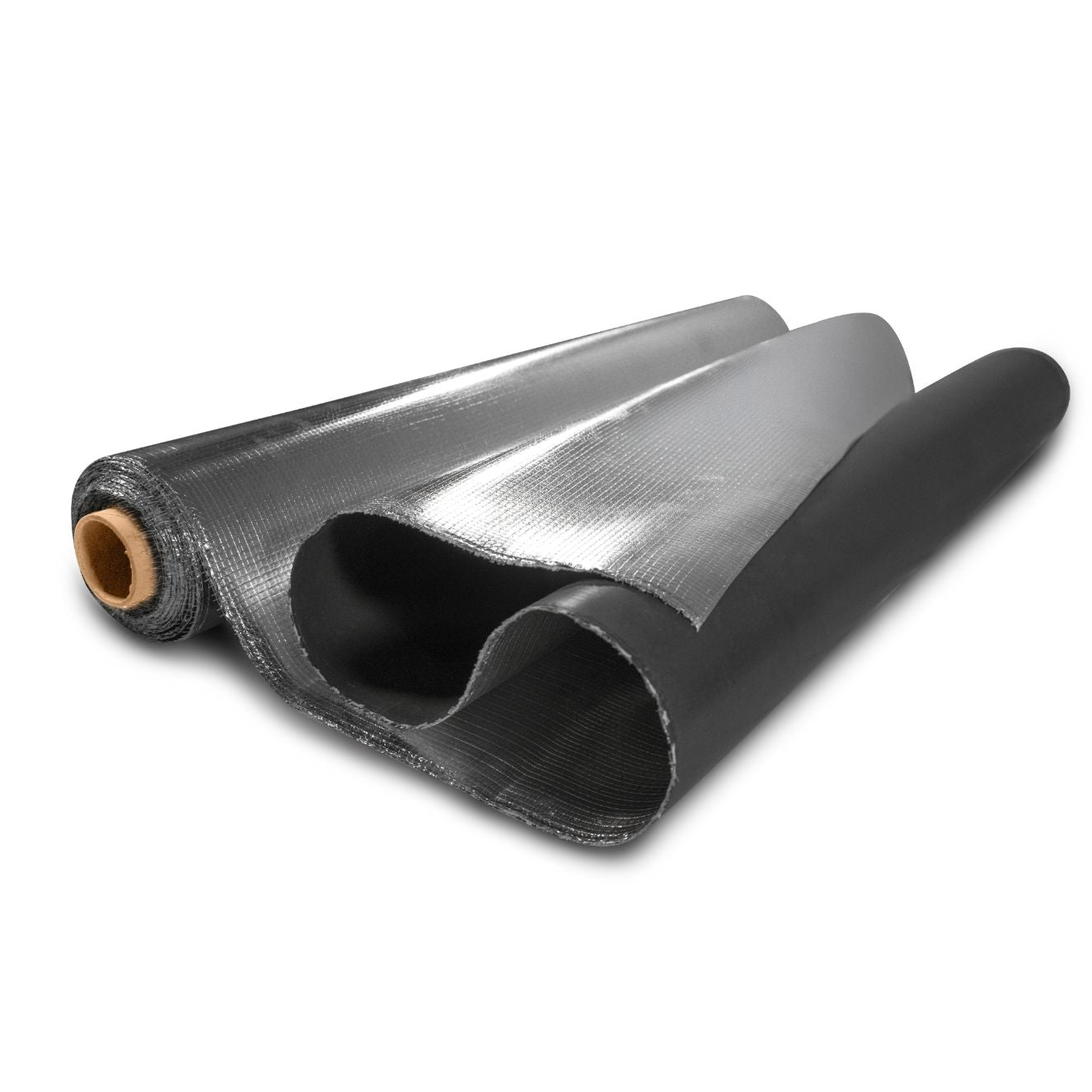

Luxury Liner™ Foil Faced Mass Loaded Vinyl Roll
In stock. This product ships in 1-3 business days.
Regular price
$249.99
Sale price
Regular price
Square Footage Calculator
Luxury Liner™ Foil Faced Fire Rated Mass Loaded Vinyl Roll
Second Skin's Luxury Liner™ foil faced fire rated mass loaded vinyl roll is the perfect way to create a Class A fire rated noise barrier. When adding mass to a barrier in a space with fire code restrictions, with a reinforced aluminized foil facing and reinforced scrim, this mass loaded vinyl passes the test!
Features
- Nominal 1/8” thick premium foil faced mass loaded vinyl
- Each roll is 4.5' wide with options for 10' and 20' long options
- Weight: 1lb per square foot
- Class A fire rated
- Great for wrapping pipes, ducts, and valves and for heat protection
- Tensile Strength: 608 psi
- Breaking Strength: 200lbs
- STC rating: 27
- How does 1lb foil faced MLV compare to standard 1lb MLV? 1lb foil faced fire rated MLV weighs the same per square foot and is just as flexible, but this mass loaded vinyl is Class A fire rated and has reinforced scrim for high tensile strength.
- Proudly made in the USA
Couldn't load pickup availability
Specs
Specs
| Dimensions | 4.5’ x 10’ (45 sq ft) 4.5' x 20' (90 sq ft) Call for Custom Sizes |
| Thickness | Nominal 1/8" |
| Weight | 1lb per sq ft |
| Color | Black with Aluminum Facing |
| Temperature Rating | -40°F to 240°F |
| STC Rating | 27 |
Material Testing
Material Testing
Sound Transmission Loss
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC Rating |
| 1lb Foil Faced Fire Rated MLV Sound Transmission Loss (dB) | 17 | 17 | 23 | 28 | 33 | 37 | 27 |
| Tested Properties | Performance |
| Tensile Strength | 608 psi |
| Elongation | 10.5% |
| Tear Strength | 60lbs |
| Breaking Strength | 200lbs |
| Flammability Rating | ASTM E84-Class A |
Installation Instructions
Installation Instructions
Pipe Wrapping Install Method
- Wrap MLV around the pipe (100% coverage required). The black side should face the pipe.
- Overlap the seams by 2”.
- Secure the MLV with zip ties. Alternatively, use super strong double sided tape to help hold the MLV as well.
- Recommended to tape the seams.
Common Product Uses
Common Product Uses
- Wrap noisy pipe (PVC)
- HVAC duct soundproofing
- Generator boxes
- Generator enclosure
- Mechanical rooms
- Machinery enclosures
