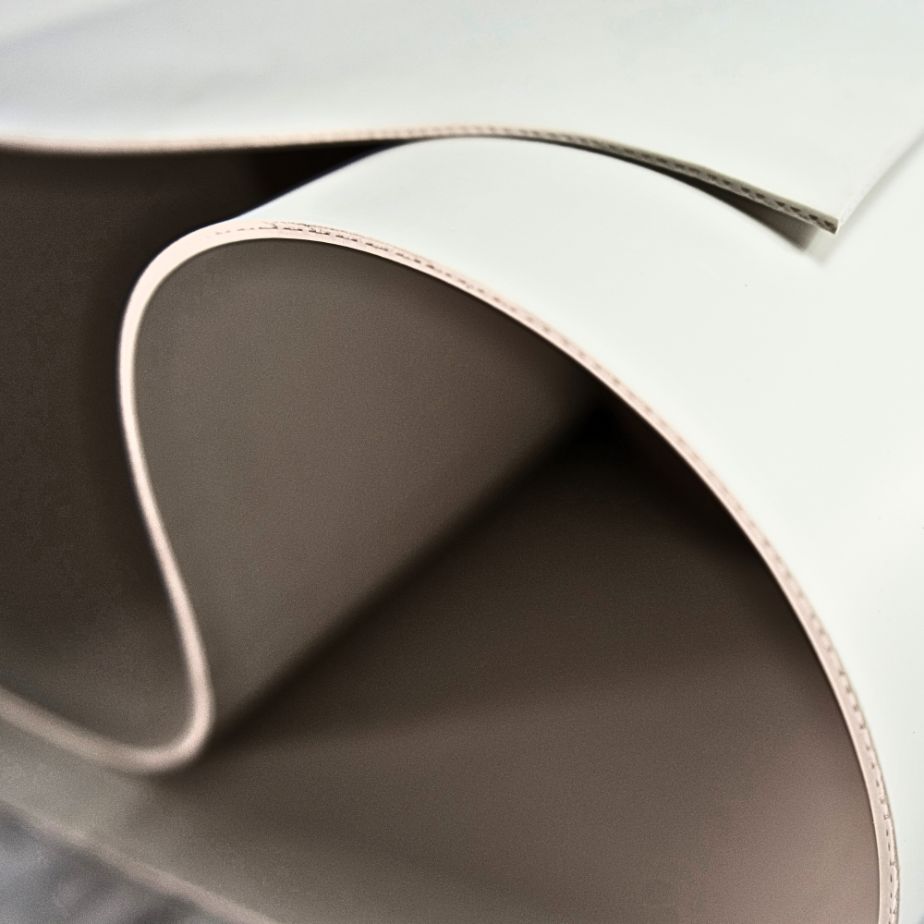

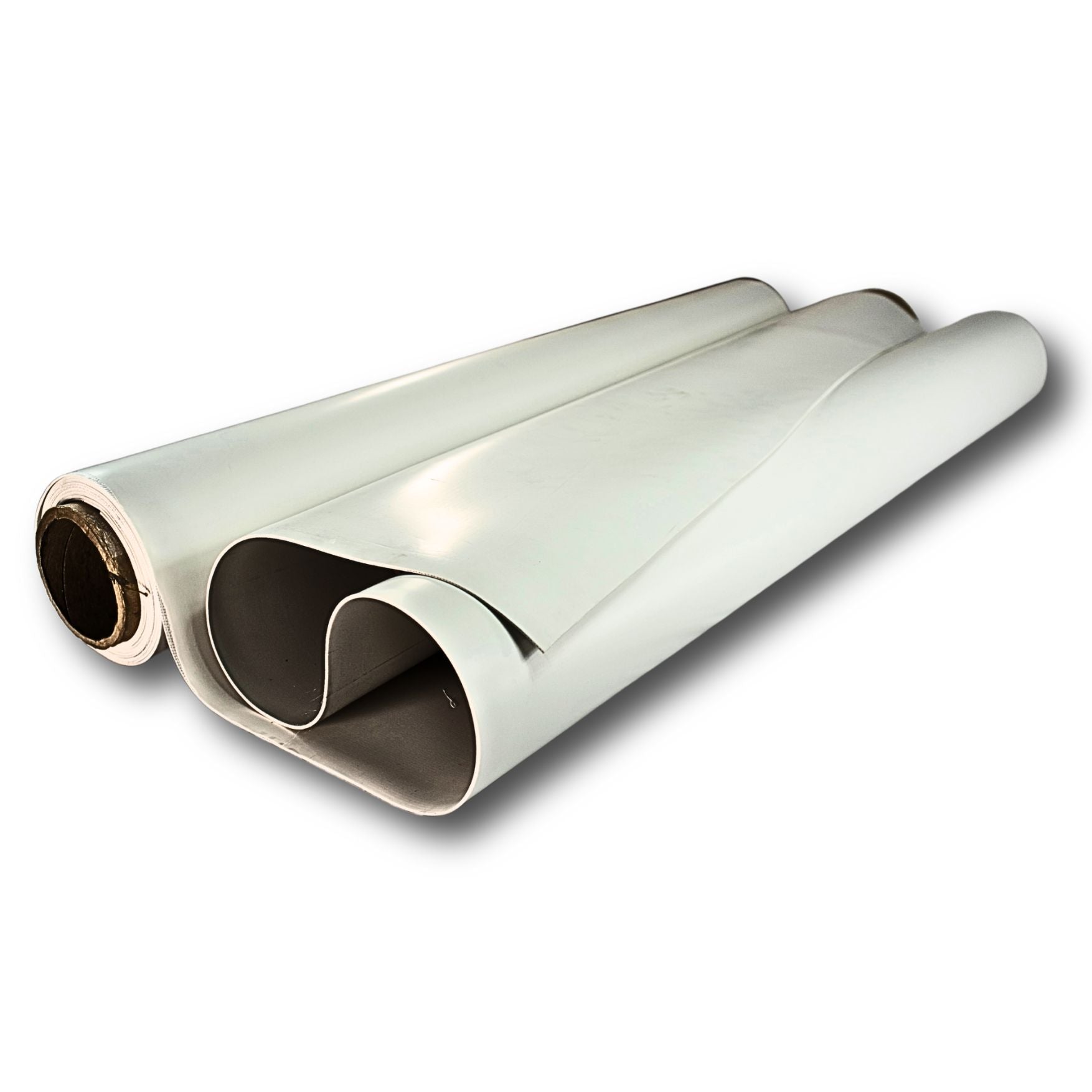

Luxury Liner™ E84 Class A Mass Loaded Vinyl Roll
Second Skin's Luxury Liner™ E84 Class A Mass Loaded Vinyl is perfect for creating a noise barrier in a space with fire code restrictions. This mass loaded vinyl is also reinforced with polyester scrim for extra strength!
Features
- Nominal 1/8” thick premium white mass loaded vinyl
- Class A fire rated
- Reinforced with polyester scrim
- Each roll is 4.5' wide x 10' long (45 sq ft) or 4.5' wide x 20' long (90 sq ft)
- Weight: 1lb per square foot
- Breaking Strength: 300lbs
- UV resistant for outdoor use
- STC rating: 26
- How does 1lb white MLV compare to standard 1lb MLV? 1lb white MLV weighs the same per square foot and is just as flexible, but this mass loaded vinyl is Class A fire rated and reinforced for extra strength.
- Proudly made in the USA
Couldn't load pickup availability
Specs
Specs
| Dimensions | 4.5’ x 10’, 4.5’ x 20’, Call for Custom Sizes |
| Thickness | Nominal 1/8" |
| Weight | 1lb per sq ft |
| Color | Off-White |
| Temperature Rating | -20°F to 170°F |
| STC Rating | 26 |
Material Testing
Material Testing
Sound Transmission Loss
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC Rating |
| 1lb E84 Class A MLV Sound Transmission Loss (dB) | 16 | 17 | 22 | 27 | 32 | 37 | 26 |
| Tested Properties | Testing Method | Performance |
| Fire Rating | ASTM E84 | Class A |
| Elongation | ASTM D751 | 15% |
| Breaking Strength | ASTM D751 | 300lbs |
| Tear Strength | ASTM D751 | 30lbs |
Installation Instructions
Installation Instructions
Recommended Install Method: staples, screws (with washers), nails, or hung with reinforced grommets
- Roll out the MLV so the length of the material matches the barrier's height, less 1/8". Using a T-square, cut the mass loaded vinyl using a sharp utility knife.
- Fasten the MLV to the barrier using mechanical fastener of choice. Start attaching the MLV at the top of the barrier and work your way across ensuring the MLV stays straight.
- Drywall will not support the weight of MLV. Always attach to studs.
- Cut out space for any protrusions like outlets.
- As you work your way across the barrier, keep the ends of the MLV directly next to each other for an airtight barrier. Use acoustic caulk to seal any gaps.
Common Product Uses
Common Product Uses
- Commercial wall soundproofing
- Generator boxes
- Generator enclosure
- Mechanical rooms
- Divider walls
- Machinery enclosures
- Construction sites
- Outdoor venues
