Metal Box Soundproofing Packages (RV, Travel Trailer, Semi Trucks)
In stock. This product ships in 1 business day
Square Footage Calculator
Metal Generator Box Soundproofing Packages (RVs, Travel Trailers, and Semi Trucks)
Little machines can create a lot of noise. We don't need to tell you that - you wouldn't be here if you didn't have a loud little machine driving you crazy. We use 3 different materials to soundproof a generator box, which you can combine based on the space available in your generator box and the desired results.
Features
- Reduce vibrational and airborne noise from generators and other small machines
- Different configurations available for targeted treatment
- Easy to install with peel and stick options
- Proudly made in the USA
Couldn't load pickup availability
Soundproofing Kit Options
Soundproofing Kit Options
Standard Metal Generator Box (3' L x 2' W x 2' H)
| Install Type | Damplifier Pro 12" x 20" each, 2mm thick |
Mega Block 24" x 24" each, 1/2" thick |
Luxury Liner Pro 24" x 54" each, 3/8" thick |
Wooden Hand Roller |
| Interior | 12 sheets (20 sq ft) | 5 sheets (20 sq ft) | — | 1 roller |
| Exterior | 12 sheets (20 sq ft) | — | 3 sheets (27 sq ft) | 1 roller |
| Interior + Exterior | 12 sheets (20 sq ft) | 5 sheets (20 sq ft) | 3 sheets (27 sq ft) | 1 roller |
*For small metal generator boxes (approximately 2' x 1' x 1.5'), use 8 sheets of Damplifier Pro (13.3 sq ft) at 100% coverage on the interior only.
Large Metal Generator Box (4' L x 2' W x 3' H)
| Install Type | Damplifier Pro 12" x 20" each, 2mm thick |
Mega Block 24" x 24" each, 1/2" thick |
Luxury Liner Pro 24" x 54" each, 3/8" thick |
Wooden Hand Roller |
| Interior | 22 sheets (36 sq ft) | 9 sheets (36 sq ft) | — | 1 roller |
| Exterior | 22 sheets (36 sq ft) | — | 4 sheets (36 sq ft) | 1 roller |
| Interior + Exterior | 22 sheets (36 sq ft) | 9 sheets (36 sq ft) | 4 sheets (36 sq ft) | 1 roller |
Installation Instructions
Installation Instructions
How to Measure Your Generator Box
Step 1: Determine if material will be installed on interior or exterior walls of the box. The answer will depend on the amount of space inside your box and whether you can access the back side of the box inside your vehicle.
Step 2: Measure length/width of all box faces that will be soundproofed. Do not plan to cover any vents or exhaust holes. Soundproofing materials should not be installed on the floor with the generator resting on top.
Step 3: Add up the square footage measurement of each side of the box to get your total square footage.
Damplifier Pro should be installed with 100% coverage to deaden structural noise (can go interior or exterior). Mega Block should be installed on the interior to absorb and muffle airborne noise. Luxury Liner Pro should be installed on the exterior on top of Damplifier Pro with the foam side facing down — tape the seams and cover 100% for best results.

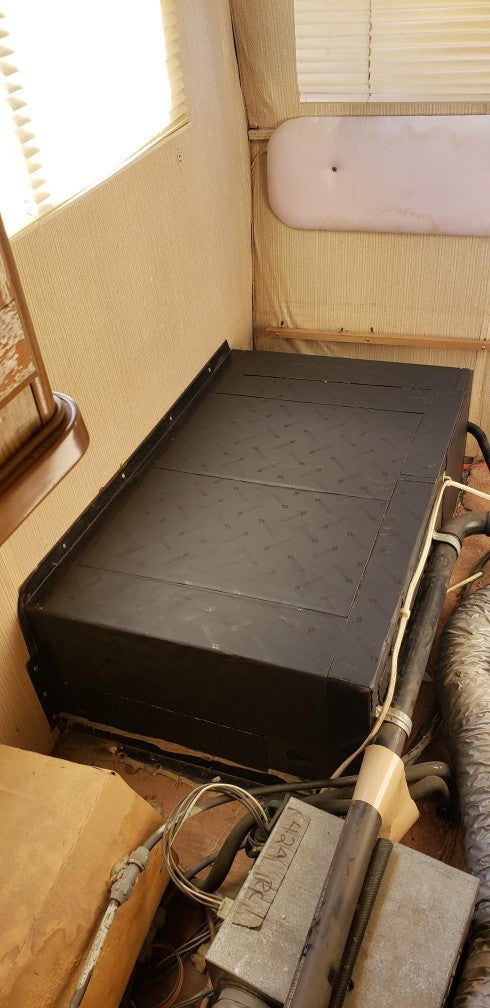

Damplifier Pro installed with 100% coverage on the exterior of a generator box to deaden structural noise. Damplifier Pro can be installed on the interior or exterior.

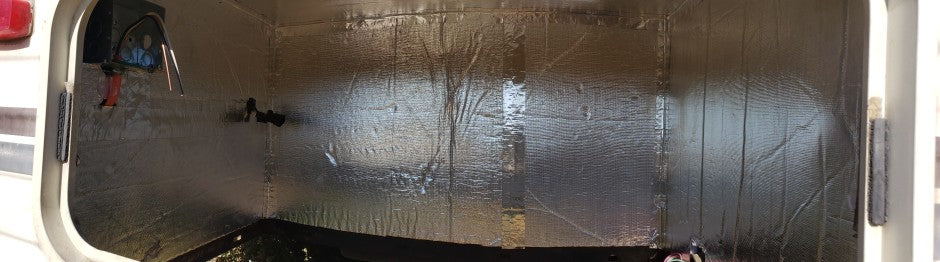

Mega Block installed on the interior of a metal generator box to absorb and muffle airborne noise. Mega Block should always be installed inside the generator box.

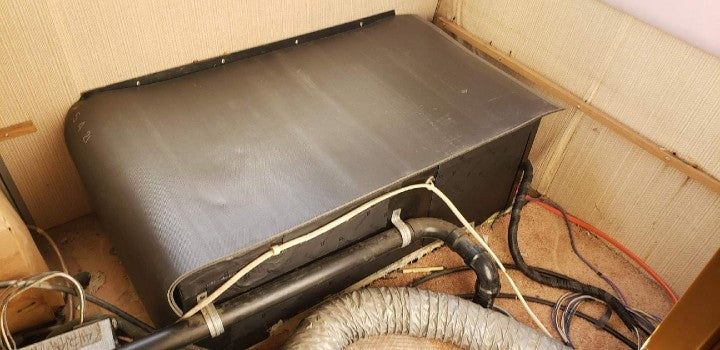

Luxury Liner Pro in the process of being installed on the exterior of a generator box on top of Damplifier Pro with the foam side facing down. Luxury Liner Pro substantially increased the airborne noise blocked by metal. Tape the seams and cover 100% for best results.
Expected Results
Expected Results
How Much Quieter Should I Expect the Box to Be?
| Box Soundproofing Package | Products Used | Decibel Reduction |
| Interior Treatment Kit | Damplifier Pro + Mega Block | 5-8 db |
| Exterior Treatment Kit | Damplifier Pro + Luxury Liner Pro | 8-12 db |
| Full Treatment Kit | Damplifier Pro + Luxury Liner Pro + Mega Block | 10-15 db |
