BlocknZorbe™ Sound Diffuser Panels
In stock. This product ships in 1-3 business days.
Square Footage Calculator

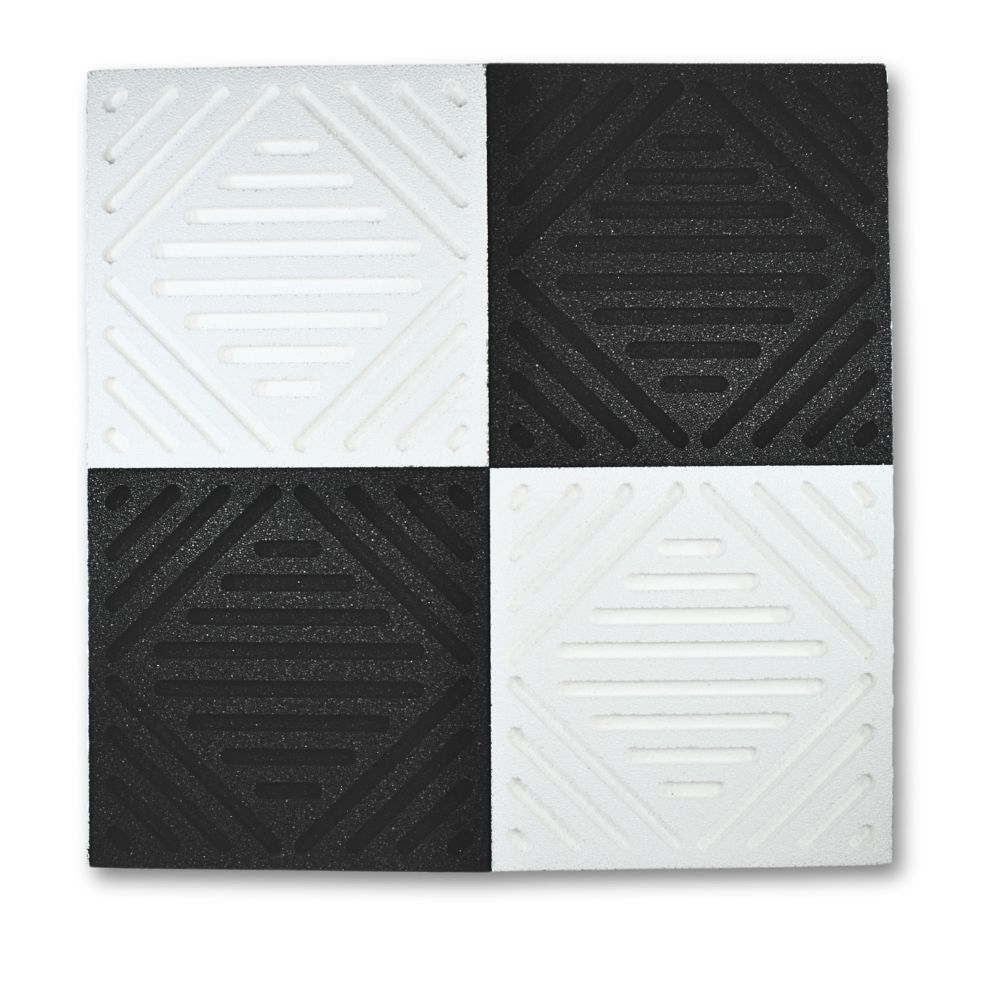

BlocknZorbe™ Sound Diffuser Panels
BlocknZorbe™ sound diffusers are a unique 3D diffuser panel that diffuses, absorbs, and blocks sound to make your space sound and feel bigger. This low-profile, high-performing sound diffuser will perform as well as a much deeper 2D diffuser. They're non-fibrous and easy to clean, and they're class A fire rated making them suitable for commercial recording studios and theaters!
Features
- Semi-rigid, porous expanded polypropylene sound panels are the only diffuser panels to DIFFUSE, BLOCK and ABSORB sound
- Install directly on walls or ceilings
- Lightweight and easy to clean
- Water resistant, impact resistant, and tack-able
- Class A Fire Rated
- Easy to install and easy to clean
- Proudly made in the USA
Couldn't load pickup availability
Specs
Specs
| Dimensions | 24" x 24" (24" x 48" via phone) |

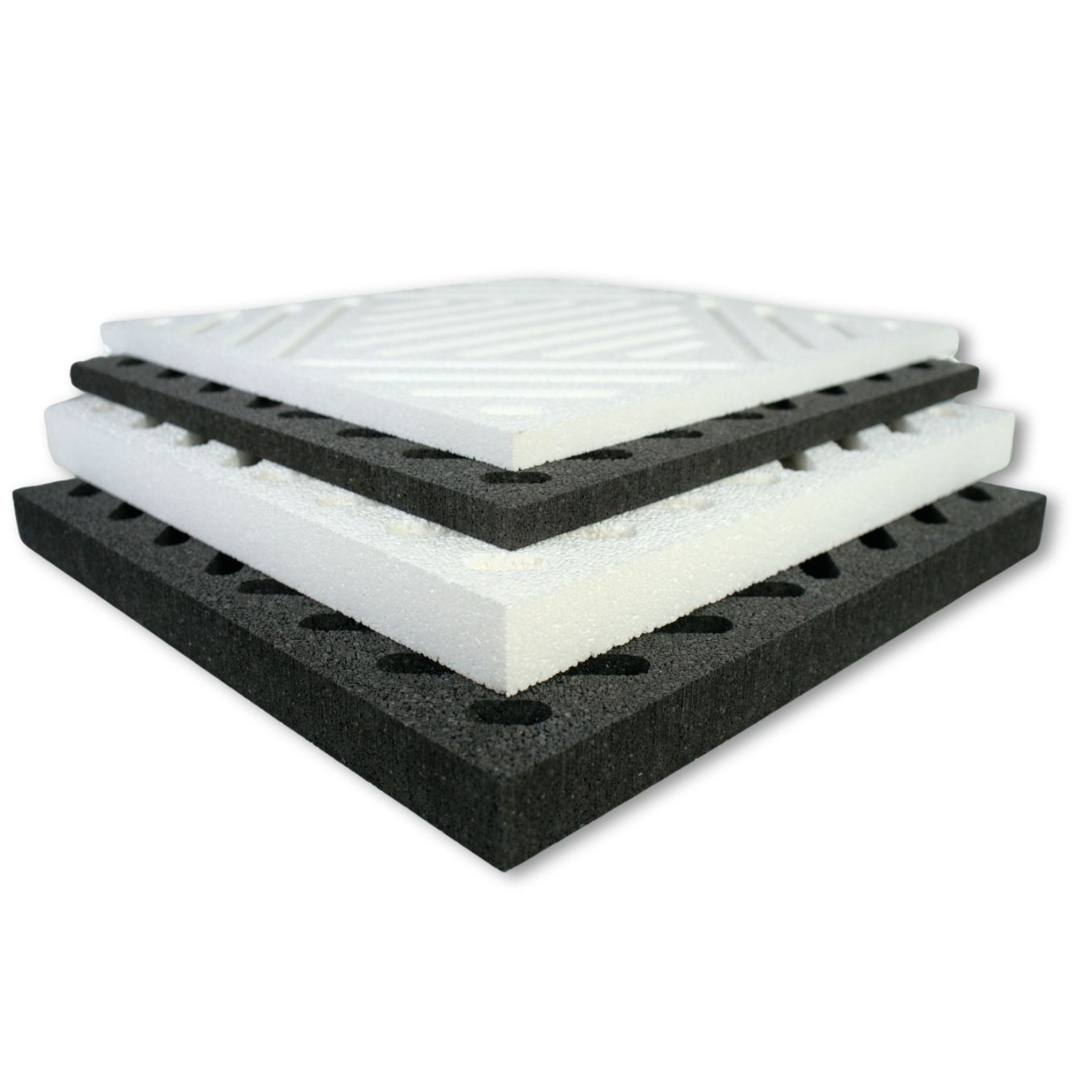

| Thickness | 1", 2" |
| Weight | 1 lb (1"), 2 lbs (2") |
| Edge Type | Square Edge |

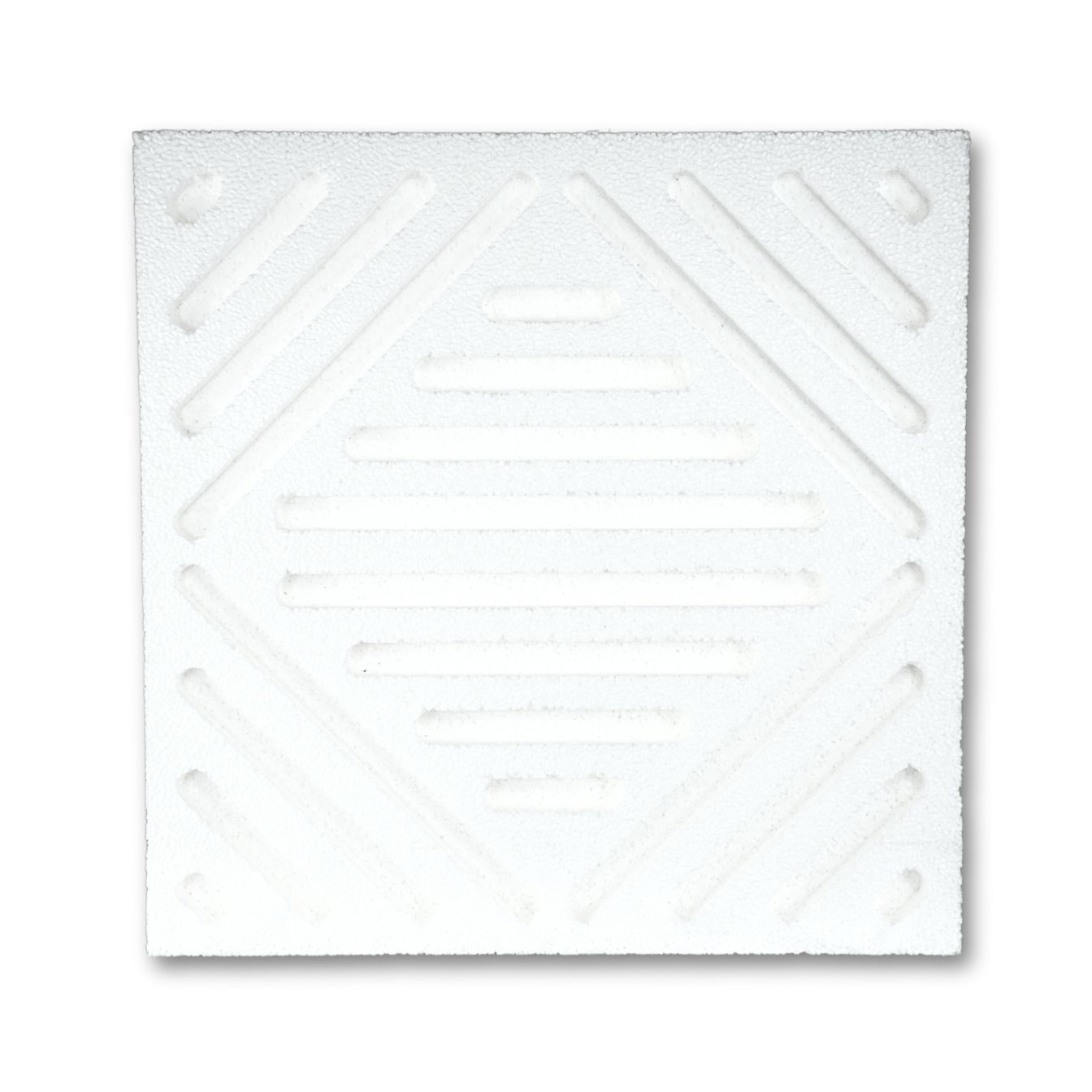

| Colors | Charcoal, White |
| Paintable | Yes, spray light coats |
Material Testing
Material Testing
Noise Reduction Coefficient
| Frequency (Hz) | Testing Mount | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| 1" BlocknZorbe™ Sound Diffuser | E400 | 0.38 | 0.60 | 0.36 | 0.47 | 0.62 | 0.82 | 0.50 |
| 2" BlocknZorbe™ Sound Diffuser | E400 | 0.38 | 0.59 | 0.40 | 0.64 | 0.97 | 1.10 | 0.65 |
Sound Transmission Loss
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC |
| 1" BlocknZorbe™ Sound Diffuser | 5 | 3 | 4 | 6 | 7 | 8 | 6 |
| 2" BlocknZorbe™ Sound Diffuser | 7 | 4 | 5 | 7 | 8 | 11 | 7 |
| Tested Properties | Testing Method | Performance |
|---|---|---|
| Fire Rating | ASTM E84 | Class A |
| Fungal Growth | ASTM C1338 | Pass |
| R-value | ASTM C177 | 3.8 per inch |
| VOC | CDPH Standard Method v1.2 | Pass |
| Light Reflectance | ASTM E1477 | 90 (White) |
Installation Instructions
Installation Instructions
- Recommended Installation: Mechanically fasten with screws
- The easiest way to install BlocknZorbe™ diffuser panels is to screw them into drywall, wood, metal, or concrete. All screws should be at least 3/4" from the edge of the panel.
- Our recommended adhesives can be used as an optional installation method
- If field cuts are needed, use a table saw. Set blade to cut half the thickness of the BlocknZorbe™ diffuser. (i.e. for a 2" thick panel, cut 1" and then flip the panel over and cut 1" again to complete the cut)
- These steps can be found in the
BlocknZorbe™ diffusion panels can also be installed with adhesive. We offer the P329 Spray Adhesive () or adhesive can be bought locally ().
| Panel Thickness | Substrate | Rec. Screw Type | Rec. Screw Length |
|---|---|---|---|
| 1" | Hat Channel or Thin Metal | Self-Tapping | 2" |
| 1" | Drywall or Wood Furring | Drywall Screw | 1-5/8" |
| 1" | Concrete | Tapcon | 2-1/4" |
| 2" | Hat Channel or Thin Metal | Self-Tapping | 3" |
| 2" | Drywall or Wood Furring | Drywall Screw | 3" |
| 2" | Concrete | Tapcon | 3-1/4" |
Common Product Uses
Common Product Uses
- Recording studios, home studio, home theaters, offices, classrooms, gymnasiums, auditoriums, skating rinks, dog kennels, cafeterias, food prep areas, restaurants
- One of the only diffuser panels that block, absorb, and diffuse (rated for NRC and STC)
