BlocknZorbe™ Soundproof Ceiling Tiles
In stock. This product ships in 2-4 business days.
Regular price
$49.99
Sale price
Regular price
Square Footage Calculator
BlocknZorbe™ Soundproof Ceiling Tiles

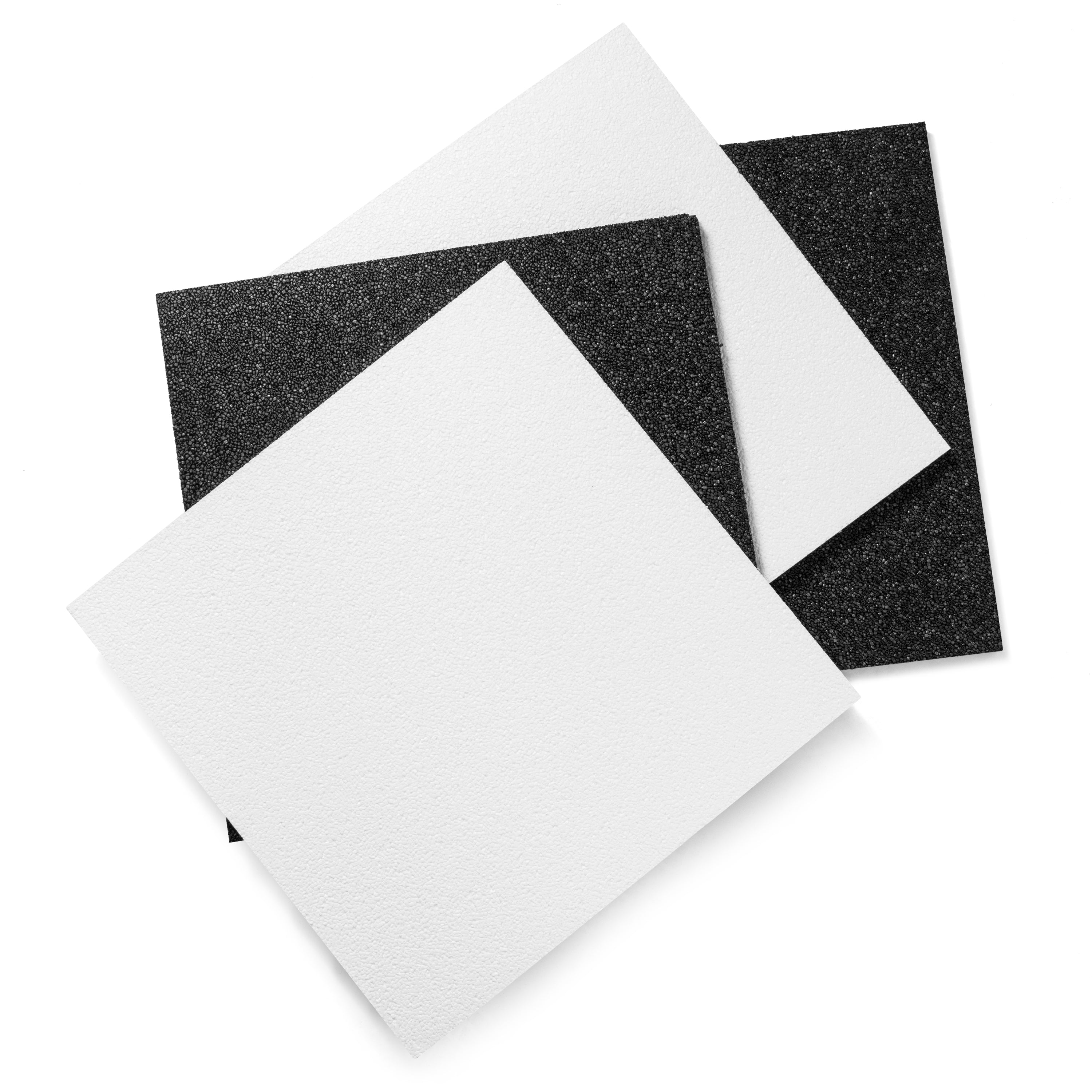

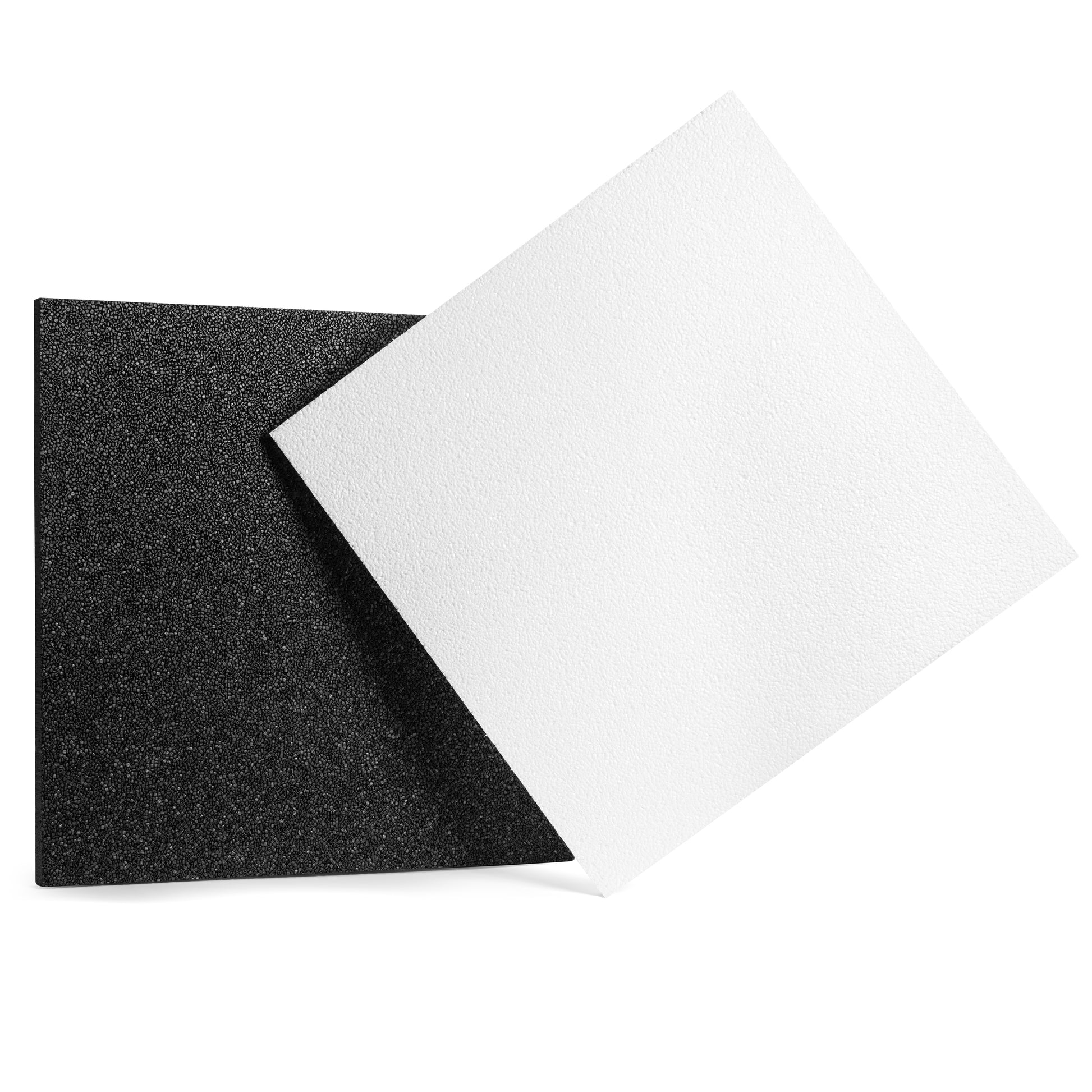

Our BlocknZorbe™ Soundproof Ceiling Tiles are the ceiling tile version of our BlocknZorbe™ Multi-Purpose Sound Panels. They're nominally sized to lay right into your ceiling grid, making them super easy to install!
Features

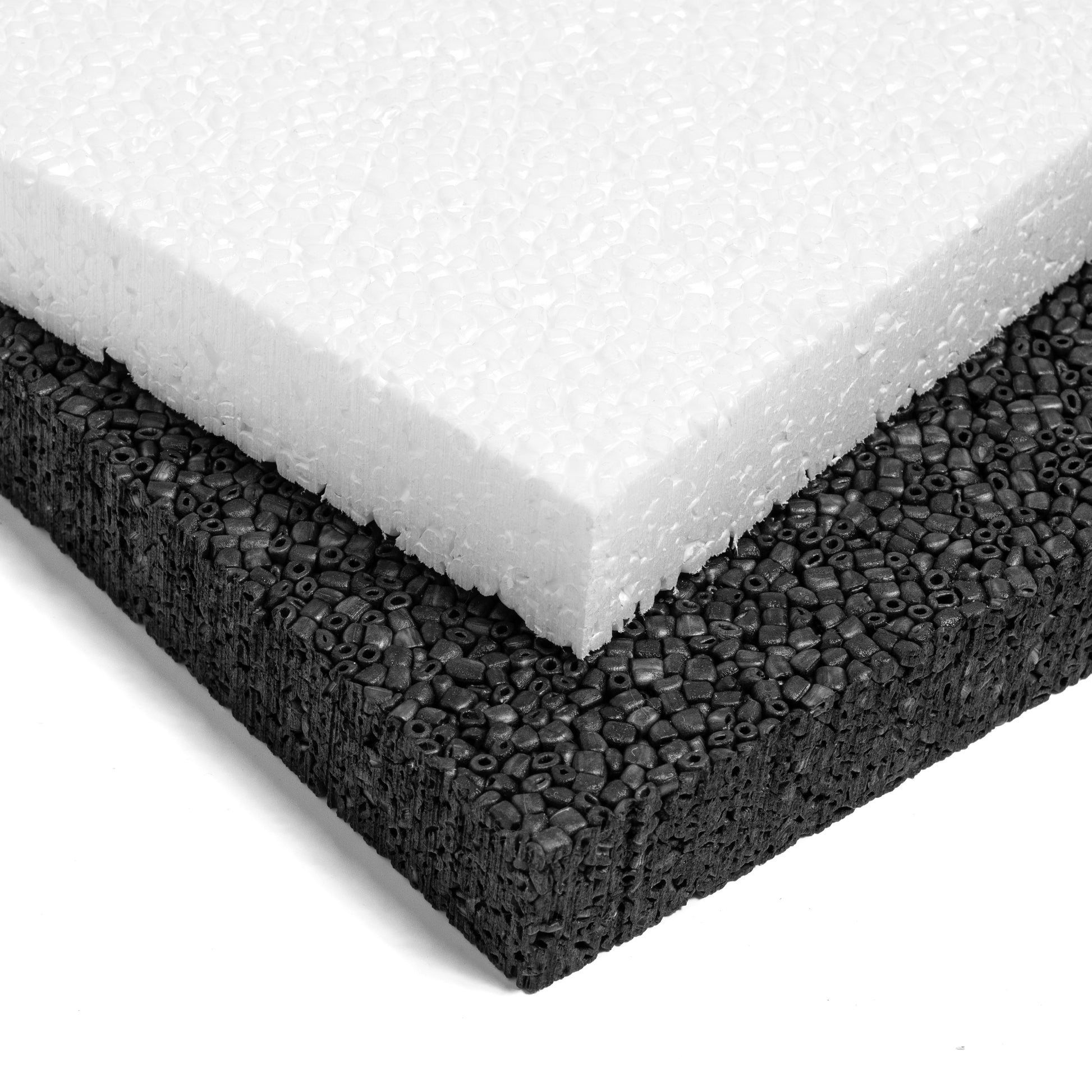

- Semi-rigid, porous expanded polypropylene tiles are the only ceiling tiles to both BLOCK and ABSORB noise
- Easily drop the acoustical ceiling tile in grid
- Lightweight and non-fibrous (no fiberglass)
- Water resistant, impact resistant, and tack-able
- Class A Fire Rated
- Easy to clean
- Proudly made in the USA
Couldn't load pickup availability
Specs
Specs
| Dimensions | 23.75" x 23.75", 23.75" x 47.75" |
| Thickness | 1", 2" |
| Weight | 1lb-2lbs (1"), 2lbs-4lbs (2") |
| Edge Type | Square Edge |
| Thermal Insulation (R-value) | 3.8 per inch |
| Colors | Charcoal, White |
| Paintable | Yes, spray light coats |
Material Testing
Material Testing
Sound Absorption / Noise Reduction Coefficient
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC | SAA |
| 1" BlocknZorbe™ Ceiling Tile | 0.46 | 0.59 | 0.44 | 0.49 | 0.76 | 0.86 | 0.55 | 0.56 |
| 2" BlocknZorbe™ Ceiling Tile | 0.51 | 0.52 | 0.52 | 0.77 | 0.89 | 0.98 | 0.70 | 0.68 |
Sound Transmission Loss
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC |
| 1" BlocknZorbe™ Ceiling Tile | 6 | 5 | 7 | 8 | 10 | 15 | 9 |
| 2" BlocknZorbe™ Ceiling Tile | 9 | 8 | 10 | 10 | 17 | 22 | 13 |
| Tested Properties | Testing Method | Performance |
|---|---|---|
| Fire Rating | ASTM E84 | Class A |
| Acoustical Absorption (Ceiling Tile) | ASTM C423 (E-400 Mount) | 1" NRC: 0.55 | SAA: 0.56 |
| R-value | ASTM C177 | 3.8 per inch |
| Fungal Growth | ASTM C1338 | Pass |
| VOC | CDPH Standard Method v1.2 | Pass |
| Light Reflectance | ASTM E1477 | 90 (White) |
Installation Instructions
Installation Instructions
- Install the ceiling grid according to building codes and relevant standards

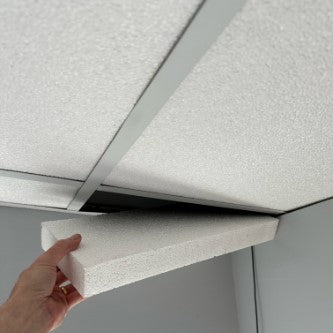

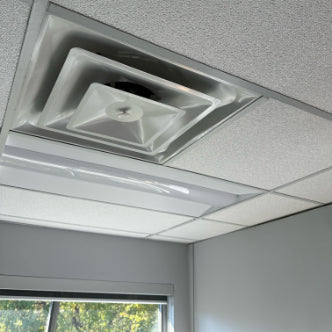

- BlocknZorbe Soundproof Ceiling tiles should be placed in the grid so that the edges sit on the T-grid flanges, with the face of the tile sitting at or below the grid plane.
- If field cuts are needed, use a table saw. Set blade to cut half the thickness of the BlocknZorbe tile. (i.e. for a 2" thick panel, cut 1" and then flip the panel over and cut 1" again to complete the cut)
Common Product Uses
Common Product Uses

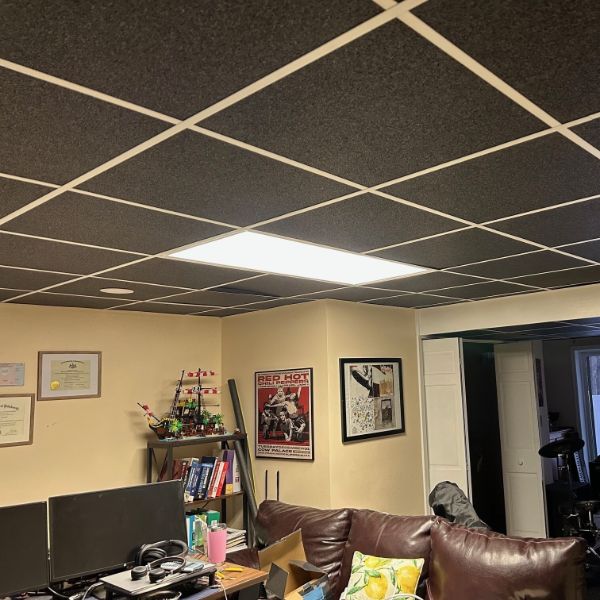

- Nominal sized to easily fit into a ceiling grid for a soundproof drop ceiling (full size BlocknZorbe also available)
- Offices, swimming pools, skating rinks, clean rooms, testing labs, food prep, dog kennels, car washes, gun ranges, rooftop and machine enclosures, cubicles, gymnasiums, auditoriums, schools, classrooms, locker rooms, cafeterias, restaurants, manufacturing plants, and warehouses
Resources
Spec Sheets
Architect CSI Specs
