Mela Muteā¢ Acoustic Foam Wave Clouds
In stock. This product ships in 1-4 business days
Regular price
$139.99
Sale price
Regular price
Square Footage Calculator
Mela Muteā¢ Acoustic Foam Wave Clouds

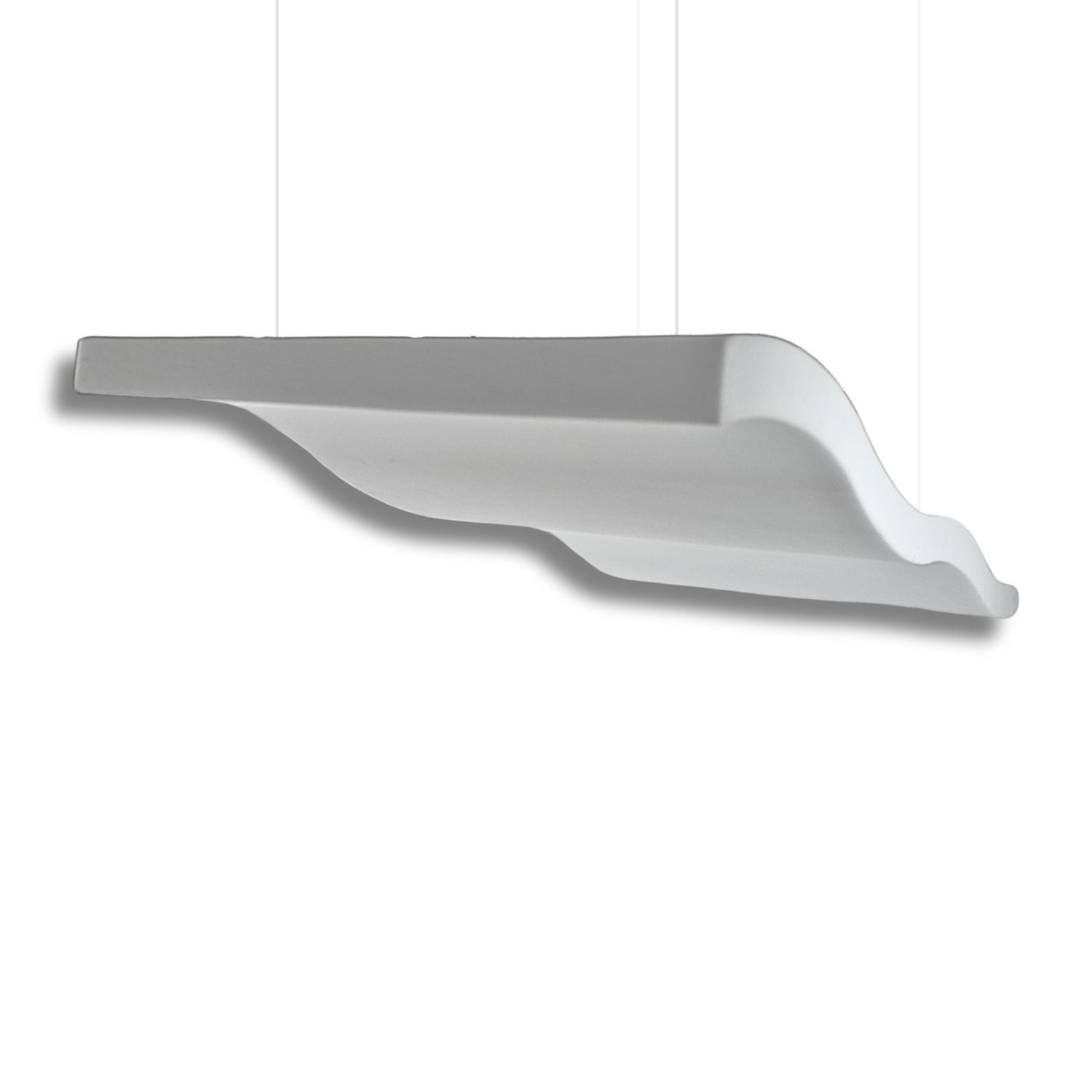

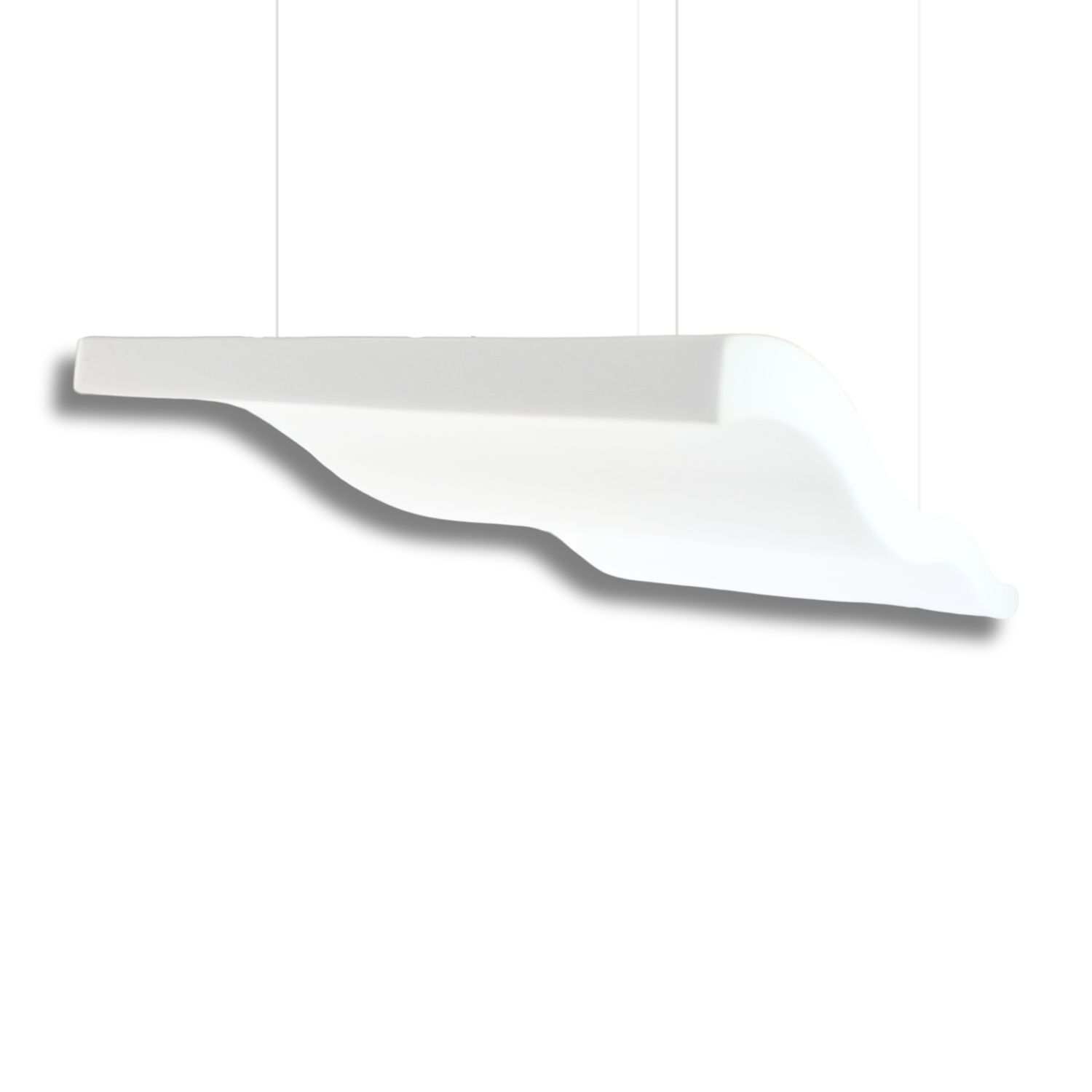

Mela Muteā¢ Acoustic Foam Wave Clouds are a Class A fire rated melamine foam, meaning they won't burn like other cheap foam, making them a great fit for commercial spaces. These lightweight acoustic clouds are easy to install with the provided corkscrew hangers. Add more absorption into your space with an acoustic cloud treatment!
Features
- Premium foam sound absorber (0.85 NRC)
- 4 corkscrews included
- 2" thick melamine foam clouds
- Lightweight and Class A fire rated
- Thermal range: -40Ā°F to 350Ā°F
- Each cloud is 24ā x 48ā (8 sq ft)
- Paintable
Couldn't load pickup availability
Specs
Specs
| Dimensions | 24ā x 48ā (8 Sq Ft) |
| Thickness | 2" |
| Weight | 1.50lbs |
| Flammability | Class A Fire Rated |
| NRC | 0.85 |
| Temperature Resistance | -40Ā°F to 350Ā°F |
| Color | White, Light Grey, and Dark Grey |
| Paintable | Yes |
Material Testing
Material Testing
Noise Reduction Coefficient
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| 2" Mela Muteā¢ Acoustic Foam Wave Clouds | 0.11 | 0.33 | 0.85 | 1.05 | 1.09 | 1.06 | 0.85 |
| Tested Properties | Testing Method | Performance |
|---|---|---|
| Acoustical Performance | ASM C423-17 (B-Mount) | 0.85 NRC |
| Fire Rating | ASTM E84 | Class A |
Installation Instructions
Installation Instructions
Recommended Attachment: Corkscrew (included), light duty chain (by other)
- Map out a template (cardboard is great!) for all ceiling clouds for 4 hanging points.

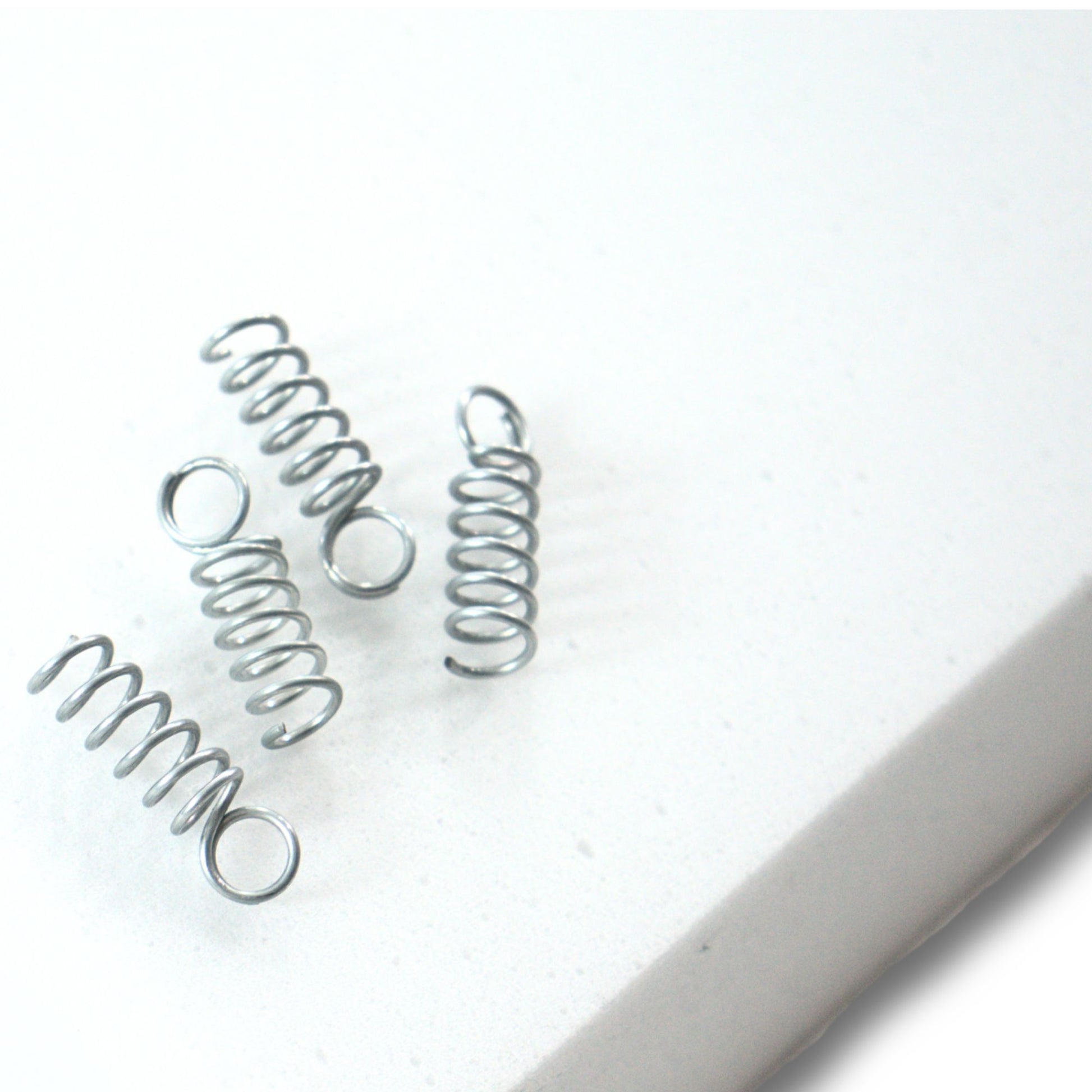

- Screw the provided corkscrew into the Mela Muteā¢ clouds until only the eyelet is visible.
- Loop suspension cable (provided by other) into the eyelet on the corkscrew and close the loop with a cable clamp or similar hardware.
- Suspension cable should be anchored to the roof deck or ceiling structure.
Check out our full install guide !

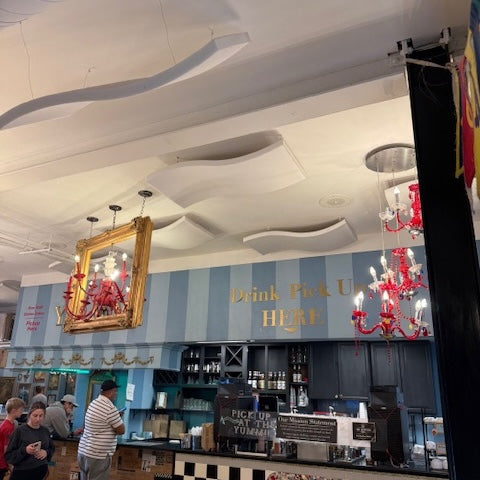

Common Product Uses
Common Product Uses
- Office acoustics
- Recording studio acoustics
- Church and other houses of worship acoustics
- Home studio acoustics
- Gymnasium acoustics
