Mela Mute™ Acoustic Foam Egg Crate Baffles
In stock. This product ships in 1-4 business days
Regular price
$149.99
Sale price
Regular price
Square Footage Calculator
Mela Mute™ Acoustic Foam Egg Crate Baffles
Mela Mute™ Acoustic Foam Egg Crate Baffles are a Class A fire rated melamine foam, meaning they won't burn like other cheap foam, making them a great fit for commercial spaces. These lightweight acoustic baffles come ready to install with pre-installed grommets to hang on a landscape orientation. Add more absorption into your space with an acoustic baffle treatment!
Features
- Premium foam echo & reverb absorber (12.80 Sabins/Baffle)
- Nominal 3" thick melamine foam baffles
- Lightweight and Class A fire rated
- Thermal range: -40°F to 350°F
- Each baffle is 24” x 48” (8 sq ft)
- Paintable
Couldn't load pickup availability
Specs
Specs
| Dimensions | 24” x 48” (8 Sq Ft) |
| Thickness | Nominal 3" |
| Weight | 1.50lbs |
| Flammability | Class A Fire Rated |
| Sabins/Baffle | 12.80 |
| Temperature Resistance | -40°F to 350°F |
| Color | White, Light Grey, and Dark Grey |
| Paintable | Yes |
Material Testing
Material Testing
Sabins Per Baffle
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | Sabins/Baffle |
| 3" Mela Mute™ Acoustic Foam Baffle | 4.17 | 6.50 | 10.00 | 15.60 | 17.90 | 19.50 | 12.80 |
| Tested Properties | Testing Method | Performance |
|---|---|---|
| Acoustical Performance | ASM C423-17 (16" Spacing) | 12.80 Sabins/Baffle |
| Fire Rating | ASTM E84 | Class A |
Installation Instructions
Installation Instructions

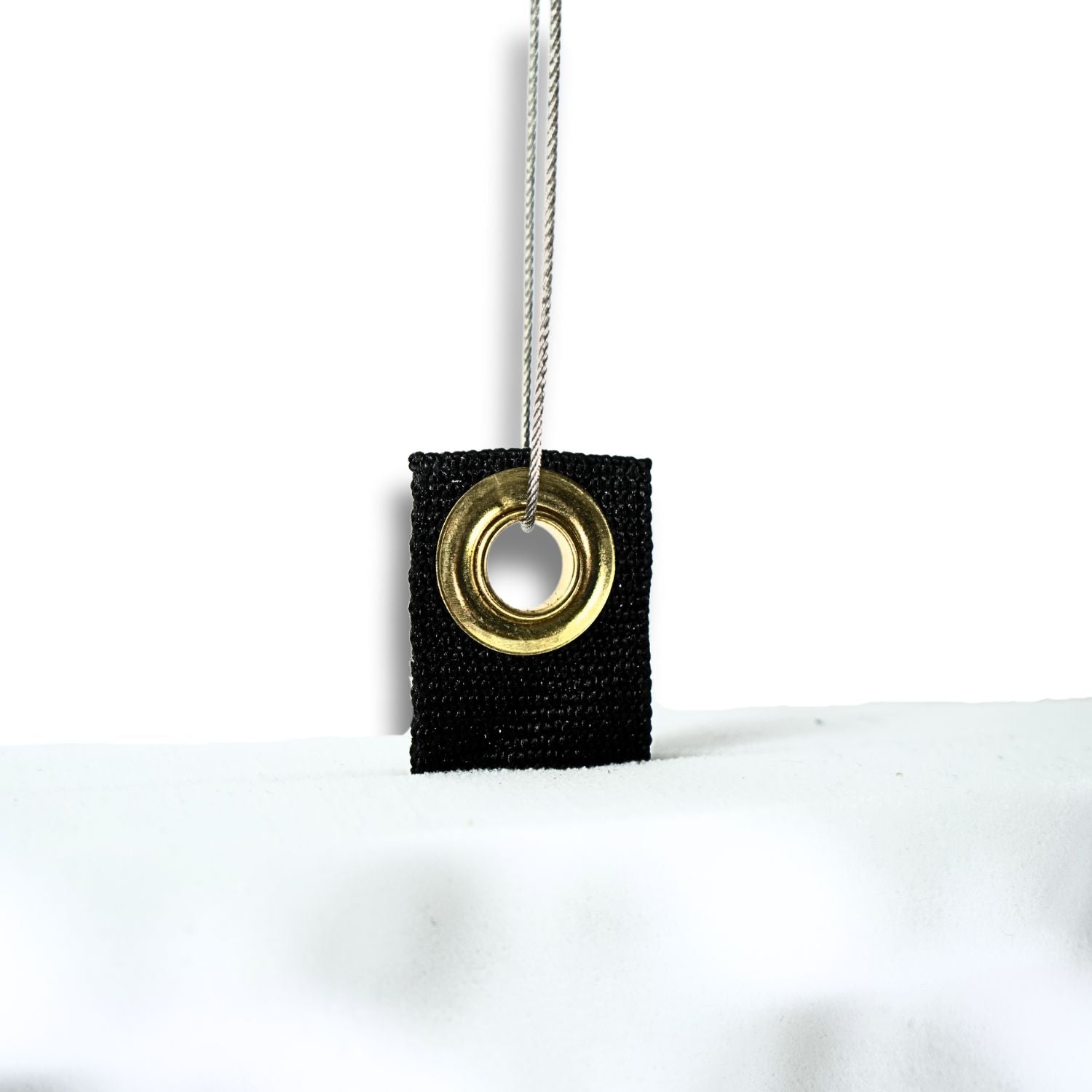

Recommended Attachment: Grommets (included), light duty chain (by other)
- Loop suspension cable (provided by other) into the eyelet on the grommets and close the loop with a cable clamp or similar hardware.
- Suspension cable should be anchored to the roof deck or ceiling structure.
Check out our full install guide !
Common Product Uses
Common Product Uses
- Office acoustics
- Recording studio acoustics
- Church and other houses of worship acoustics
- Home studio acoustics
- Gymnasium acoustics
