Luxury Liner™ Reinforced Mass Loaded Vinyl Roll
In stock. This product ships in 1-3 business days.
Regular price
$399.99
Sale price
Regular price
Square Footage Calculator

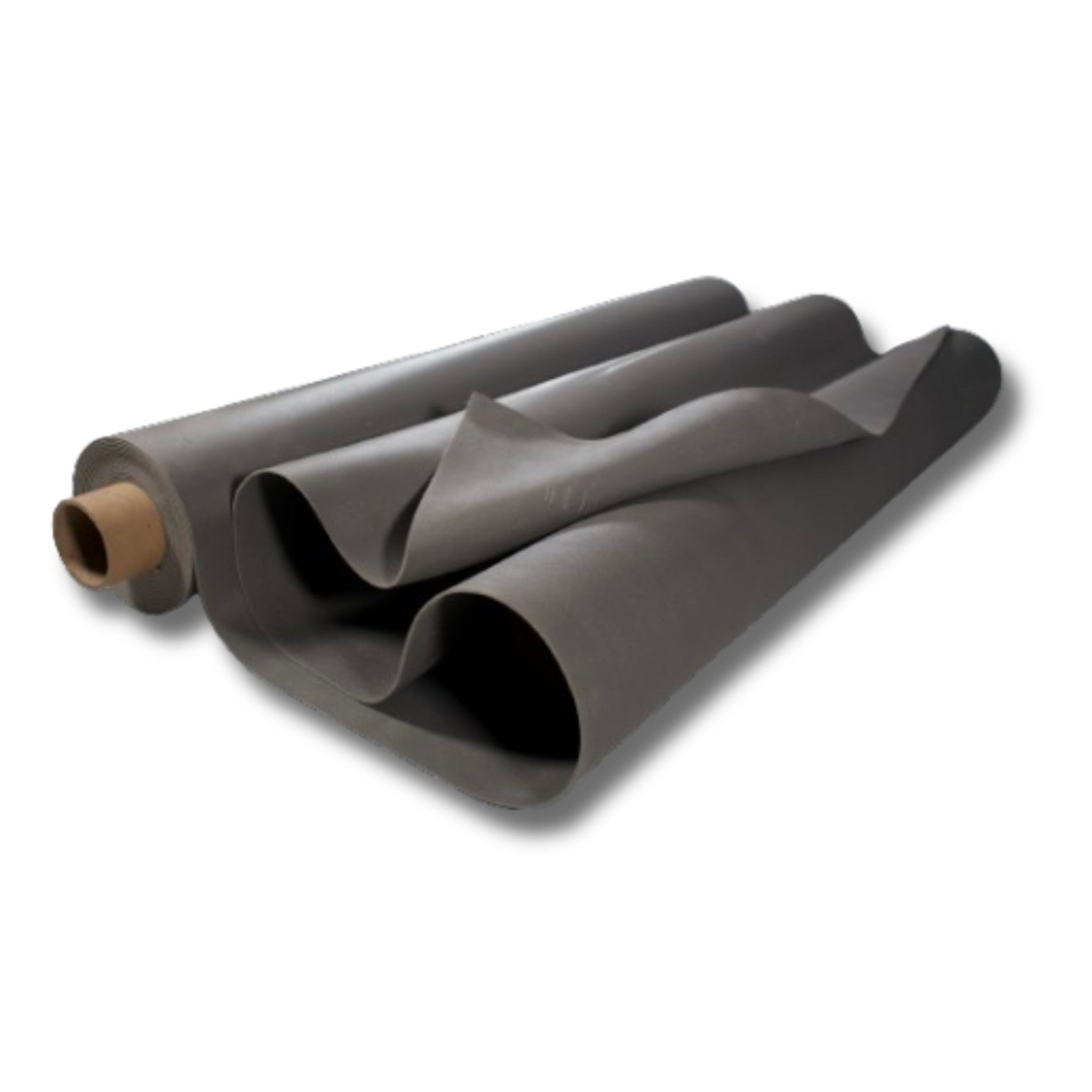

Luxury Liner™ Reinforced Mass Loaded Vinyl Roll
Second Skin's Luxury Liner™ reinforced mass loaded vinyl roll is perfect for creating outdoor barriers and for any application where it needs to hang vertically. This roll can be left exposed to contact and hang vertically because of its high tensile strength and tear resistance. These rolls are reinforced with scrim and also meet fire and safety standards so you can get the job done without having to worry.
Features
- Nominal 1/8” thick premium reinforced mass loaded vinyl
- Each roll is 4' wide x 25' long (100 sq ft) or 4.5' wide x 20' long (90 sq ft)
- Weight: 1lb per square foot
- Tensile Strength: 1155 psi
- Breaking Strength: 200lbs
- STC rating: 27
- How does 1lb reinforced MLV compare to standard 1lb MLV? 1lb reinforced MLV weighs the same per square foot and is just as flexible, but 1lb reinforced mass loaded vinyl has many times the tensile strength (1155 psi) of standard 1lb mlv, making it perfect for fence soundproofing and any vertically hanging applications.
- Proudly made in the USA
Couldn't load pickup availability
Specs
Specs
| Dimensions | 4’ x 25’, 4.5’ x 20’, Call for Custom Sizes |
| Thickness | Nominal 1/8" |
| Weight | 1lb per sq ft |
| Tensile Strength | 1155 psi |
| Color | Grey |
| Temperature Rating | -40°F to 200°F |
| STC Rating | 27 |
Material Testing
Material Testing
Sound Transmission Loss
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC Rating |
| 1lb Reinforced MLV Sound Transmission Loss (dB) | 17 | 17 | 23 | 28 | 33 | 37 | 27 |
| Tested Properties | Performance |
| Tensile Strength | 1155 psi |
| Elongation | 76.7% |
| Tear Strength | 60lbs |
| Breaking Strength | 200lbs |
| Flammability Rating | Self-extinguishing |
Installation Instructions
Installation Instructions
Indoor
Recommended Install Method: Reinforced grommets
- Roll out the MLV so the length of the material matches the barrier's height, less 1/8". Using a T-square, cut the mass loaded vinyl using a sharp utility knife.
- Fasten the MLV to the barrier using reinforced grommets. Start attaching the MLV at the top of the barrier and work your way across ensuring the MLV stays straight.
- Drywall will not support the weight of MLV. Always attach to studs.
- Cut out space for any protrusions like outlets.
- As you work your way across the barrier, keep the ends of the MLV directly next to each other for an airtight barrier. Use acoustic caulk to seal any gaps.
Outdoor
Recommended Install Method: Reinforced grommets
- Using grommets, fasten the MLV with 100% coverage on fencing (chain link, wood), stick frame (stainless steel, aluminum), scaffolding, or other supporting structure.
- Edges should butt up next to one another.
Common Product Uses
Common Product Uses

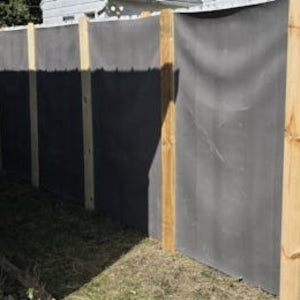

- Fence soundproofing (outdoors)
- Wall soundproofing (exterior)
- Generator enclosure
- HVAC ducts
- Mechanical rooms
- Machinery enclosures
Resources
Spec Sheets
