Garage Door Insulation Kit
In stock. This product ships in 1 business day

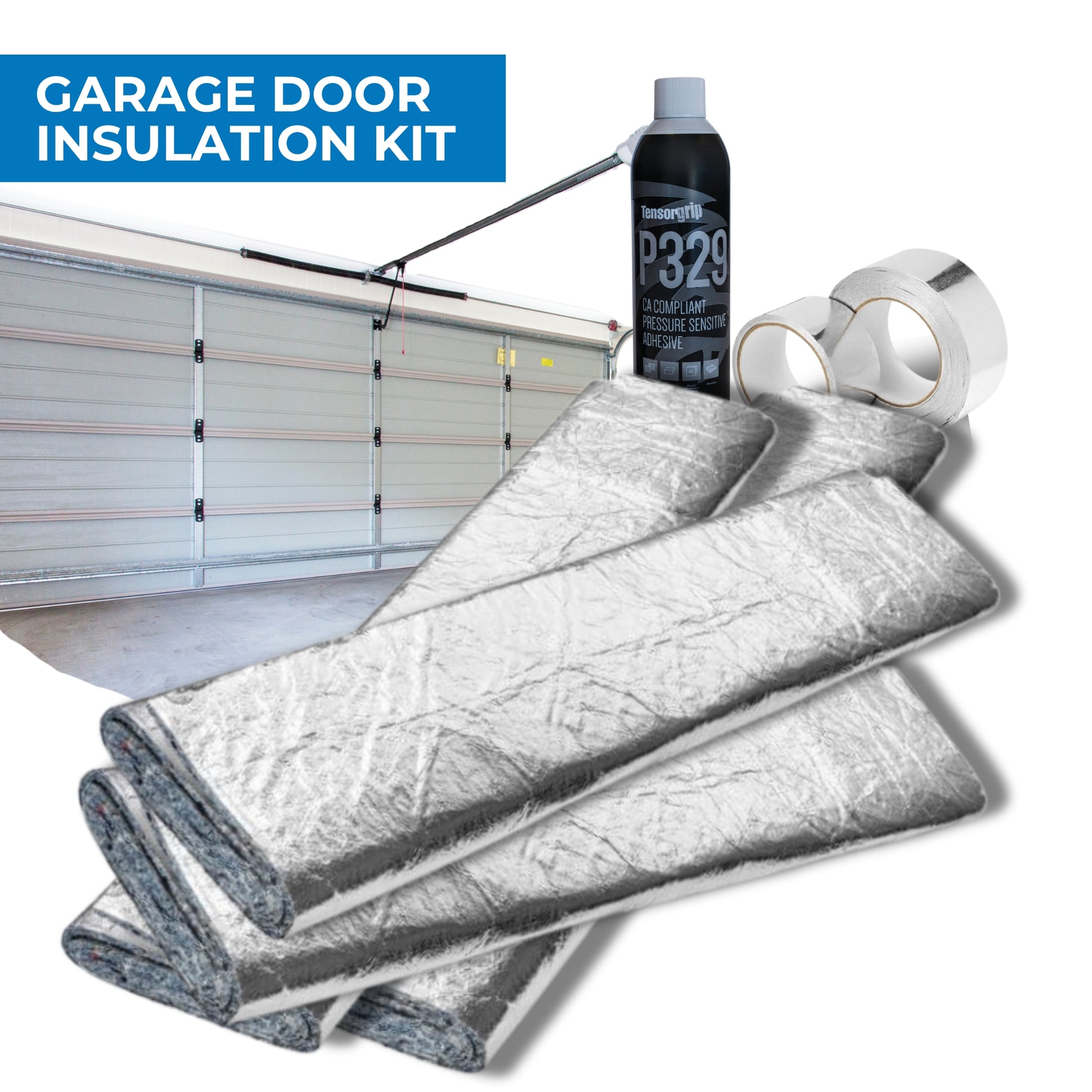

Garage Door Insulation Kit
Second Skin’s Garage Door Insulation Kit is a quick, effective way to cut down on heat and noise in your garage. It features Heat Wave Pro™, a high R-value, flexible insulation made from sustainably-sourced jute and 97% reflective reinforced foil fabric. Install this kit on your garage door to enjoy a cooler, quieter space year-round.
Features
- Designed to increase insulation of a fiberglass garage door with struts
- Lowers temperature in a garage with an un-insulated fiberglass door by up to 5°F
- Reduces overall noise in an unfinished garage without exposed insulation by 3-5 dB
- Quiets sound of garage door movement by 30-40%
- Lightweight and flexible for easy install

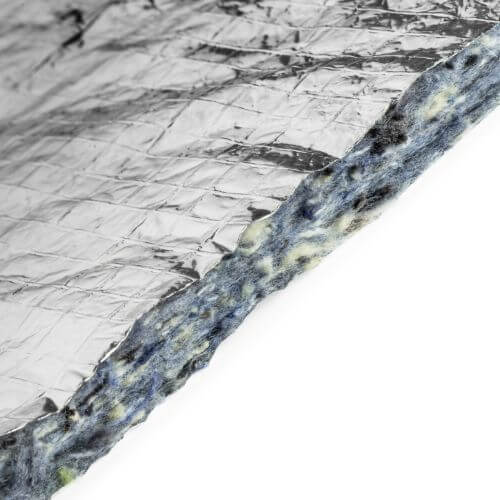

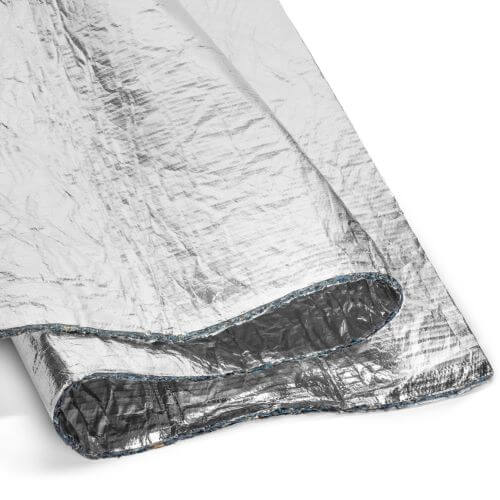

- Recycled, eco-friendly, thermal jute insulation sandwiched between two sheets of 97% reflective reinforced foil
- Treated for fire, mold, and mildew resistance
- Made in the USA
Couldn't load pickup availability
Specs
Specs
| Sheet Dimensions | 6' x 4' (24 sq ft) |
| Thickness | 3/8" |
| Weight | 5 lbs / sheet |
| Temperature Rating | 250°F |
| Thermal Insulation (R-value) | 3.91 per inch |
| Included Adhesive | P329 Spray Adhesive |

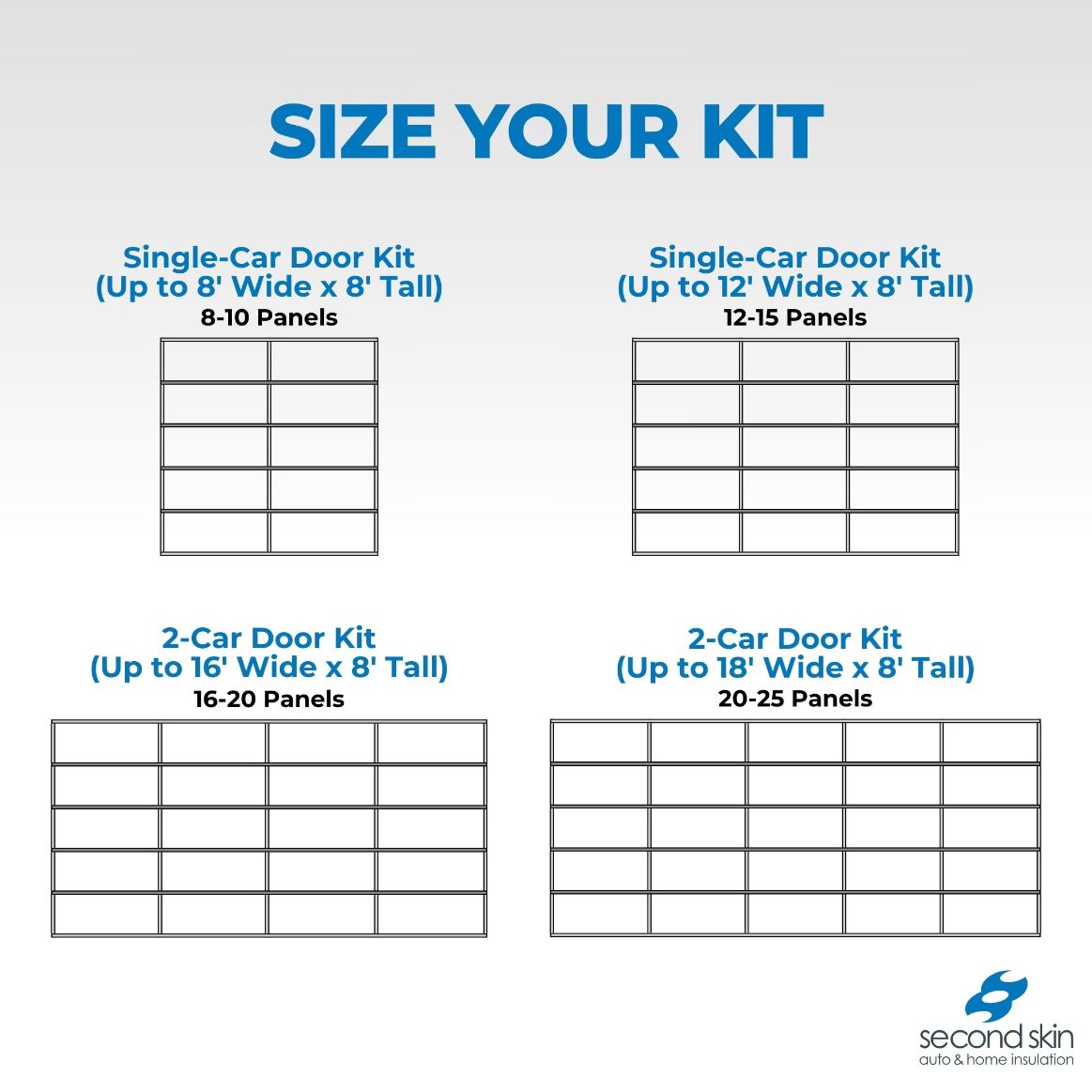

Sizing Your Garage Door Insulation Kit
- Confirm the height of your garage door. Our insulation kits are designed for 8' tall doors.
- Measure the width of your garage door.
- We have 4 kits: 8', 12', 16', and 18'. Round up to the nearest width.
| Kit Size | Contents |
| Single Car Kit (8' Wide) |
|
| Single Car Kit (Up to 12' Wide) |
|
| 2-Car Kit (Up to 16' Wide) |
|
| 2-Car Kit (Up to 18' Wide) |
|
Material Testing
Material Testing
Noise Reduction Coefficient
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| Heat Wave Pro™ Jute Insulation | 0.12 | 0.10 | 0.23 | 0.56 | 0.81 | 0.89 | 0.45 |
| Description | Testing Method | Performance |
| Surface Burning Characteristics | ASTM E 84 | Flame Spread (Class 1): 10 |
| Zero Burn Surface | FMVSS 302 | Exceeds Standard (Less than 1/5 in / min) |
| Facing | 99% Pure Aluminum Reinforced Foil | |
| Foil Emissivity | ASTM E 40 | .03 |
| Foil Reflectivity | ASTM E 40 | 97% |
| Tensile Tear Strength | 100 lbs | |
| Pad Weight | 3 oz / sf |
Sizing
Sizing
- Confirm the height of your garage door. Our insulation kits are designed for 8' tall doors.
- Measure the width of your garage door.
- We have 4 kits: 8', 12', 16', and 18'. Round up to the nearest width.
| Kit Size | Contents |
| Single Car Kit (8' Wide) |
|
| Single Car Kit (Up to 12' Wide) |
|
| 2-Car Kit (Up to 16' Wide) |
|
| 2-Car Kit (Up to 18' Wide) |
|
Installation Instructions
Installation Instructions

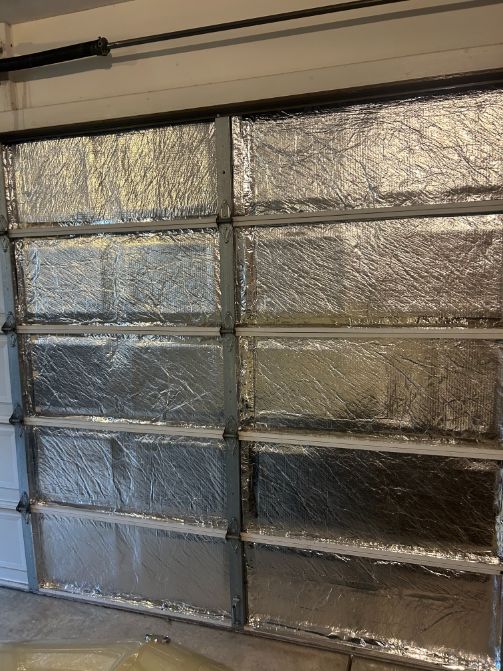

How to Install Garage Door Insulation
- Cut Heat Wave Pro to size using scissors, a utility knife (have extra blades), or score with with a utility knife and then use an electric fabric cutter. Use a 48” T-square to get straight cuts.
- The goal is to cover 100% of each garage door panel without impacting the door’s ability to open and close. Heat Wave Pro should be “tucked in” at the edge of each garage door panel.
- You should be able to do (3) garage door panels per (1) sheet of Heat Wave Pro.
- Clean the garage door to create a good substrate for adhesion. Brush off interior surface to remove dirt, dust, debris, and cobwebs. Scrub surface with gentle soap solution. Use a clean, wet cloth to wipe away suds, and then use a clean dry cloth to dry the surface.
- Apply Heat Wave Pro using our P329 Permanent Spray Adhesive. Apply to both the garage door and the Heat Wave Pro at 80-100% coverage. Give it 1-2 minutes to tack up. Then hold firmly to garage door to bond.
- Use foil tape to tape seams and perimeter. You should not have seams between Heat Wave Pro due to size of garage door panels, so just do the perimeter.
Check out our !
Common Product Uses
Common Product Uses
- Home Garage Insulation
- Garage Gym Insulation
- Garage Music Room Insulation
- Garage Workshop Insulation
- Warehouse Garage Insulation
- Garage Conversions Insulation
