Acoustic Proâ„¢ Fabric Wrapped Panels
In stock. This product ships in 3 weeks.
Square Footage Calculator
Acoustic Proâ„¢ Anchorage Fabric Wrapped Panels
Improve the acoustics and aesthetics of any indoor space with our Acoustic Proâ„¢ Fabric Wrapped Panels! These world class panels are acoustically engineered with a fiberglass core, hardened edges, and can be wrapped in our standard Anchorage fabric colors or custom quoted for any other fabric you choose!
Features
- Fabric wrapped panels are more effective, durable, and infinitely customizable to meet any aesthetic

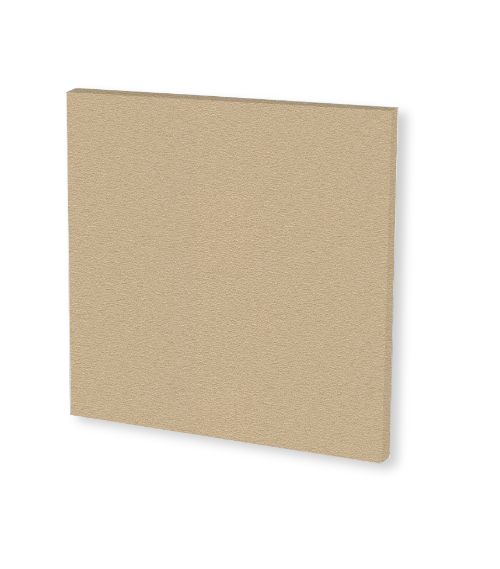

- Choose from our 2' x 2', 2' x 4', and 1' x 4' standard panels (or customize up to a 5' x 10' panel!)
- 6-7 PCF density fiberglass core

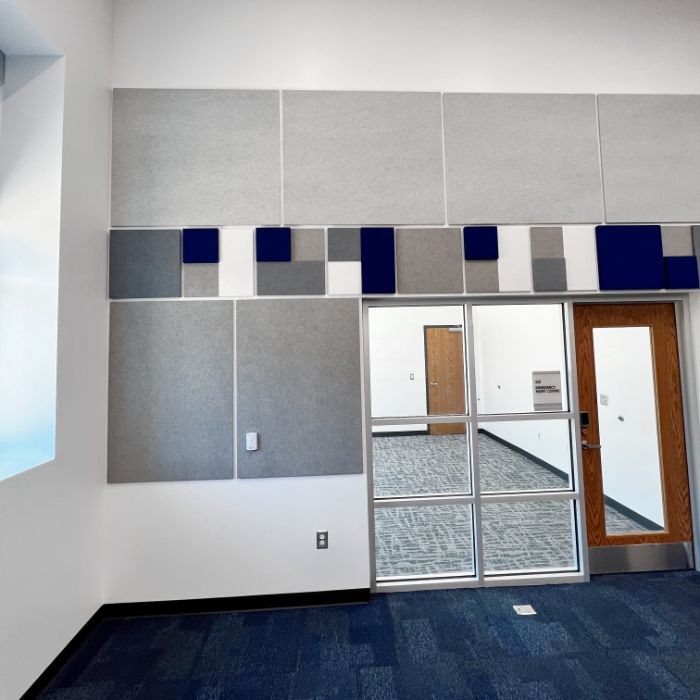

- 1" or 2" panel thickness
- Hardened edges for increased durability and aesthetic
- Wrapped Guilford of Maine Anchorage - acoustic and decorative
- Choose from our Standard Color Options or choose any other fabric type or color via phone or online quote
- Class A fire rated
- Recommended Installation Options: Construction Adhesive, Rotofast Snap-on Acoustic Panel Anchors (not included)
- Made in the USA
Couldn't load pickup availability
Specs
Specs
| Dimensions | 24" x 24" 24" x 48" 12" x 48" Up to 5' x 10' via phone or quote |
| Fabric | Guilford of Maine - Anchorage (standard) Guilford of Maine - FR 701 Burch - Prime Time |
| Thickness | 1", 2" |
| Edge | Square Edge, Bevel or Rounded edge via phone or quote; All Edges Hardened |
| Attachment | Construction Adhesive, Impaling Clips, Rotofast Anchors, Z-Clips |
Material Testing
Material Testing
Noise Reduction Coefficient
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| 1" Acoustic Proâ„¢ Fabric Wrapped Panel | 0.14 | 0.27 | 0.80 | 1.11 | 1.14 | 1.14 | 0.85 |
| 2" Acoustic Proâ„¢ Fabric Wrapped Panel | 0.22 | 0.81 | 1.24 | 1.30 | 1.21 | 1.16 | 1.15 |
Installation Instructions
Installation Instructions
Included Install Method: Rotofast Snap-On Anchor
Other Installation Options: Impaling clips, construction adhesive (Liquid Nails)

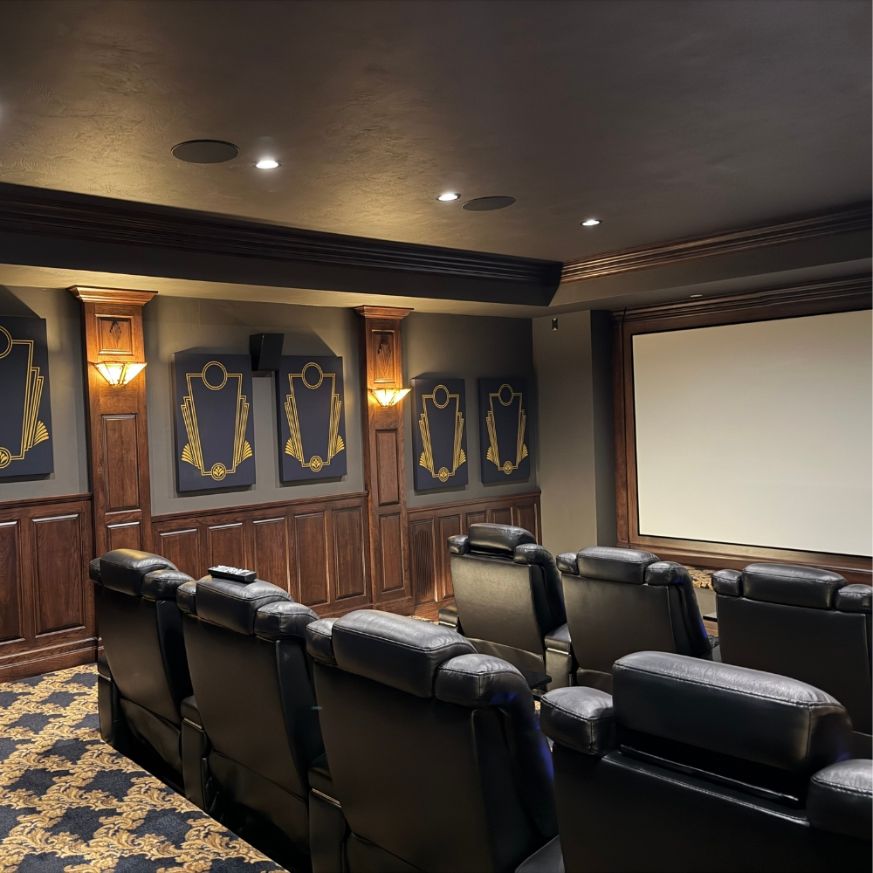

Install Locations: recording studio, home theater, church (house of worship), home, office, conference room, restaurant, classroom, auditorium, gymnasium
Steps to Install with Rotofast Snap-On Anchors (Drywall)
- Determine the correct amount of panels: how many acoustic panels do I need?
- Screw the Rotofast Snap-On Anchors into the back of the Acoustic Proâ„¢ fabric wrapped acoustic panel using the Rotofast driver tool.
- Insert marking plugs into the Snap-On anchors.
- Line panel up in the desired location, ensuring that it's level. In most situations, this will be on the upper half of the wall like you'd install a picture frame. Then push panel against the wall to mark the anchor locations.
- Screw ratchets to the wall at the marked locations. (#8 screws recommended)
- Firmly push the fabric wrapped panel onto the ratchets to complete the install.
For more detailed install instructions, see our guide on How to Install Acoustic Panels.
Common Product Uses
Common Product Uses
- Recording Studios
- Home and commercial offices
- Auditoriums

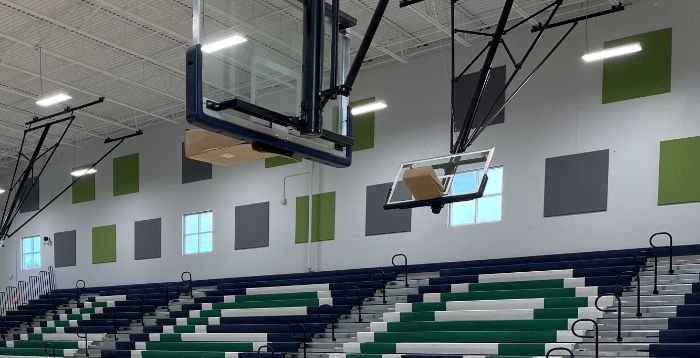

- Gymnasiums
- Event halls
- Bars and restaurants

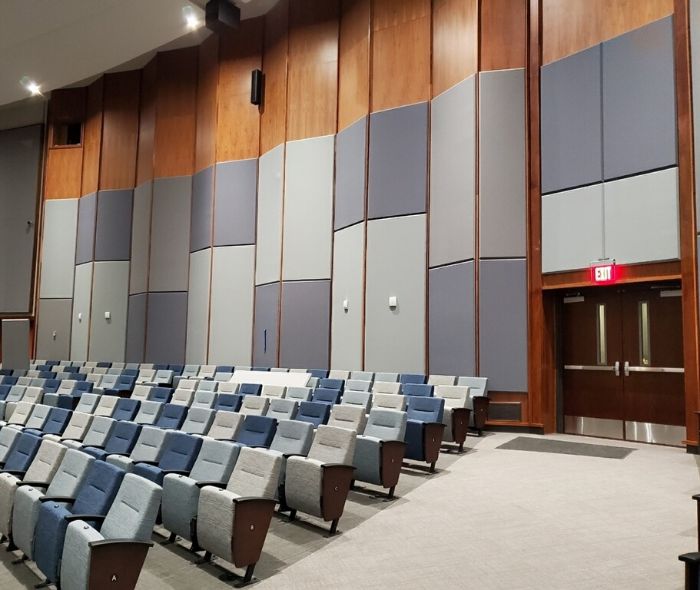

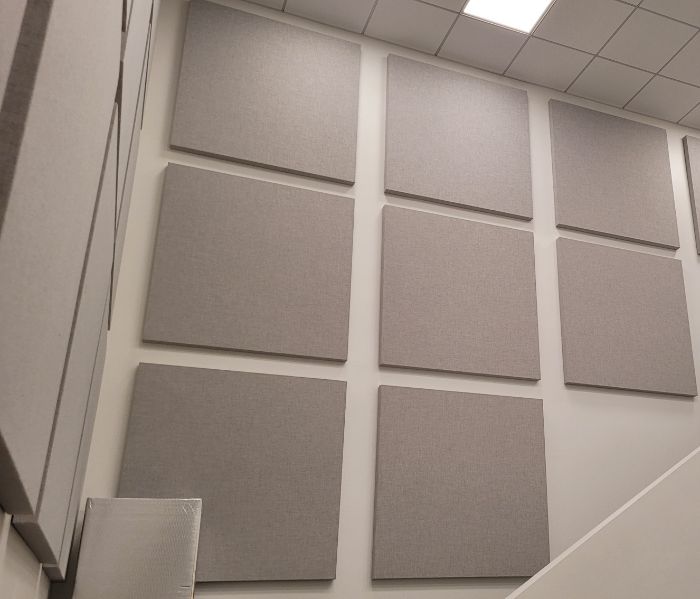

- Church sanctuaries
- Any indoor environments where you need to reduce the echo & reverb
Shipping Details
Shipping Details
Resources
Architect CSI Specs
