This nice 4 x 4 edition Sprinter Van got some serious coverage. This build utilized the 40%-60% method with Damplifier Pro all across the van walls, floor, and ceiling with 120 sqft of Damplifier Pro cut into smaller sizes and spread out all along the areas.

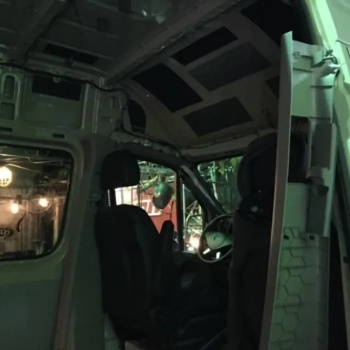

A few sheets used in the cabin ceiling and walls, spread out to use the 40%-60% method.

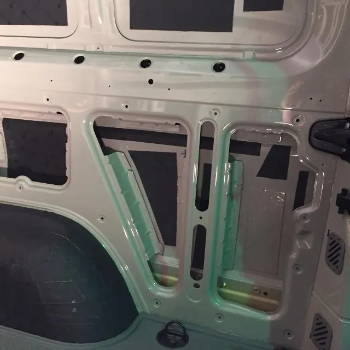

When using the 40-60% method it is still important to hit up the high noise producing areas like the wheel well humps with 100% coverage.

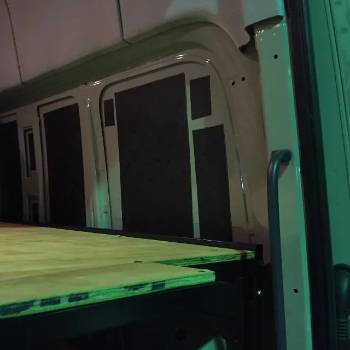

Side Walls of the Sprinter Van with the 60% coverage. Focus on the large flexible metal when using this method.

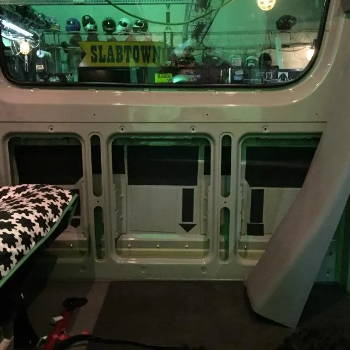

Side walls under the windows with Damplifier Pro.
Sliding Door Damplifier Pro.

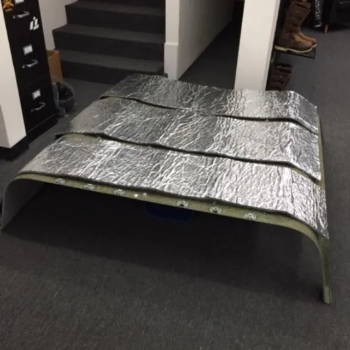

MBVAN used the Heat Wave Pro thermal insulation jute material as the second layer for the entire ceiling area. Attaching the lightweight Heat Wave Pro directly to the headliner molds.

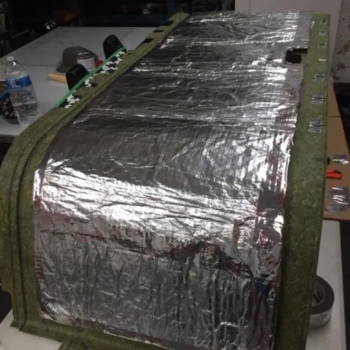

Mid section headliner lined with Heat Wave Pro.

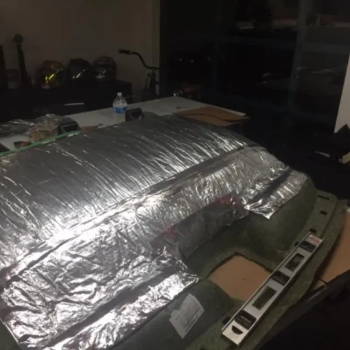

Rear cargo section headliner lined with more Heat Wave Pro. The entire roof area from windshield to rear doors took (6) sheets of Heat Wave Pro.
